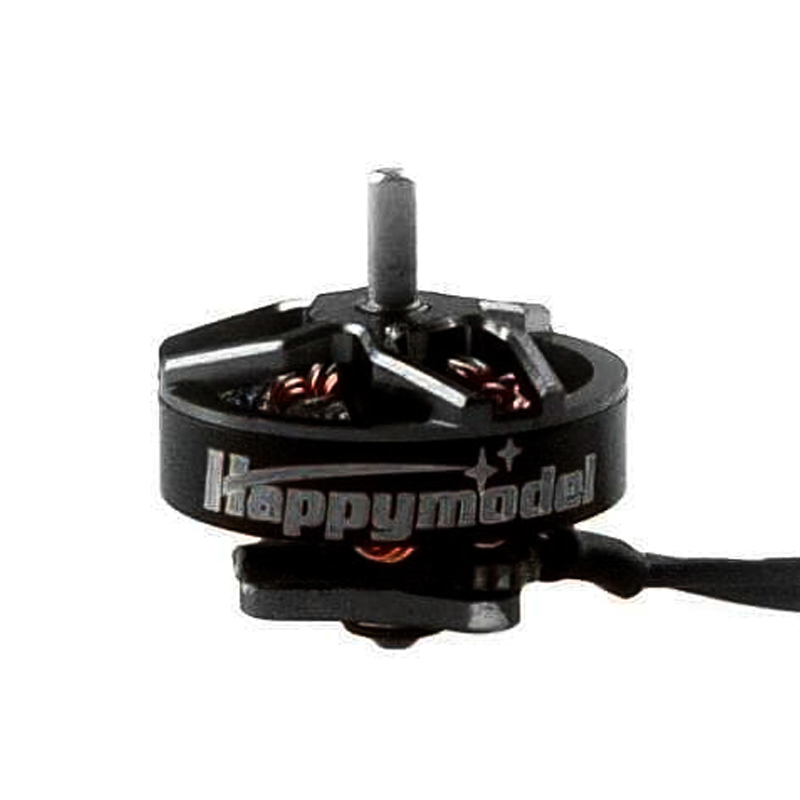

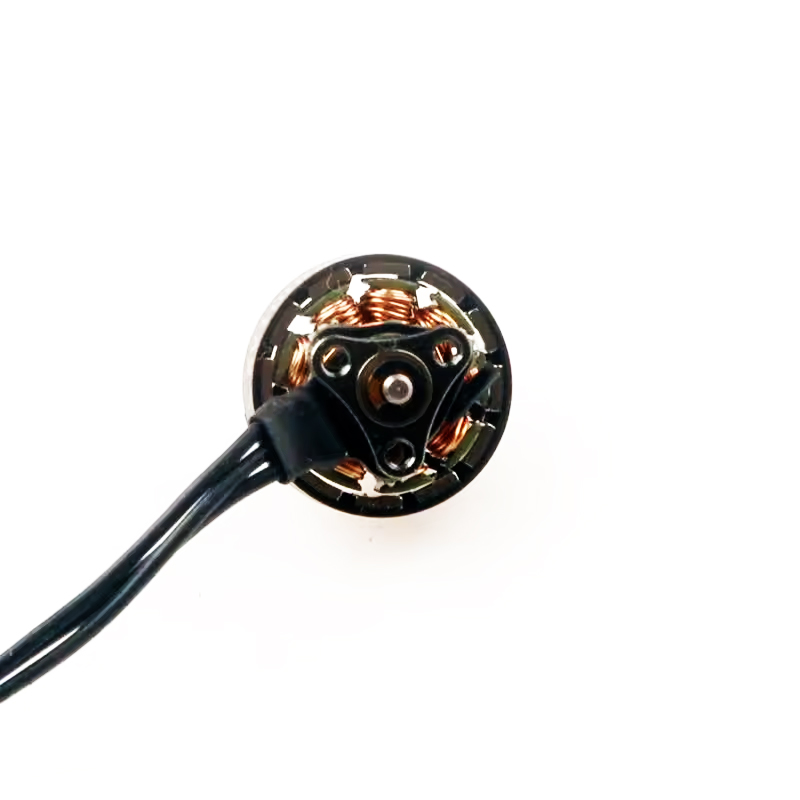

HappyModel RS1102 KV13500 1.5mm Shaft Brushless Motor (CW)

The RS1102 13500KV motor is optimized for 2S to 3S LiPo battery packs, operating within a voltage range of 7.4V to 11.1V. Exceeding 3S (12.6V) is not recommended as it may cause excessive current draw, overheating, and premature failure of the motor or ESC.

This motor is compatible with micro propellers ranging from 40mm to 66mm in diameter. For 2S setups, larger props within this range can be used. For 3S power, smaller, lower-pitch props (e.g., 40mm-55mm) are recommended to manage current draw and prevent overheating while maintaining high RPM.

Yes, the HappyModel RS1102 13500KV with a 1.5mm shaft is the original equipment motor for the Mobula7 HD and is a direct physical and electrical replacement. Ensure your flight controller ESC supports the high KV rating and that you use the correct motor rotation (CW/CCW) for your build.

The dual-bearing design utilizes two shielded ball bearings on the motor shaft. This configuration provides superior radial support, minimizing shaft wobble and vibration at high RPMs. This results in smoother operation, reduced wear, longer motor life, and cleaner FPV video footage by mitigating high-frequency vibrations.
