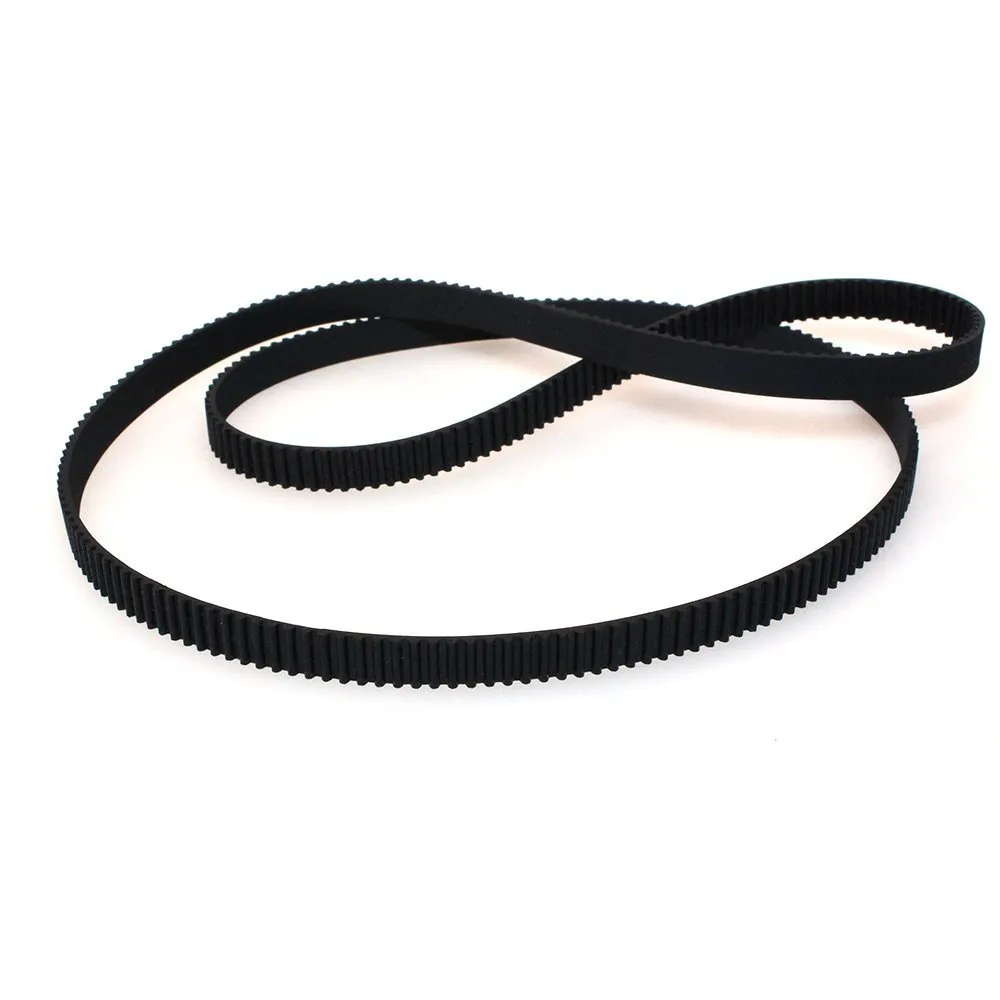

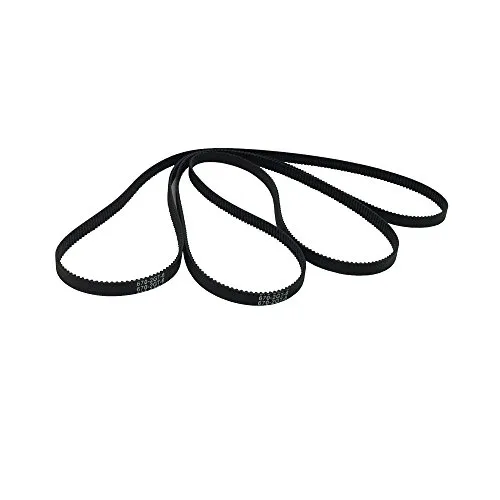

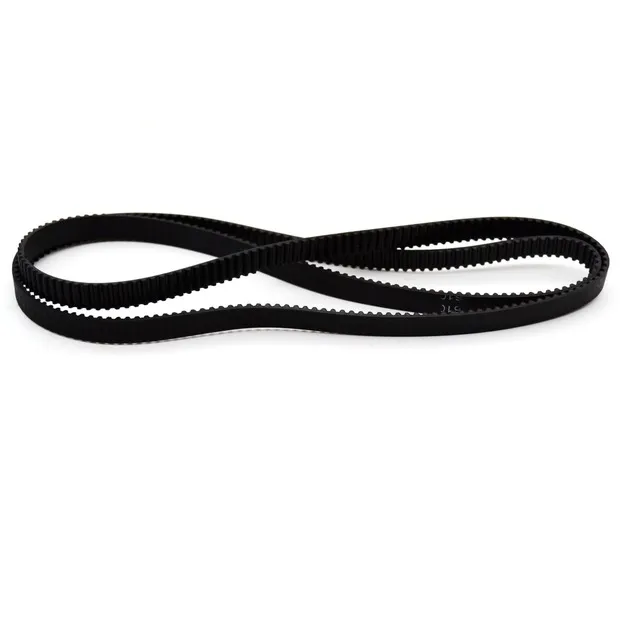

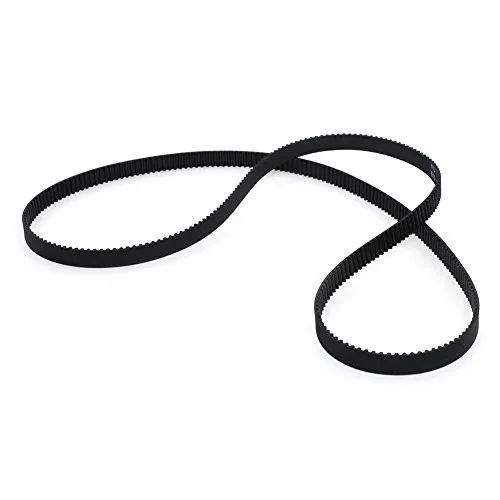

GT2 188mm Closed-Loop Rubber Timing Belt, 6mm Width

GT2 timing belts, with their circular arc tooth profile, are designed to minimize backlash, ensuring highly accurate and repeatable linear motion. This is crucial for achieving smooth movements and precise print quality in 3D printers and similar applications.

This GT2 timing belt is designed for systems utilizing GT2 pulleys and requires a 6mm belt width and 188mm closed-loop length. Users should verify their specific 3D printer model's specifications to confirm compatibility before purchase or installation.

This belt is constructed from neoprene rubber with an integrated fiberglass core. Neoprene provides excellent flexibility, wear resistance, and a good coefficient of friction. The fiberglass core significantly enhances tensile strength, preventing stretching and maintaining consistent tension.

The closed-loop design ensures that the belt is a continuous, seamless loop, providing consistent tension and eliminating any potential for slippage or uneven wear that might occur with open-ended belts joined by clips. This leads to more reliable and precise motion.

This GT2 timing belt features a 2mm pitch, which is the distance between the centers of two adjacent teeth. The tooth height is 0.76mm, contributing to the belt's ability to engage precisely with GT2 pulleys and minimize backlash for accurate movement.
