Generic ROTG01 UVC OTG FPV Receiver - White

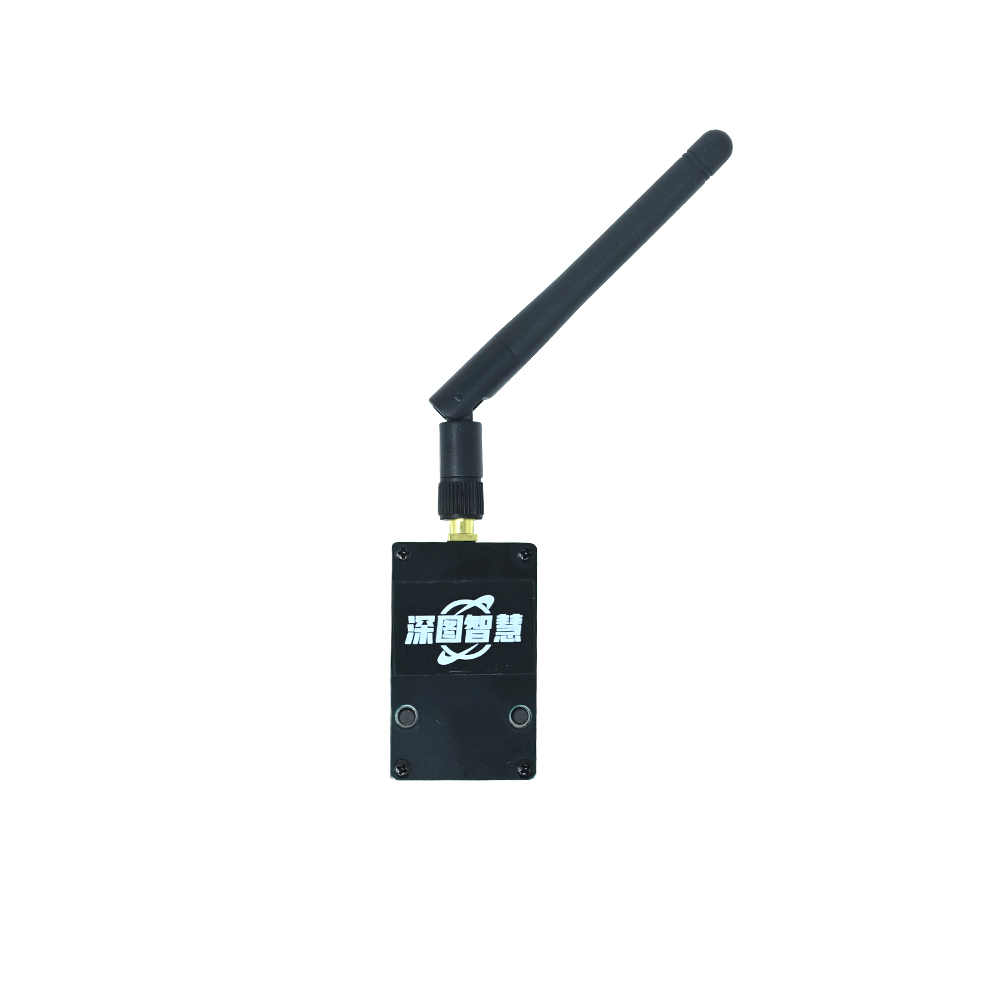

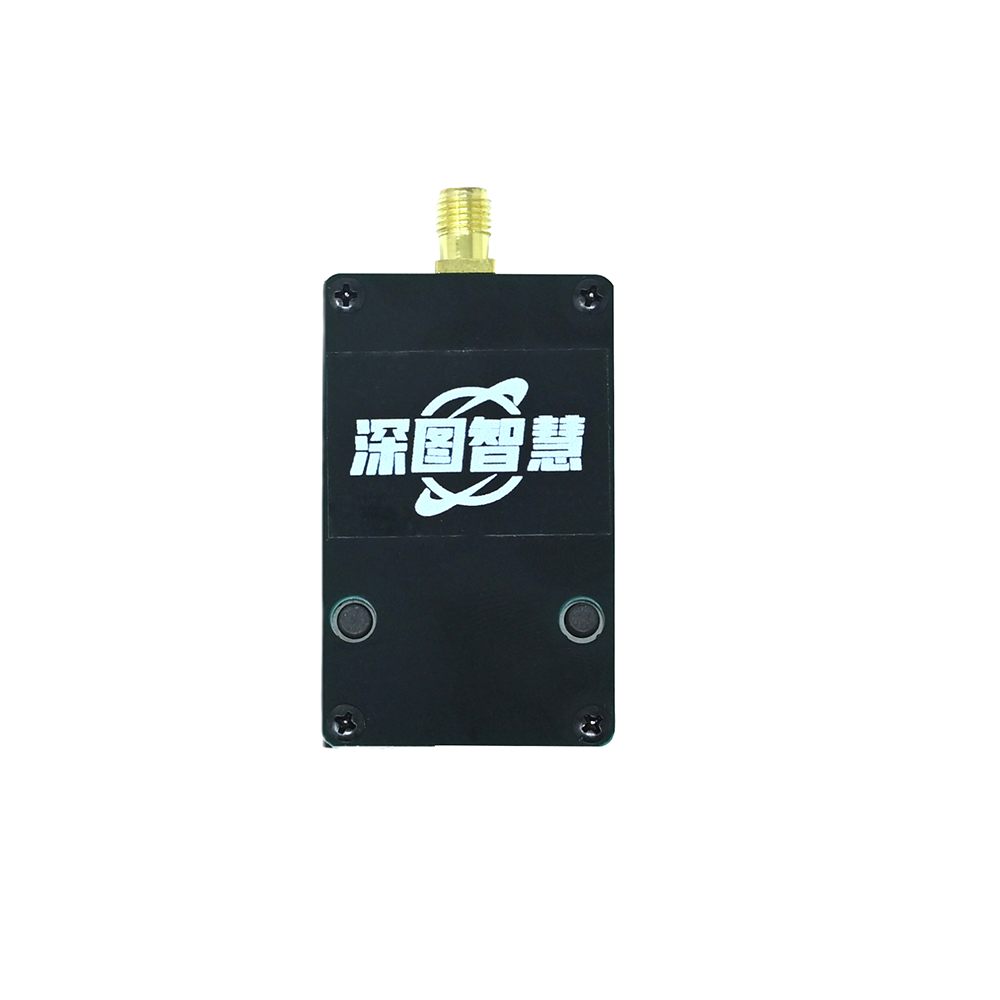

The Generic ROTG01 is a 5.8GHz UVC OTG FPV receiver module designed for direct connection to Android smartphones and tablets, providing a low-latency video feed alternative to traditional FPV goggles or monitors.
Features
- 5.8GHz 150-channel auto-scan receiver covering 5645-5945 MHz bands.
- UVC (USB Video Class) protocol for plug-and-play compatibility with OTG-supported Android devices.
- Low-latency video transmission with an approximate 100ms delay for real-time FPV viewing.
- Compact, lightweight design powered directly via the host device’s USB port (5V).

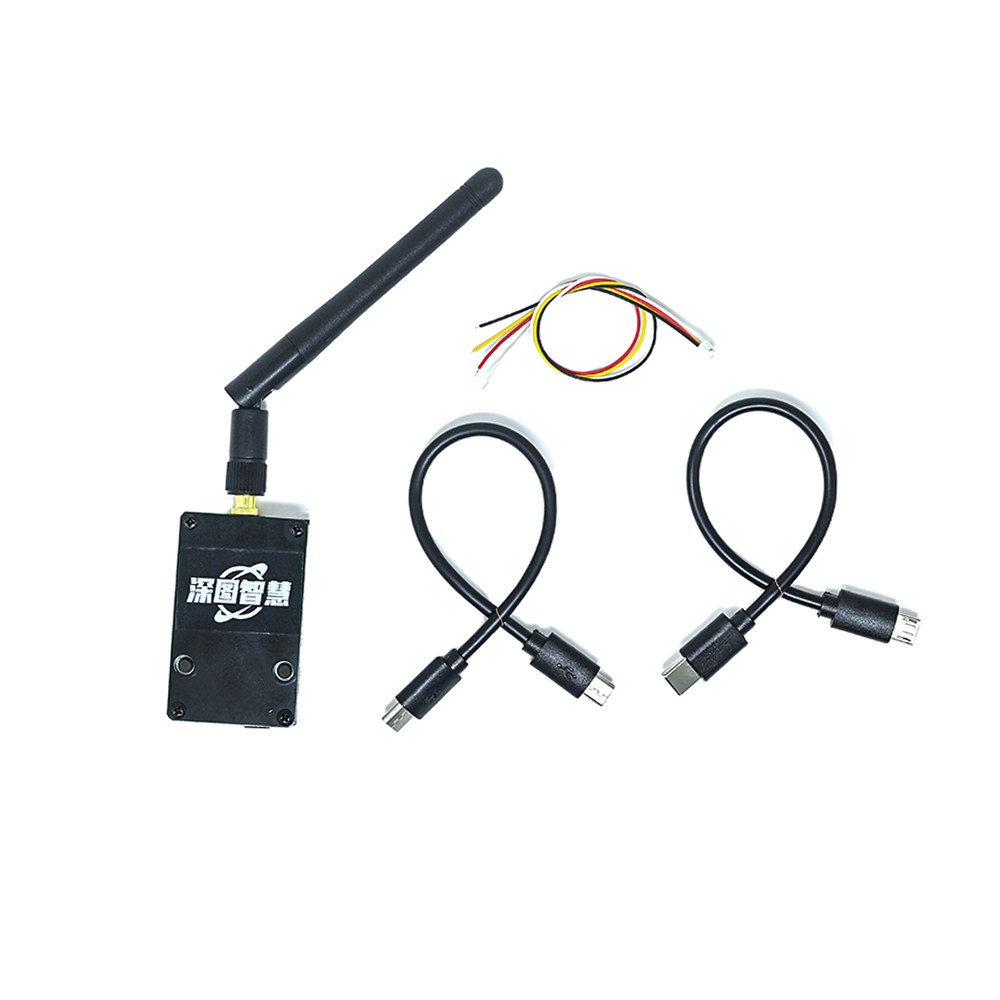

- Includes a removable SMA antenna and a dedicated micro-USB OTG connection cable.
Out of stock
The ROTG01 receiver simplifies FPV setup by leveraging the UVC standard, allowing pilots to use their Android phone or tablet as a live video monitor. This eliminates the need for separate battery-powered screens and is ideal for spectators or pilots who prefer not to use goggles. The module features a broad 150-channel frequency range, automatically scanning and locking onto the active 5.8GHz video transmitter signal.
Engineered for portability, the receiver draws minimal power (5V, ~200mA) from the host device via a dedicated micro-USB OTG cable. Its compact form factor and white plastic housing make it easy to integrate into field kits. The included SMA antenna ensures reliable signal reception for analog FPV systems commonly used in racing drones, freestyle quads, and other multirotor aircraft.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 6.1 × 3.3 × 0.09 cm |
