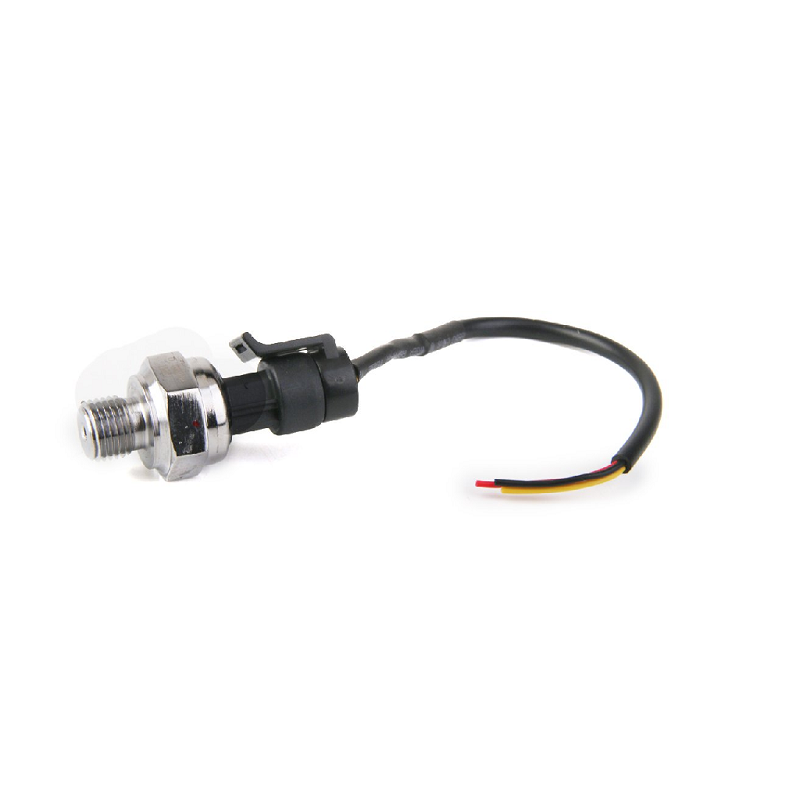

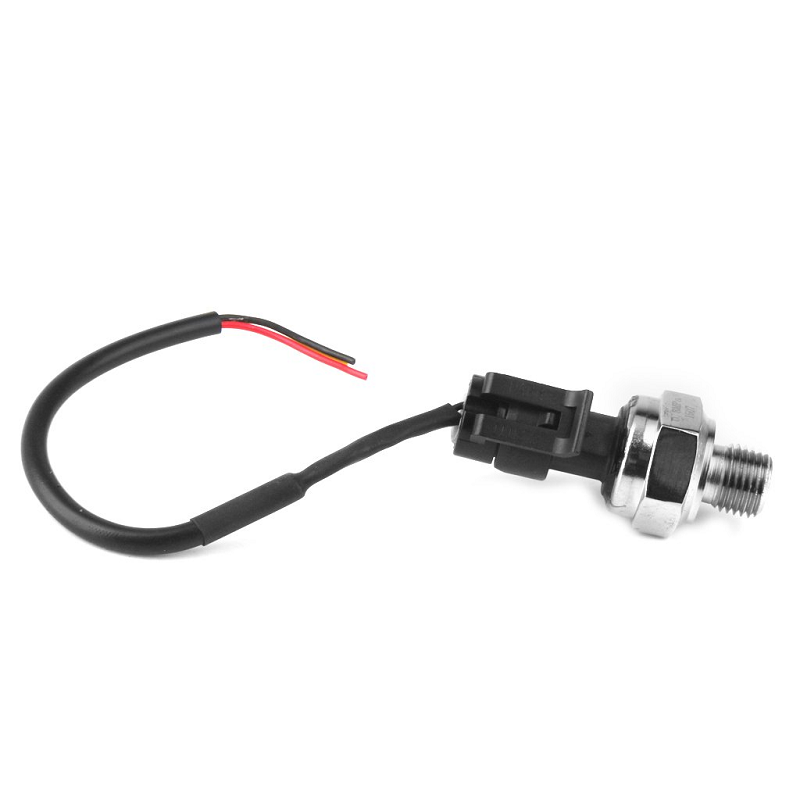

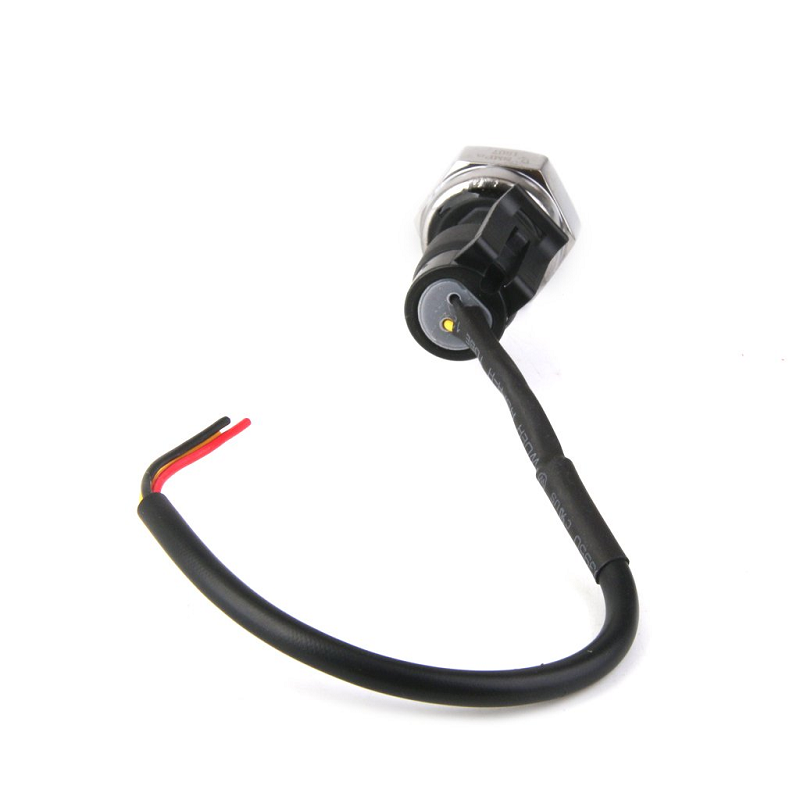

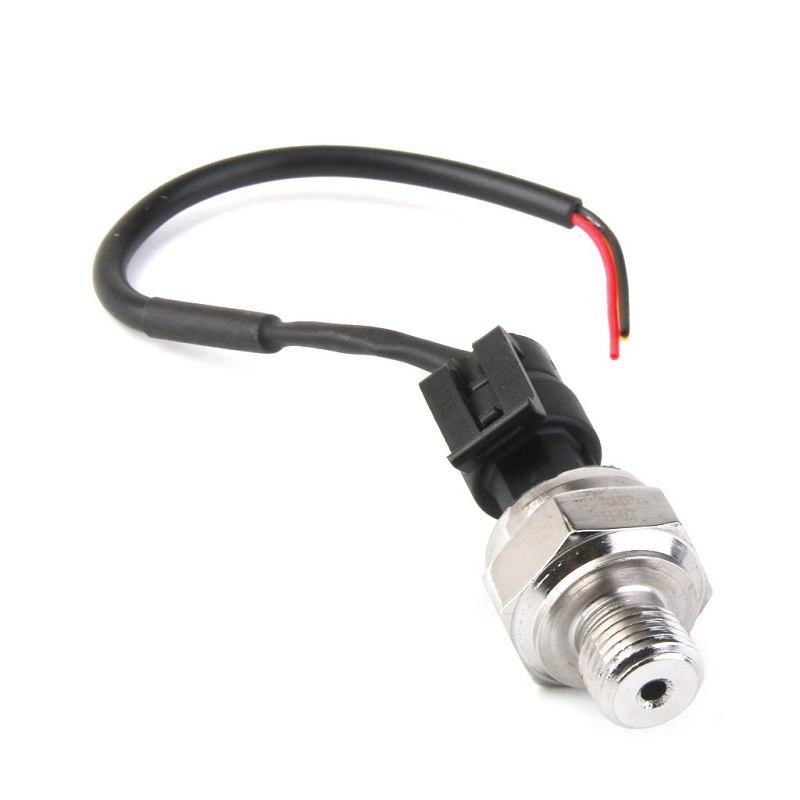

Generic Pressure Sensor 0-10MPa Stainless Steel G1/4" Thread - 0.5-4.5V Analog Output

Name: Generic Pressure Sensor 0-10MPa Stainless Steel G1/4" Thread - 0.5-4.5V Analog Output
Brand: Generic
SKU: SENS-2182
Price: 1469.00 INR
Availability: OutOfStock

₹1,469.00 (Inclusive of all taxes)

Out of Stock

This 0-10 MPa stainless steel pressure transducer provides a 0.5-4.5V analog output signal from a 5V DC supply, suitable for monitoring gas, liquid, and oil pressures in industrial control systems, PLCs, and data acquisition setups.

Features

0-10 MPa measurement range with 1% FS accuracy.
Stainless steel housing with G1/4″ threaded port for robust installation.
0.5-4.5V ratiometric analog output compatible with 5V logic microcontrollers.
Precision compensated sensing element for stable, reliable performance.
Compact form factor (50mm length) for easy integration into confined spaces.

Out of stock

Get Notified When Available

Description

This industrial-grade pressure transducer utilizes a compensated strain gauge sensing element within a sealed stainless steel body to deliver accurate pressure readings for gases and liquids. The sensor outputs a linear 0.5V to 4.5V analog signal proportional to the applied pressure when powered by a stable 5V DC source, making it directly compatible with most microcontroller ADCs and industrial signal conditioners.

Engineered for durability, the G1/4″ threaded port ensures a secure, leak-resistant connection to pressurized systems. Its all-stainless-steel construction provides corrosion resistance and protects the internal electronics from voltage surges and harsh environmental conditions, ensuring a long operational lifespan in demanding applications.

Key Features

High-accuracy sensing with 1% Full Scale (FS) error specification.
Rugged stainless steel housing for corrosion resistance and mechanical durability.
Standard G1/4" threaded process connection for secure system integration.
Ratiometric 0.5-4.5V analog output simplifies interface with 5V logic systems.
Precision temperature compensation ensures stable performance across operating range.
Compact and lightweight design facilitates installation in space-constrained environments.
Integrated surge voltage protection enhances reliability in industrial settings.
Suitable for media compatibility with air, water, oil, and inert gases.

Applications

Hydraulic and pneumatic system pressure monitoring and control.
Fuel tank and oil reservoir pressure measurement in automotive and industrial machinery.
Process pressure monitoring in water treatment and fluid handling systems.
Compressed air and gas cylinder pressure verification and safety cutoff.
Integration into PLC-based industrial automation and data acquisition (DAQ) systems.

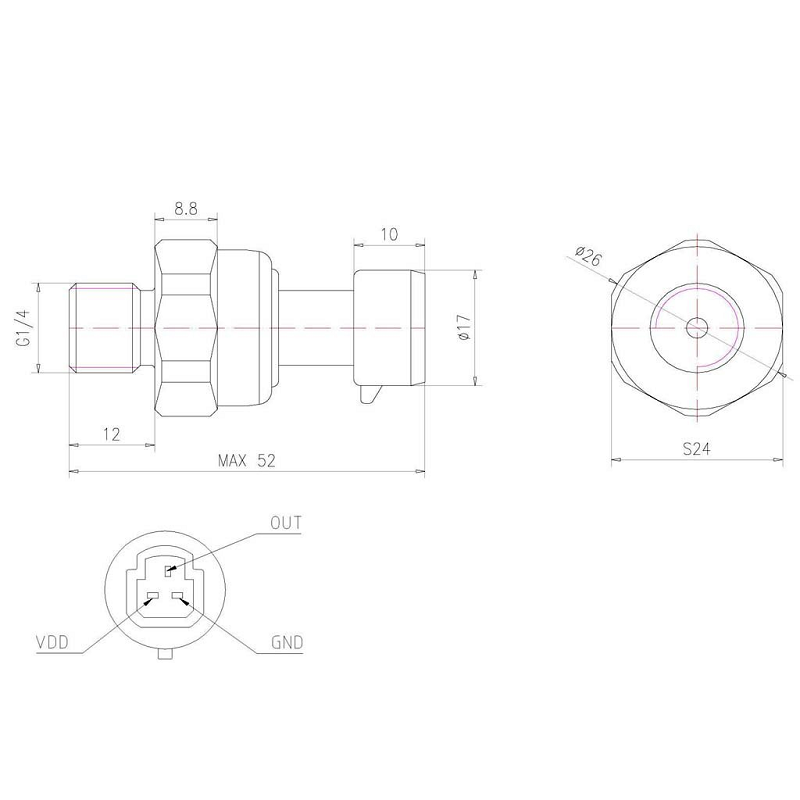

Technical Specifications

Model / Name	Pressure Sensor
Pressure Range	0 - 10 MPa
Output Signal	0.5 - 4.5V Analog
Operating Voltage	5 VDC
Accuracy	1% FS
Sensor Type	Analog Pressure Transducer
Housing Material	Stainless Steel
Thread Size	G 1/4"
Length	50 mm
Width	20 mm
Weight	70 g

Frequently Asked Questions

What is the output signal and how do I interface it with an Arduino?

The sensor provides a ratiometric analog output of 0.5V to 4.5V corresponding to 0-10 MPa. Connect the output pin to an Arduino analog input (e.g., A0). The 5V supply and ground pins connect to the Arduino's 5V and GND. The output voltage scales linearly with pressure, so you can map the ADC reading using the formula: Pressure (MPa) = ((Vout - 0.5) / 4.0) * 10.

Is this sensor suitable for measuring liquid pressure, and what media is it compatible with?

Yes, the stainless steel construction and sealed G1/4" port make it suitable for liquids like water and oil, as well as gases including air. Ensure the media is compatible with 304 or 316 stainless steel to prevent corrosion. Avoid using with highly corrosive or reactive chemicals without verifying material compatibility first.

What is the meaning of '1% FS' accuracy?

"1% FS" means the total error (including nonlinearity, hysteresis, and repeatability) is within 1% of the Full Scale value. For this 10 MPa sensor, the maximum expected error is ±0.1 MPa across the entire measurement range under specified conditions. This accuracy is suitable for many industrial monitoring and control applications.

Does the sensor require any calibration or signal conditioning?

The sensor is pre-calibrated and temperature compensated from the factory, so no user calibration is typically required. For the best accuracy, ensure a stable, clean 5V power supply, as the output is ratiometric. For noisy environments, a simple RC low-pass filter on the output signal may be beneficial. No additional signal conditioning is necessary for basic microcontroller interfacing.
