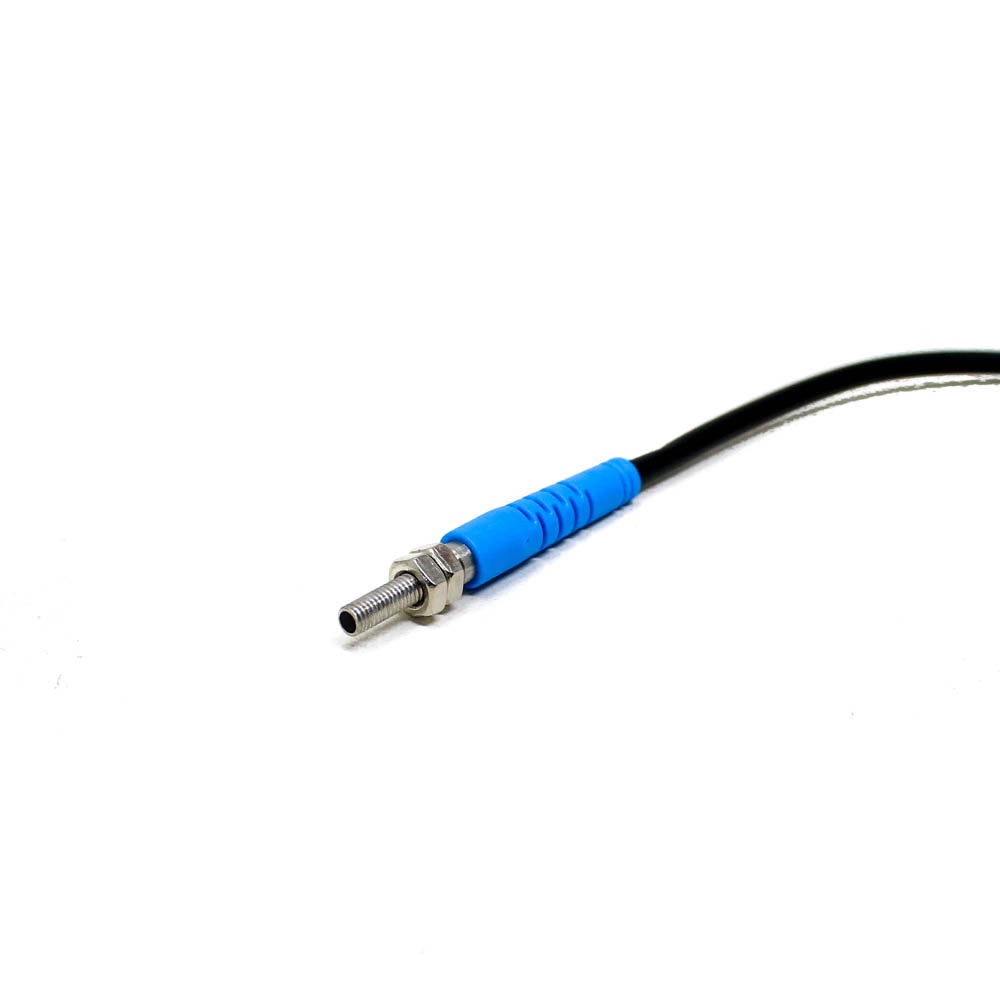

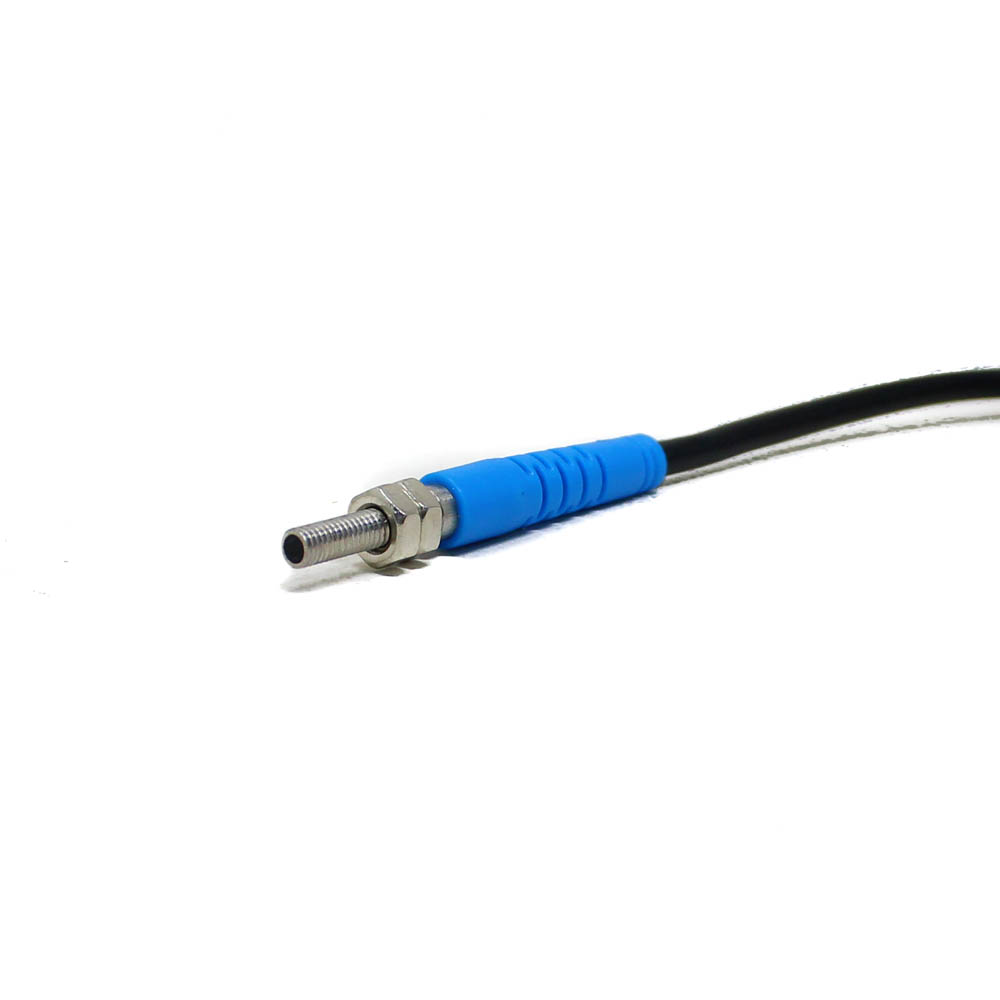

Generic M5 LTD-05NO 130mm Laser Micro Diffuse Photoelectric Switch - Stainless Steel

Name: Generic M5 LTD-05NO 130mm Laser Micro Diffuse Photoelectric Switch - Stainless Steel
Brand: Generic
SKU: SENS-1899
Price: 2069.00 INR
Availability: OutOfStock

₹2,069.00 (Inclusive of all taxes)

Out of Stock

The M5 LTD-05NO is a diffuse-reflective photoelectric switch with a visible red laser, designed for precise object detection up to 130mm. It operates on a 10-30V DC supply and provides a solid-state output, making it compatible with PLCs, industrial controllers, and automation systems.

Features

Visible red laser with a precise 1.0mm spot for accurate detection.
Wide 10-30V DC operating voltage range for flexible system integration.
130mm maximum detection distance for close-range sensing applications.
Compact M5 stainless steel housing for durability in industrial environments.
Solid-state NPN open-collector output with 150mA max current capacity.

Out of stock

Get Notified When Available

Description

The M5 LTD-05NO photoelectric switch operates on the diffuse-reflective principle, where its integrated laser emitter and receiver detect objects by sensing the light reflected from their surface. This method allows it to sense a wide variety of materials without requiring a separate reflector. The internal synchronous loop gate circuit provides stable operation and strong immunity to ambient light interference.

Housed in a robust stainless steel M5-threaded barrel, the sensor is built for longevity in industrial settings. It features a low 9mA no-load current consumption and is rated for operation within a 0°C to 50°C temperature range, ensuring reliable performance in standard automation and machinery applications.

Key Features

High-precision visible laser source with a focused 1.0mm spot size.
Stainless steel M5 threaded housing for mechanical strength and corrosion resistance.
Wide-range 10-30V DC supply compatibility for easy integration into 12V or 24V control systems.
Solid-state NPN output (NO) capable of sinking up to 150mA for direct load switching.
Integrated circuitry with anti-interference design for stable operation in electrically noisy environments.
Compact form factor with a 120Hz response frequency suitable for high-speed detection tasks.
Optimized performance-to-cost ratio for reliable object sensing in automated equipment.

Applications

Precision object counting and presence detection on conveyor belts.
Position verification and part-in-place sensing in automated assembly machines.
Small item detection and sorting in packaging and material handling systems.
Limit and end-stop sensing in CNC equipment and linear actuators.
Jam detection and web break monitoring in textile and printing machinery.

Technical Specifications

Model Number	M5 LTD-05NO
Operating Principle	Diffuse Reflective (Visible Laser)
Supply Voltage	10 - 30 V DC
No-load Current	≤ 9 mA
Output Type	NPN Open Collector (Normally Open)
Max. Output Current	150 mA
Response Frequency	120 Hz
Sensing Distance	130 mm
Laser Spot Size	1.0 mm
Housing Material	Stainless Steel
Thread Diameter	M5
Operating Temperature	0°C to +50°C

Frequently Asked Questions

What is the output type and wiring of the M5 LTD-05NO sensor?

The sensor provides a solid-state NPN open-collector output in a normally open (NO) configuration. It has three wires: Brown for positive supply voltage (10-30V DC), Blue for common ground (0V), and Black for the switched output. The black output wire sinks current to ground when an object is detected.

What is the difference between this diffuse reflective sensor and a through-beam type?

This is a diffuse reflective (proximity) sensor where the emitter and receiver are in the same housing. It detects objects by the light they reflect back. It does not require a separate reflector or receiver unit, making installation simpler, but the maximum sensing distance (130mm) is typically shorter than a through-beam system and can be affected by the object's color and surface texture.

Can this sensor detect transparent or shiny objects?

Detection of transparent objects (like glass) or highly reflective surfaces can be challenging with a diffuse reflective sensor. The visible laser light may pass through transparent materials or reflect specularly away from the receiver, potentially causing unreliable detection. For such applications, a through-beam or retro-reflective sensor setup is generally recommended.

How do I mount and align the M5 LTD-05NO sensor?

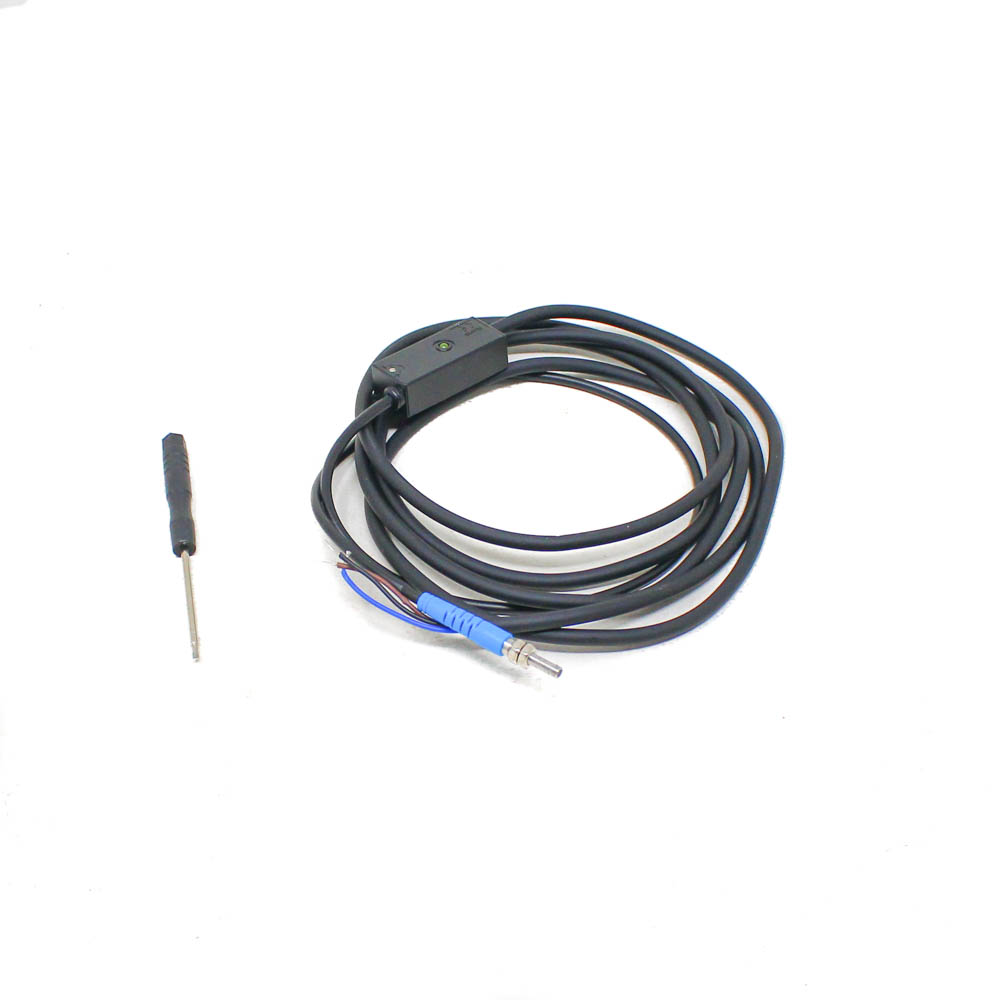

The sensor is mounted using its M5 external threads, which can be secured into a matching threaded hole or a nut. For initial alignment, power the sensor and observe the visible red laser dot on the target area. Adjust the sensor's position until the dot is centered on the expected detection point at the desired distance (within 130mm). The included screwdriver can be used for fine-tuning.
