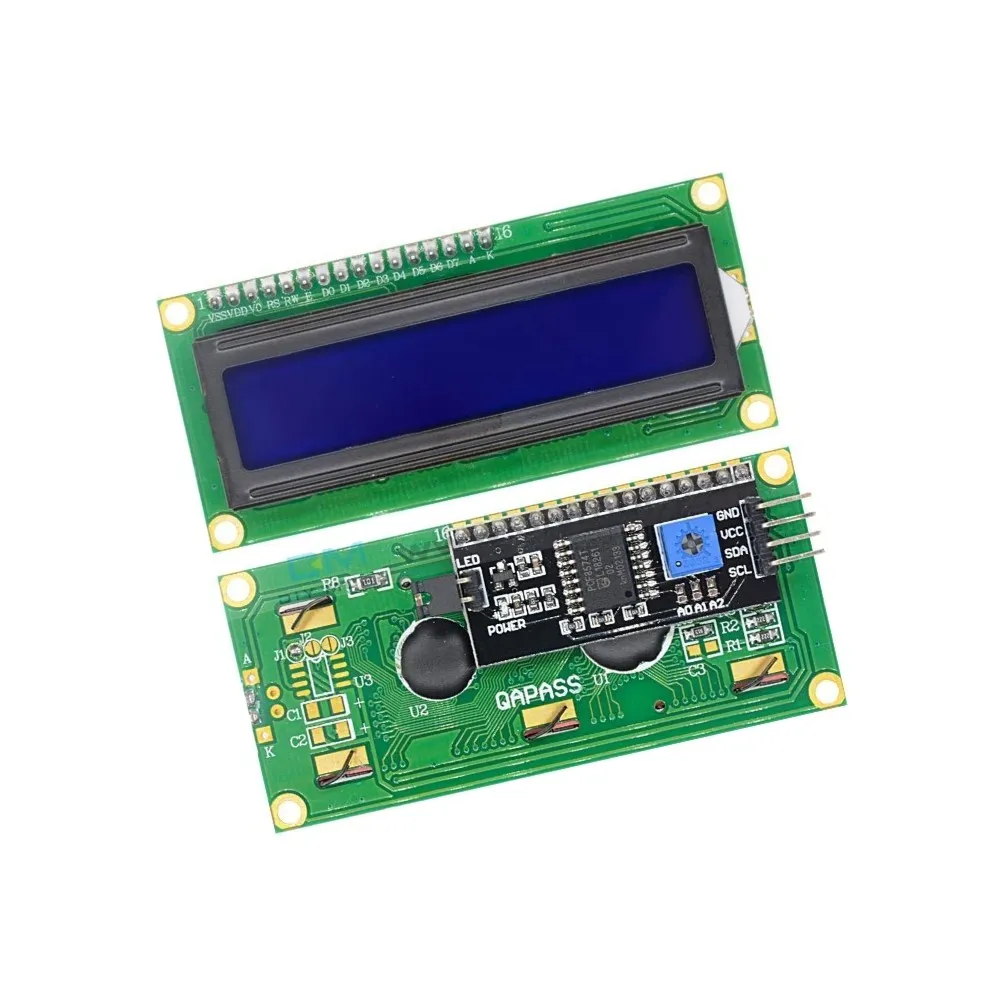

Generic LCD1602 Parallel LCD Display Module | I2C/IIC Interface | 16×2 Character Output

The Engineering Behind the LCD1602 I2C Display Module

The LCD1602 I2C Display Module provides a reliable and cost-effective solution for outputting character-based information in embedded systems. At its core, it leverages an HD44780-compatible LCD controller, renowned for its industry-standard command set. Integrated with a PCF8574 I/O expander, this module intelligently converts the typically resource-intensive parallel communication of the LCD into a streamlined two-wire I2C serial interface (SDA and SCL), significantly reducing GPIO pin consumption on host microcontrollers such as Arduino, Raspberry Pi, or ESP32 platforms. This architectural choice makes it ideal for projects where pin economy is crucial.

Constructed on a durable printed circuit board, this module features standard electronic components selected for consistent performance in prototyping and educational environments. The compact design ensures easy integration into enclosures or breadboards, making it a foundational component for learning I2C communication protocols and fundamental display control techniques in STEM education.

Seamless I2C Communication

The primary technical advantage of this module lies in its integrated PCF8574 I/O expander. This tiny chip acts as a bridge, translating the byte-parallel commands of the LCD’s native controller into serial I2C data. This ingenious design reduces the number of required connection pins from typically 8-12 parallel data/control lines down to just four (VCC, GND, SDA, SCL), dramatically simplifying wiring, minimizing potential errors, and freeing up precious GPIO pins on your microcontroller for other sensors, actuators, or advanced functionality.

16×2 Character Output Clarity

The display panel itself features a 16-character by 2-line configuration, providing a clear and concise visual output area. This allows for effective presentation of system status messages, sensor readings, user prompts, or debugging information. With an adjustable backlight and contrast, the display ensures optimal readability under various ambient lighting conditions, directly addressing the challenge of clear data visualization in diverse operational environments.

Optimized for Performance & Integration

• Display Type: Alphanumeric Liquid Crystal Display
• Characters: 16 characters per line
• Lines: 2 lines
• Backlight Color: Blue (Common variant)
• Interface Protocol: I2C / IIC
• I2C Expander IC: PCF8574
• Operating Voltage: 5V DC (Typical)
• Adjustments: Contrast via Potentiometer
• Pin Count: 4-pin (VCC, GND, SDA, SCL)

Features & Benefits

• I2C Interface: Drastically reduces required GPIO pins, simplifying wiring and leaving more pins for other sensors or actuators.
• 16×2 Character Display: Provides clear, readable two-line text output for status updates, sensor readings, and user prompts.
• Adjustable Backlight & Contrast: Ensures optimal visibility in various lighting conditions, enhancing user experience.
• Wide Compatibility: Integrates seamlessly with popular microcontrollers like Arduino, Raspberry Pi, and ESP32 platforms.
• Integrated PCF8574 Chip: Handles I/O expansion and protocol conversion, streamlining the display driving process.
• Robust & Compact Design: Ideal for prototyping and permanent integration into space-constrained projects.
