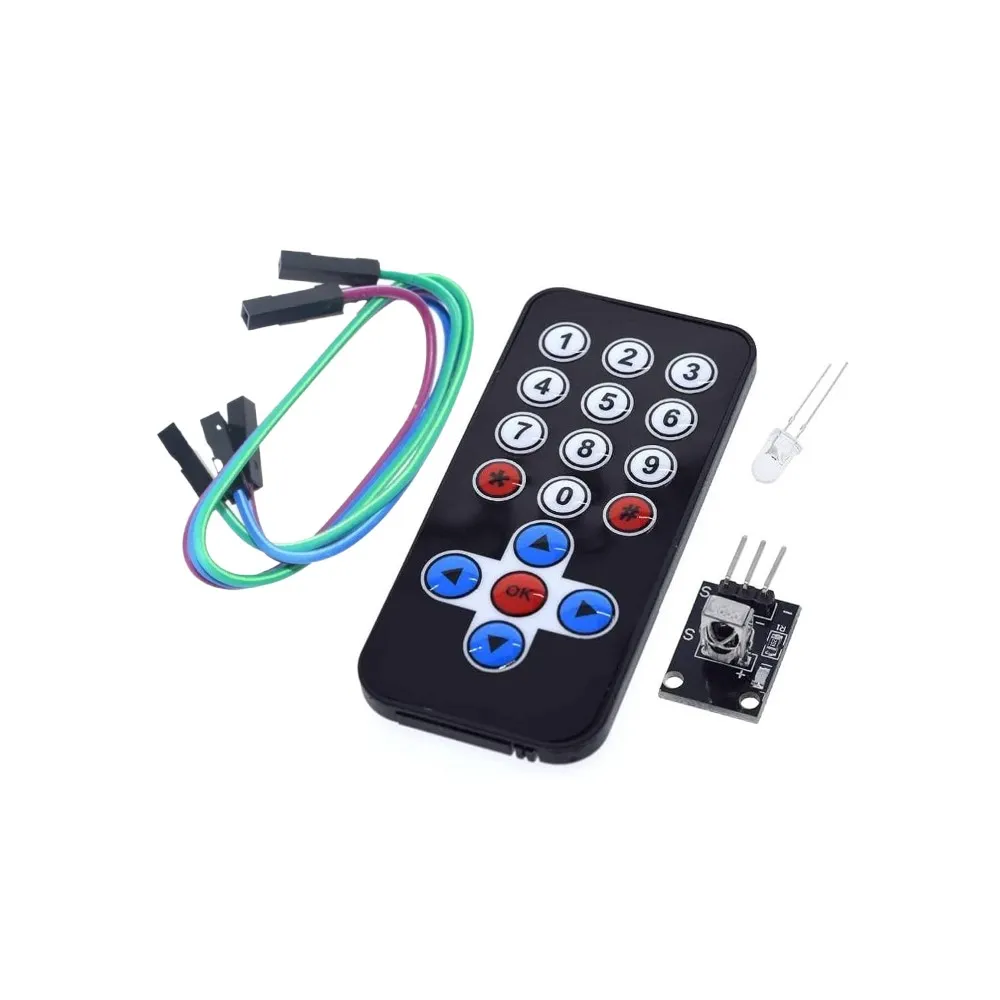

Name: Generic IR Wireless Remote Control Module Kit for Arduino | Seamless Project Integration | Expanded Control Capabilities
Brand: Generic
SKU: OL-GEN-IRRMC
Price: 599.00 INR
Availability: InStock

Effortless Arduino Control

Integrate wireless command functions into your Arduino projects with minimal setup and coding.

Versatile Project Applications

Empower robotics, smart home, and educational builds with reliable, line-of-sight remote operation.

Comprehensive Kit Package

Get started immediately with a complete set including transmitter, receiver, and essential connection wires.

The Engineering Behind IR Wireless Remote Control Module Kit

This Infrared (IR) Wireless Remote Control Module Kit is a fundamental component for extending control capabilities in Arduino-based projects. At its core, the kit typically comprises an IR transmitter (the handheld remote) and an IR receiver module (often based on the VS1838B or HX1838 chip). The remote sends modulated infrared light signals, which the receiver module detects and decodes, converting them into digital signals readable by a microcontroller. This architecture enables robust, line-of-sight wireless communication for a multitude of applications.

The module is designed for ease of integration into existing development ecosystems, featuring a standard 3-pin interface (VCC, GND, OUT) compatible with most microcontrollers. Its solid-state construction and optimized circuit design ensure reliable operation and minimal power consumption, making it suitable for both hobbyist projects and educational STEM applications where durability and straightforward implementation are key.

Infrared (IR) Communication Protocol

The kit predominantly utilizes the NEC IR transmission protocol, a widely adopted standard known for its reliability and efficiency. This protocol encodes data into pulses of infrared light, typically modulated at 38kHz. The receiver module then demodulates these signals, providing a clean digital output stream that microcontrollers like Arduino can easily interpret using dedicated libraries. This structured communication ensures distinct command recognition, crucial for precise control over connected devices.

Seamless Arduino Ecosystem Integration

Designed specifically for the Arduino platform, this kit offers out-of-the-box compatibility with popular Arduino development boards. The receiver module directly interfaces with Arduino’s digital I/O pins, and numerous open-source libraries (e.g., IRremote) simplify the process of decoding remote commands. This eliminates complex driver development, allowing engineers and students to focus on application logic and rapid prototyping without significant overhead.

Optimized for Performance & Integration

Operating Voltage: 3.3V – 5V DC
IR Receiver Chip: HX1838 or VS1838B (Common Variant)
Modulation Frequency: 38kHz
Detection Distance: Up to 8 meters (line-of-sight)
Detection Angle: Approximately 45 degrees
Output Signal: Digital (active low when IR detected)
Pinout: VCC, GND, OUT
Included Components: IR remote controller, IR receiver module, DuPont wires (may vary)

Features & Benefits

Complete Kit Solution: Includes both IR transmitter remote and receiver module for immediate project implementation.
Arduino Compatibility: Directly interfaces with Arduino boards, leveraging existing libraries for rapid development.
Standard NEC Protocol: Ensures reliable and widely supported infrared communication for diverse applications.
Wide Operating Voltage: Functions efficiently across 3.3V to 5V DC, suitable for various microcontroller power schemes.
Easy Integration: Simple 3-pin interface allows for straightforward connection to digital I/O pins.
Robust Detection Range: Provides effective control up to 8 meters, ideal for small to medium-scale applications.

Pro-Grade Advantages

Simple to implement with widely available Arduino libraries.
Low power consumption suitable for battery-powered projects.
Cost-effective solution for adding wireless control capabilities.
Highly reliable for short to medium-range line-of-sight applications.

Technical Considerations

Requires line-of-sight between remote and receiver for operation.
Limited range compared to RF or Bluetooth solutions, typically up to 8 meters.

What is the typical operating voltage for the IR receiver module?

The IR receiver module in this kit typically operates within a voltage range of 3.3V to 5V DC, making it compatible with most Arduino boards and microcontrollers.

What communication protocol does this IR remote control kit use?

This kit commonly utilizes the NEC infrared communication protocol, which is a standard for transmitting data via modulated infrared light at 38kHz.

What is the maximum effective detection range of the IR receiver?

Under ideal line-of-sight conditions, the IR receiver module can typically detect signals from the remote control up to 8 meters away.

Can this kit be used to control multiple devices simultaneously?

Yes, by assigning unique codes to different devices or functions within your Arduino code, you can use a single remote to control multiple IR-enabled systems.

Are there specific Arduino libraries recommended for this kit?

Yes, the ‘IRremote’ library is widely recommended for Arduino projects involving this kit, providing easy functions for reading and decoding IR signals.

Specification	Value
Module Type	IR Remote Control Kit
IR Receiver Chip	HX1838 / VS1838B
Operating Frequency	38kHz
Transmission Protocol	NEC Protocol
Input Voltage (Receiver)	3.3V – 5V DC
Output Signal	Digital (Active Low)
Receiver Pin Count	3 (VCC, GND, OUT)
Remote Control Buttons	21 Keys
Max Detection Angle	±45 Degrees
PCB Dimensions (Receiver)	Approx. 28 x 12 mm

Additional information

Brand	Generic
Technology	Infrared (IR)
Operating Voltage	3.3V – 5V DC
Sensor Type	IR Receiver
Detection Range	Up to 8 meters
Control Interface	Digital I/O
Difficulty Level	Easy
Main Controller	Arduino (Compatible)
Piece Count	5
