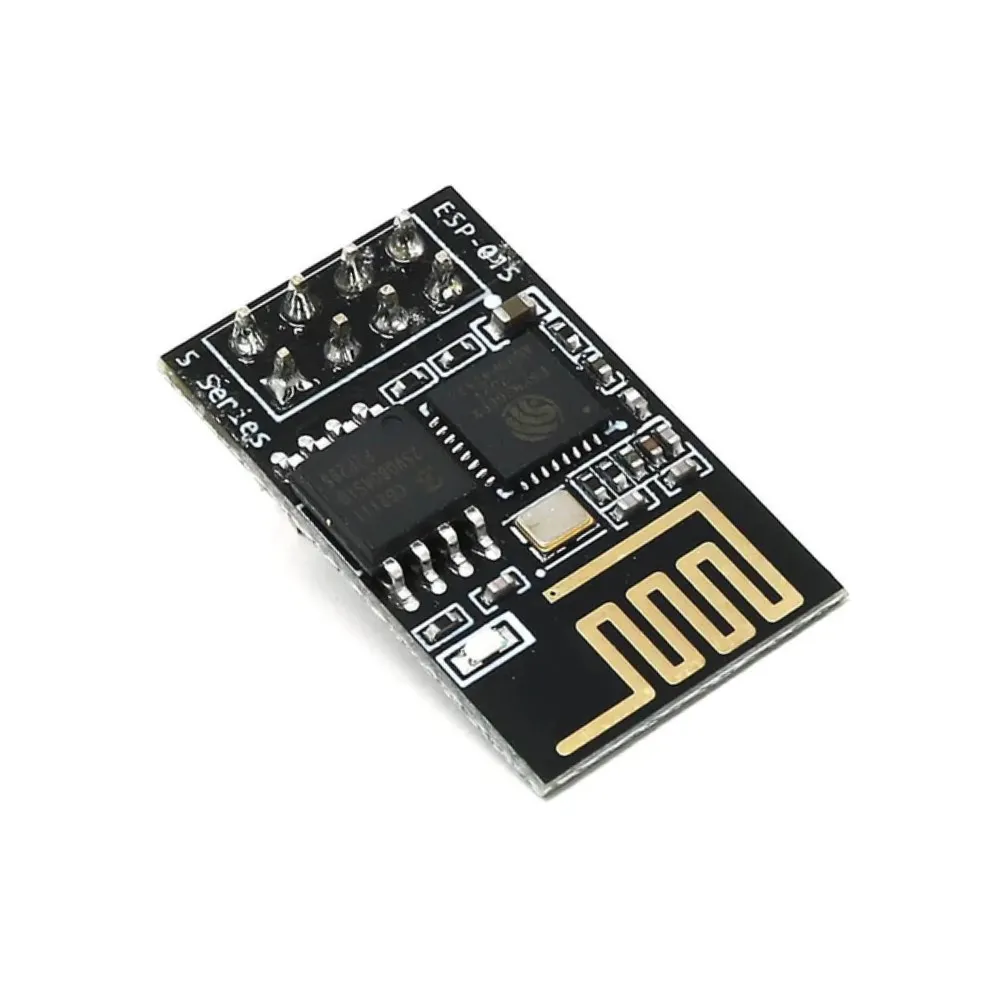

Generic ESP8266-01 Serial WiFi Module | Compact IoT Solution | AT Command Compatible

The Engineering Behind ESP8266-01

The Generic ESP8266-01 module serves as a foundational component for robust IoT deployments, integrating a powerful Tensilica L106 32-bit RISC processor (ESP8266EX) with full TCP/IP stack capabilities. This compact module enables existing microcontrollers to connect to Wi-Fi networks via a straightforward serial (UART) interface, facilitating data exchange and remote control in a wide array of embedded systems. Its operational mechanics revolve around AT command interpretation, allowing developers to manage network connections, send/receive data, and configure module settings with minimal host controller overhead.

Designed for optimal space utilization, the ESP8266-01 presents a cost-effective yet reliable solution for adding wireless functionality. While its pinout is intentionally minimalist, supporting fundamental serial communication and power, the underlying chipset’s robust design ensures stable operation across various environmental conditions typical of industrial and consumer IoT applications. This module provides significant pedagogical value, acting as an excellent entry point for learning about Wi-Fi communication protocols and embedded networking.

Integrated Wi-Fi Transceiver & MCU

At its core, the ESP8266-01 features a complete and self-contained Wi-Fi networking solution, capable of hosting an application or offloading all Wi-Fi networking functions from another application processor. This dual capability allows for either standalone operation of simple IoT nodes or efficient integration as a network co-processor, drastically reducing the complexity and development time required to add wireless communication to diverse projects, from smart home devices to industrial monitoring systems.

Streamlined Serial Interface (UART)

The module’s primary interface, a standard UART, simplifies integration with virtually any microcontroller lacking native Wi-Fi capabilities. This design choice bypasses the need for complex driver development or specialized hardware interfaces, resolving common integration pain points and accelerating project timelines. Developers can leverage familiar serial communication protocols to send AT commands and receive responses, enabling rapid prototyping and deployment of Wi-Fi-enabled applications without extensive firmware modifications on the host MCU.

Optimized for Performance & Integration

• Core Processor: Tensilica L106 32-bit RISC @ 80MHz
• Wi-Fi Standard: 802.11 b/g/n @ 2.4 GHz
• Operating Modes: Station / SoftAP / Station+SoftAP
• Flash Memory: 512KB (common for ESP-01 variant)
• UART Baud Rate: Configurable, typically 9600-115200 bps
• Input Voltage: 3.0V – 3.6V (3.3V recommended)
• GPIOs Exposed: 2 (GPIO0, GPIO2)
• Pinout: VCC, GND, RX, TX, CH_PD, RST

Features & Benefits

• Integrated Wi-Fi Module: Provides full Wi-Fi b/g/n/ support, enabling seamless wireless communication for IoT devices.
• Compact Form Factor: Its small size allows for easy integration into space-constrained projects and custom PCBs.
• AT Command Set Firmware: Simplifies network control and data transfer with an intuitive command interface, reducing development complexity.
• Low Power Consumption: Optimized for energy efficiency, extending battery life in portable and remote applications.
• Two GPIO Pins: Offers limited direct I/O for basic sensor integration or control without an external microcontroller.
• Versatile Operational Modes: Supports Station, SoftAP, and combined modes, adapting to diverse network topologies.
