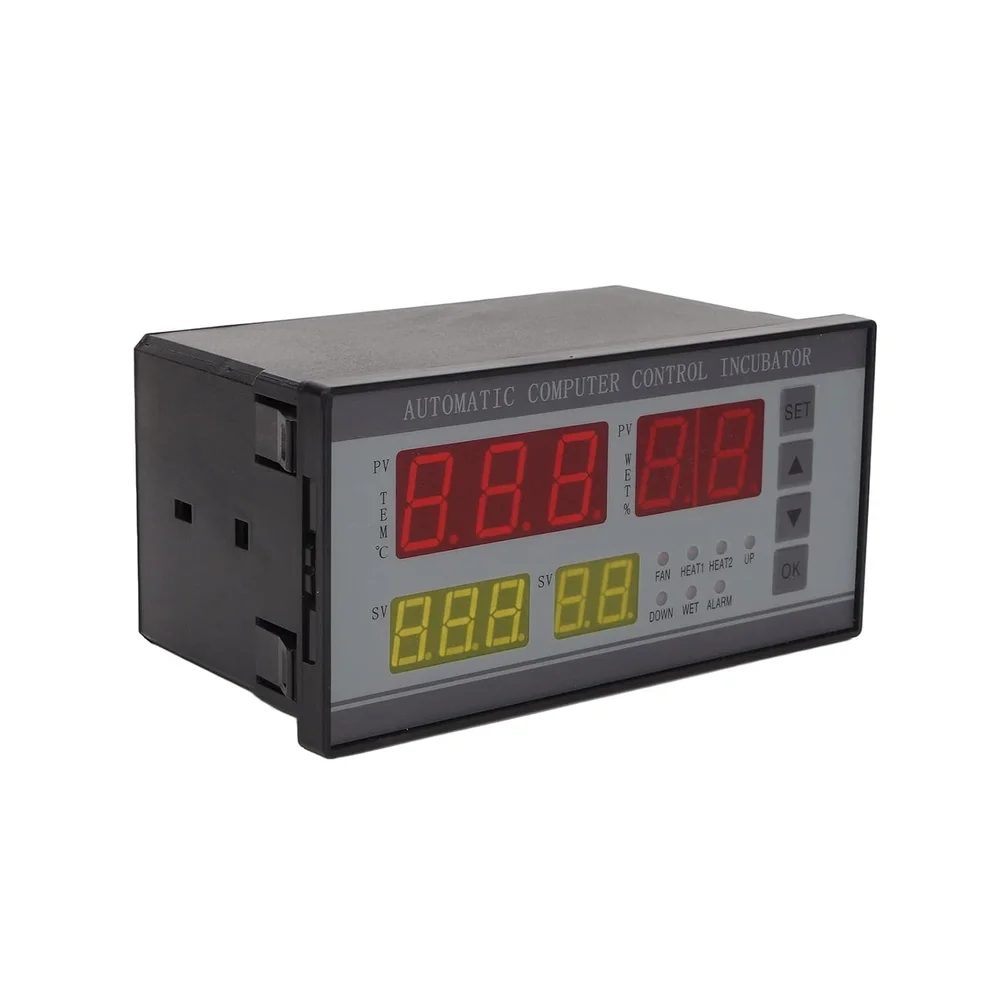

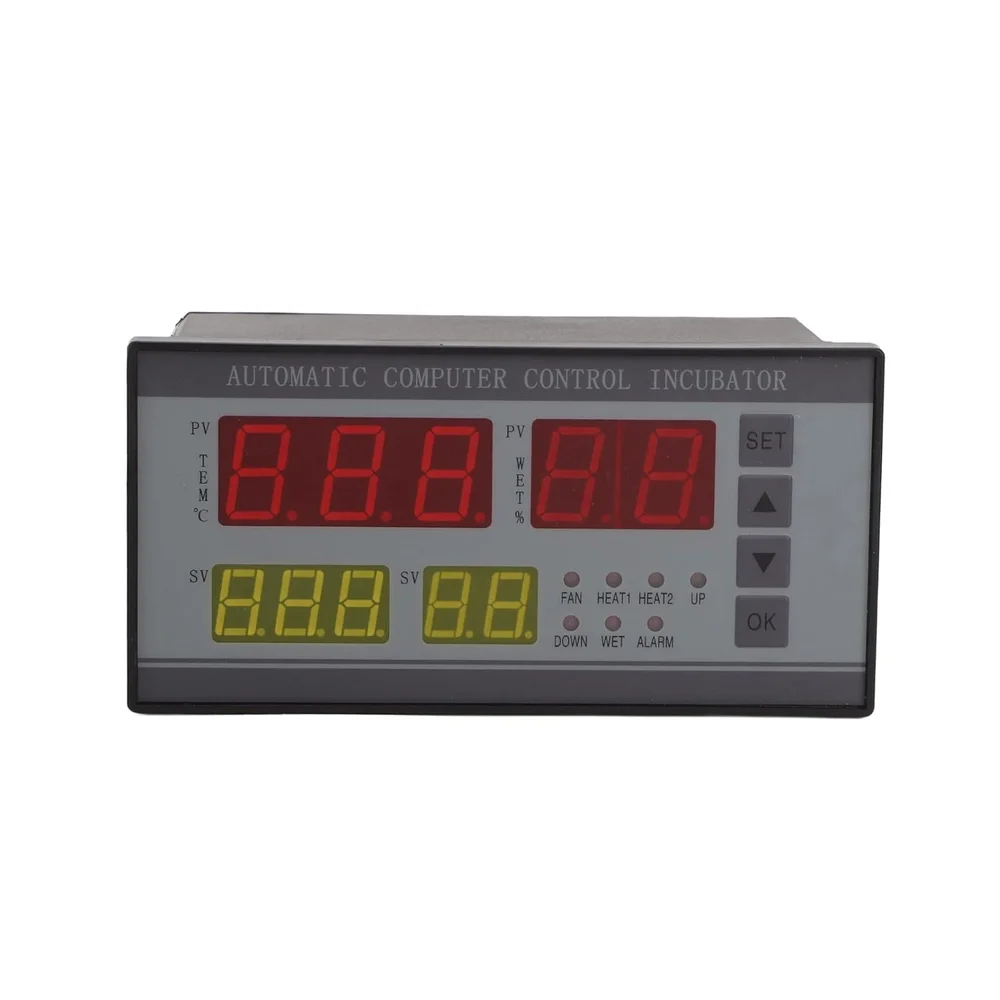

Generic Automatic Hatchery Machine Temperature Controller - AC160-240V, 7 Output Channels, w/ Temp & Humidity Sensors
This microcomputer-based incubation controller provides precise temperature (0-99°C, ±0.1°C) and humidity (0-99% RH, ±3% RH) monitoring and control for poultry hatcheries. It operates on AC 160-240V 50Hz power and features 7 programmable output channels for managing heating, cooling, egg turning, and ventilation cycles.
Features
- High-precision temperature control with ±0.1°C accuracy for stable incubation environments.
- Integrated humidity monitoring and control with ±3% RH accuracy.
- Programmable automatic egg turning with adjustable cycle (0-999 min) and duration (0-999 sec).
- Seven independent output channels for managing heating, cooling, turning, and ventilation loads.
- User-configurable ventilation cycles and comprehensive alarm functions for system protection.
Out of stock

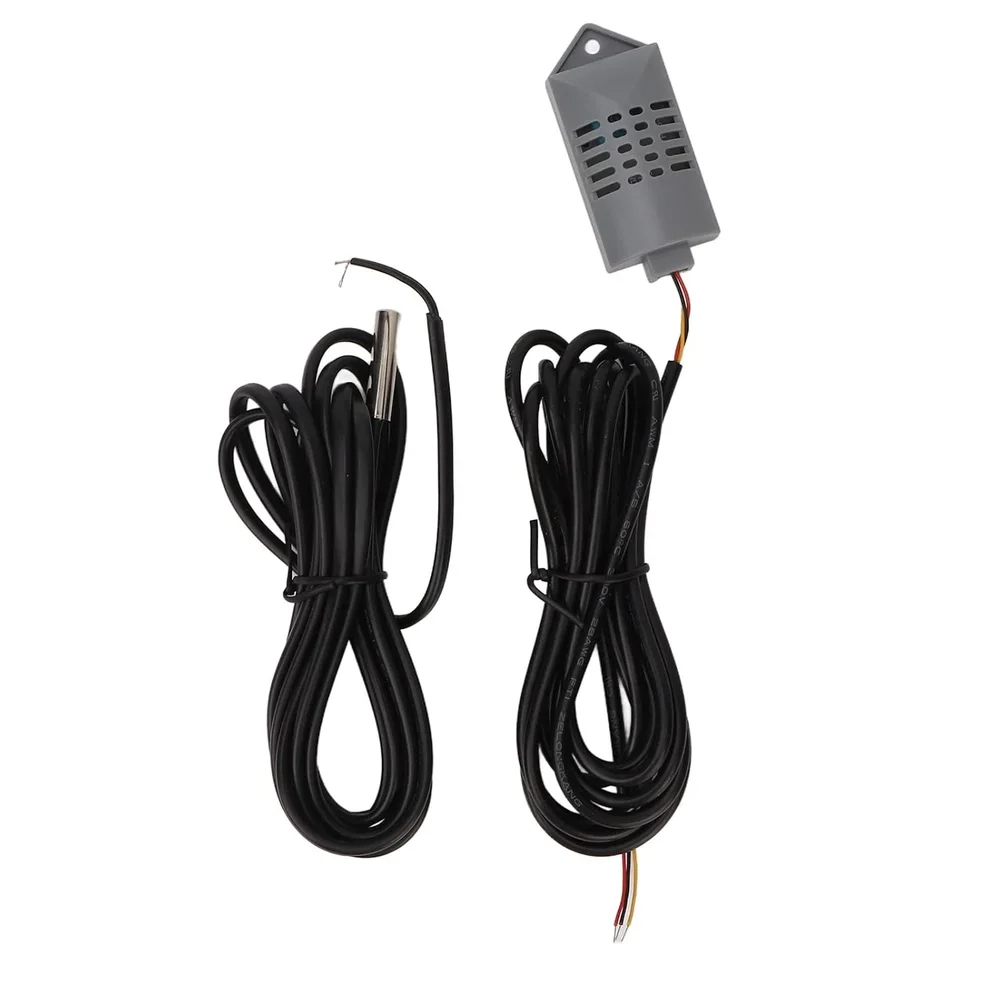

Designed for reliable poultry incubation, this controller utilizes a microcomputer-based system to maintain critical environmental parameters. It features a high-accuracy digital temperature sensor and a separate humidity sensor, each with dedicated monitoring and feedback loops for precise climate management within the incubator chamber.
The unit provides flexible automation with seven configurable output channels. These channels control various functions such as main heating, under-temperature backup heating, egg turning motors, ventilation fans, and alarm indicators. All timing parameters, including egg turning and ventilation intervals, are adjustable from 0 to 999 minutes or seconds, allowing fine-tuning for different species and incubation stages.
Additional Information
| Weight | 0.572 kg |
|---|---|
| Dimensions | 16 × 8.5 × 8 cm |
