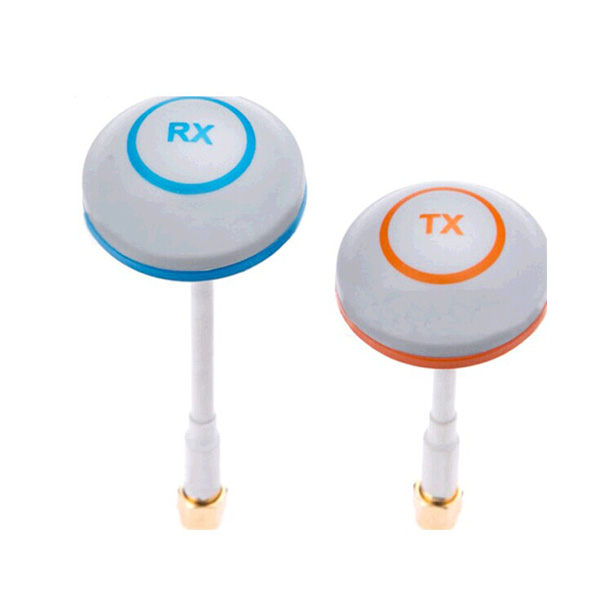

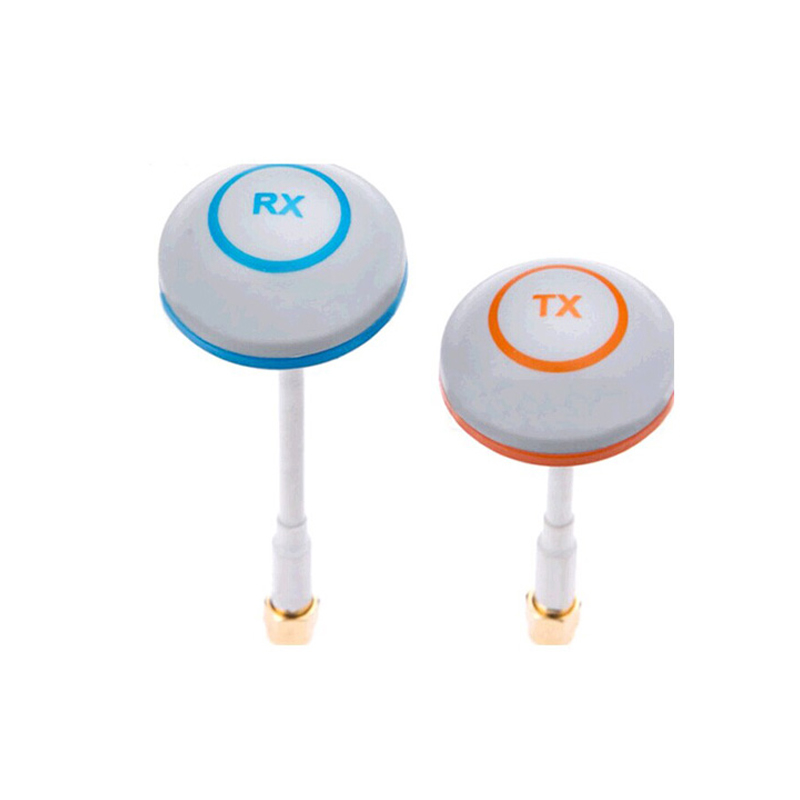

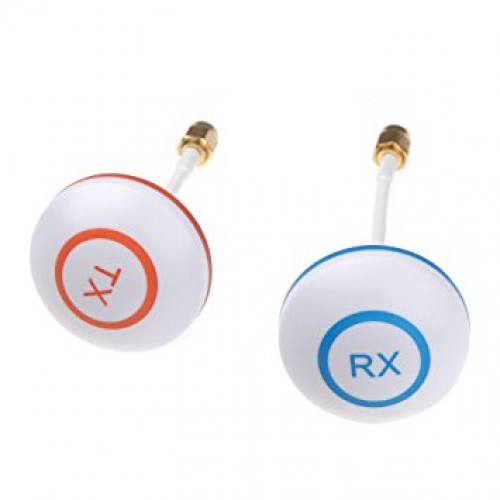

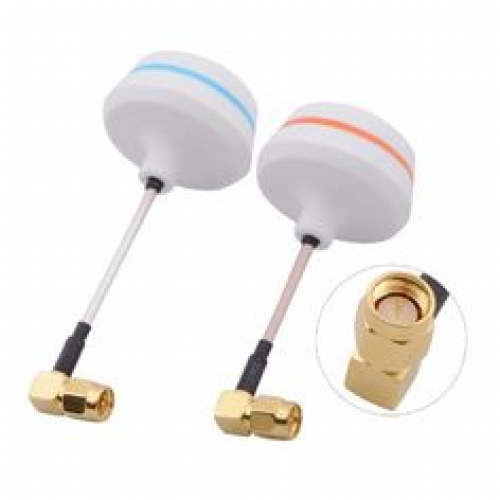

Generic 5.8GHz FPV Petals Clover Mushrooms L Antenna Pair - RP-SMA Male Plug
This 5.8GHz FPV antenna pair features a circular-polarized cloverleaf design (TxA with 3 lobes, RxA with 4 lobes) housed in a protective RF-transparent dome, offering improved signal coverage and range for analog video systems with RP-SMA male connectors.
Features
- 5.8GHz circular-polarized cloverleaf design for reduced multipath interference.
- Pair includes TxA (3-lobe) and RxA (4-lobe) antennas for optimized transmission and reception.

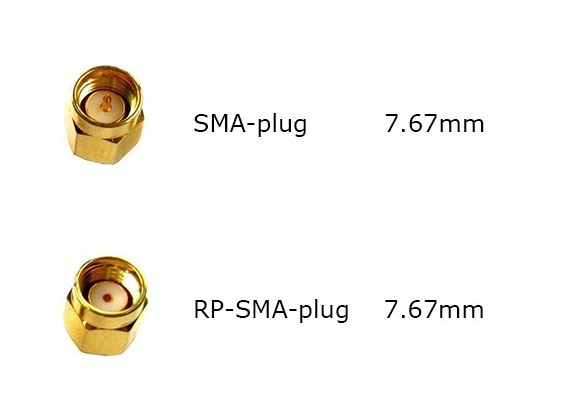

- RP-SMA male connectors ensure compatibility with most VTXs and receivers.
- RF-transparent protective dome enhances durability and maintains signal integrity.
- Low SWR (<1.5) and 3dBi gain for efficient signal transfer and extended range.
Out of stock
The Cloud Spirit antenna set is a refined version of the classic cloverleaf design, engineered for 5.8GHz FPV video systems. The TxA (transmit) antenna utilizes a three-lobe circular-polarized pattern, while the RxA (receive) antenna employs a four-lobe pattern, a configuration aimed at optimizing signal capture and reducing video breakup caused by polarization mismatch and multipath reflections.
Both antennas are housed within a flexible, RF-transparent dome that provides physical protection against impacts and abrasion without degrading signal performance. The integrated RP-SMA male connectors offer a direct, secure connection to standard video transmitters and receivers, ensuring a reliable link with a low standing wave ratio (SWR < 1.5) for maximum power transfer.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 6 × 10 × 3 cm |
