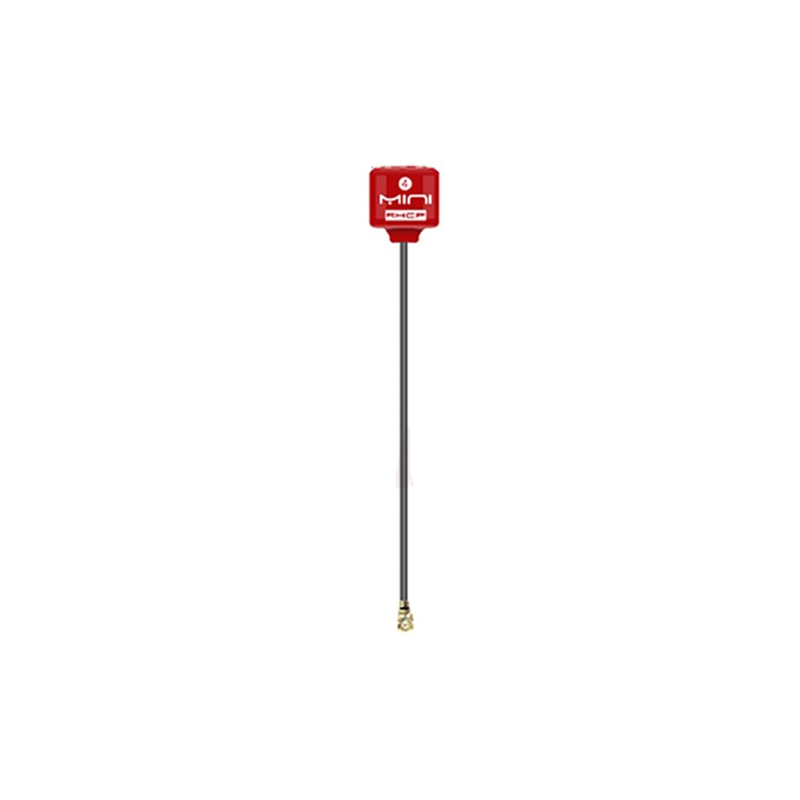

Generic 5.8G 2.8dBi RHCP UFL Lollipop Antenna
The 5.8G 2.8dBi RHCP UFL Lollipop Antenna is a compact, omnidirectional circularly polarized antenna designed for 5.8GHz FPV video systems, providing solid all-around coverage for racing drones and quadcopters.
Features
- 5.8GHz center frequency with Right-Hand Circular Polarization (RHCP) for reduced multipath interference.
- Omnidirectional radiation pattern with a good axial ratio for consistent signal reception.
- Features a UFL (IPX) female connector for direct attachment to VTXs and receivers.
- Compact and lightweight design (15x18x700mm, 3g) for minimal impact on drone aerodynamics.
- 50Ω impedance matched for optimal power transfer with standard FPV equipment.
Out of stock
This lollipop-style antenna is engineered for 5.8GHz FPV video transmission, utilizing Right-Hand Circular Polarization (RHCP) to mitigate signal degradation caused by reflections and orientation changes during aggressive flight. Its omnidirectional pattern ensures reliable video link coverage without the need for precise antenna aiming, which is critical for FPV racing and freestyle.
The antenna’s compact form factor and integrated 70mm cable with a UFL connector make it an ideal choice for mounting directly onto flight controllers, video transmitters, or micro receivers in space-constrained builds. The construction is designed for durability across an operating temperature range of -40°C to 85°C, suitable for varied environmental conditions.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.5 × 1.8 × 70 cm |
