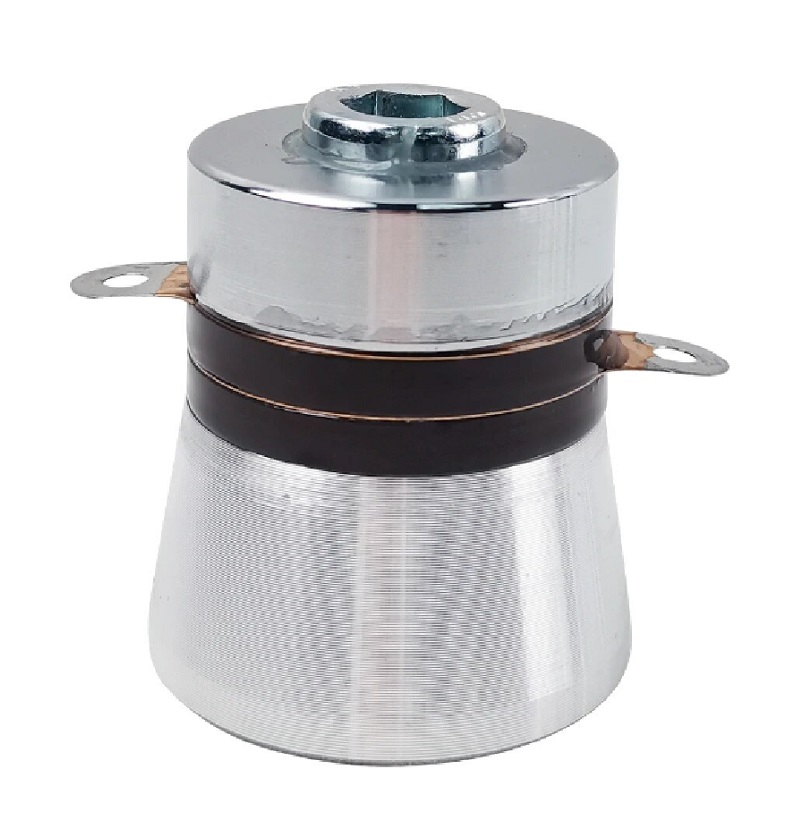

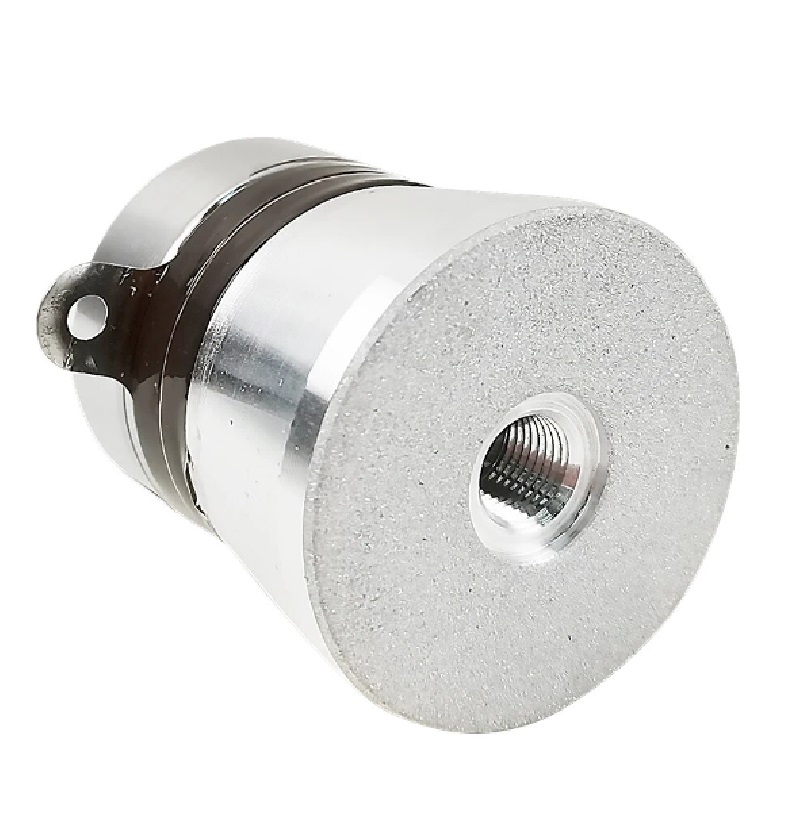

Generic 40kHz 60W Ultrasonic Cleaning Transducer - Stainless Steel
This 40kHz, 60W ultrasonic cleaning transducer is a high-power acoustic emission device designed for industrial and precision cleaning applications. It generates high-energy sound waves for contaminant removal and is compatible with external ultrasonic power supplies for system integration.
Features
- High-power 60W output for effective contaminant removal and surface cleaning.
- Precision 40kHz operating frequency for optimal cavitation and cleaning action.
- Durable stainless steel housing ensures corrosion resistance and long-term reliability.
- Features a homogeneous sounding board for uniform energy distribution and large amplitude.
- High mechanical Q-value and conversion efficiency for stable, high-performance operation.
Out of stock
This ultrasonic cleaning transducer operates on the piezoelectric principle, where applied electrical energy is converted into high-frequency mechanical vibrations at 40kHz. These vibrations create cavitation bubbles in a liquid medium, generating intense localized energy for thorough cleaning of complex parts and surfaces.
Constructed with a robust stainless steel body and high-grade piezoelectric ceramic materials, the transducer offers excellent heat resistance and durability for demanding industrial environments. Its design ensures a large amplitude and homogeneous energy output across the entire sounding board surface.
Additional Information
| Weight | 0.303 kg |
|---|---|
| Dimensions | 10 × 7 × 7 cm |
