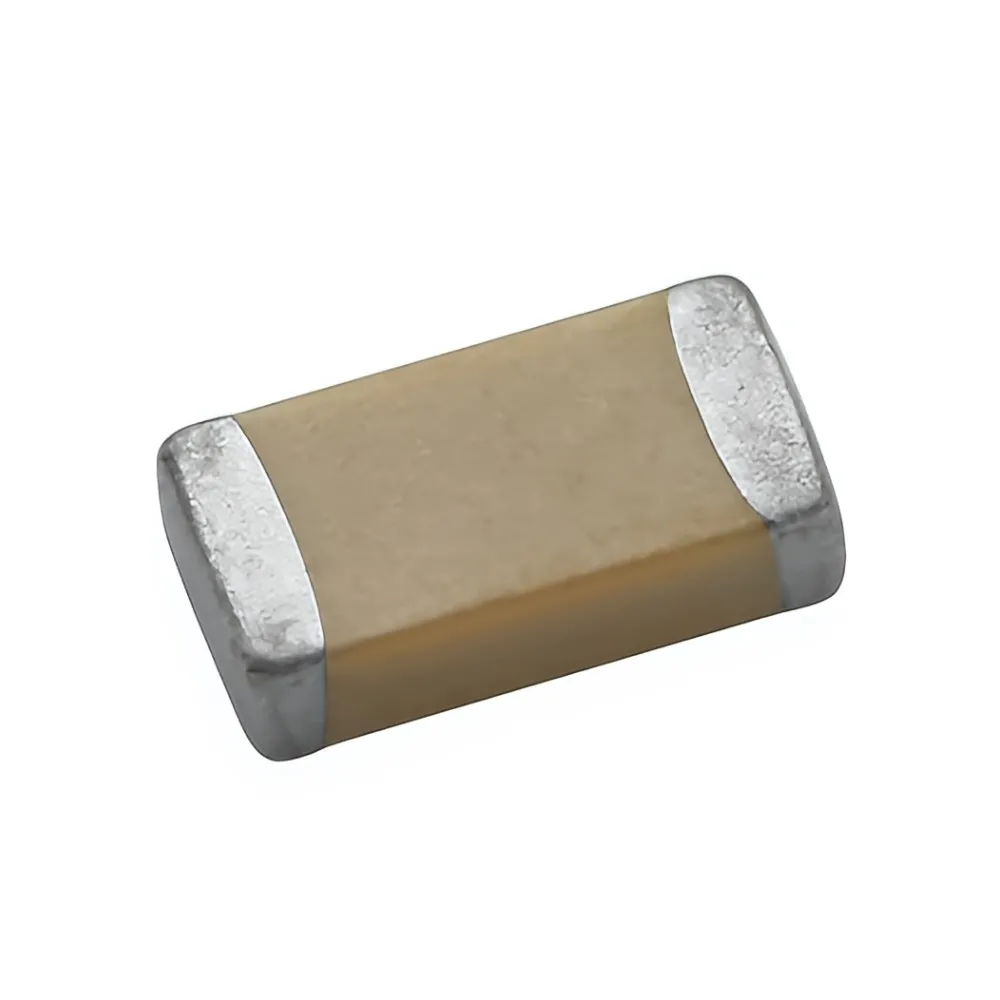

Generic 33pF 1206 Surface Mount Multilayer Ceramic Capacitor – 33pF (Single Component)
₹4.00₹10.00 (price_including_tax) (-60%)
Achieve stable power delivery and signal integrity in compact designs. This surface mount ceramic capacitor is essential for filtering, bypass, and coupling circuits. Expect consistent performance in demanding high-frequency environments.
Reliable 33pF 1206 MLCC offers stable capacitance for high-frequency decoupling and filtering applications.
Effectively removes high-frequency noise, ensuring pristine signal integrity in sensitive circuits.
1206 surface mount package enables high-density PCB layouts, saving valuable board space.
Multilayer ceramic design ensures consistent electrical performance and extended operational lifespan.
The Engineering Behind 33pF 1206 Surface Mount Multilayer Ceramic Capacitor
The 33pF 1206 Multilayer Ceramic Capacitor (MLCC) is a fundamental passive electronic component designed for high-frequency applications where precise capacitance and compact size are critical. Utilizing advanced dielectric materials between multiple layers of ceramic and metallic electrodes, it efficiently stores and releases electrical energy, acting as a crucial element for filtering, decoupling, and bypass functions within various circuit topologies, ensuring signal integrity and power supply stability.
Constructed with robust ceramic layers and nickel barrier terminations, this MLCC offers exceptional mechanical stability and reliability, crucial for automated assembly processes and long-term performance in diverse operating conditions. Its design minimizes parasitic inductance and resistance, making it suitable for applications requiring stable characteristics across a wide frequency and temperature range, a hallmark of professional-grade electronic components.
High-Frequency Decoupling & Filtering
The low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL) inherent to MLCC technology make the 33pF 1206 capacitor ideal for high-frequency decoupling. This capability effectively shunts unwanted high-frequency noise to ground, preventing it from propagating through power rails or sensitive signal lines, thereby enhancing circuit performance and reducing electromagnetic interference (EMI).
1206 Surface Mount Package
The standardized 1206 (3.2mm x 1.6mm) surface mount package facilitates efficient automated placement during PCB manufacturing, offering significant advantages in space-constrained designs and reducing overall production costs. This prevalent form factor ensures broad compatibility with existing design methodologies and readily available assembly equipment, overcoming the manual complexities associated with through-hole components in high-density layouts.
Optimized for Performance & Integration
- Capacitance: 33 picofarads (pF)
- Package Size: 1206 (3.2mm x 1.6mm)
- Mounting Type: Surface Mount Device (SMD)
- Dielectric Type: Multilayer Ceramic (MLCC)
- Tolerance: Typically ±5% or ±10%
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: Various (e.g., 16V, 25V, 50V)
Features & Benefits
- 33pF Capacitance: Provides precise energy storage and filtering for critical timing and frequency applications.
- 1206 SMD Package: Ensures compact circuit board integration, ideal for space-constrained and high-density designs.
- Multilayer Ceramic Construction: Delivers stable performance with low ESR and ESL across a broad frequency spectrum.
- High Reliability: Offers excellent durability and consistent electrical characteristics for long-term operational stability.
- Wide Operating Temperature: Maintains performance across challenging thermal environments from -55°C to +125°C.
- Automated Assembly Compatibility: Facilitates efficient pick-and-place manufacturing, streamlining production processes.
Pro-Grade Advantages
- Excellent high-frequency performance due to low ESR/ESL.
- Compact 1206 package suitable for miniaturized designs.
- Highly reliable and durable ceramic construction.
- Cost-effective solution for decoupling and filtering.
Technical Considerations
- Susceptible to capacitance shift with DC bias voltage.
- Mechanical stress can lead to cracking if not handled carefully.
What is a 33pF 1206 Multilayer Ceramic Capacitor?
It’s a passive electronic component with 33 picofarads of capacitance in a standard 1206 (3.2×1.6mm) surface mount package, used for filtering and decoupling.
What are the primary applications of a 33pF MLCC?
Typical applications include high-frequency filtering, RF circuits, timing circuits, impedance matching, and decoupling in power supplies and signal lines.
What does ‘1206’ signify in the capacitor’s description?
‘1206’ refers to the capacitor’s standardized imperial package size, meaning it is 0.12 inches long and 0.06 inches wide (approximately 3.2mm x 1.6mm).
Why is a multilayer ceramic capacitor (MLCC) preferred over other types?
MLCCs offer excellent frequency response, low ESR/ESL, compact size, and high reliability, making them ideal for high-frequency and space-constrained digital circuits.
How should this surface mount capacitor be soldered?
It should be soldered using reflow soldering techniques, ensuring proper thermal profiles to prevent thermal shock and mechanical stress on the ceramic body.
What is capacitance tolerance for this component?
Common tolerance for 33pF MLCCs can be ±5% (J) or ±10% (K), indicating the permissible deviation from the nominal capacitance value.
| Specification | Value |
|---|---|
| Capacitance | 33 pF |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Dielectric Material | C0G/NP0 (Temperature Stable) |
| Voltage Rating (Max) | 50V |
| Tolerance | ±5% (J) |
| Operating Temperature | -55°C to +125°C |
| ESR (Equivalent Series Resistance) | Ultra-low (Frequency dependent) |
| ESL (Equivalent Series Inductance) | Ultra-low (Frequency dependent) |
Additional information
| Technology | Multilayer Ceramic Capacitor (MLCC) |
|---|---|
| Value | 33pF |
| Package | 1206 Surface Mount Device (SMD) |
| Tolerance | ±5% (J) or ±10% (K) common |
| Operating Voltage | 16V, 25V, 50V), Various (e.g. |
