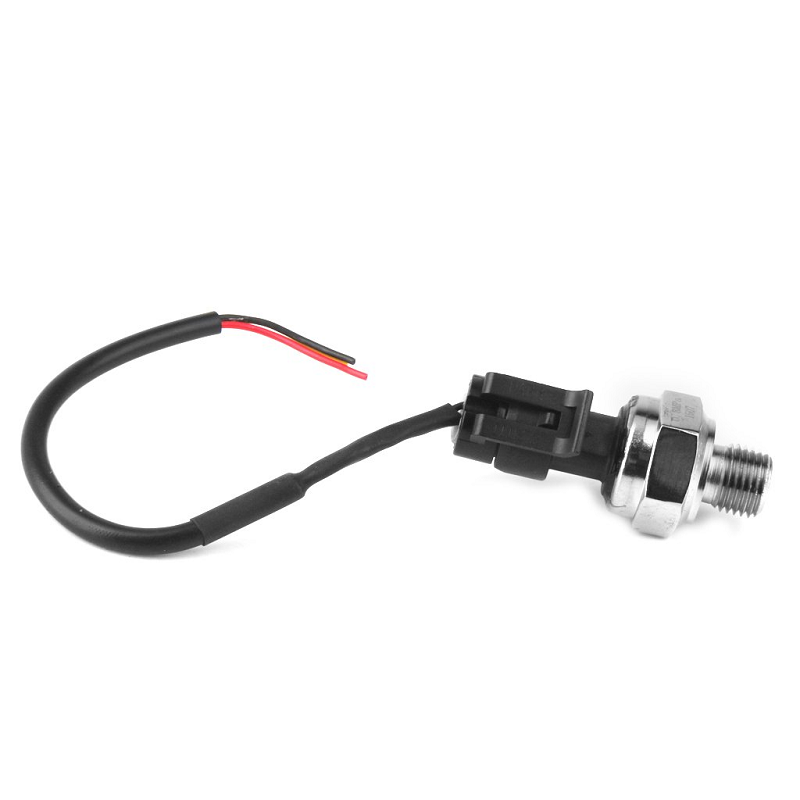

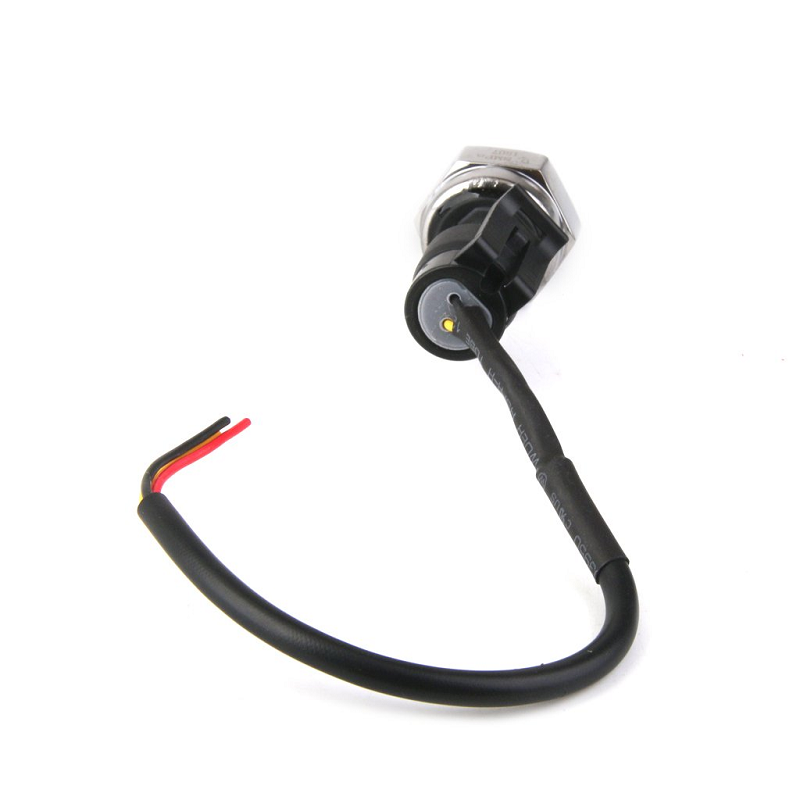

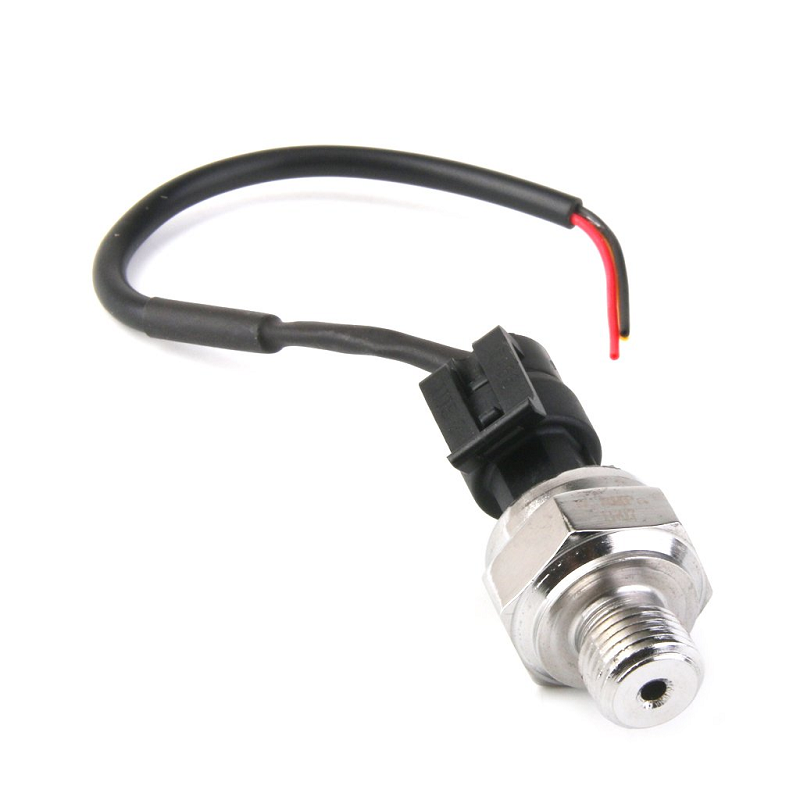

Generic 1MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output

Name: Generic 1MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output
Brand: Generic
SKU: SENS-2179
Price: 1199.00 INR
Availability: OutOfStock

₹1,199.00 (Inclusive of all taxes)

Out of Stock

This 1MPa stainless steel pressure transducer provides a 0.5-4.5V analog output signal from a 5VDC supply, suitable for monitoring gas, liquid, or oil pressure in industrial control systems, PLCs, and data acquisition setups.

Features

Stainless steel housing with G1/4″ thread for robust, leak-resistant installation.
0-1 MPa measurement range with 1% FS accuracy for reliable pressure monitoring.
Generates a ratiometric 0.5V to 4.5V analog output signal when powered by 5VDC.

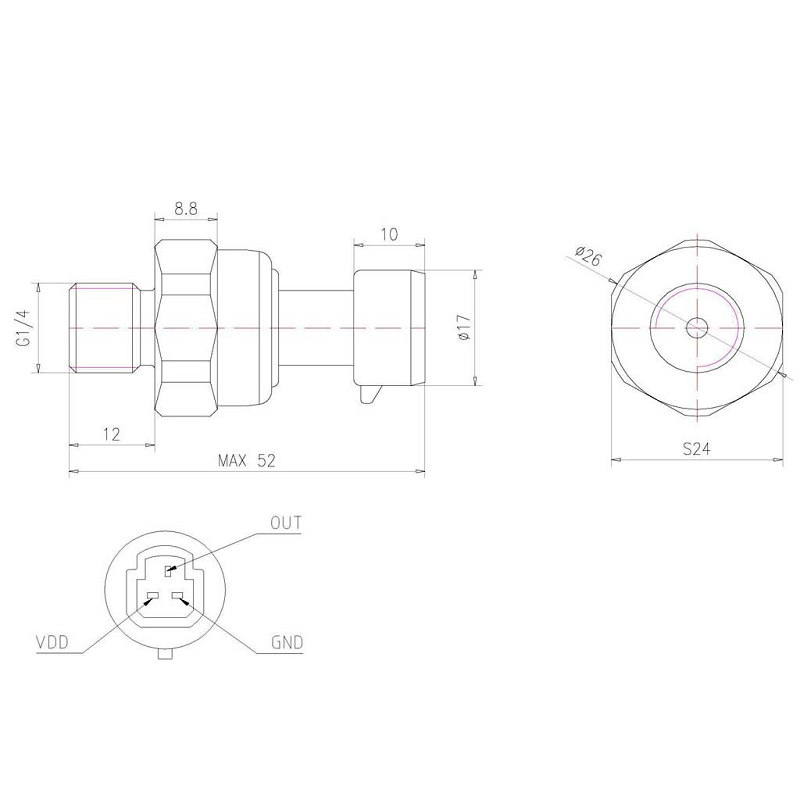

Compact form factor (50mm length, 20mm width) for easy integration into confined spaces.
Suitable for use with air, water, oil, and other compatible, non-corrosive media.

Out of stock

Get Notified When Available

Description

This industrial-grade pressure transducer utilizes a stainless steel sensing element and body to provide durable performance in demanding environments. It outputs a linear analog voltage signal proportional to the applied pressure, making it directly compatible with microcontroller ADCs, PLC analog input modules, and data loggers.

The sensor’s design incorporates precision compensation technology to ensure stable output characteristics, including minimal nonlinearity, hysteresis, and repeatability errors. Its G1/4″ threaded port allows for secure integration into pneumatic or hydraulic lines for continuous system pressure monitoring.

Key Features

Constructed from high-quality stainless steel for corrosion resistance and long-term durability.
Features precision signal conditioning with compensation for stable, reliable output.
Provides a ratiometric 0.5-4.5V analog output for direct interface with 5V logic systems.
Compact and lightweight design (70g) simplifies mounting and installation.
Integrated surge voltage protection enhances electrical robustness in industrial settings.
Designed for media compatibility with air, water, oil, and other non-aggressive fluids.

Applications

Industrial hydraulic and pneumatic system pressure monitoring and control.
Fuel tank or oil reservoir pressure measurement in automotive or machinery applications.
Water pressure sensing in pump control systems and irrigation networks.
Process pressure monitoring in manufacturing and chemical handling equipment.
Compressed air system diagnostics and leak detection.

Technical Specifications

Model Name	Pressure Sensor
Operating Voltage	5 VDC
Sensor Type	Analog Pressure Sensor
Material	Stainless Steel
Thread Size	G 1/4"
Pressure Range	0 - 1 MPa
Accuracy	1% FS
Output Signal	0.5 - 4.5 V
Length	50 mm
Width	20 mm
Weight	70 g

Frequently Asked Questions

What is the output signal of this pressure transducer?

The sensor provides a ratiometric analog voltage output that varies linearly from 0.5V at 0 MPa to 4.5V at 1 MPa when powered by a stable 5VDC supply. This output is designed for direct connection to microcontroller ADC pins or PLC analog input modules.

What media is this sensor compatible with?

The stainless steel construction and G1/4" threaded port make it suitable for use with a variety of non-corrosive media, including air, water, hydraulic oil, and fuel. It is not recommended for use with highly corrosive or aggressive chemicals without verifying material compatibility.

How do I wire and power this pressure sensor?

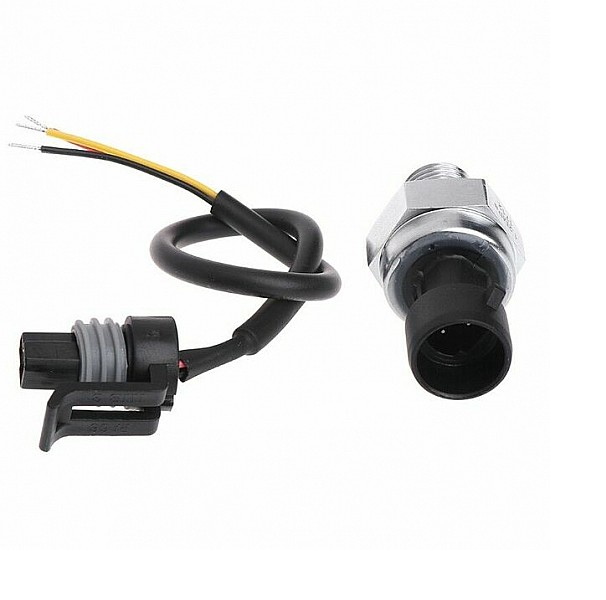

Connect the red wire to a regulated 5VDC power source and the black wire to ground. The signal wire (typically yellow or white) outputs the 0.5-4.5V analog signal. Ensure the power supply is stable and free of noise for accurate readings, and use shielded cable for long wire runs in electrically noisy environments.
