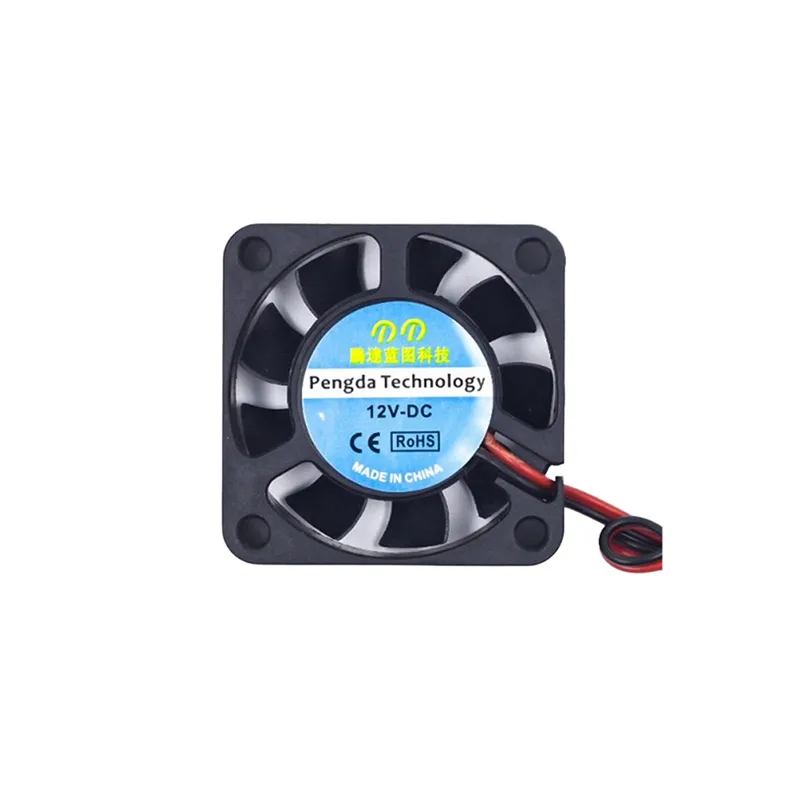

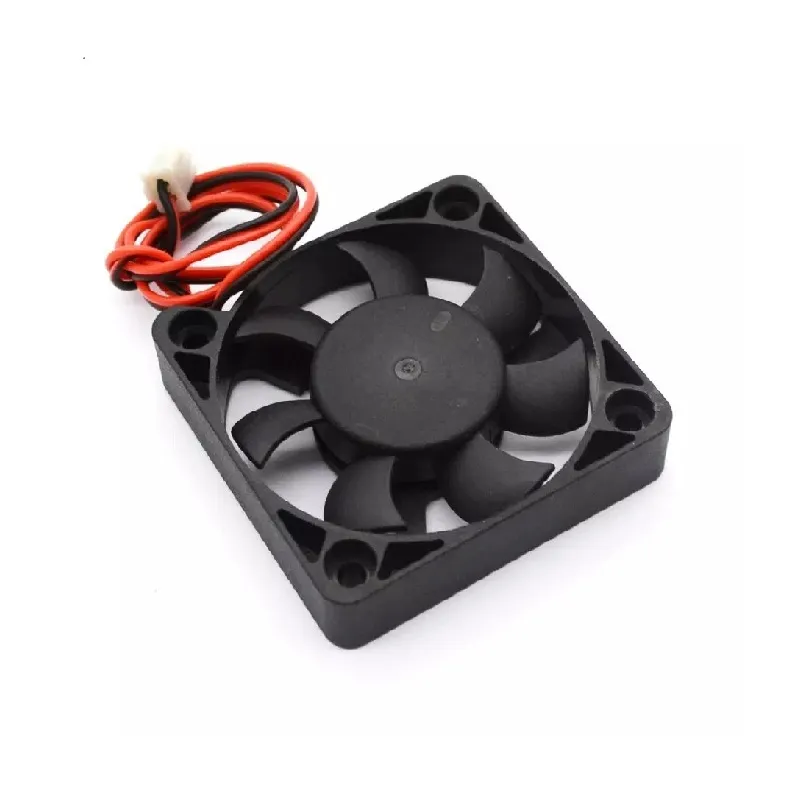

Generic 12V 5010 Cooling Fan for 3D Printer Extruder
Generic 12V 5010 Cooling Fan for 3D Printer Extruder - Image 2
SKU: 3DDF-1688
📋 GST Invoice Available

Generic 12V 5010 Cooling Fan for 3D Printer Extruder

₹80.00 (Inclusive of all taxes)
Out of Stock

This compact and powerful 12V 5010 cooling fan is specifically designed for 3D printer extruders, ensuring optimal temperature regulation for consistent, high-quality prints. Its low current consumption and quiet operation make it an efficient and unobtrusive addition to any 3D printing setup.

Features

  • Optimized for 3D printer extruder and hotend cooling.
  • Quiet operation with a low 23dBA noise level.
  • Efficient 12V DC power, drawing only 0.15A current.
  • Easy two-pin PH2.0-2P connector for quick installation.
  • Compact 50x50x10mm form factor for versatile mounting.

Out of stock

Description

The 12V 5010 Cooling Fan is an essential component for maintaining the thermal stability of your 3D printer’s extruder. Designed to provide targeted airflow, this fan prevents heat creep and ensures that the filament melts consistently, which is crucial for achieving high-resolution and artifact-free prints. Its robust construction and reliable operation make it an ideal replacement or upgrade part for improved print quality and component longevity.

Operating at 12V, this fan seamlessly integrates with most standard 3D printer control boards via a simple two-pin PH2.0-2P connector. Its compact form factor (50x50x10mm) allows for easy mounting in tight spaces around the hotend assembly. With a rated speed of 7000 RPM and an air flow of 2.2 CFM, it delivers effective cooling without excessive noise, contributing to a more pleasant printing environment and extended lifespan for your printing components.

Key Features

  • Precisely sized (50x50x10mm) for common 3D printer extruder mounts.
  • Generates minimal noise at 23dBA±10%, suitable for various environments.
  • Operates efficiently with very low 0.15A current consumption at 12V DC.
  • Features a PH2.0-2P connector and long connecting wire for convenient installation.
  • Provides consistent airflow of 2.2 CFM at 7000 RPM for effective cooling.
  • Constructed from high-quality plastic for durability and extended service life of 35,000 hours.

Applications

  • Direct cooling for 3D printer extruder hotends to prevent heat creep.
  • Maintaining optimal temperature for filament melting and consistent extrusion.
  • Replacement for worn-out or noisy 5010 fans in various 3D printer models.
  • Integration into custom 3D printer builds requiring compact 12V cooling solutions.

Technical Specifications

Item TypeCooling Fan
CompatibilityGeneral Purpose
MaterialHQ Plastic
ColorBlack
Input Voltage12 VDC
Operating Current0.15 A
Cable Length0.3 meters
Noise Level23dBA ±10%
Connector TypePH2.0-2P
Rated Speed7000 RPM
Air Flow2.2 CFM
Service Life35,000 hours
Fan Length50 mm
Fan Width50 mm
Product Weight15g (Approx)

Frequently Asked Questions

What is the primary function of this 12V 5010 cooling fan in a 3D printer?

This cooling fan is primarily designed to provide targeted airflow to the 3D printer's extruder and hotend. It helps dissipate heat efficiently, preventing heat creep and ensuring consistent filament melting. This is crucial for maintaining extrusion stability and achieving high-quality 3D prints, extending component life.

What are the key electrical specifications for this fan?

The fan operates at 12 Volts DC and draws a low current of 0.15 Amperes, making it energy-efficient. It connects via a standard PH2.0-2P connector, ensuring broad compatibility with most 3D printer control boards. Its reliable power usage integrates seamlessly into existing printer setups.

Can this fan be used as a replacement for other 3D printer cooling fans?

Yes, if your existing fan is a 12V, 50x50x10mm model, this fan can serve as a direct replacement. It is ideal for replacing worn-out or noisy extruder fans, improving cooling performance and reducing operational sound levels. Always verify voltage, current rating, and physical dimensions for proper compatibility before installation.

What is the expected service life and noise level of this fan?

This cooling fan boasts an impressive service life of approximately 35,000 hours, ensuring long-term reliability and reducing the need for frequent replacements. Its noise level is rated at a quiet 23dBA ±10%, which means it operates with minimal acoustic disturbance, contributing to a more comfortable printing environment without compromising performance.

Package Includes

  • 1 x Generic 12V 5010 Cooling Fan

Additional Information

Weight 0.015 kg
Dimensions 5 × 5 × 2 cm
