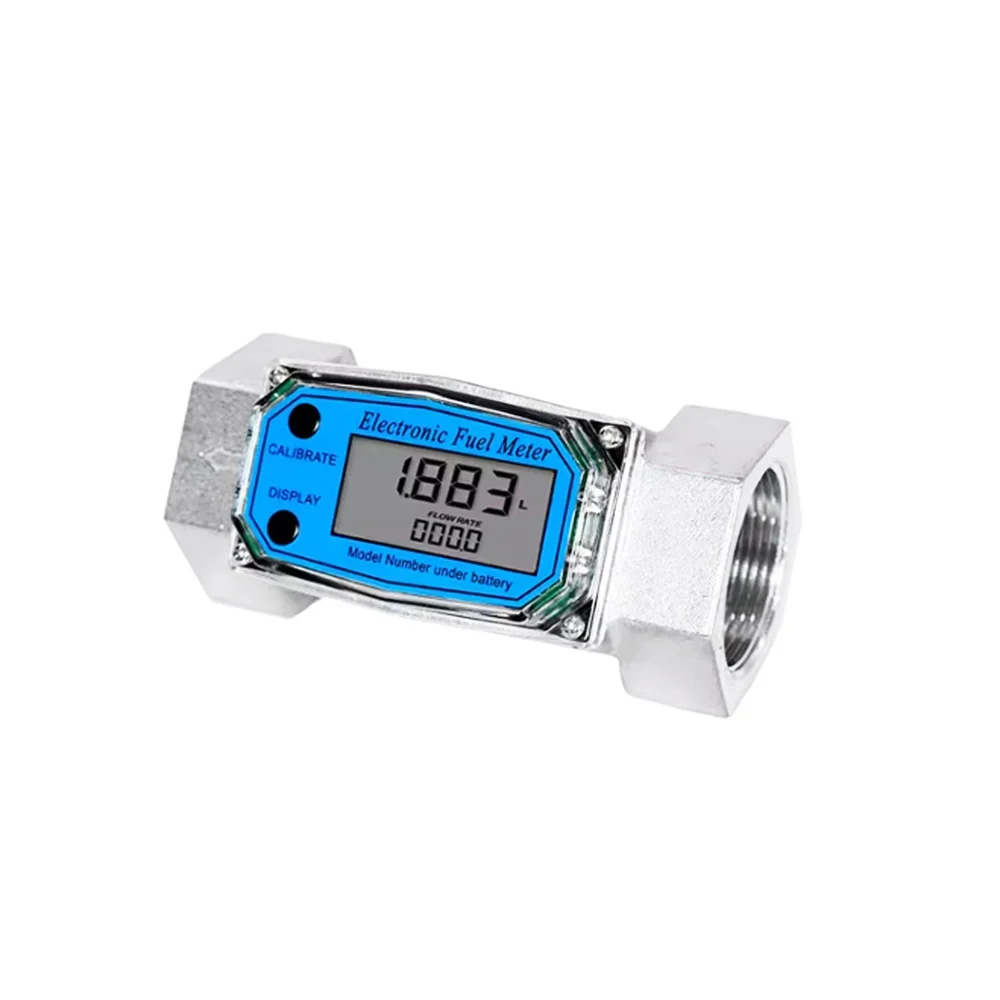

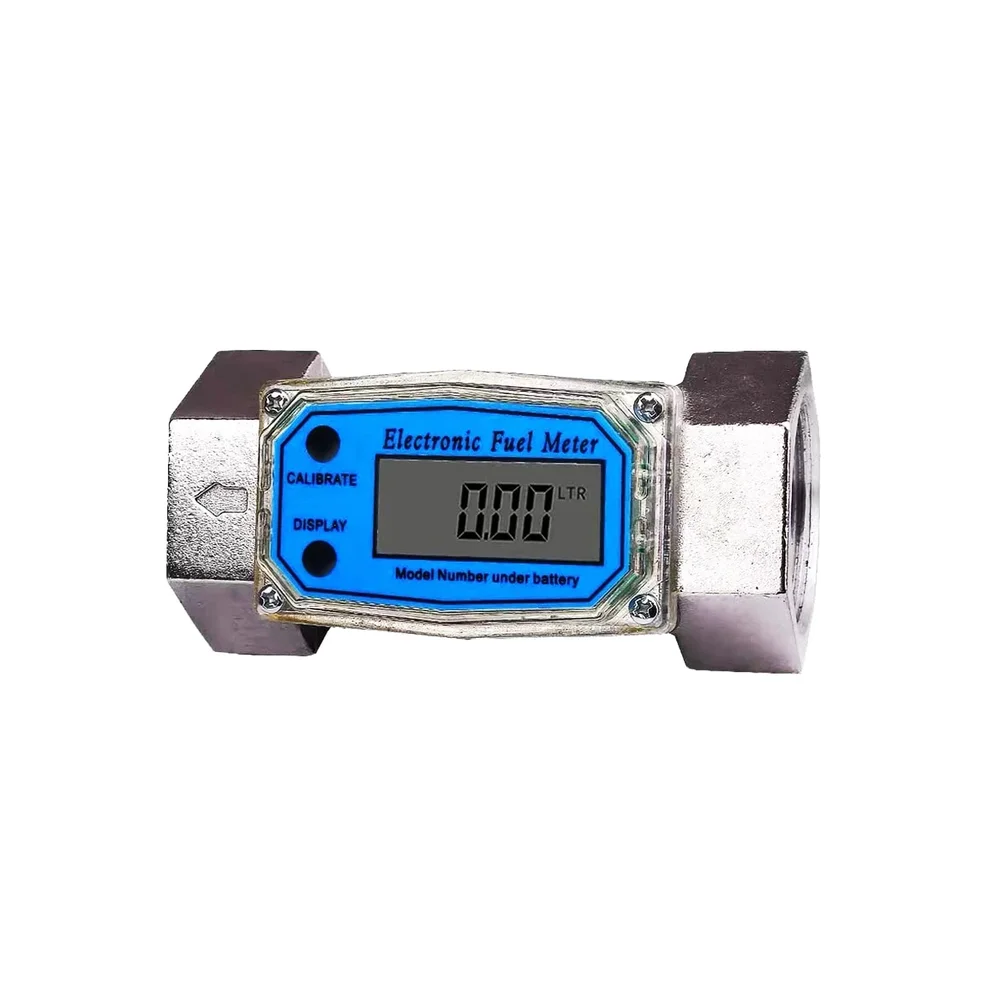

Generic 1.5" Electronic Turbine Flow Meter High Precision Portable Industrial Flow Sensor Stainless Steel

Name: Generic 1.5" Electronic Turbine Flow Meter High Precision Portable Industrial Flow Sensor Stainless Steel
Brand: Generic
SKU: SENS-0584
Price: 7639.00 INR
Availability: OutOfStock

₹7,639.00 (Inclusive of all taxes)

Out of Stock

This 1.5-inch Electronic Turbine Flow Meter is a high-precision, portable industrial sensor designed for accurate measurement of high-flow liquids like water, diesel, and kerosene. Featuring a durable stainless steel body, digital display, and simple two-button interface, it provides reliable flow data for industrial monitoring and process control applications.

Features

High-precision turbine flow measurement with ±1% accuracy
Durable stainless steel and aluminum alloy construction for industrial environments
Wide flow measurement range from 60 L/min to 1000 L/min
Digital display with support for multiple measuring units and adjustable calibration coefficient
Portable design with simple two-button operation for totalized flow data and settings

Out of stock

Get Notified When Available

Description

The 1.5-inch Electronic Turbine Flow Meter operates on the turbine principle, where liquid flow causes a rotor to spin, generating a pulse signal proportional to the flow rate. This signal is processed by the integrated electronics to provide precise volumetric flow readings on the digital display. The sensor is designed for high-flow applications and is constructed from stainless steel and aluminum alloy for corrosion resistance and durability in demanding industrial settings.

With a working temperature range of -25°C to +70°C and a maximum working pressure of 0.6 MPa, this flow meter is suitable for various liquid media including water, diesel, gasoline, kerosene, and methanol. The portable design and simple two-button interface facilitate easy installation, calibration, and operation across different liquid transfer systems, from fuel dispensing to industrial process monitoring.

Key Features

High-precision turbine flow sensor with ±1% measurement accuracy
Robust stainless steel and aluminum alloy housing for long-term durability
Digital LCD display for clear real-time and totalized flow readings
User-configurable measuring coefficient for calibration to specific media and conditions
Supports multiple flow rate units for flexible application across industries
Wide operating temperature range from -25°C to +70°C
Portable, compact design for easy integration into various piping systems
Simple two-button interface for data access, reset, and configuration

Applications

Industrial fuel dispensing and transfer monitoring for diesel, gasoline, and kerosene
Process water flow measurement and totalization in manufacturing and treatment plants
Portable flow verification and calibration for liquid transfer systems
Chemical and solvent dosing and batching in industrial processes
Agricultural irrigation and liquid fertilizer application monitoring

Technical Specifications

Item Type	Electronic Turbine Flow Meter
Nominal Diameter	1.5 inch
Minimum Flow	60 L/min
Maximum Flow	1000 L/min
Material	Stainless Steel / Aluminum Alloy
Applicable Media	Diesel, Gas, Kerosene, Methanol, Water
Measurement Accuracy	±1%
Maximum Working Pressure	0.6 MPa
Working Temperature	-25°C to +70°C
Single Measurement Range	9999
Cumulative Range	29999999
Dimensions (LxWxH)	135 × 75 × 82 mm
Weight	1495 g

Frequently Asked Questions

What types of liquids can this turbine flow meter measure?

This flow meter is designed for clean, low-viscosity liquids compatible with its stainless steel and aluminum alloy construction. The specifications list applicable media including water, diesel, gasoline, kerosene, and methanol. It is not suitable for corrosive chemicals, abrasive slurries, or high-viscosity fluids without verifying material compatibility and potential for rotor damage.

How is the flow meter calibrated and can I adjust it?

The meter features a user-adjustable measuring coefficient (K-factor) that can be modified via the two-button interface to calibrate the sensor output to your specific liquid and piping conditions. This allows you to compensate for minor installation effects and achieve optimal accuracy. The factory calibration provides a baseline ±1% accuracy.

What is the output signal and how do I connect it to a data logger or PLC?

This portable meter is primarily designed with an integrated digital display for local reading. For remote data acquisition, you would typically need to interface with its pulse output signal (implied by the turbine design). Consult the specific wiring diagram for the pulse output terminals to connect to a PLC digital input, frequency counter, or data logger for totalized flow recording.

What are the installation requirements for this flow sensor?

For accurate measurement, install the meter in a straight pipe run, with recommended lengths of 10 pipe diameters upstream and 5 pipe diameters downstream to ensure stable, non-turbulent flow. Ensure the flow direction matches the arrow marked on the housing. The maximum working pressure is 0.6 MPa, so the system pressure must not exceed this limit to prevent damage.
