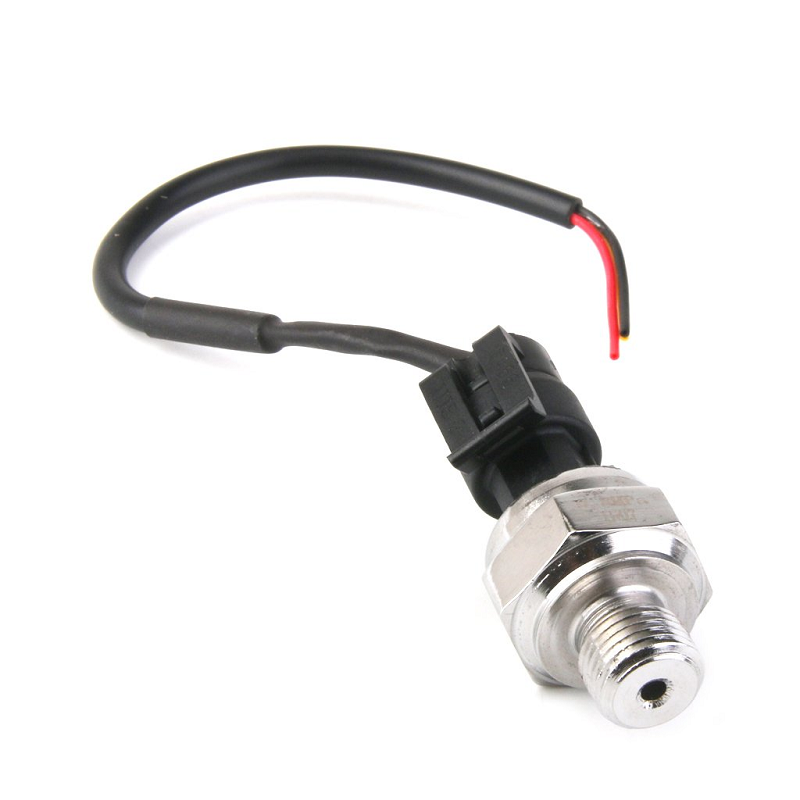

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output

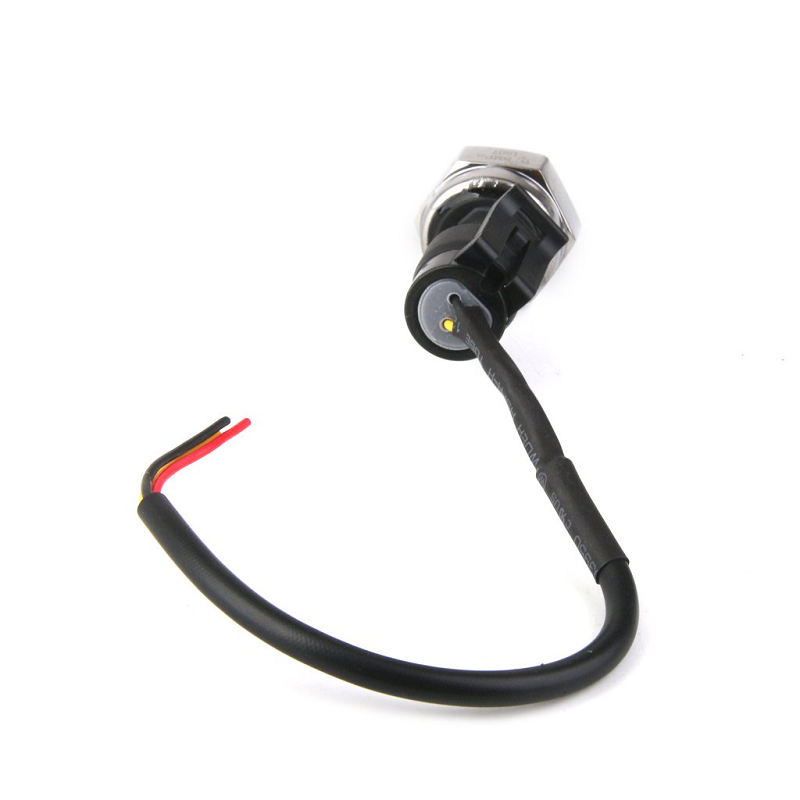

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output - Image 2

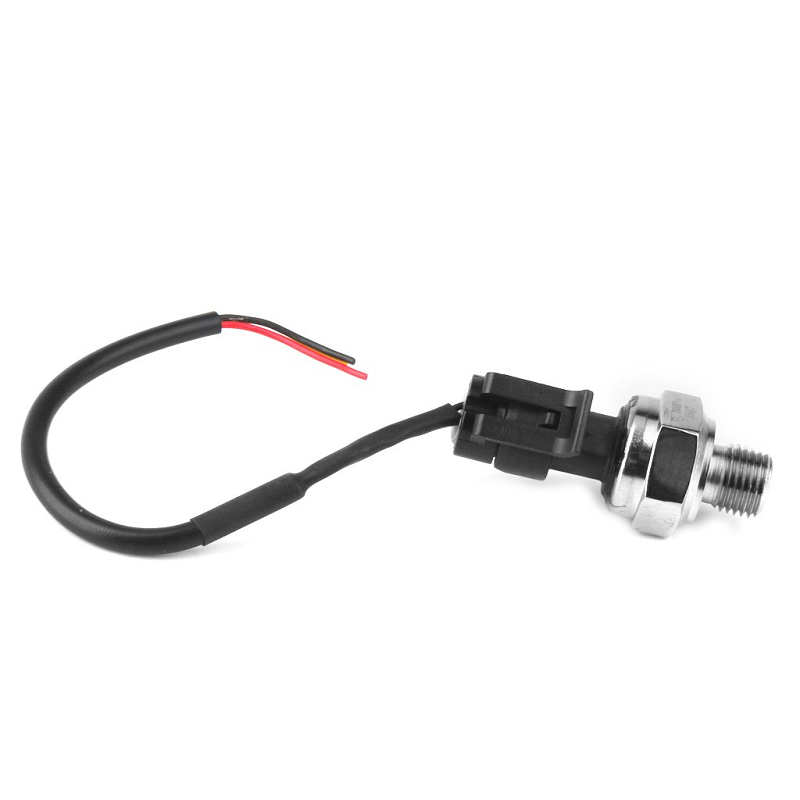

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output - Image 3

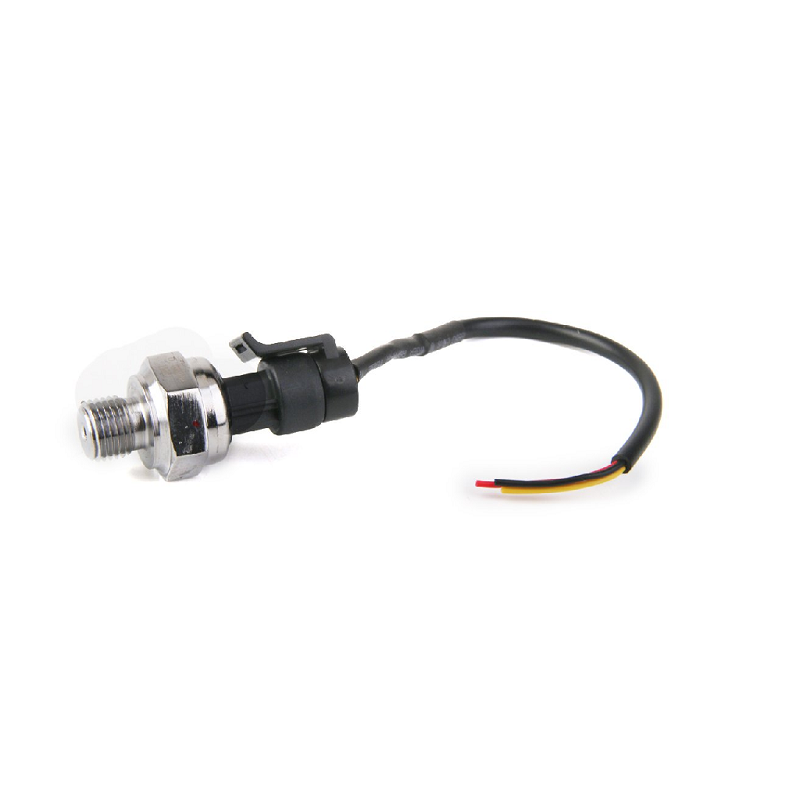

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output - Image 4

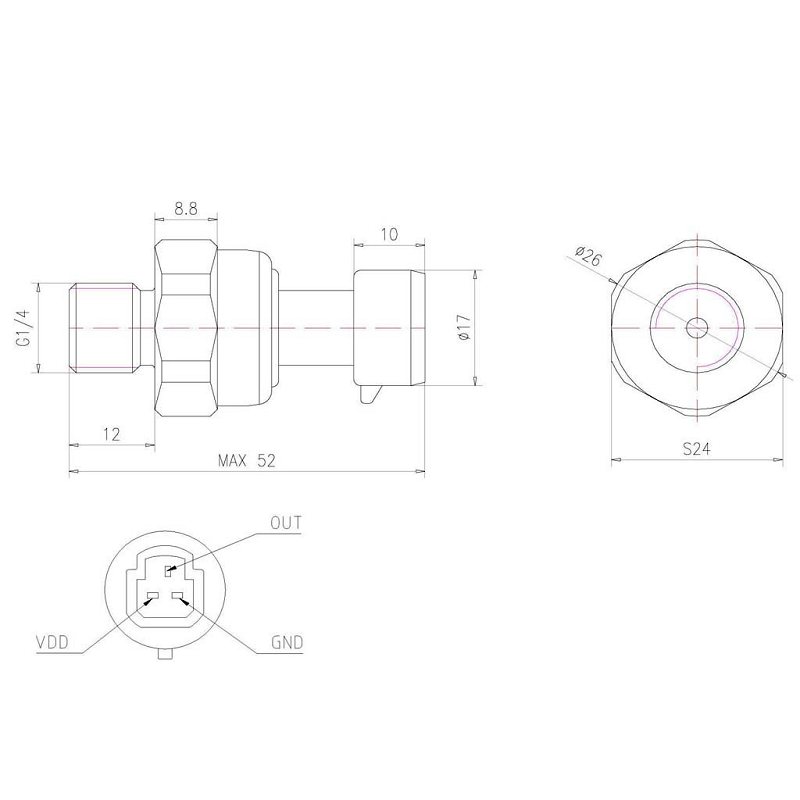

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output - Image 5
SKU: SENS-2183
📋 GST Invoice Available

Generic 0.8MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output

₹1,349.00 (Inclusive of all taxes)
Out of Stock

This 0.8 MPa stainless steel pressure transducer provides a 0.5–4.5V analog output signal from a 5V DC supply, suitable for monitoring gas, liquid, or oil pressure in industrial control systems, PLCs, and data acquisition modules.

Features

  • Stainless steel housing with G1/4″ threaded port for robust installation.
  • 0.8 MPa (approx. 116 psi) pressure range with 0.5–4.5V ratiometric analog output.
  • Operates from a standard 5V DC power supply for easy integration.
  • Designed for media compatibility with air, water, oil, and inert gases.
  • Compact form factor (50mm length) for space-constrained applications.

Out of stock

Description

This pressure transducer utilizes a stainless steel sensing element and integrated signal conditioning to deliver a stable, linear voltage output proportional to applied pressure. The G1/4″ threaded port allows for direct installation into hydraulic or pneumatic lines, while the sealed stainless steel body provides durability against harsh media and environmental conditions.

The sensor outputs a ratiometric 0.5V to 4.5V signal corresponding to the 0 to 0.8 MPa pressure range when powered by 5V DC, making it directly compatible with microcontroller ADCs (e.g., Arduino, Raspberry Pi) and industrial PLC analog input modules. Its construction ensures reliable performance in applications involving gases, liquids, and oils.

Key Features

  • Stainless steel body construction for high mechanical strength and media resistance.
  • Integrated precision compensation circuitry for stable output and reduced thermal drift.
  • Ratiometric 0.5–4.5V analog output simplifies interface with 5V logic systems.
  • G1/4" standard industrial thread for secure, leak-resistant piping connections.
  • Compact and lightweight design facilitates easy mounting in confined spaces.
  • Surge voltage protection enhances reliability in electrically noisy environments.
  • Suitable for use with a wide range of media including air, water, and non-corrosive oils.

Applications

  • Hydraulic system pressure monitoring and control in machinery.
  • Pneumatic line pressure sensing in industrial automation.
  • Fuel tank or oil reservoir pressure measurement in automotive and marine systems.
  • Compressed air pressure feedback in HVAC and pneumatic tools.
  • Process liquid pressure monitoring in water treatment and chemical handling.

Technical Specifications

Model NamePressure Sensor
Operating Voltage5 VDC
Pressure Range0 – 0.8 MPa
Output Signal0.5 – 4.5 V (Analog)
Accuracy±1% Full Scale (FS)
Thread SizeG1/4"
Housing MaterialStainless Steel
Length50 mm
Width20 mm
Weight70 g

Frequently Asked Questions

What is the output signal type and range of this pressure transducer?

The sensor provides a ratiometric analog voltage output from 0.5V to 4.5V, corresponding linearly to the applied pressure from 0 to 0.8 MPa. This output is proportional to the 5V supply voltage, making it straightforward to read with a microcontroller's ADC pin.

What media is this stainless steel sensor compatible with?

The stainless steel housing and sensing diaphragm are compatible with a wide range of media, including air, water, hydraulic oil, and other non-corrosive gases and liquids. It is not recommended for use with highly corrosive or reactive chemicals without verification of material compatibility.

How do I wire and power this pressure sensor?

The sensor requires a stable 5V DC power supply. The typical wiring configuration is three wires: Red for VCC (5V), Black for Ground (GND), and a signal wire (often Yellow or Blue) for the 0.5–4.5V analog output. Connect the output wire directly to an analog input on your PLC, data logger, or microcontroller.

What is the thread specification for installation?

The sensor features a standard G1/4" (ISO 1179) parallel (BSPP) female thread port. Ensure you use compatible sealing washers or thread sealant (suitable for the media) on the male fitting to achieve a leak-proof connection in your pneumatic or hydraulic line.

Package Includes

  • 1 x 0.8MPa Stainless Steel Pressure Transducer Sensor

Additional Information

Weight 0.07 kg
Dimensions 5 × 2 cm
