Generic 0.5MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output

Name: Generic 0.5MPa Stainless Steel Pressure Transducer Sensor - G1/4 Thread, 0.5-4.5V Output
Brand: Generic
SKU: SENS-2184
Price: 1199.00 INR
Availability: OutOfStock

₹1,199.00 (Inclusive of all taxes)

Out of Stock

This 0.5 MPa stainless steel pressure transducer provides a 0.5-4.5V analog output signal from a 5V DC supply, suitable for direct interfacing with microcontrollers (Arduino, Raspberry Pi), PLCs, and data acquisition systems for monitoring gas, liquid, or oil pressure in industrial and automation applications.

Features

0.5 MPa (5 bar) pressure measurement range with 1.5% FS accuracy.
Stainless steel G1/4 threaded body for robust installation in gas, liquid, or oil lines.
0.5-4.5V ratiometric analog output proportional to applied pressure.
Compact form factor (50mm length, 20mm width) for easy integration.
Operates from a standard 5V DC power supply.

Out of stock

Get Notified When Available

Description

This industrial-grade pressure transducer utilizes a precision-compensated sensing element housed within a durable stainless steel body, ensuring stable and reliable performance across its specified pressure range. The sensor outputs a linear analog voltage signal (0.5V to 4.5V) that is directly proportional to the applied pressure from 0 to 0.5 MPa, simplifying integration with analog-to-digital converters (ADCs) on microcontrollers or industrial controllers.

Designed for direct installation into fluid and gas systems via its G1/4 male thread, the transducer is suitable for a variety of media including air, water, oil, and non-corrosive gases. Its construction provides inherent surge voltage protection and is engineered for long-term operation in demanding environments, making it a dependable component for system pressure monitoring and control.

Key Features

Precision-compensated sensing technology for stable, reliable output.
Low 1.5% Full Scale (FS) total error band, encompassing nonlinearity, hysteresis, and repeatability.
Robust stainless steel housing with G1/4 threaded port for secure, leak-resistant installation.
Ratiometric 0.5-4.5V analog output simplifies calibration and scaling with 5V logic systems.
Compact and lightweight design (approx. 70g) for versatile mounting in confined spaces.
Suitable for use with a wide range of non-corrosive gases, liquids, and oils.
Integrated surge protection enhances electrical durability in industrial settings.

Applications

Industrial pressure monitoring in hydraulic and pneumatic systems.
Fuel tank or oil reservoir pressure sensing in automotive and machinery applications.
Compressed air system pressure regulation and safety cutoff.
Water pressure monitoring in irrigation, filtration, and plumbing systems.
Process control and feedback in automated manufacturing equipment.

Technical Specifications

Model / Name	Pressure Sensor
Pressure Range	0 - 0.5 MPa
Operating Voltage	5 VDC
Output Signal	0.5 - 4.5 VDC (Analog)
Accuracy	±1.5% FS

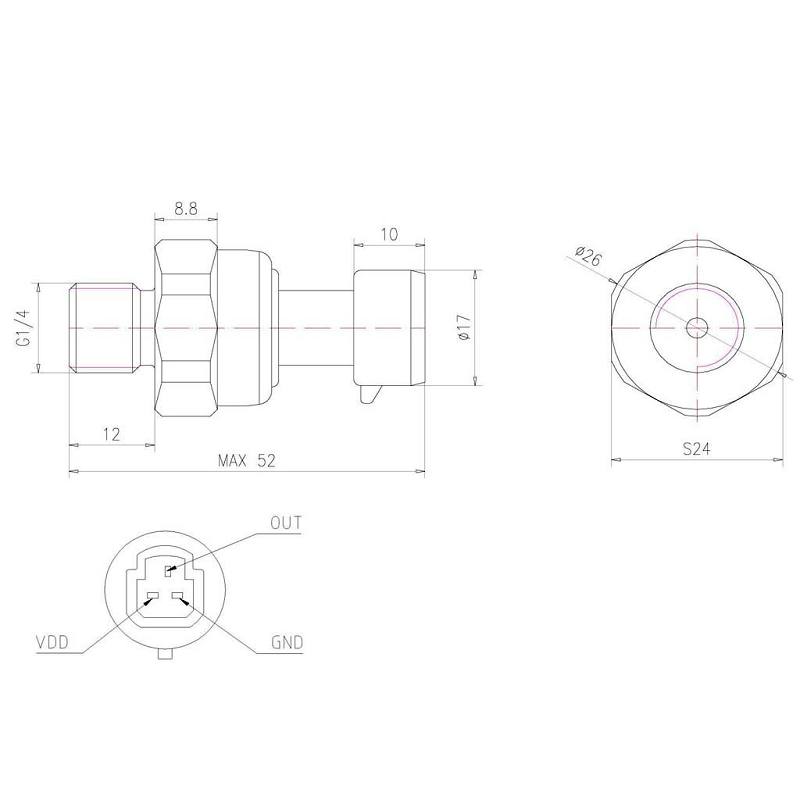

Thread Size	G1/4
Body Material	Stainless Steel
Length	50 mm
Width / Diameter	20 mm
Weight	70 g

Frequently Asked Questions

What is the output signal of this pressure transducer?

The sensor provides a ratiometric analog voltage output ranging from 0.5V (at 0 MPa) to 4.5V (at full-scale 0.5 MPa) when powered by 5V DC. This linear output is ideal for direct connection to a microcontroller's ADC pin for pressure reading.

What media can this pressure sensor be used with?

The stainless steel body and G1/4 threaded port make this transducer suitable for use with a variety of non-corrosive media, including air, water, oil, and inert gases. It is not recommended for use with highly corrosive or reactive chemicals unless specifically rated.

How do I wire and power this sensor?

Connect the red wire to a stable 5V DC power supply, the black wire to ground (GND), and the signal wire (often yellow or white) to your measurement device's analog input. Ensure the power supply is clean and stable for accurate readings, as the output is ratiometric to the supply voltage.

What is the accuracy and pressure range?

This transducer has a measurement range of 0 to 0.5 Megapascals (MPa), which is equivalent to 0 to 5 bar or approximately 0 to 72.5 psi. Its total accuracy is specified as ±1.5% of Full Scale (FS), meaning the maximum error across the range is 0.0075 MPa.
