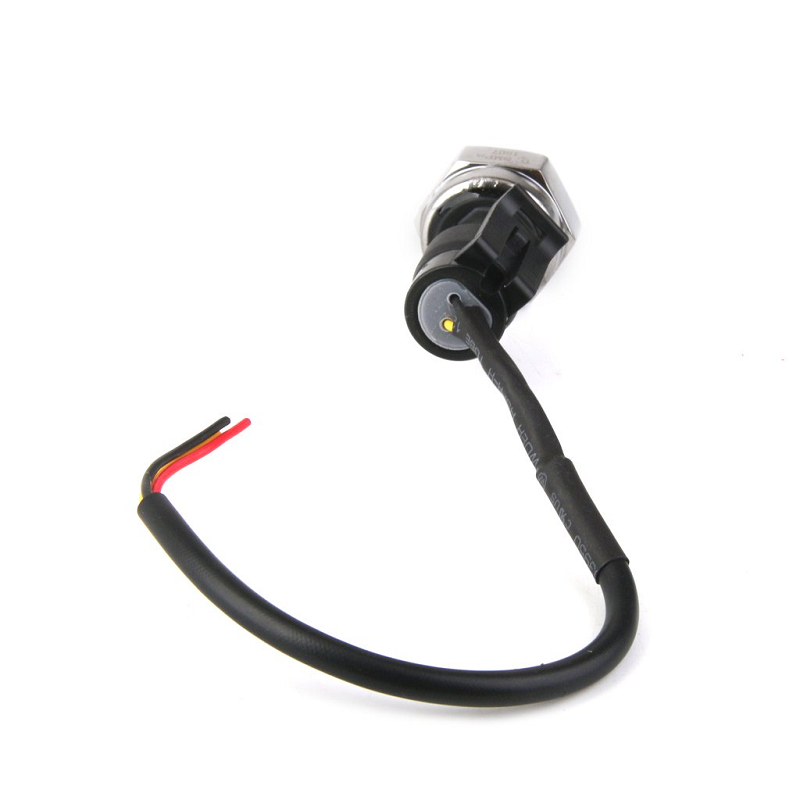

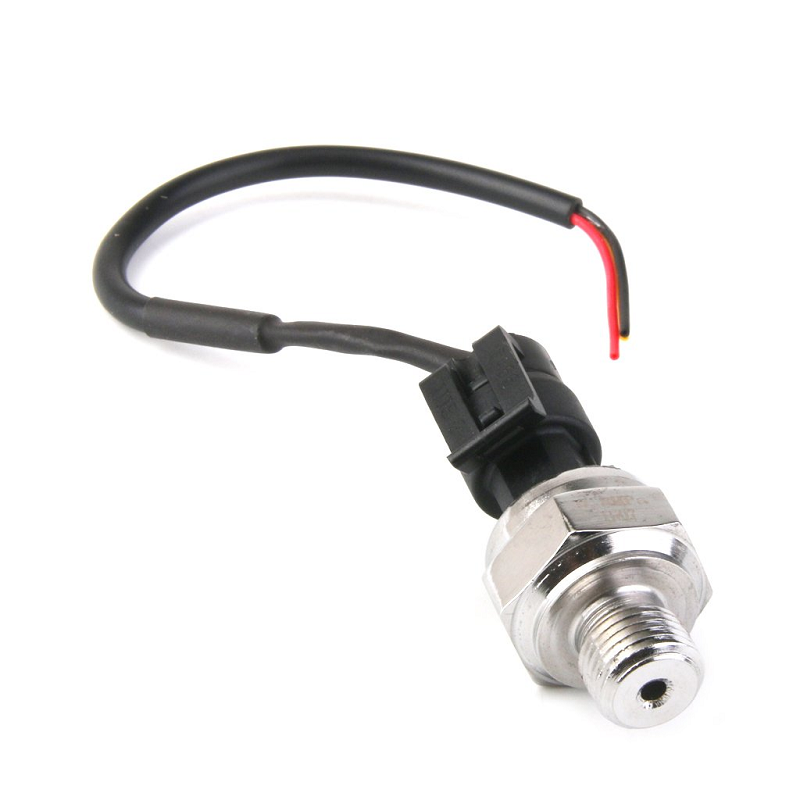

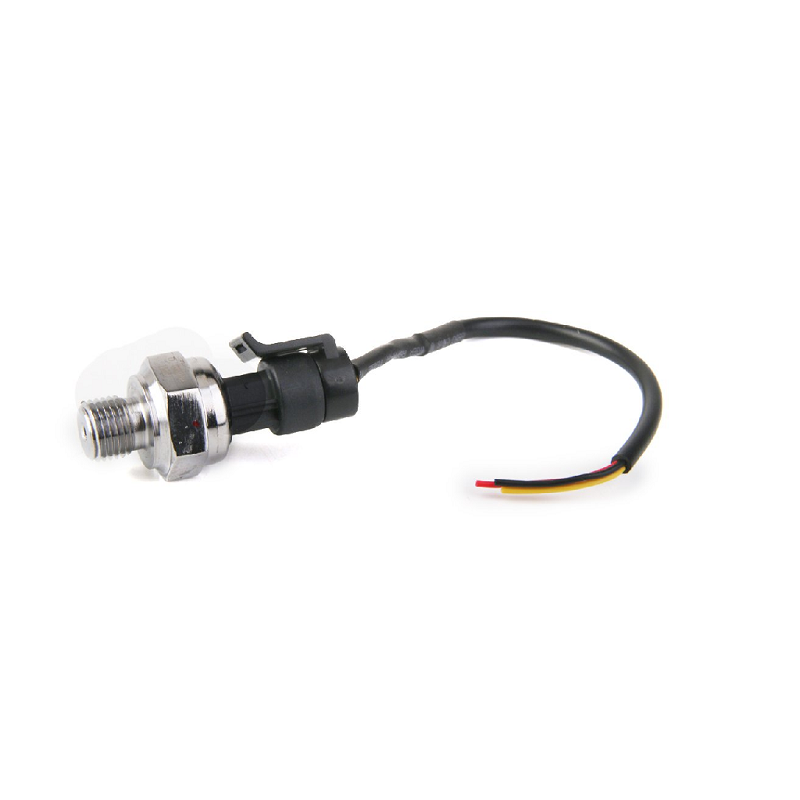

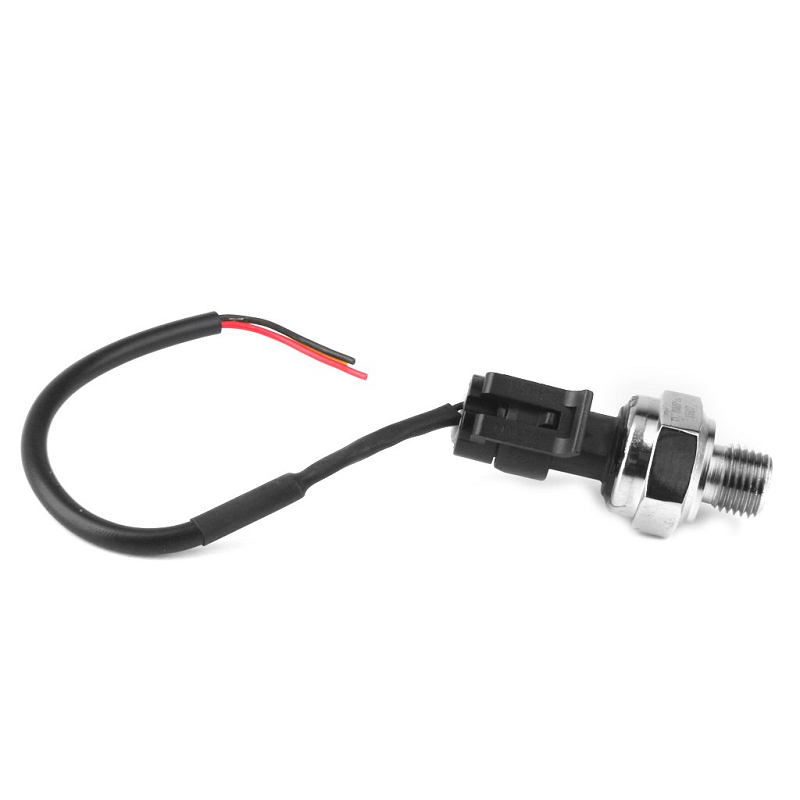

Generic 0.2MPa Stainless Steel Pressure Transducer Sensor - G1/4" Thread, 0.5-4.5V Output
This 0.2 MPa stainless steel pressure transducer provides a 0.5–4.5V analog output signal proportional to applied pressure, compatible with 5V microcontroller systems like Arduino for industrial monitoring and fluid control applications.
Features
- 0–0.2 MPa (0–29 psi) pressure sensing range with 1% FS accuracy.
- Stainless steel G1/4″ threaded housing for durable installation in air or water media.
- 5V DC operating voltage with 0.5–4.5V ratiometric analog output.

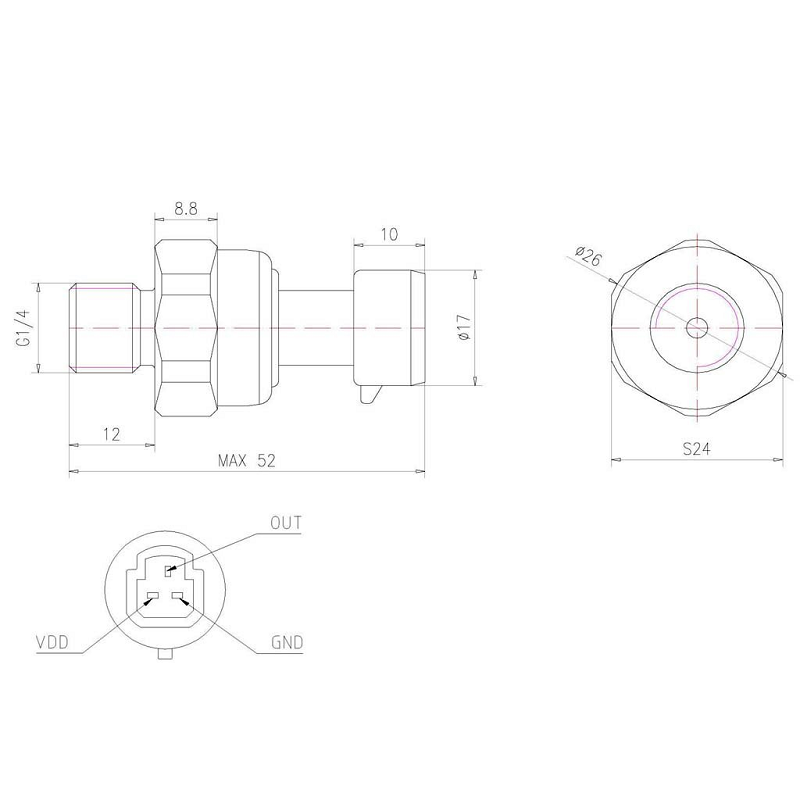

- Compact form factor (50mm length, 20mm width) for space-constrained applications.
- Includes calibration guidance for Arduino integration and signal conditioning.
Out of stock
This analog pressure transducer utilizes a stainless steel sensing element and internal signal conditioning to deliver a linear voltage output directly proportional to the applied pressure. The G1/4″ threaded port ensures a secure seal for monitoring pneumatic systems or liquid pressures in tanks and pipelines.
Engineered for stable long-term operation, the sensor features precision compensation technology to minimize output error, including nonlinearity, hysteresis, and repeatability. Its 5V DC supply and ratiometric 0.5–4.5V output make it directly interfaceable with common ADCs on microcontrollers like Arduino Uno, ESP32, or industrial PLC analog input modules.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 2 cm |
