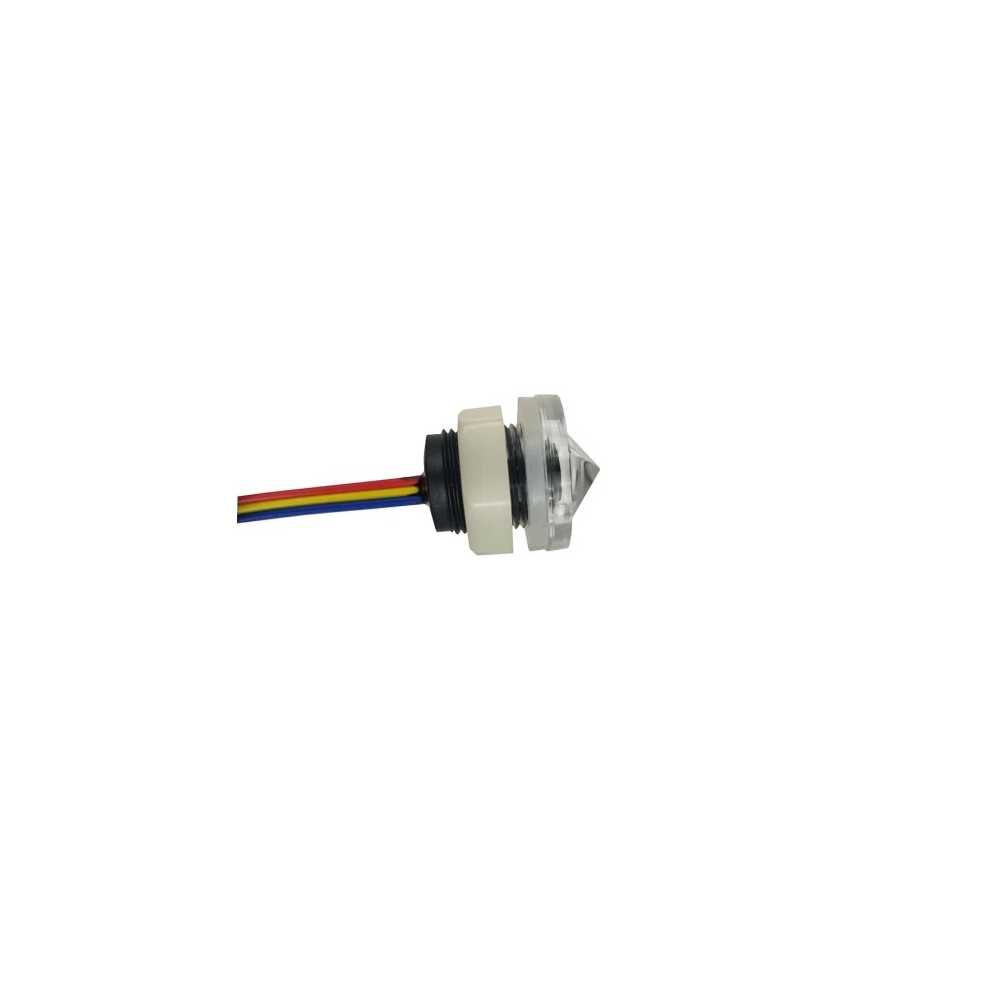

FS-IR02B Photoelectric Water Level Sensor - 14mm Diameter, Polycarbonate, 5V DC
The FS-IR02B is a compact photoelectric water level sensor designed for reliable liquid detection in 3.3V/5V microcontroller systems like Arduino and Raspberry Pi. Its 14mm diameter polycarbonate probe offers corrosion resistance and is suitable for high-temperature and high-pressure environments up to 105°C.
Features
- Photoelectric sensing principle for non-mechanical, low-maintenance operation.
- Corrosion-resistant polycarbonate probe rated for high-temperature and high-pressure applications.
- Compact 14mm diameter design for easy integration into tanks, reservoirs, and industrial systems.
- 5V DC operating voltage with 12mA output current for direct compatibility with common logic levels.
- Wide operating temperature range from -25°C to +105°C for harsh environment reliability.
Out of stock
The FS-IR02B photoelectric water level sensor operates on an optical principle, using infrared light to detect the presence or absence of liquid at its tip. This non-contact method eliminates mechanical moving parts, reducing wear and minimizing the need for recalibration. The sensor provides a simple digital or analog output signal indicating liquid level status.
Constructed from durable polycarbonate, the 14mm diameter probe is resistant to corrosion from many liquids and can withstand operating temperatures from -25°C to 105°C. The sensor is designed for integration into water tanks, industrial liquid containers, HVAC systems, and automated irrigation controls, providing reliable level monitoring without direct liquid contact with electronic components.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 10 × 6 × 2 cm |
