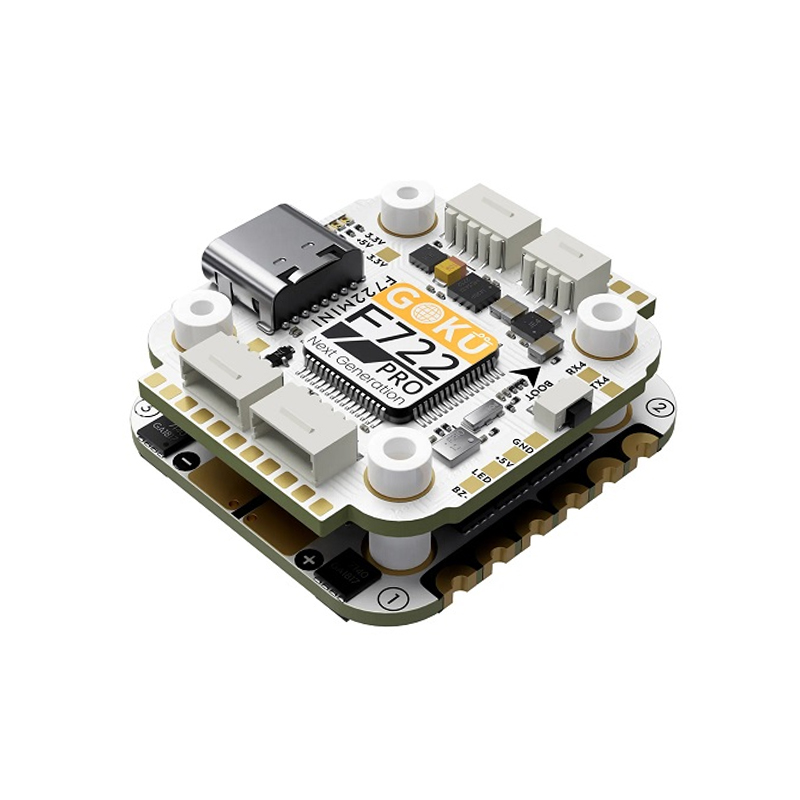

Flywoo GOKU F722 Pro V2 55A 32Bit 128K Stack (30x30)
The Flywoo GOKU F722 Pro V2 is a 30.5×30.5mm flight controller and 55A 4-in-1 ESC stack built around the high-performance STM32F722 MCU and MPU6000 gyro, designed for 2-6S LiPo setups and featuring plug-and-play sockets for simplified Betaflight/INAV builds.
Features
- High-performance STM32F722 processor (216MHz) paired with an MPU6000 gyroscope for precise flight control.
- Integrated 55A 4-in-1 BLHeli_S 32-bit ESC supports 2-6S LiPo batteries and DSHOT1200.
- Plug-and-play socket design for all major peripherals (VTX, RX, GPS) enabling modular, solder-free installation.
- Onboard 10V/3A and 5V/3A BEC regulators provide stable power for digital VTX systems and peripherals.
- Features a 16MB black box for detailed flight data logging and extensive UART connectivity for expansion.
Out of stock
The Flywoo GOKU F722 Pro V2 stack combines a feature-rich flight controller with a robust 55A 4-in-1 ESC in a standard 30.5×30.5mm mounting footprint. Its core is the STM32F722 microcontroller, delivering the processing power needed for advanced flight algorithms in Betaflight and INAV, while the MPU6000 gyro ensures low-noise, high-fidelity attitude data. The stack is engineered for clean power delivery with dual high-current BECs, supporting power-hungry digital video transmitters and other FPV gear.
Designed for builder efficiency, the board implements a comprehensive socketed interface system. This eliminates soldering for most connections, allowing for rapid assembly, component swaps, and easier troubleshooting. The integrated ESC provides reliable, low-latency motor control up to 55A continuous per motor, suitable for high-performance 5-inch and 6-inch freestyle and racing quadcopters. The inclusion of a barometer and ample UARTs makes it equally capable for long-range and autonomous navigation builds.
Additional Information
| Weight | 0.16 kg |
|---|---|
| Dimensions | 10 × 10 × 5 cm |
