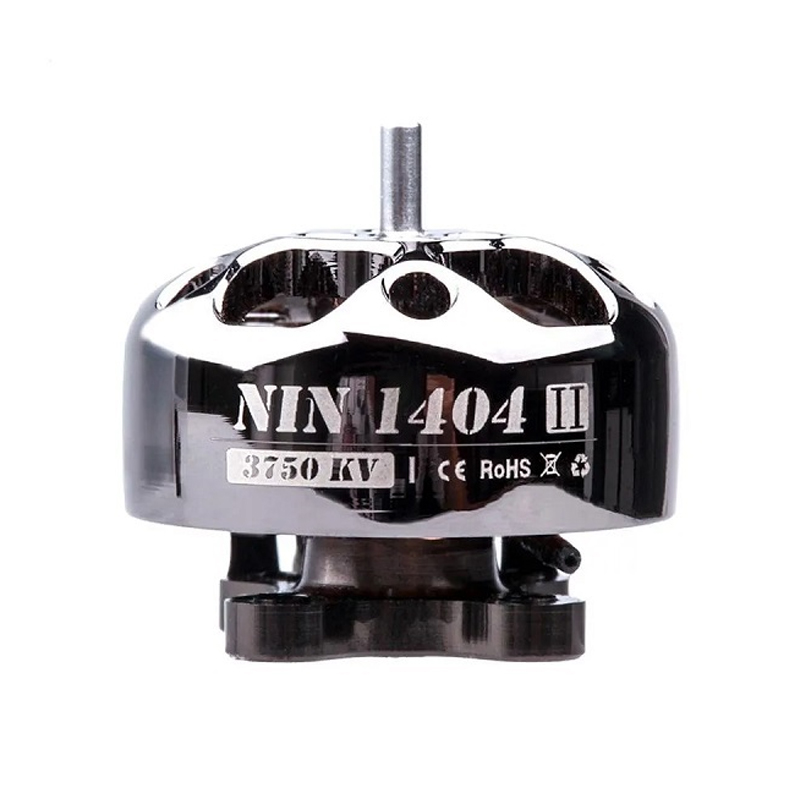

Flywoo Co-Brand Nin 1404 V2 & Dave-C FPV Motor (Titan) 3750KV

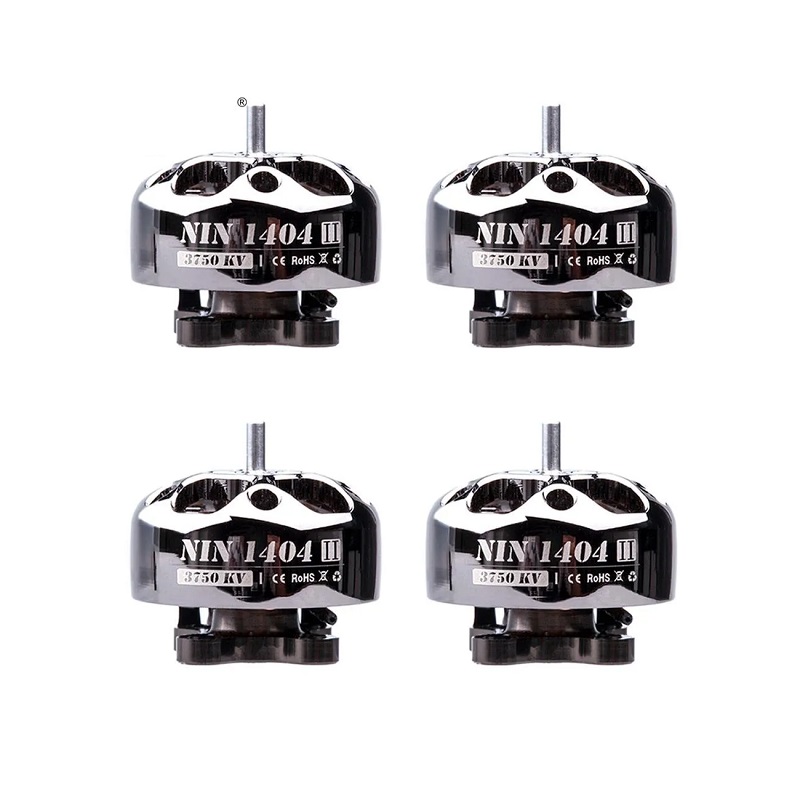

Flywoo Co-Brand Nin 1404 V2 & Dave-C FPV Motor (Titan) 3750KV - Image 2
SKU: DRFC-2446
📋 GST Invoice Available

Flywoo Co-Brand Nin 1404 V2 & Dave-C FPV Motor (Titan) 3750KV

₹1,679.00 (Inclusive of all taxes)
Out of Stock

The Flywoo Co-Brand Nin 1404 V2 & Dave-C FPV Motor (Titan) 3750KV is a high-performance 1404 brushless motor designed for aggressive 3-6S CineWhoop and micro FPV builds, delivering exceptional thrust-to-weight ratios and smooth, responsive control.

Features

  • High-performance 1404 brushless motor with 3750KV rating for 3-6S LiPo operation.
  • Features a Titan stator (9N12P) and high-grade unibell design for efficient power delivery and durability.
  • Constructed with high-quality arc magnets and ultra-high heat-resistant copper wire.
  • 4mm shaft diameter ensures robust mounting compatibility with standard micro propellers.
  • Optimized for high-RPM, low-latency flight in CineWhoop and aggressive micro FPV quadcopters.

Out of stock

Description

The Flywoo Nin 1404 V2 & Dave-C FPV Motor (Titan) is engineered for pilots demanding maximum performance from compact, high-voltage micro drone platforms. Its 3750KV winding is specifically tuned for 3-6S battery packs, providing a potent blend of top-end speed and instantaneous throttle response ideal for technical freestyle and cinematic flying.

Built around a robust 9N12P stator configuration and a precision-machined unibell, the motor minimizes eddy current losses and maximizes magnetic efficiency. This design, combined with premium arc magnets and high-temperature copper windings, ensures consistent performance and reliability even during sustained high-power maneuvers.

Key Features

  • Titan Stator Design: 9N12P stator configuration optimized for high-RPM efficiency and thermal management on 3-6S LiPo.
  • High-Grade Unibell: CNC-machined single-piece bell housing reduces weight and improves dynamic balance for smoother operation.
  • Premium Magnetic & Electrical Components: Utilizes high-quality arc magnets and ultra-high heat-resistant copper wire for sustained peak performance.
  • Aggressive Electroplating Finish: Durable, clean aesthetic coating that also provides corrosion resistance.
  • Multi-KV Options: Part of a series offering 2750KV, 3750KV, and 4850KV variants to match specific build requirements and flying styles.
  • Optimized for Responsiveness: Delivers low rotational inertia for instant throttle changes and precise control in acrobatic flight.

Applications

  • High-performance 3-inch and 3.5-inch CineWhoop builds requiring smooth, powerful thrust for cinematic footage.
  • Aggressive 2.5-inch to 3-inch micro FPV freestyle and racing drones operating on 4S or 6S LiPo packs.
  • Compact long-range micro drones where efficient 3750KV performance maximizes flight time on 3S or 4S configurations.
  • Lightweight FPV drone builds targeting an ultra-responsive throttle feel and explosive power for technical acrobatics.

Technical Specifications

Motor KV3750 KV
Stator Size1404 (14mm length, 9mm diameter)
Stator Configuration9N12P
Shaft Diameter4mm
Idle Current @ 10V0.34 A
Max Continuous Power (3S)150 W
Max Current (3S)9.5 A
Internal Resistance400 mΩ
Max Efficiency Current6.8 A
Recommended Voltage3-6S LiPo
Weight (approx.)0.07 kg per motor

Frequently Asked Questions

What is the recommended battery voltage (S count) for this 3750KV motor?

The Flywoo Nin 1404 V2 3750KV motor is optimized for 3S to 6S LiPo battery packs. On 3S, it provides efficient, high-RPM performance for lighter builds, while on 4S-6S, it delivers explosive power and top speed suitable for aggressive freestyle and racing in micro-sized frames.

What size propellers are compatible with this 1404 motor?

This motor is designed for micro FPV drones and pairs best with 2.5-inch to 3.5-inch bi-blade or tri-blade propellers. The 4mm shaft diameter and 3750KV rating provide optimal thrust for 3-inch CineWhoop ducts and 3.5-inch open-prop setups, balancing speed and efficiency.

What is the benefit of the 'Titan' stator and unibell design?

The Titan stator refers to a 9N12P magnetic configuration that enhances torque and efficiency at high RPMs. The high-grade unibell (single-piece bell) reduces weight and improves rotational balance, leading to smoother operation, better heat dissipation, and increased durability during high-stress maneuvers.

Is this motor suitable for long-range micro drone builds?

Yes, when paired with efficient propellers and a 3S or 4S LiPo pack, the 3750KV winding offers a good balance of power and efficiency for light long-range micro builds. Its high-quality construction minimizes electrical losses, helping to extend flight times on cruise throttle.

Package Includes

  • 1 x Flywoo Co-Brand Nin 1404 V2 & Dave-C FPV Motor (Titan) 3750KV

Additional Information

Weight 0.07 kg
Dimensions 14 × 10 × 8 cm
