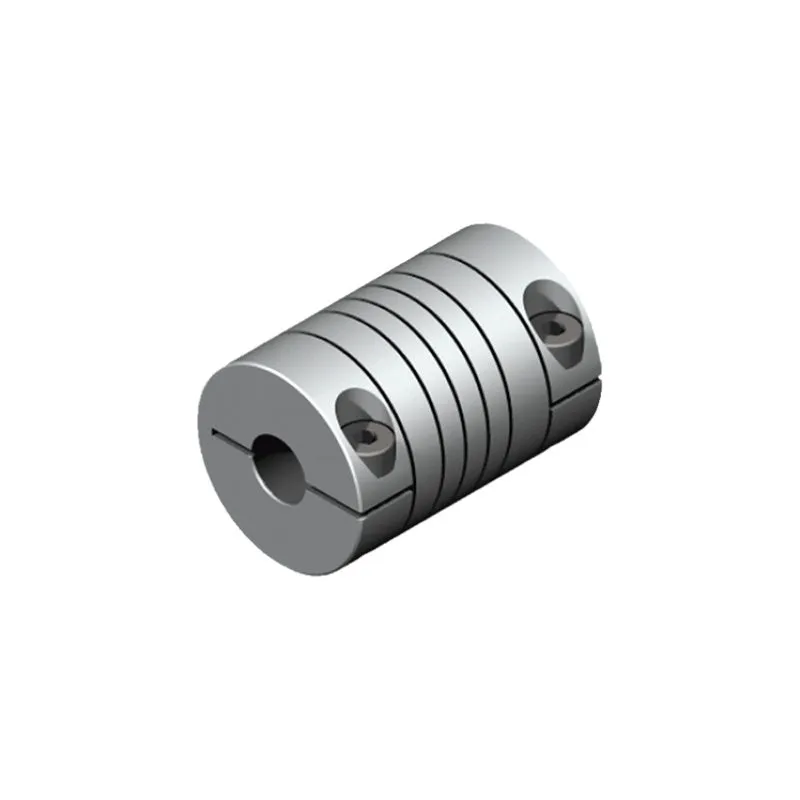

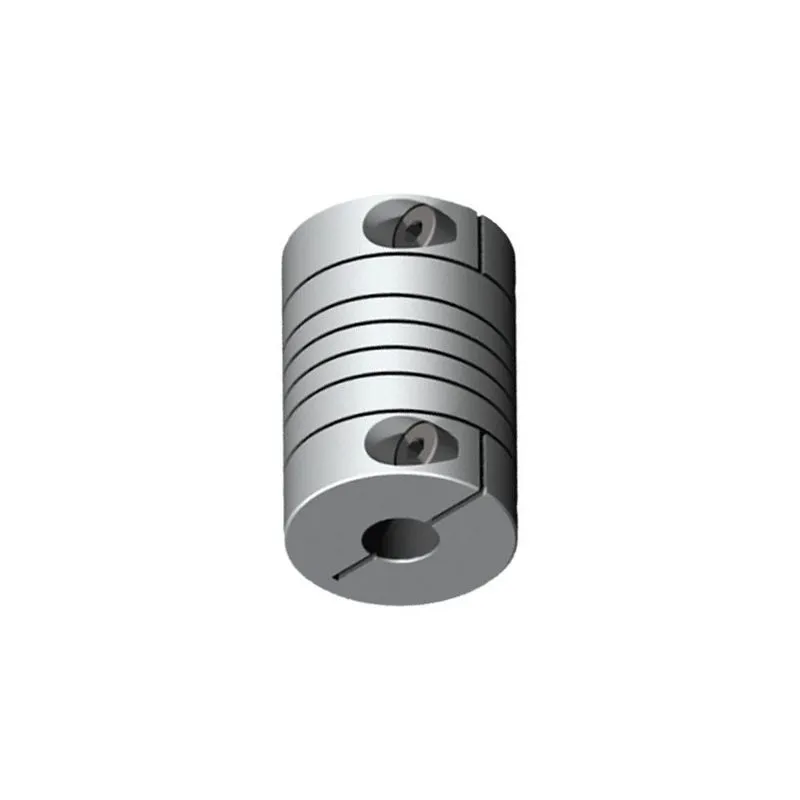

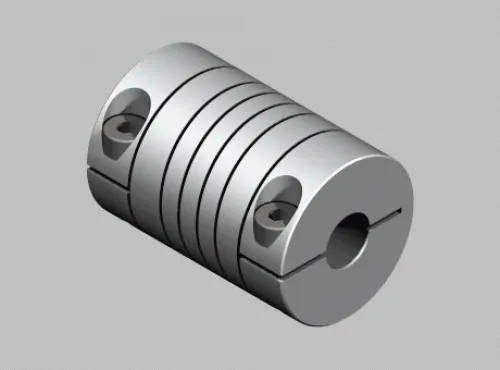

Flexible Shaft Coupling 25x32mm, 6x8mm Bore (ZRB-25x32)
The ZRB-25×32 Flexible Coupling connects driving and driven shafts, effectively compensating for misalignment and reducing backlash. Constructed from durable aluminum, this 25mm OD x 32mm L coupling features a 6mm x 8mm bore, ideal for a wide range of motion control applications.
Features
- Precision-machined aluminum construction ensures durability and corrosion resistance.
- Compensates for angular, radial, and axial misalignment, protecting connected shafts.
- Features a 6mm (d1) and 8mm (d2) bore diameter for versatile shaft integration.
- Achieves zero backlash and low moment of inertia for accurate power transmission.
- Supports high rotational speeds up to 20,000 RPM with a rated torque of 1.5 N-m.
Out of stock
This flexible motor coupling is designed to efficiently connect a driving shaft with a driven shaft, minimizing misalignment effects and offering extremely low backlash. The ZRB-25×32 model, with an outer diameter of 25mm and a length of 32mm, is crafted from machined aluminum, providing robust performance without damaging the connected shafts due to its clamping mechanism.
Its unique spiral cut design grants flexibility, allowing it to accommodate minor misalignments between two shafts that are not perfectly co-linear. This design also helps reduce binding effects and makes the coupling behave like a spring in linear X, Y, and Z axes, but maintains torsional stiffness for precise rotational power transmission. Such couplings are critical in applications where accurate power and torque transfer are paramount, safeguarding shaft members against sudden shock loads, vibrations, and thermal expansion.
Additional Information
| Weight | 0.037 kg |
|---|---|
| Dimensions | 3 × 4 × 3 cm |
