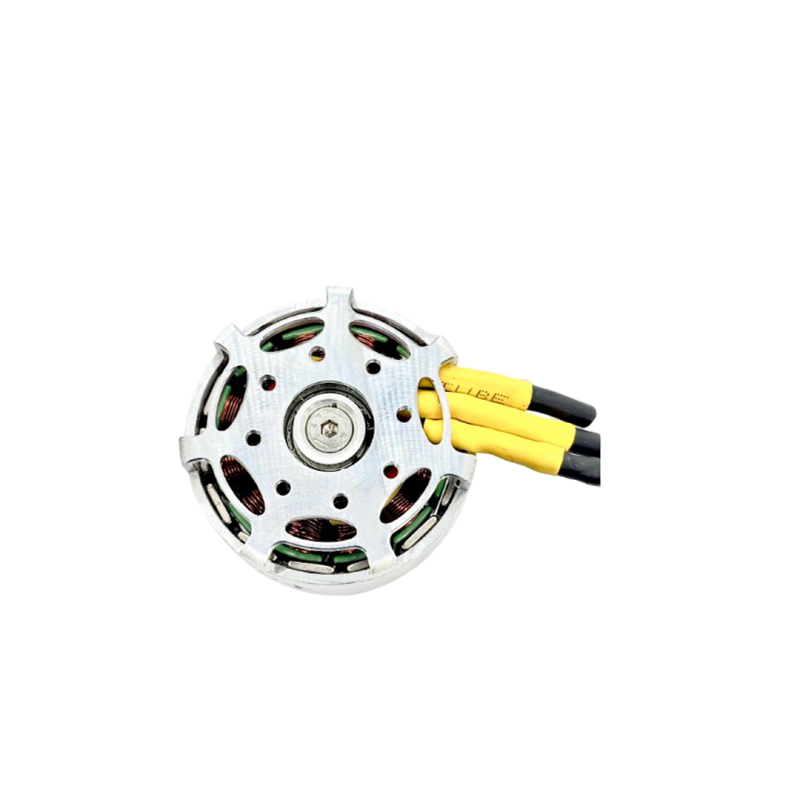

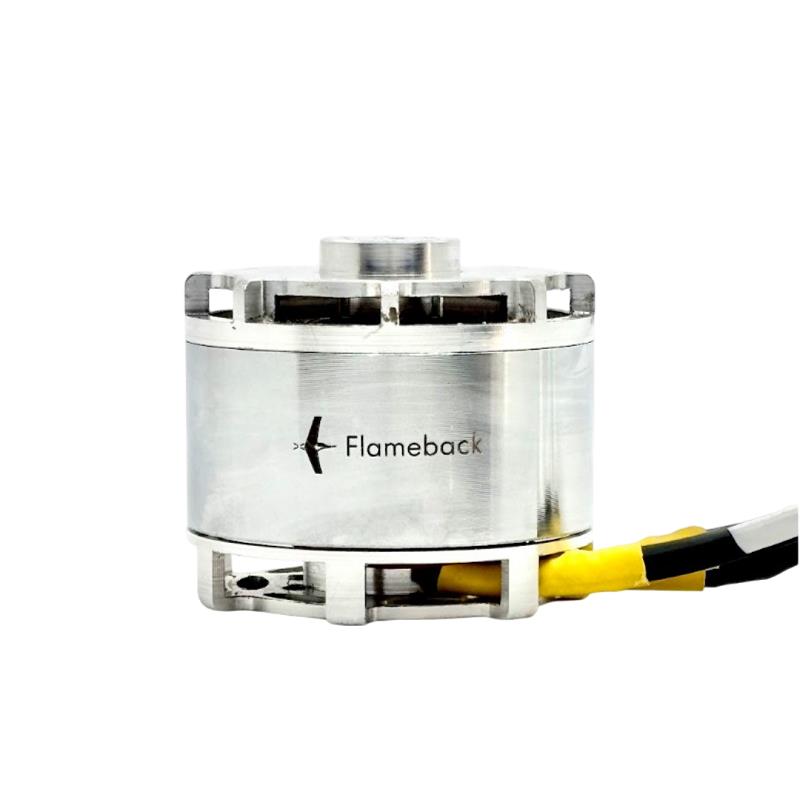

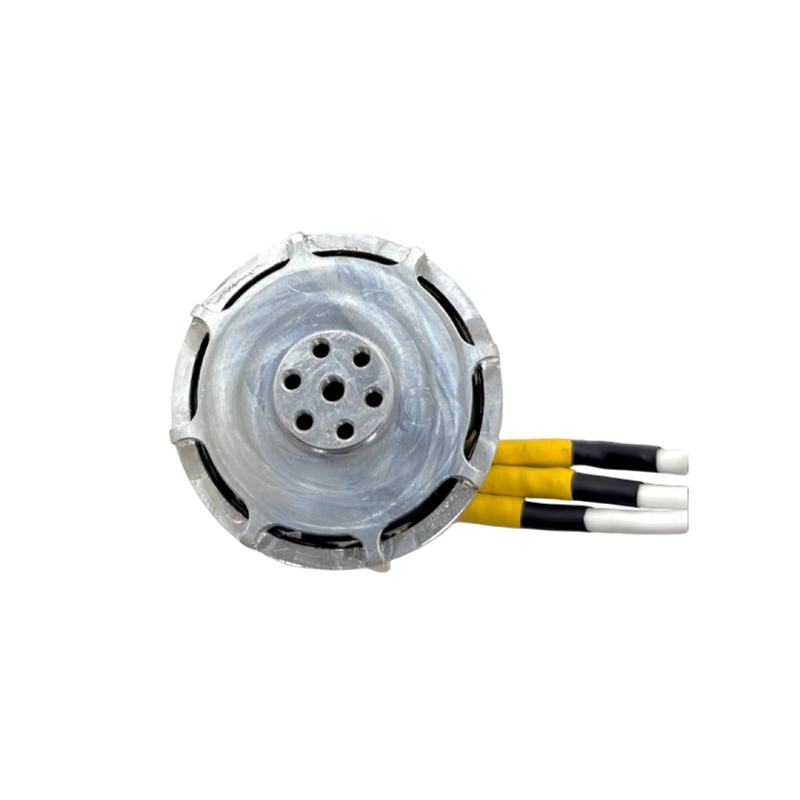

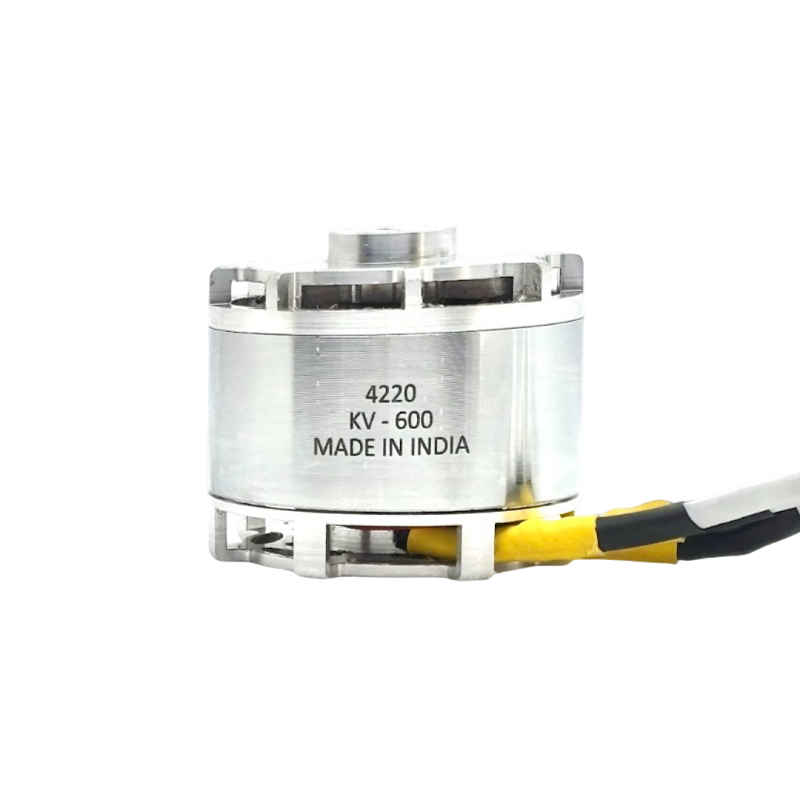

Flameback 4220 KV600 BLDC Motor

For optimal performance, pair this motor with a high-quality 60A or higher-rated Electronic Speed Controller (ESC) that supports 4-6S LiPo input. Ensure the ESC firmware (such as BLHeli_S or BLHeli_32) is configured for the motor's 12N14P pole count and the high current draw, up to 69A continuous.

The motor is designed and tested for use with 16x5.4-inch propellers. This large diameter and pitch are necessary to efficiently utilize the motor's high torque output at 600KV on 4-6S voltage, generating the advertised thrust over 6 kg. Always balance propellers before use.

Yes, its construction is suited for sustained operation. The high-temperature windings, N45UH magnets, and efficient 12N14P design minimize power loss as heat. For maximum flight time, carefully match it with a high-capacity 6S LiPo battery and an efficient propeller setup, while monitoring system temperature during initial flights.

The shaftless internal rotor significantly reduces rotational mass imbalance and minimizes vibration transmitted to the airframe. This leads to smoother video footage, less stress on flight controller gyros, and increased longevity for all connected components, which is critical for professional heavy-lift and cinematography applications.
