Fixed Slide Bracket for Encoder Mounting With Long Axis - Aluminium & Steel Plate

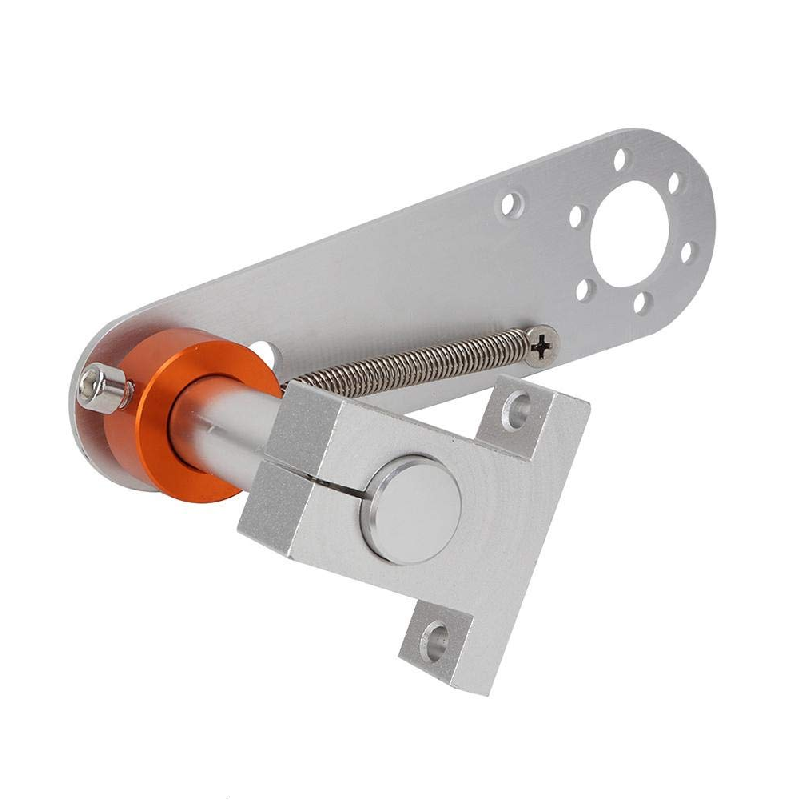

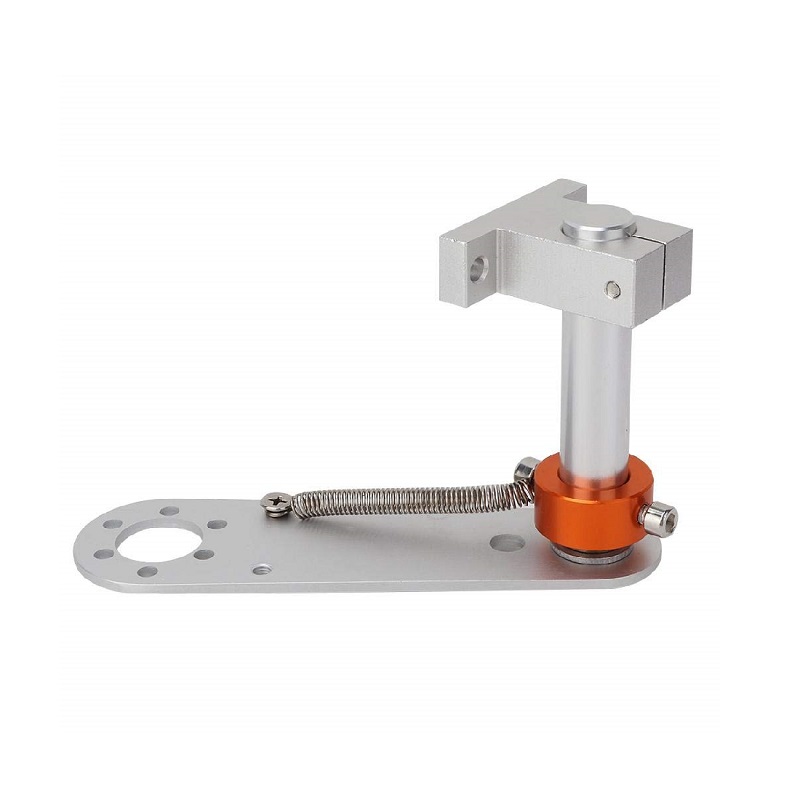

This fixed slide mounting bracket is engineered for secure installation of rotary encoders with long optical axis shafts. Constructed from aluminium and steel, it provides a rigid, vibration-resistant platform for precision measurement equipment, robotic platforms, and automated control systems.
Features
- Dual-material construction combining aluminium for weight reduction and steel for structural rigidity.
- Designed for encoders with a long optical axis, featuring an M8 screw hole for secure shaft attachment.

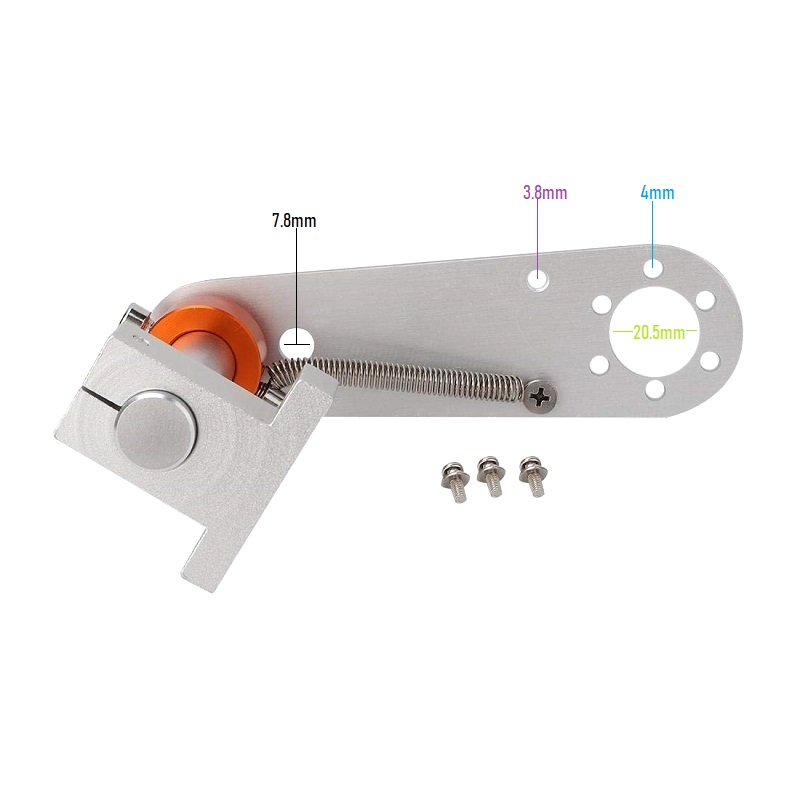

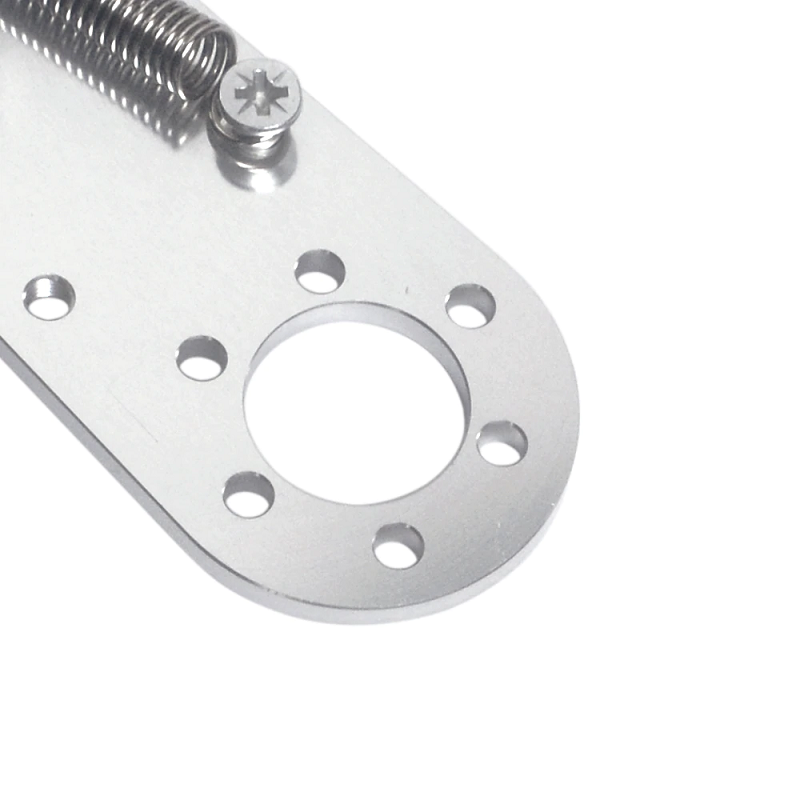

- Steel base plate dimensions of 142mm x 50mm for stable mounting on machinery.
- Optimized for vibration damping and shock protection in industrial environments.
- Enables precise and repeatable encoder positioning for accurate angular measurement.
Out of stock
The Fixed Slide Bracket is a dedicated mounting solution for rotary optical encoders, specifically those utilizing a long shaft axis. Its hybrid aluminium and steel construction achieves an optimal balance between high strength and minimal added mass, which is critical for high-speed or sensitive motion control applications. The design ensures the encoder body and shaft are held securely, minimizing misalignment and mechanical play that could introduce measurement error.
The bracket incorporates a dedicated M8 threaded hole for anchoring the encoder’s extended shaft, allowing for adjustable positioning along its length. The substantial steel base plate provides a large, flat surface for robust attachment to machine frames, X-Y platforms, or robotic arms, ensuring long-term stability under operational loads and environmental vibration.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 14.2 × 8.7 cm |
