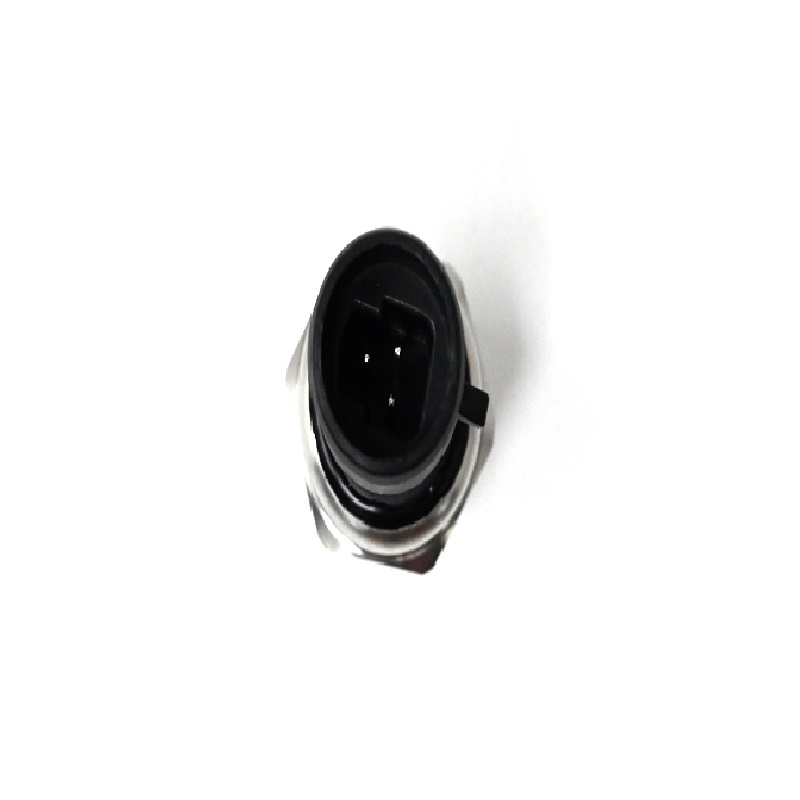

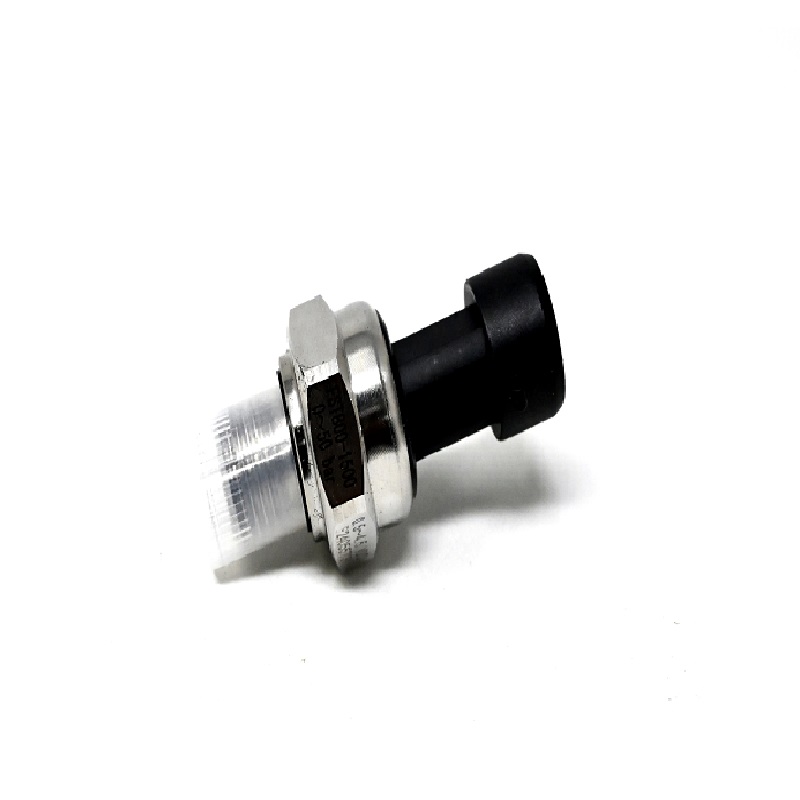

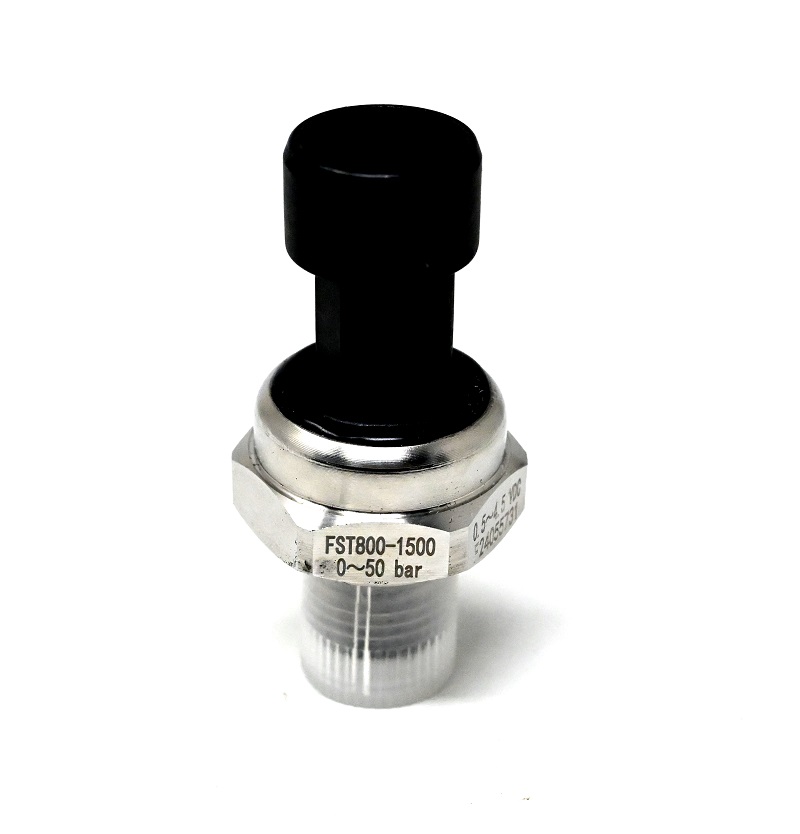

FirstRate FST800-1500 Pressure Transmitter Sensor, 0-50 Bar, 0.5–4.5 VDC Output, G1/4 Thread
The FirstRate FST800-1500 is a robust pressure transmitter delivering a 0.5–4.5 VDC ratiometric output signal for a 0-50 bar range. Featuring a G1/4 thread and IP65-rated stainless steel housing, it is designed for direct integration into industrial control systems, PLCs, and data acquisition modules for monitoring water, air, and compatible media.
Features
- 0-50 bar pressure range with 0.5–4.5 VDC ratiometric output for easy ADC interfacing.
- Advanced ceramic sensing core ensures high stability, thermal performance, and resistance to shock/vibration.
- IP65-rated 304 stainless steel housing provides corrosion resistance and durability in harsh environments.
- Wide operating temperature from -40°C to +135°C for extreme industrial and outdoor applications.
- G1/4 threaded port for secure mechanical installation into pipelines and pressure vessels.
Out of stock
The FST800-1500 pressure transmitter utilizes a high-performance ceramic core sensing element, offering exceptional elasticity, thermal stability, and resistance to abrasion and corrosion. This design translates applied pressure into a precise, linear voltage signal proportional to the 0-50 bar range, ideal for real-time monitoring and closed-loop control systems.
Encased in a 304 stainless steel body with an IP65 protection rating, the sensor is built to withstand demanding environments, including exposure to moisture, dust, and mechanical stress. Its wide operational and storage temperature specifications ensure reliable performance in applications from refrigeration systems to outdoor pumping stations.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 7 × 5 × 5 cm |
