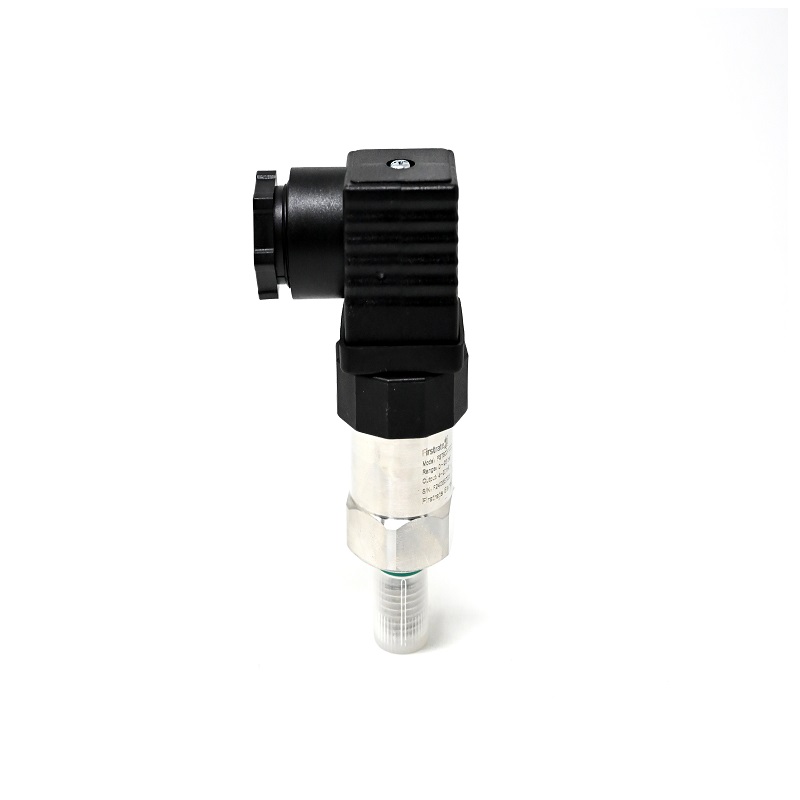

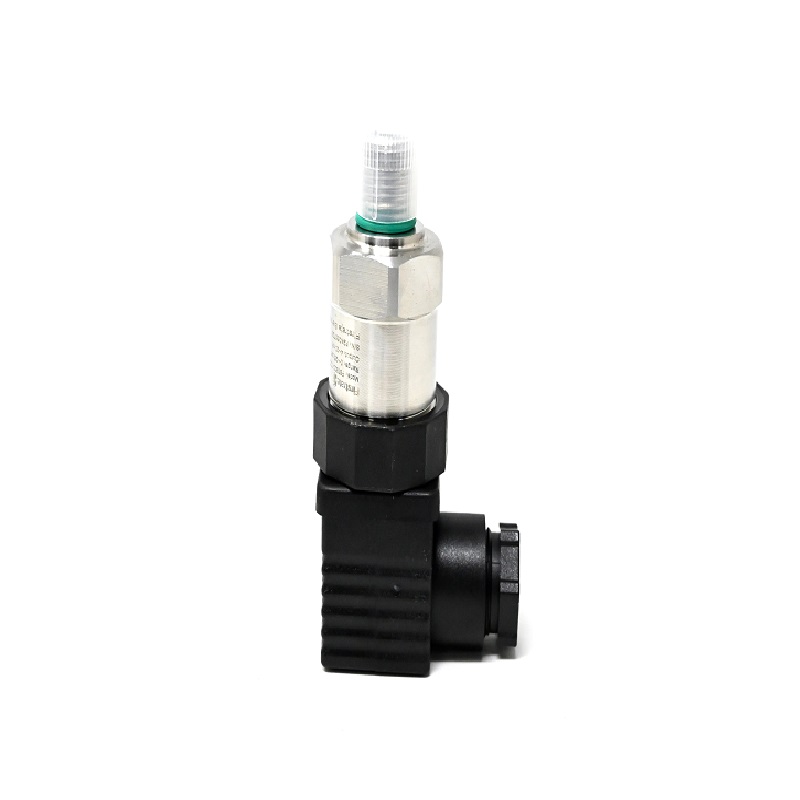

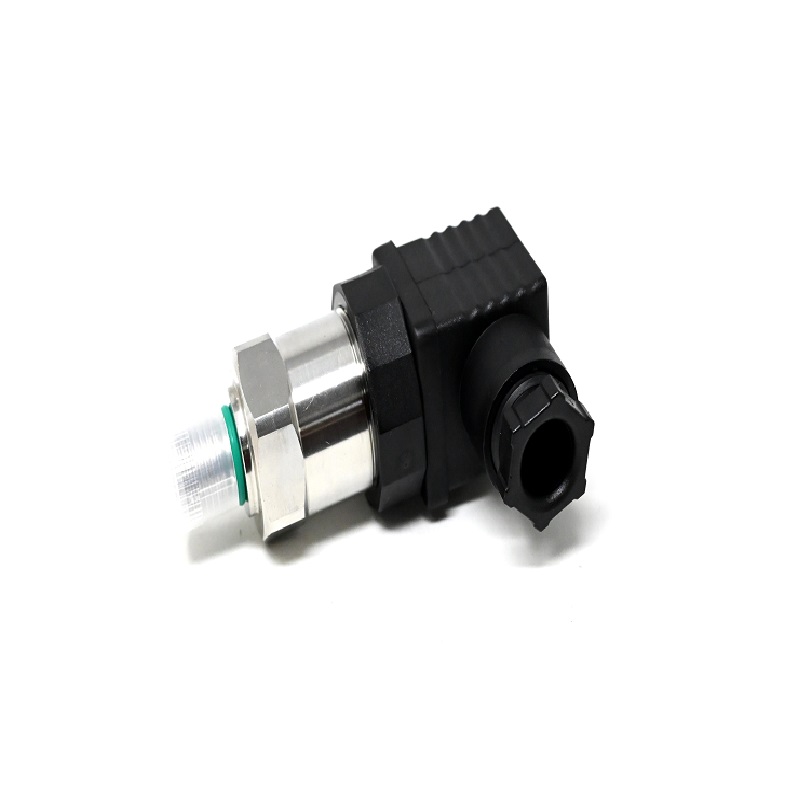

FirstRate FST800-1000 Pressure Transmitter Oil Sensor, 0–25 Bar, 4–20mA Output, 9–30V DC, G1/4 Male Port
The FirstRate FST800-1000 is a robust industrial pressure transmitter delivering a 4-20mA output signal for gauge pressure measurement up to 25 bar. Featuring a stainless steel housing with a G1/4 male port, it operates from a wide 9-30V DC supply, making it compatible with PLCs, DCS, and industrial control systems.
Features
- 4-20mA two-wire current loop output for robust, noise-immune signal transmission.
- All-stainless-steel (304 SS) construction with ceramic sensing element for high durability and corrosion resistance.
- Wide operating voltage range (9-30V DC) simplifies integration into existing industrial power rails.
- Laser-calibrated zero and span with automatic digital temperature compensation for enhanced long-term stability.
- G1/4 male pressure port and large Hirschmann electrical connector for secure, reliable installation.
Out of stock
The FST800-1000 pressure transmitter utilizes a high-stability ceramic capacitive sensing element housed within a fully welded 304 stainless steel chamber, ensuring leak-proof operation and resistance to harsh media. Its integrated digital signal conditioning circuitry provides automatic compensation for temperature effects, minimizing zero and full-scale drift across the specified -40°C to +85°C medium temperature range.
Designed for industrial environments, the transmitter features built-in protection against RF/EMI interference, surge events, and reverse polarity. The 4-20mA output provides a linear, proportional representation of the applied gauge pressure, suitable for direct connection to standard process control instrumentation.
Additional Information
| Weight | 0.152 kg |
|---|---|
| Dimensions | 13 × 7 × 5 cm |
