SKU: 3DMR-0717
📋 GST Invoice Available

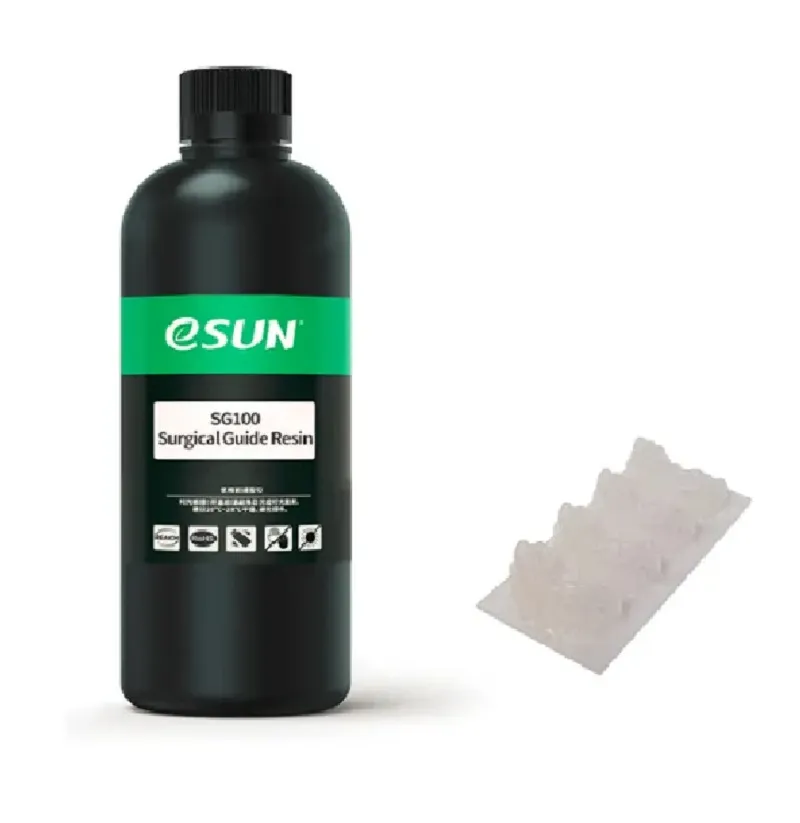

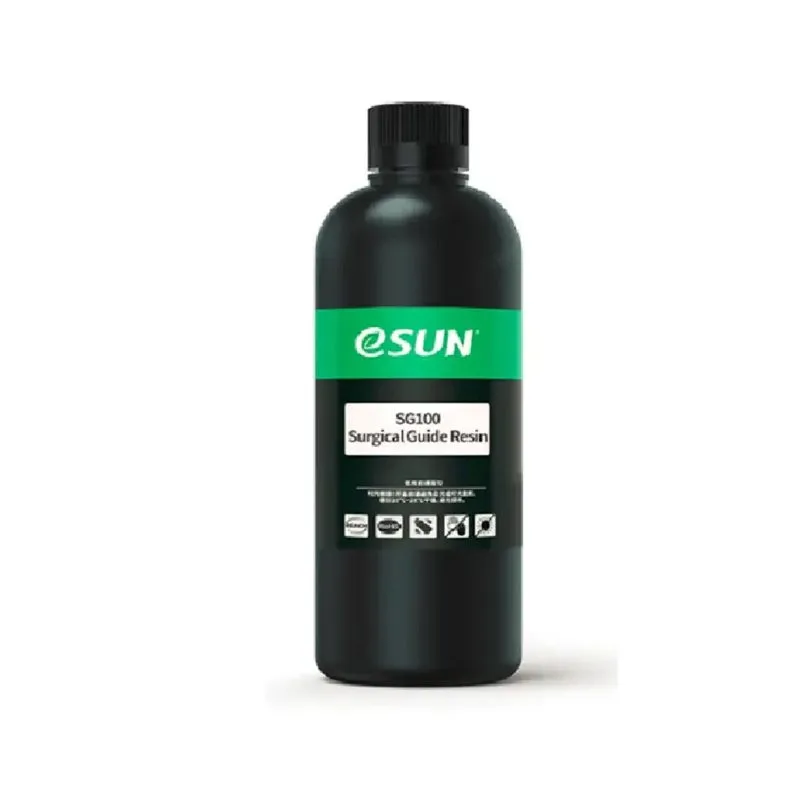

eSUN SG100 Surgical Resin, Transparent, 1kg

₹6,979.00 (Inclusive of all taxes)
Out of Stock

eSUN SG100 is a high-strength dental photopolymer resin designed for 3D printed implant guides, offering excellent mechanical stability and high precision. Its transparent finish allows for clear observation of the oral cavity, making it ideal for critical medical applications.

Features

  • High Mechanical Stability & Strength for Dental Guides
  • Clear, Transparent Finish for Oral Cavity Observation
  • FDA-compliant Material for Medical Safety
  • Low Water Sorption & Easy Polishing for Pristine Models

Out of stock

Description

eSUN SG100 Surgical Resin is a specialized photopolymer formulated to meet the rigorous demands of dental 3D printing, particularly for creating precise implant guides. This resin offers exceptional mechanical strength and dimensional stability, ensuring that printed guides maintain their structural integrity and accuracy throughout the surgical planning and execution process. Its robust properties make it an ideal choice for applications where high performance and reliability are paramount.

Models printed with SG100 resin exhibit an excellent surface quality, allowing for easy polishing to achieve a smooth finish. The material’s low water sorption further enhances the long-term stability of the printed parts, minimizing potential degradation over time. Additionally, the resin cures to a clear and transparent color, which is crucial for optimal visibility during observation of the oral cavity, providing clinicians with unobstructed views during procedures.

Key Features

  • Clear and Transparent Color for Optimal Visibility and Observation
  • Exceptional Mechanical Stability and High Strength for Critical Applications
  • Good Toughness for Durable and Reliable Dental Tools
  • FDA-compliant Material, ensuring Safety for Patient Contact Applications
  • Low Water Sorption, enhancing Model Integrity and Longevity
  • Smooth Surface Quality, facilitating Easy Post-Processing and Polishing

Applications

  • 3D Printed Dental Implant Guides
  • High-Precision Surgical Planning Models
  • Biocompatible Medical Prototypes
  • Oral Cavity Observation Models

Technical Specifications

ColorTransparent
MaterialSG100 Surgical Resin
Density1.05-1.25 g/cm3
Viscosity1000-1300 mPa·s
Wavelength395-405 nm
Tensile Strength47.02 ± 10 % MPa
Flexural Modulus1166.81 ± 10 % MPa
Elongation at Break28.4 ± 10 %
Hardness (Shore D)80-88
Flexural Strength52.84 ± 10 % MPa
IZOD Impact Strength266.93 ± 10 %

Frequently Asked Questions

What are the recommended print settings for eSUN SG100 resin?

For optimal results, use a 3D printer with a 395-405nm UV light source. Initial layer exposure times typically range from 20-30 seconds, followed by normal layer exposure of 2-4 seconds, depending on layer height and printer power. Always perform a calibration test for your specific setup. (49 words)

How should I post-process models printed with SG100 Surgical Resin?

After printing, clean models thoroughly with 95%+ IPA for several minutes, then air dry. Post-cure using a 395-405nm UV curing station for 3-5 minutes on each side to achieve maximum mechanical properties and ensure full biocompatibility. Ensure all liquid resin is removed. (49 words)

What are the storage recommendations for eSUN SG100 resin?

Store the resin in its original opaque bottle, sealed tightly, in a cool, dry place away from direct sunlight and UV light. Ensure temperatures remain between 15-35°C (59-95°F) to prevent premature polymerization and extend shelf life for optimal performance. (49 words)

Is eSUN SG100 Surgical Resin biocompatible for patient contact?

Yes, eSUN SG100 is designed to be FDA-compliant, making it suitable for applications requiring patient contact such as dental implant guides. Proper post-processing, including thorough cleaning and post-curing, is crucial to ensure biocompatibility standards are met before any clinical use. (49 words)

Package Includes

  • 1x eSUN SG100 Surgical Resin Bottle (1kg)

Additional Information

Weight 1 kg
Dimensions 29 × 10 × 10 cm
