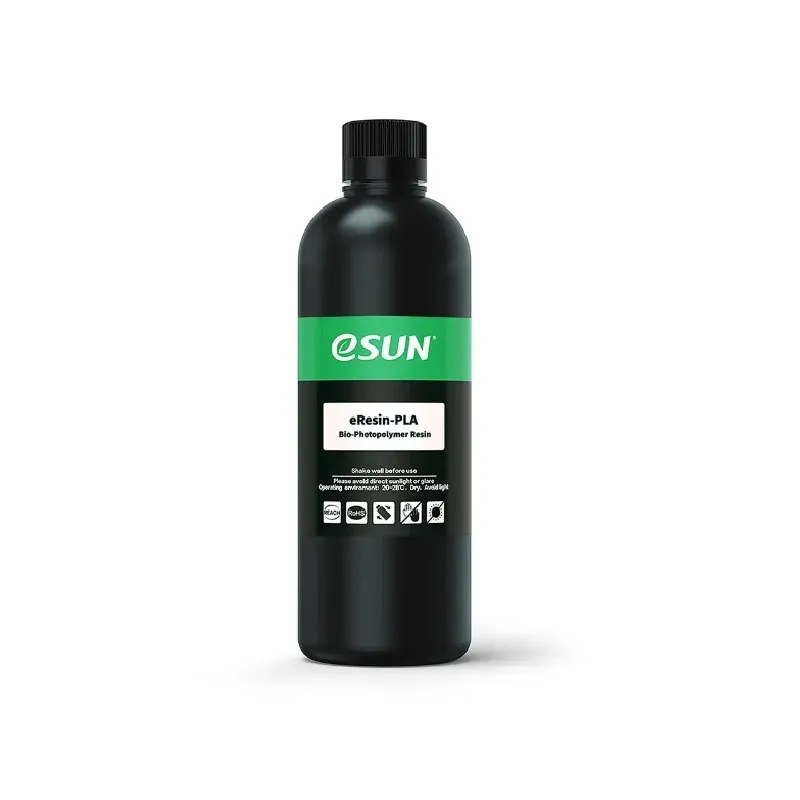

eSUN eResin-PLA Bio-based Resin - Yellow 1kg

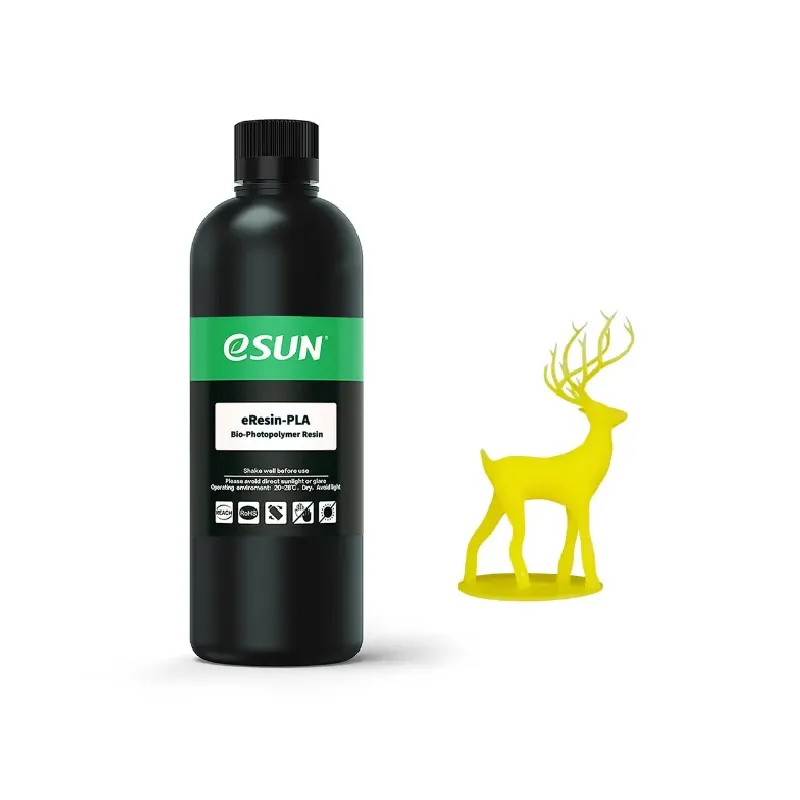

eSUN eResin-PLA Bio-based Resin - Yellow 1kg - Image 2
SKU: 3DMR-0735
📋 GST Invoice Available

eSUN eResin-PLA Bio-based Resin - Yellow 1kg

₹2,419.00 (Inclusive of all taxes)
Out of Stock

eSUN eResin-PLA is a bio-based photopolymer resin engineered for high-precision 3D printing applications. This material offers exceptional hardness and scratch resistance, making it ideal for detailed models requiring robust mechanical properties.

Features

  • Bio-based formulation for environmentally conscious 3D printing.
  • Achieves exceptional precision for highly detailed models and prototypes.
  • Exhibits high hardness (75-80 Shore D) and superior scratch resistance.
  • Offers good moisture resistance for enhanced part durability.

Out of stock

Description

eSUN eResin-PLA is an advanced bio-based photopolymer resin specifically formulated for high-precision stereolithography (SLA/DLP/LCD) 3D printing. This eco-friendly material boasts impressive mechanical characteristics, including a high Shore D hardness of 75-80, contributing to excellent scratch resistance and overall part durability. Its composition ensures detailed feature reproduction, making it suitable for intricate models and functional prototypes.

Designed for reliable performance, eResin-PLA exhibits good moisture resistance, helping to maintain dimensional stability and integrity in various environments. The resin’s consistent viscosity (100-270 mPa·s) and optimal curing wavelength of 395-405 nm contribute to smooth printing processes and reliable layer adhesion. Users can expect accurate prints with a clean surface finish, requiring standard post-curing procedures for optimal mechanical strength.

Key Features

  • Utilizes a bio-based formulation, reducing environmental impact compared to traditional resins.
  • Delivers high-precision prints with intricate detail and smooth surface finishes.
  • Boasts a high Shore D hardness of 75-80 for excellent wear and scratch resistance.
  • Demonstrates good moisture resistance, enhancing the longevity of printed parts.
  • Offers balanced mechanical properties with a tensile strength of 35-50 MPa and a flexural strength of 40-60 MPa.
  • Features a low elongation at break (20-50%) suitable for rigid, dimensionally stable components.
  • Optimized for 395-405 nm UV light sources, ensuring broad compatibility with LCD/DLP 3D printers.

Applications

  • High-detail miniature models and figurines.
  • Functional prototypes requiring high surface hardness.
  • Architectural models and intricate display pieces.
  • Educational and demonstration models with good dimensional stability.
  • Components needing scratch and wear resistance.

Technical Specifications

Material TypeeResin-PLA (Bio-based)
ColorYellow
Net Weight1 kg
Density1.07-1.10 g/cm³
Viscosity100-270 mPa·s
Curing Wavelength395-405 nm
Tensile Strength35-50 MPa
Flexural Modulus600-800 MPa
Flexural Strength40-60 MPa
Elongation at Break20-50 %
Hardness (Shore D)75-80
IZOD Impact Strength15-32 J/m

Frequently Asked Questions

How should eSUN eResin-PLA be stored for optimal shelf life?

Store eSUN eResin-PLA in its original sealed container in a cool, dark place away from direct sunlight or UV light exposure. Ensure temperatures are between 15-35°C to prevent premature curing and maintain viscosity, extending its shelf life significantly. Shake well before each use.

What are the recommended print settings for eSUN eResin-PLA?

Optimal print settings vary by printer, but generally, expect exposure times between 2-4 seconds for mono LCD printers and 6-10 seconds for RGB LCD printers. Layer height typically ranges from 0.025-0.05mm. Adjust lift speed and base layer exposure for proper adhesion.

What post-processing steps are required for parts printed with eResin-PLA?

After printing, clean parts thoroughly using IPA (isopropyl alcohol) for 2-5 minutes to remove uncured resin. Rinse with clean IPA or water. Follow with post-curing under a 395-405nm UV light for 2-5 minutes per side until the part achieves its full mechanical properties and surface hardness.

Can eSUN eResin-PLA be mixed with other resins?

It is generally not recommended to mix eSUN eResin-PLA with other types or brands of resins. Different resin formulations have unique chemical properties, viscosities, and curing requirements. Mixing could lead to inconsistent print quality, failed prints, and compromised mechanical properties of the final parts.

Package Includes

  • 1x eSUN eResin-PLA Bio-based Resin (Yellow, 1kg)

Additional Information

Weight 1 kg
Dimensions 11.5 cm
