SKU: 3DMR-0832
📋 GST Invoice Available

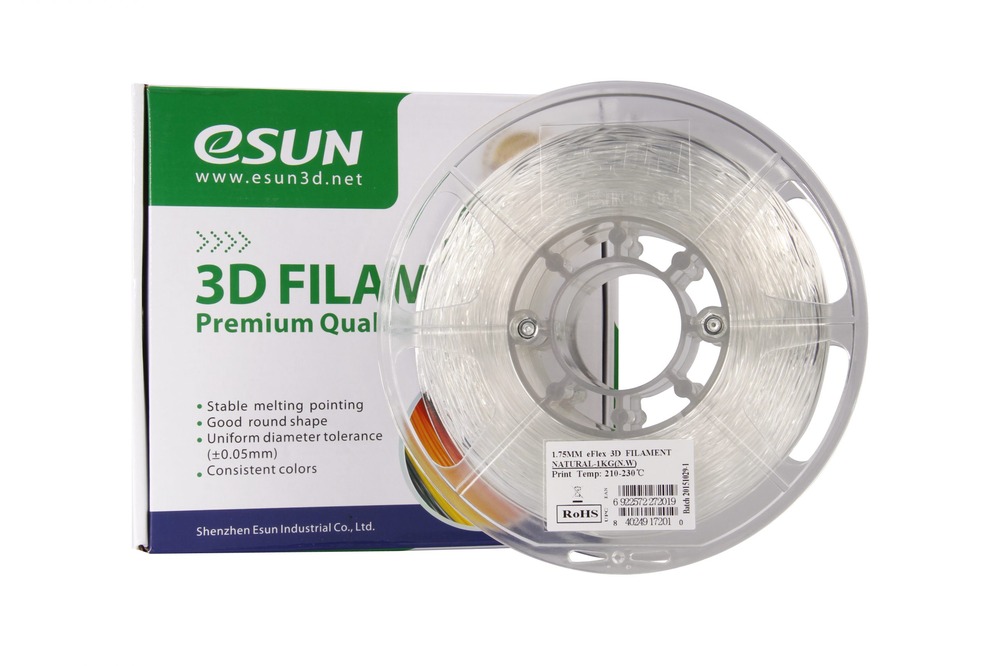

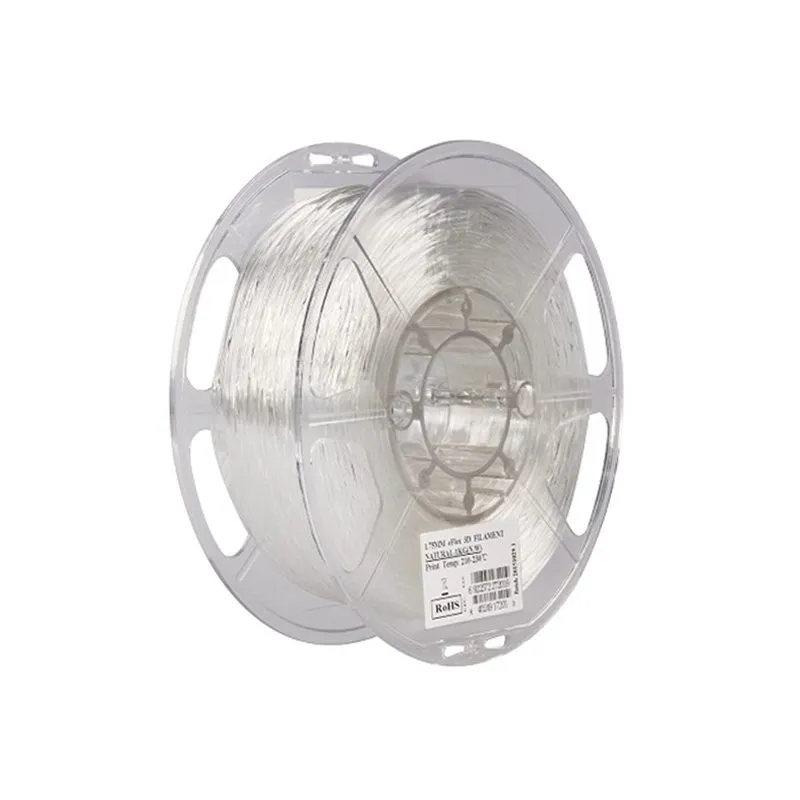

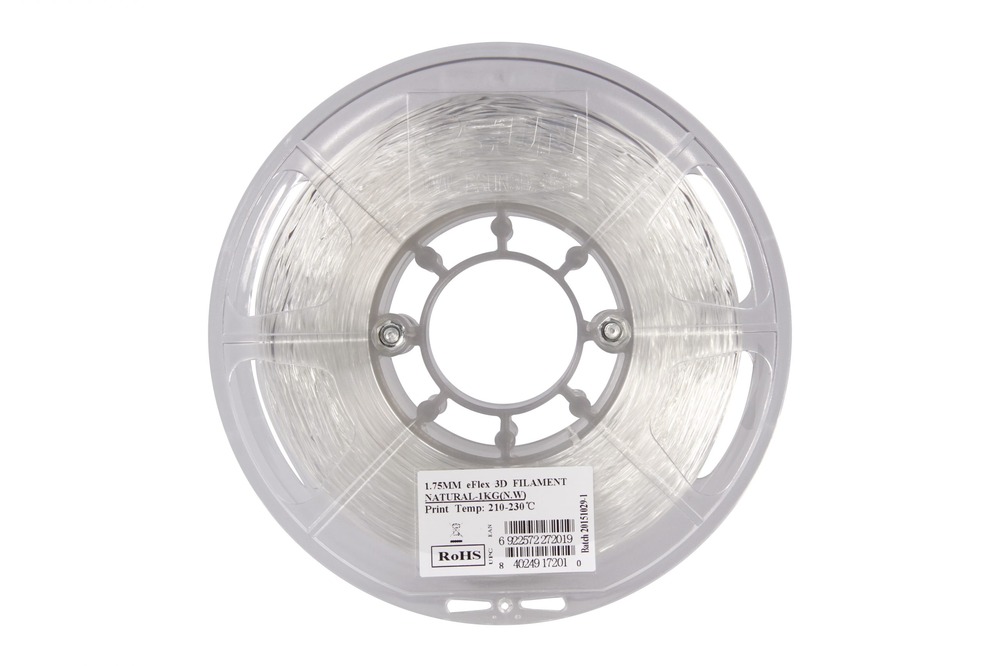

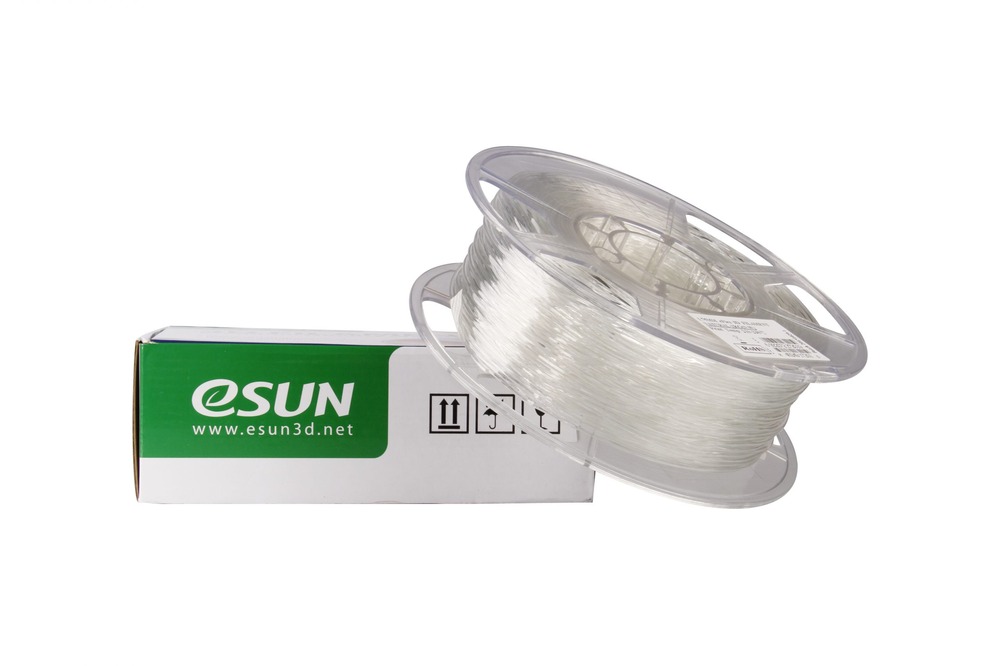

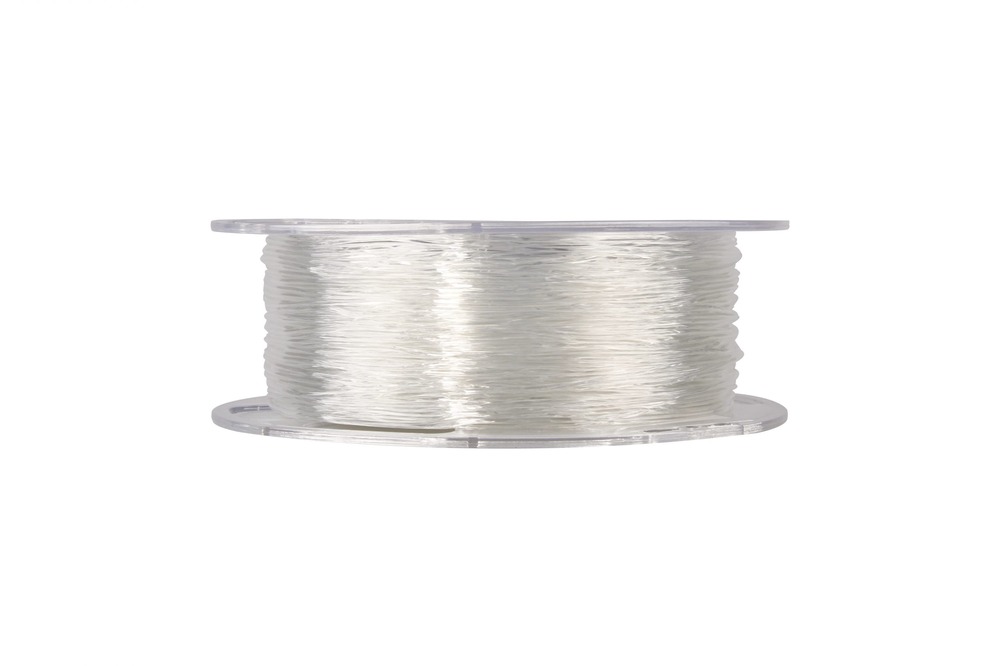

eSUN eFlex TPU 87A Flexible Filament 1.75mm 0.5kg Natural

₹2,549.00 (Inclusive of all taxes)
Out of Stock

eSUN eFlex TPU 87A is a highly flexible and elastic thermoplastic polyurethane filament, ideal for FDM 3D printers requiring robust, wear-resistant, and chemically resilient parts. With a Shore A Hardness of 87A, it delivers exceptional mechanical strength and durability for dynamic applications.

Features

  • Exceptional flexibility and elasticity for dynamic applications.
  • Shore A Hardness of 87A provides a balance of softness and resilience.
  • High mechanical strength with a tensile strength of 52 MPa.
  • Resistant to wear, aging, chemicals, water, oil, and solvents.

Out of stock

Description

eSUN eFlex TPU 87A filament is engineered as a highly elastic and soft thermoplastic polyurethane material, offering a unique blend of flexibility and robust mechanical properties. This transparent filament exhibits superior wear resistance, excellent anti-aging characteristics, and high resistance to a wide range of chemicals, water, oil, and common solvents. Its inherent waterproof, coldproof, and anti-ultraviolet features make it suitable for challenging environmental conditions where material integrity is paramount.

With a Shore A Hardness of 87A, eFlex delivers impressive flexibility without compromising structural integrity, making it ideal for parts requiring significant deformation and recovery. The material maintains a high tensile strength of 52 MPa, ensuring durable and long-lasting prints. Users should note that printing flexible filaments like eFlex requires careful calibration and specific printer settings to ensure optimal bed adhesion, minimize stringing, and achieve consistent extrusion for smooth, high-quality results.

Key Features

  • TPU (Thermoplastic Polyurethane) rubber-based material for superior flexibility.
  • Exceptional elasticity with high rebound for dynamic applications.
  • Shore A Hardness of 87A provides a firm yet flexible structure.
  • High tensile strength of 52 MPa ensures robust and durable parts.
  • Excellent resistance to wear, aging, and fatigue.
  • Strong chemical resistance against water, oils, and various solvents.
  • Waterproof, cold-proof, and anti-ultraviolet properties for outdoor and demanding environments.

Applications

  • Functional prototypes requiring flexibility and impact absorption.
  • Flexible gaskets, seals, and O-rings for various assemblies.
  • Protective cases, covers, and sleeves for electronic devices.
  • Wearable components and parts requiring ergonomic flexibility.
  • Dampening elements and vibration isolators.
  • Medical models requiring anatomical flexibility.

Technical Specifications

MaterialTPU (Thermoplastic Polyurethane)
Filament Diameter1.75 mm
Spool Weight0.5 kg
ColorNatural
Filament Length165 m (for 0.5kg)
Density1.12 g/cm³
Shore A Hardness87A
Tensile Strength52 MPa
Melt Flow Index5 (10min, 2.16kg)
Shock Resistance7 KJ/m²
Dimensional Accuracy± 0.1 mm
Roundness Accuracy± 0.5 mm
Melting Point180 °C
Recommended Print Temperature200-220 °C
Recommended Bed Temperature50-60 °C
Spool Outer Diameter200 mm
Spool Width60 mm

Frequently Asked Questions

How to ensure good bed adhesion for eSUN eFlex TPU?

For optimal bed adhesion with eSUN eFlex TPU, ensure your print surface (e.g., PEI, glass with adhesive) is clean and level. Use a bed temperature of 50-60°C and apply a thin layer of glue stick or a dedicated flexible filament adhesive. Printing a brim can also significantly improve first-layer success, preventing warpage and detachment.

What print speed is recommended for eFlex TPU filament?

Due to its flexibility, eFlex TPU performs best at slower print speeds. Start with speeds around 20-30 mm/s to minimize extrusion issues like stretching or jamming in the hotend. Adjust retraction settings carefully, using minimal retraction distance and speed, to prevent clogs and ensure smooth filament flow throughout the print process.

Is eSUN eFlex TPU susceptible to moisture absorption?

Yes, like most TPU filaments, eSUN eFlex TPU is hygroscopic and can absorb ambient moisture, which degrades print quality and mechanical properties. Store the filament in a dry, airtight container with desiccant when not in use. If moisture is suspected, dry the spool in a filament dryer at 50-65°C for 4-6 hours before printing.

What are the best post-processing techniques for eFlex TPU parts?

eFlex TPU parts generally require minimal post-processing. Supports can be carefully removed with flush cutters; heating the area slightly can aid removal. Sanding is possible for surface refinement, but TPU's elasticity might make it challenging. Chemical smoothing is generally not recommended as it can compromise material properties.

Package Includes

  • 1x eSUN eFlex TPU 87A Flexible Filament (1.75mm, 0.5kg, Natural)
  • Vacuum sealed packaging with desiccant

Additional Information

Weight 0.7 kg
Dimensions 22 × 22 × 7 cm
