SKU: 3DMR-0416
📋 GST Invoice Available

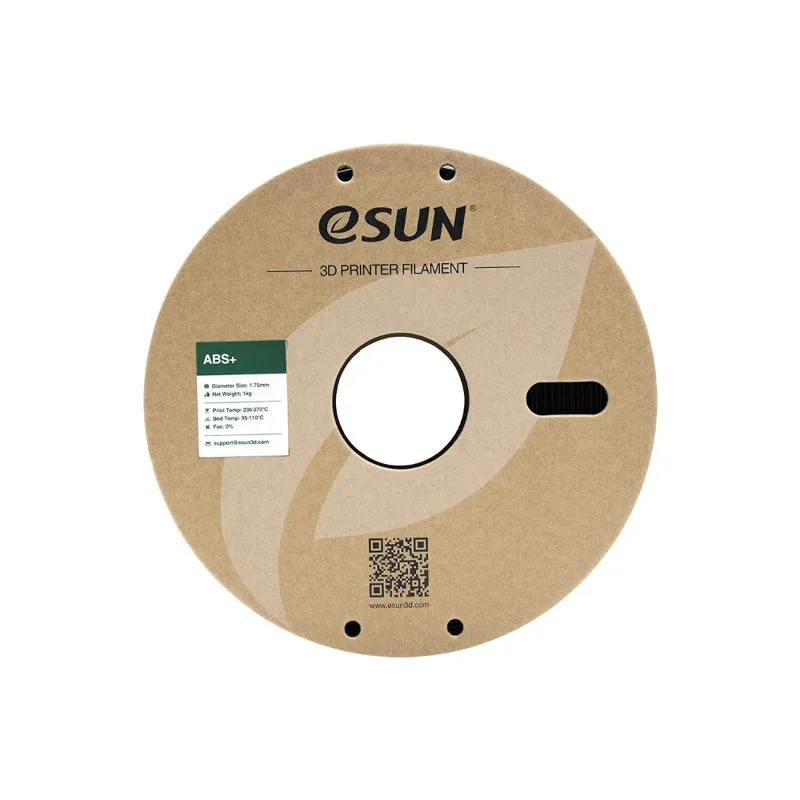

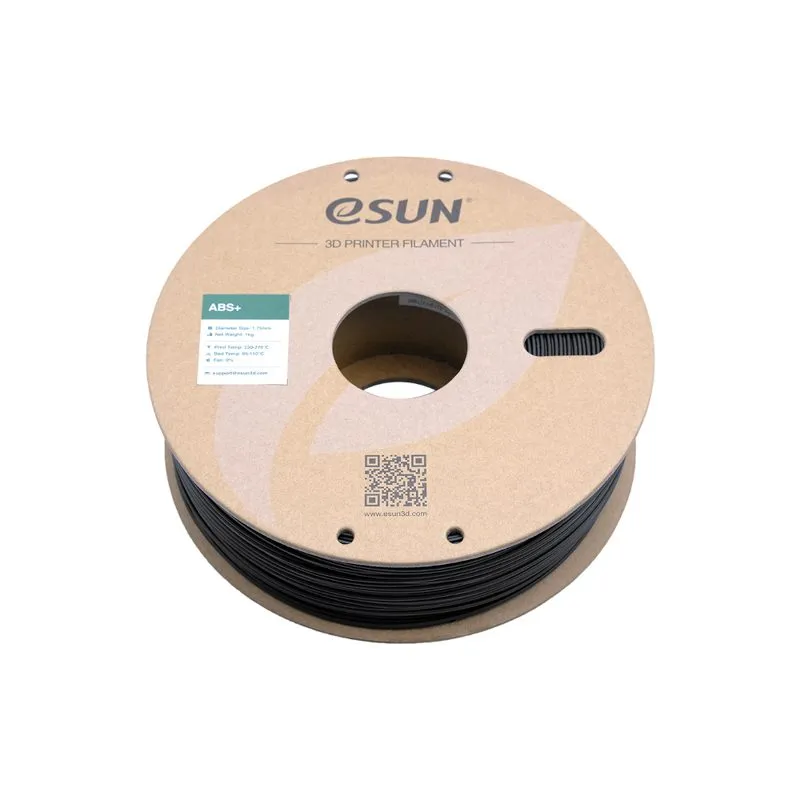

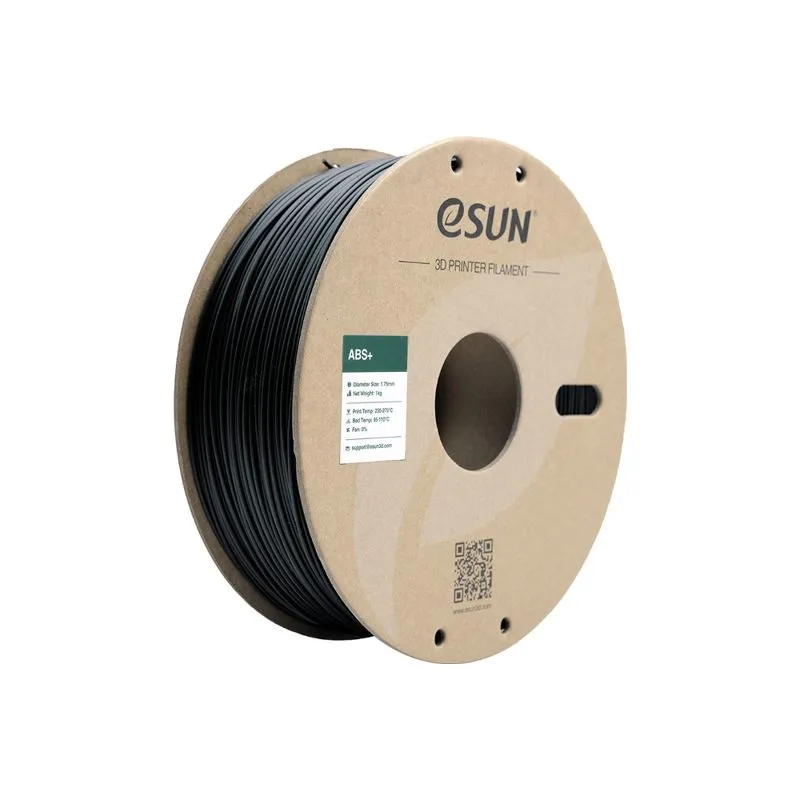

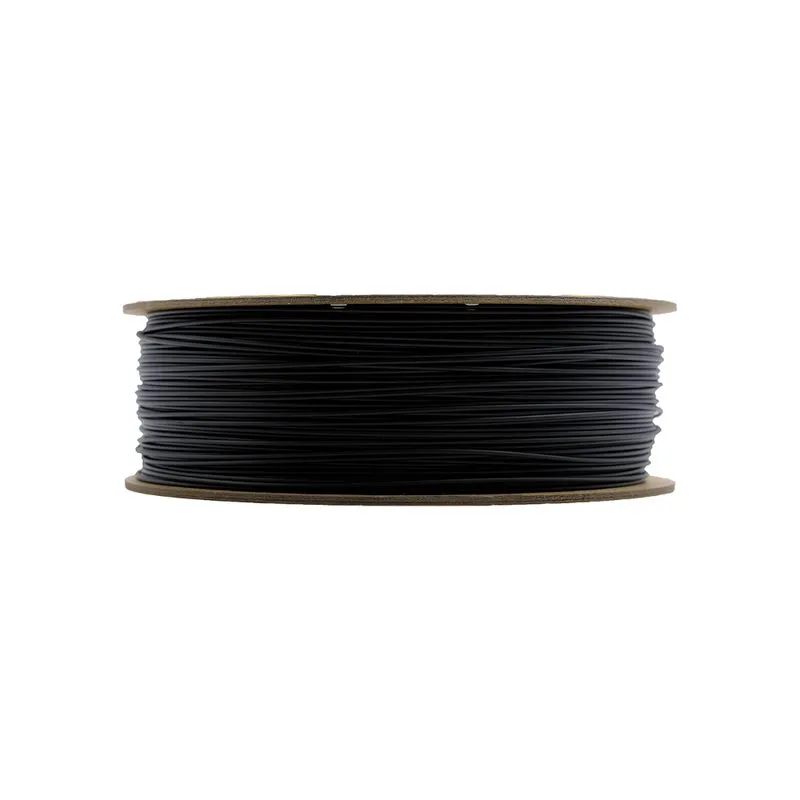

eSUN ABS+ 1.75mm 3D Printing Filament Black

₹1,119.00 (Inclusive of all taxes)
Out of Stock

eSUN ABS+ 1.75mm filament offers an advanced upgrade to traditional ABS, delivering enhanced toughness, strength, and significantly reduced warping. Ideal for FDM 3D printers, it produces smoother objects with superior scratch, heat, and oil resistance, suitable for a wide range of functional applications.

Features

  • Tougher and stronger than standard ABS formulations.
  • Significantly less warping, with a rate of approximately 0.4%.
  • Produces smoother 3D printed objects with better surface finish.
  • Enhanced resistance to scratches, heat, and oil.
  • Compatible with acetone for vapor polishing to achieve a high-gloss finish.

Out of stock

Description

eSUN ABS+ represents a substantial improvement over conventional ABS filament, engineered to overcome common printing challenges while maintaining excellent mechanical properties. This material is made from corn grain and boasts a specialized composition that drastically reduces the warpage typically associated with ABS, making it suitable for printing larger objects with greater dimensional accuracy. Its formulation also addresses stringing problems, ensuring a cleaner print experience across various 3D printer platforms.

Compared to standard ABS plastic, eSUN ABS+ demonstrates superior first layer adhesion and is more forgiving with specific temperature requirements for bridges and overhangs, leading to more rigid and defined structures. This improved consistency ensures less bending or deformation, even on complex geometries. Furthermore, ABS+ offers a unique, aesthetically pleasing finish often likened to smooth nylon, which can become moderately transparent when polished with acetone. These advantages, combined with enhanced strength and flexibility, position eSUN ABS+ as a valuable investment for both hobbyist makers and professional engineers seeking reliable, high-performance filament.

To ensure optimal print quality and material longevity, always store unprinted eSUN ABS+ filament in sealed bags with desiccant in a cool, dry place to prevent moisture absorption. When not in use, secure the filament end in the spool’s fixed hole to avoid tangling. As ABS materials can produce a slight odor during printing, it is highly recommended to operate your 3D printer in a well-ventilated environment.

Key Features

  • Engineered for superior toughness and impact strength.
  • Exhibits minimal warpage, improving print success rates for large models.
  • Achieves exceptionally smooth surface finishes on printed parts.
  • Provides enhanced resistance to abrasion, elevated temperatures, and various oils.
  • Compatible with acetone vapor for chemical smoothing and aesthetic enhancement.
  • Readily accepts coloration, allowing for post-print customization.

Technical Specifications

ColorBlack
Filament Diameter1.75mm
Filament Length330m
Melt Flow Index15 (220°C/10kg)
Shock Resistance7 KJ/m²
Dimensional Accuracy+/- 0.1mm
Roundness Accuracy+/- 0.5mm
Melting Point220°C
Printing Temperature Range220 ~ 260°C
Heatbed Temperature110°C
Tensile Strength40 MPa
Bending Strength68 MPa
Flexural Modulus2443 MPa
Elongation at Break30%
Density1.06 g/cm³
IZOD Impact Strength42 KJ/m²
Heat Distortion Temperature (0.45MPa)73°C
Filament Weight300g
Spool Inner Diameter50mm
Spool Outer Diameter200mm
Spool Width65mm
GTIN6922572229020

Frequently Asked Questions

What are the optimal printing temperatures for eSUN ABS+ filament?

For eSUN ABS+, a printing temperature range of 220-260°C is recommended. The heated bed should be maintained at 100-110°C to ensure excellent first layer adhesion and minimize warping. Experiment within this range to find the sweet spot for your specific printer and environment, prioritizing strong layer bonding and reduced stress.

How does eSUN ABS+ minimize warping compared to standard ABS?

eSUN ABS+ is engineered with additives that significantly reduce its warping rate to approximately 0.4%, a substantial improvement over standard ABS (often >8%). This enhanced dimensional stability is achieved through better molecular cohesion and reduced internal stresses during cooling, allowing for more consistent and accurate large object prints without significant deformation.

Can eSUN ABS+ be post-processed for a smoother finish?

Yes, eSUN ABS+ can be effectively post-processed using acetone vapor smoothing. This method dissolves the outer layer of the print, resulting in a glossy, smooth surface that eliminates visible layer lines. Ensure proper ventilation and safety precautions are followed when working with acetone to achieve the best aesthetic and functional results for your printed parts.

What are the recommended storage practices for eSUN ABS+ filament?

To maintain print quality and material integrity, eSUN ABS+ filament should be stored in sealed bags with desiccant immediately after use. Keep it in a cool, dry environment away from humidity. Proper storage prevents moisture absorption, which can lead to printing issues like bubbling, stringing, and reduced mechanical properties during extrusion.

Package Includes

  • 1x eSUN ABS+ Black - 1.75mm 3D Printing Filament Spool

Additional Information

Weight 1.5 kg
Dimensions 22 × 22 × 8 cm
