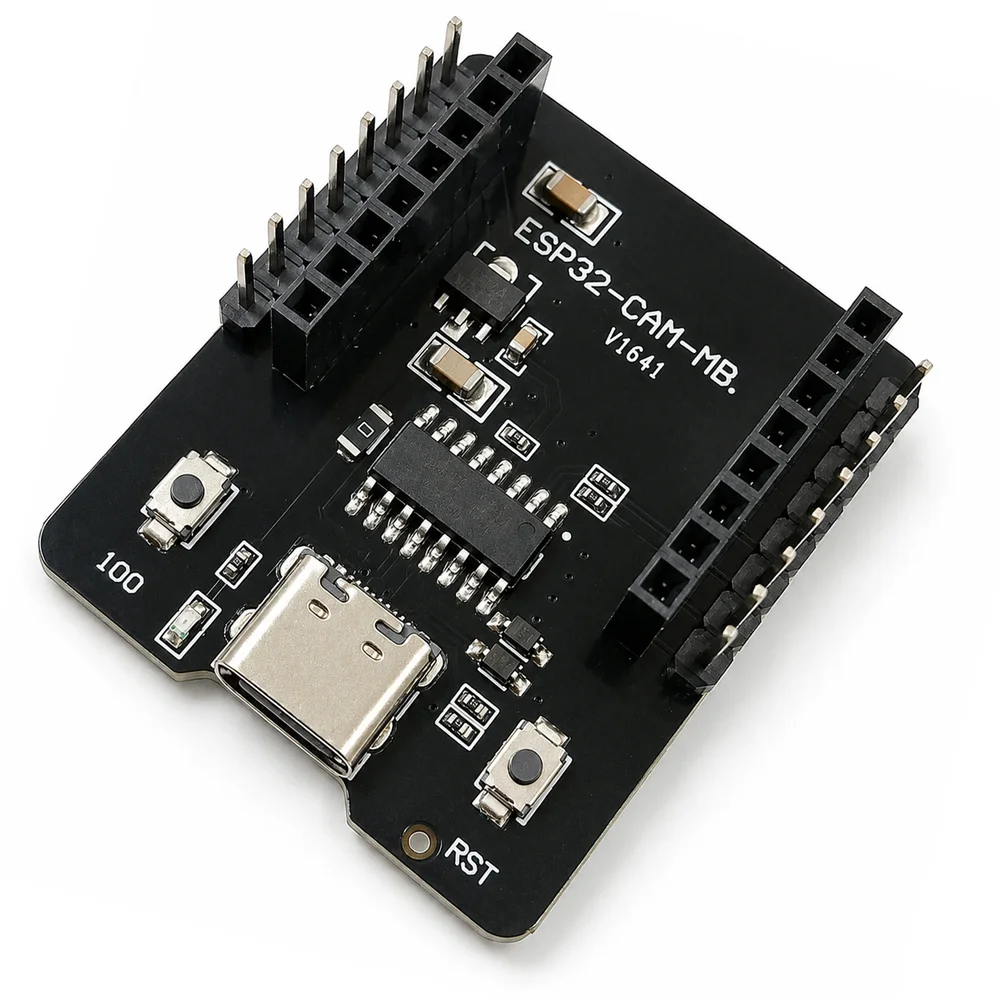

ESP32-CAM Type-C Download Module w/ Pin Header & CH340C
SKU: IOWC-1796
📋 GST Invoice Available

ESP32-CAM Type-C Download Module w/ Pin Header & CH340C

₹167.00 (Inclusive of all taxes)
Out of Stock

This USB Type-C download module, featuring a CH340C USB-to-UART converter, provides a stable serial interface for programming and debugging ESP32-CAM development boards. It simplifies firmware uploads and serial monitoring via a direct pin-header connection, compatible with Windows, Linux, and macOS.

Features

  • Designed specifically for ESP32-CAM boards, enabling quick firmware uploads and serial debugging via a secure pin-header connection.
  • Integrates a reliable CH340C USB-to-UART converter for stable serial communication across Windows, Linux, and macOS (driver required).
  • Features a modern USB Type-C interface for convenient and reversible connectivity, powered directly from the USB port.
  • Compact form factor (40x28x11mm) with pre-soldered female headers reduces wiring complexity for rapid prototyping and development.
  • Plug-and-play operation simplifies setup for IoT camera projects, smart home automation, and embedded system development.

Out of stock

Description

The ESP32-CAM Type-C Download Module is an essential programming and debugging accessory for the popular ESP32-CAM development board. It bridges the gap between your computer’s USB port and the ESP32-CAM’s UART pins via an integrated CH340C serial converter chip, providing a robust and reliable channel for uploading firmware (e.g., using Arduino IDE or ESP-IDF) and for real-time serial monitor output. This eliminates the need for external FTDI programmers or complex wiring during the development cycle.

Its core design centers on a USB Type-C connector for modern, reversible plug orientation and a set of pre-installed pin headers that mate directly with the corresponding pins on an ESP32-CAM module. The module is powered entirely from the USB bus, drawing 5V and converting it to the appropriate logic levels for the ESP32. This compact interface tool is indispensable for developers working on AIoT camera applications, smart home surveillance, and any embedded project utilizing the ESP32-CAM’s Wi-Fi and OV2640 camera capabilities.

Key Features

  • Dedicated programming interface for ESP32-CAM development boards, streamlining the firmware update process.
  • CH340C USB-to-Serial UART bridge ensures high compatibility and stable data transmission for debugging.
  • Modern USB Type-C port offers a durable, reversible connection for power and data.
  • Pre-soldered pin headers provide a secure, solderless connection to the ESP32-CAM's GPIO and UART pins.
  • Bus-powered design draws all necessary power from the host computer's USB port, requiring no external supply.
  • Cross-platform driver support for Windows, macOS, and Linux systems (CH340 drivers may need manual installation).
  • Compact and lightweight form factor makes it an ideal portable tool for field programming and development.

Applications

  • Programming and debugging ESP32-CAM modules for IoT camera projects and smart home security.
  • Prototyping and firmware development for AIoT devices utilizing Wi-Fi and camera vision.
  • Educational and maker projects requiring a reliable serial interface for ESP32-based systems.
  • Field updates and maintenance for deployed ESP32-CAM units in agricultural or industrial monitoring.

Technical Specifications

Product TypeESP32-CAM Download Module
Compatible BoardESP32-CAM Development Board
USB to UART ChipCH340C
USB InterfaceUSB Type-C
Communication InterfaceUSB to Serial (UART)
Header TypeFemale Pin Header
Programming FunctionFirmware Upload & Serial Debugging
Driver SupportCH340C USB Driver
Operating System SupportWindows, Linux, macOS
Power Supply5V via USB Type-C
Dimensions40 x 28 x 11 mm
Weight7 g

Frequently Asked Questions

How do I connect this download module to my ESP32-CAM board?

Align the module's female pin header with the male header on your ESP32-CAM board, ensuring the GND and 5V pins match. The module typically connects to the UART0 pins (TX, RX) and the 5V/GND lines. Once physically connected, plug the USB Type-C cable into your computer. Install the required CH340C driver if your system doesn't recognize it automatically, then select the correct COM port in your Arduino IDE or ESP-IDF for uploading firmware.

What drivers are needed, and how do I install them for Windows?

This module uses the CH340C chip, requiring the CH340/CH341 USB-to-Serial driver. For Windows, download the official driver from the manufacturer's website or a trusted repository. Run the installer, then connect the module via USB. Check Device Manager under 'Ports (COM & LPT)' for a new 'USB-SERIAL CH340' COM port. If a yellow exclamation appears, right-click to update driver manually. For macOS/Linux, the driver is often included, but you may need to install it via terminal (e.g., 'sudo apt install CH340' on some Linux distros).

Can I use this module to power the ESP32-CAM during normal operation?

Yes, the module can supply 5V power to the ESP32-CAM via the USB connection during programming and debugging sessions. However, for standalone operation with the camera streaming or high Wi-Fi usage, the ESP32-CAM may require more current than a standard USB port can provide reliably. For deployment, it's recommended to use a dedicated 5V power supply connected directly to the ESP32-CAM's power pins to ensure stable operation and avoid potential brownouts or disconnections.

What are the correct Arduino IDE settings for uploading code via this module?

In the Arduino IDE, select your ESP32-CAM board (e.g., 'AI-Thinker ESP32-CAM') under Tools > Board. Then, select the COM port assigned to the CH340 device under Tools > Port. Set Upload Speed to '115200' (or as specified by your board). Ensure the board is in programming mode; for many ESP32-CAMs, you must hold the IO0 pin low (press a button if available) during reset/power-on to enter bootloader mode before clicking Upload. The module will then transmit the compiled firmware via the serial connection.

Package Includes

  • 1 x ESP32-CAM Type-C Download Module With Pin Header

Additional Information

Weight 0.01 kg
Dimensions 6 × 4 × 5 cm
