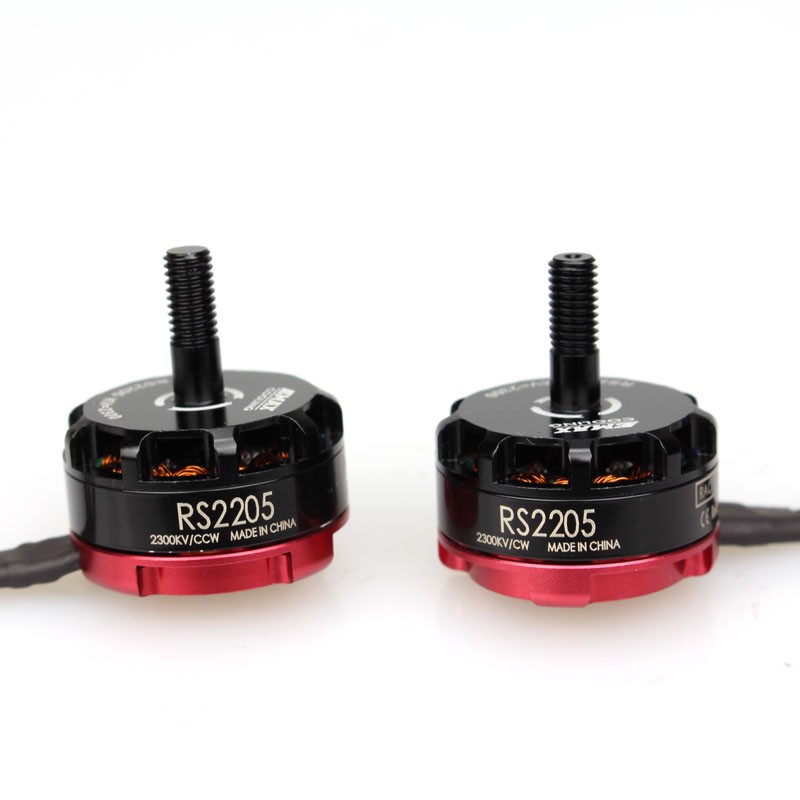

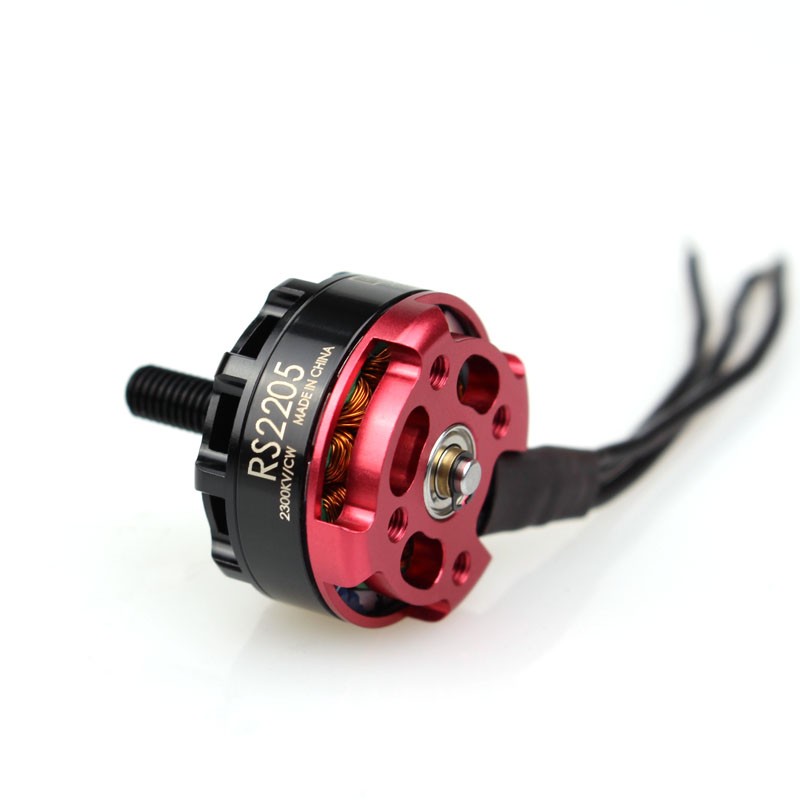

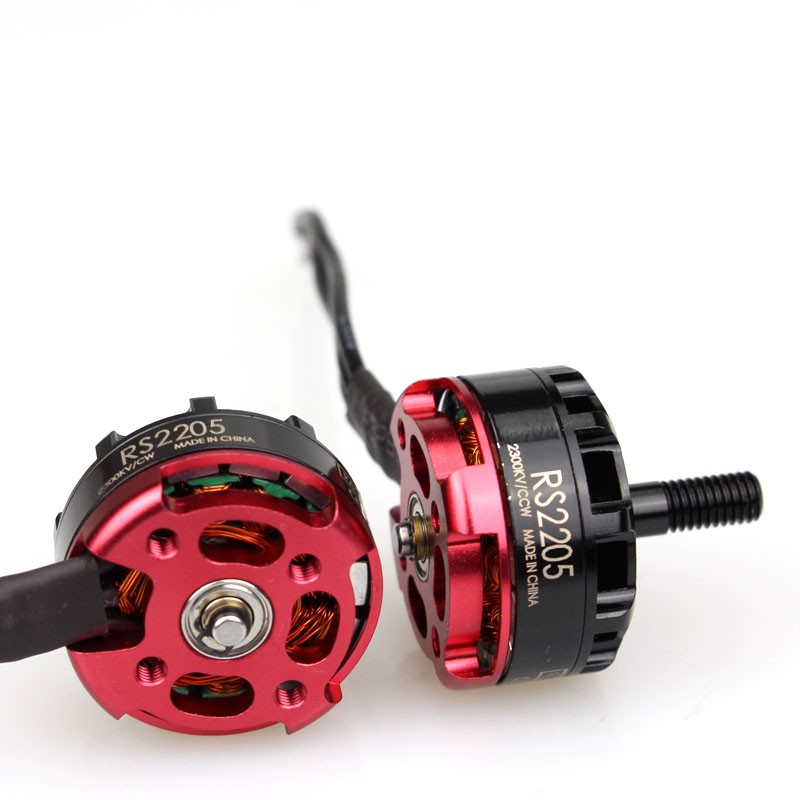

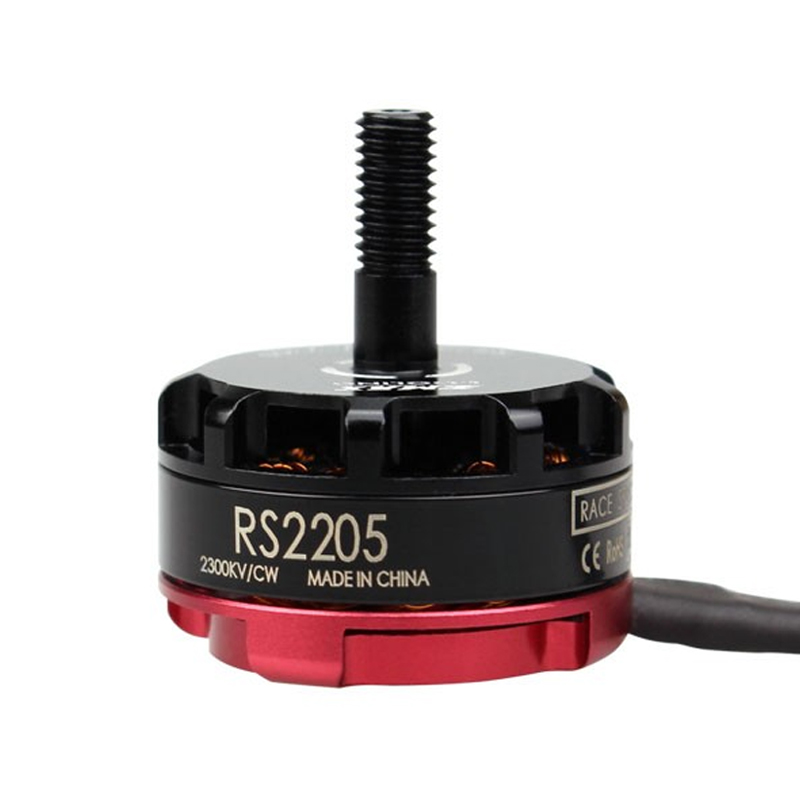

EMAX RS2205 KV2300 Brushless DC Motor for FPV Racing Drone - Black Cap (CW)
The EMAX RS2205 KV2300 is a high-performance brushless motor engineered for 3S-4S FPV racing drones, featuring a 12N14P framework, N52 magnets, and Japanese NMB bearings for reliable, high-thrust operation.
Features
- High-performance 2300KV motor optimized for 3S-4S LiPo batteries in FPV racing drones.
- Generates up to 1024g of maximum thrust for aggressive acceleration and top speed.
- Features a 12N14P framework with N52 neodymium magnets for strong magnetic flux and efficiency.
- Equipped with genuine Japanese NMB bearings and a 3mm shaft for smooth, durable operation.

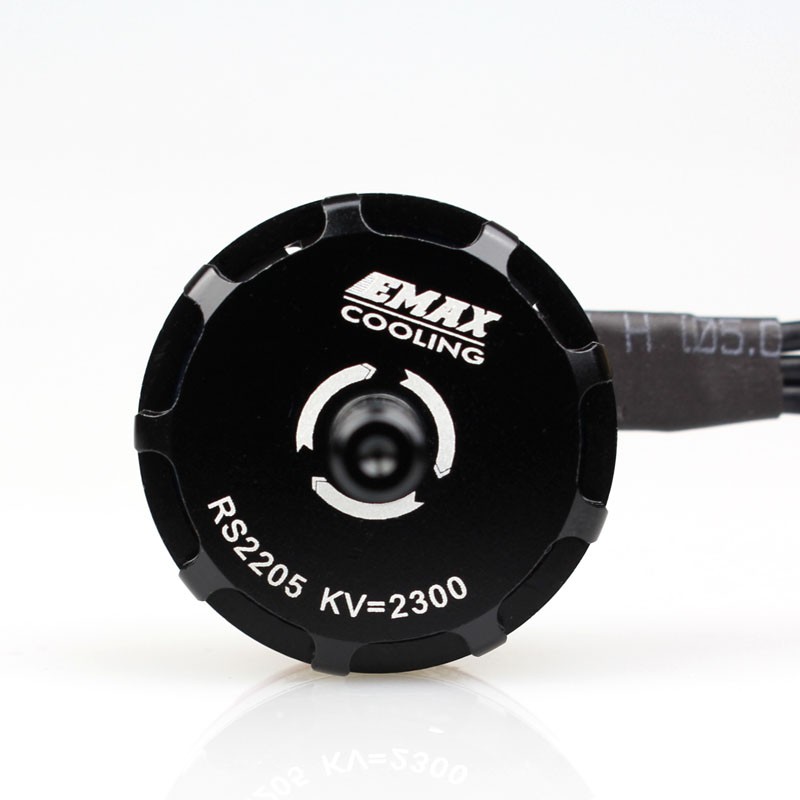

- Includes integrated cooling fins to reduce motor temperature by up to 30% during high-RPM use.
Out of stock
The EMAX RS2205 KV2300 brushless motor is a core component of the Race Spec series, designed from the ground up for competitive FPV drone racing. Its 12N14P stator and rotor configuration provides a balanced magnetic field for smooth torque delivery across the throttle range. The use of high-purity copper windings and N52-grade neodymium magnets minimizes electrical losses and maximizes power output, enabling the motor to achieve its peak thrust figure.
Structural integrity and thermal management are central to its design. The motor housing incorporates precision-machined cooling fins that actively channel airflow to dissipate heat, a critical feature during the repeated high-load bursts typical in racing. The inclusion of genuine Japanese NMB bearings ensures minimal rotational friction and long-term reliability, even under the stress of aggressive maneuvers. Each unit is factory dynamically balanced to reduce vibration, contributing to cleaner flight performance and reduced wear on other drone components.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3.17 × 2.79 cm |
