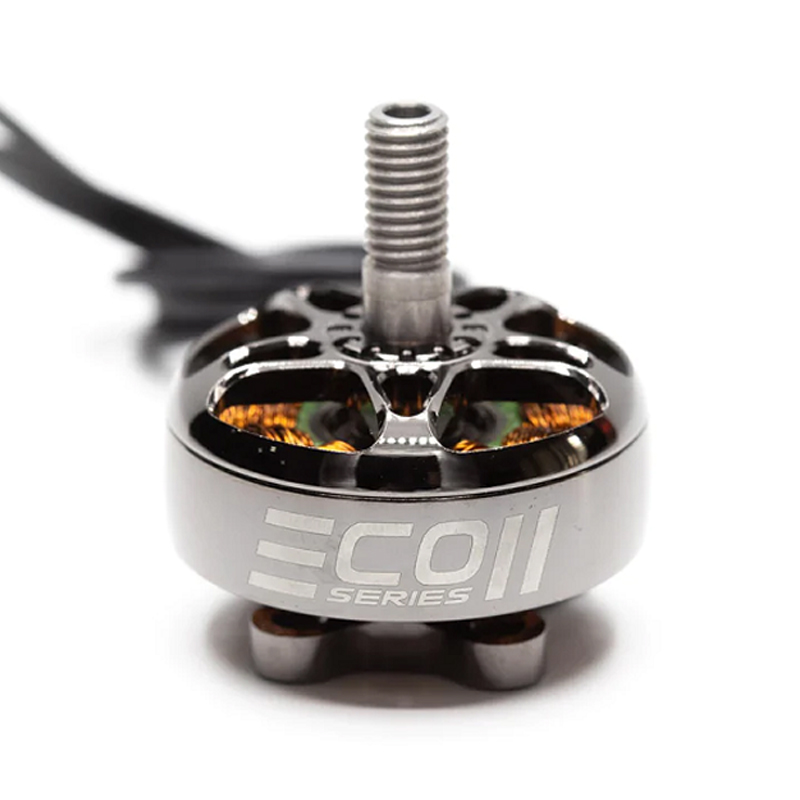

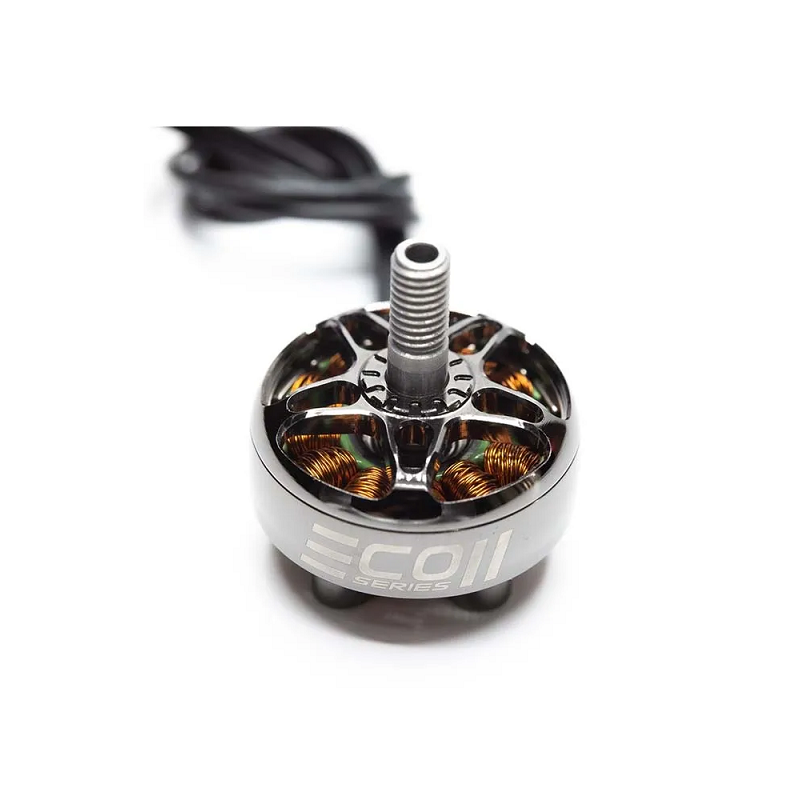

EMAX ECOII-2306-1700KV Brushless Motor

Name: EMAX ECOII-2306-1700KV Brushless Motor
Brand: EMAX
SKU: DRFC-2905
Price: 1959.00 INR
Availability: OutOfStock

₹1,959.00 (Inclusive of all taxes)

Out of Stock

The EMAX ECOII-2306-1700KV brushless motor is engineered for high-performance 5-inch to 5.5-inch FPV racing and freestyle drones, supporting 3S to 6S LiPo batteries. It features N52SH arc magnets for increased torque and throttle response, paired with a durable 12N14P stator framework.

Features

2306 stator size with 1700KV rating optimized for 5″ to 5.5″ propellers on 3-6S LiPo.
Enhanced N52SH arc magnets deliver higher RPM, torque, and throttle response over previous N48 designs.

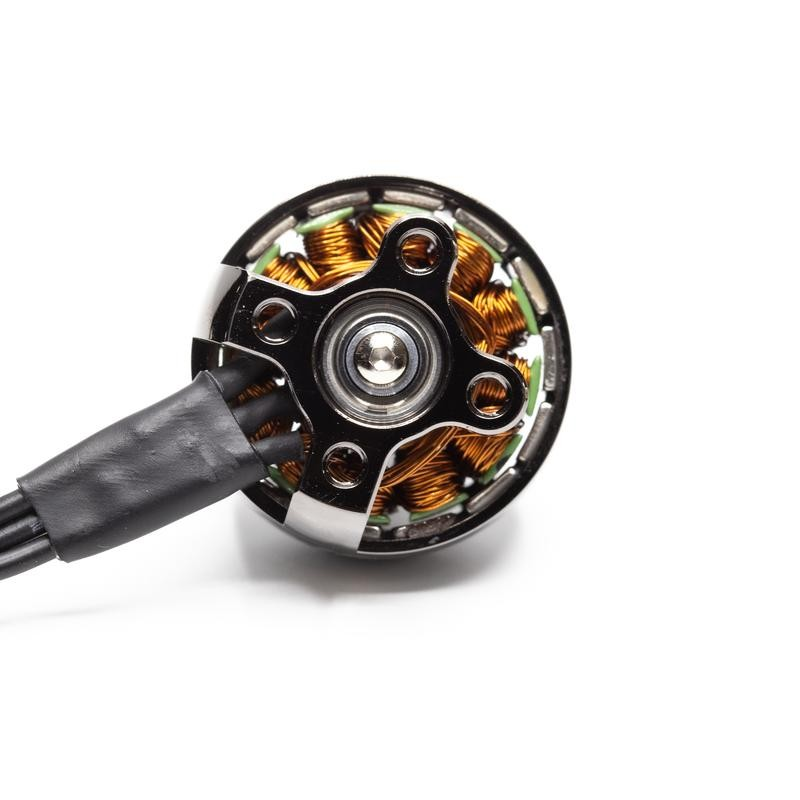

Reinforced structure with 16x16mm M3 mounting pattern for durability in high-impact flight.
Precision bearings and a hardened steel M5-threaded shaft ensure reliable, long-term operation.

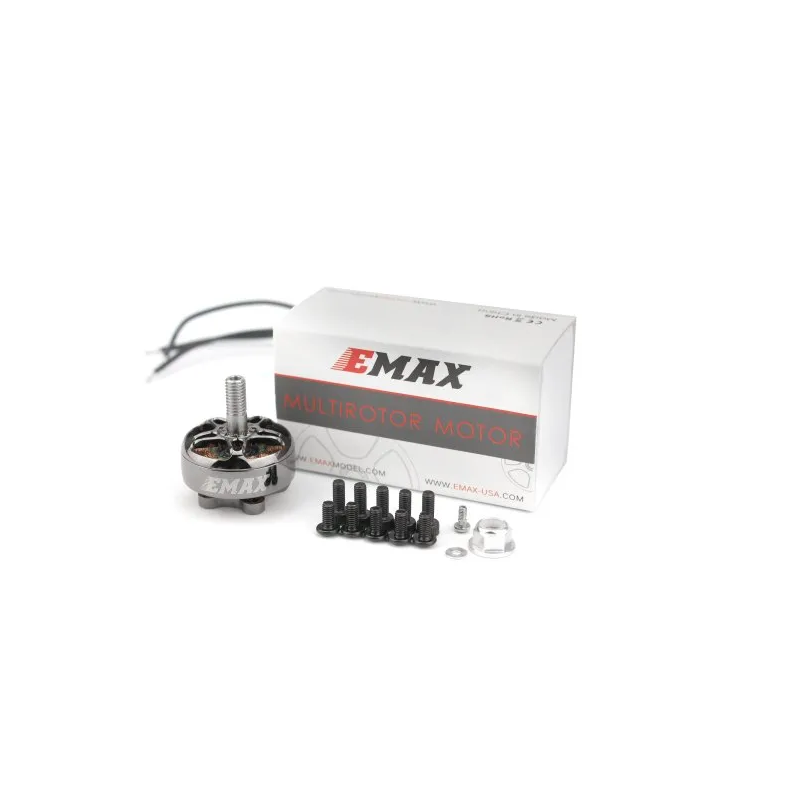

Includes comprehensive mounting hardware: M3 screws in multiple lengths, M5 nylock nut, washer, and shaft screw.

Out of stock

Get Notified When Available

Description

The EMAX ECOII series represents a ground-up redesign focused on elevating performance and structural integrity while maintaining a high-value proposition. The motor’s architecture incorporates thicker reinforcements and a rounded housing to maximize impact resistance, finished with a reflective anodized surface for a sleek, durable appearance.

Internally, the shift to N52SH high-strength magnets significantly boosts magnetic flux, translating to more powerful thrust generation and crisper throttle control across the 3S to 6S voltage range. The multi-strand windings and precision-balanced components ensure smooth operation and efficient power delivery, making it a versatile choice for competitive racing and aggressive freestyle flight profiles.

Key Features

N52SH High-Grade Arc Magnets for superior magnetic field strength and thermal stability.
12N14P Stator Framework optimized for smooth torque delivery and efficient power conversion.
Reinforced Motor Bell and Housing designed to withstand crashes and vibration.
Hardened Steel Shaft with M5 threading for secure propeller retention.
Precision Japanese Bearings ensure minimal friction and extended service life.
20 AWG High-Strand Silicone Wire (120mm) provides flexible, high-current power connections.
16x16mm M3 Mounting Pattern compatible with standard 5-inch FPV frames.
Reflective Anodized Finish offers corrosion resistance and a distinctive aesthetic.

Applications

5-inch FPV Racing Drones requiring high thrust-to-weight ratios for competitive laptimes.
5-inch to 5.5-inch Freestyle Quadcopters for aggressive maneuvers and dynamic control.
Long-Range 5-inch Builds where efficient 6S operation extends flight time.
Heavy-Lift Cinematic Drones using 5-inch props for stable, powerful payload carriage.
DIY Multirotor Platforms where a reliable, versatile 2306 motor is needed for 3S-6S experimentation.

Technical Specifications

Model	ECOII-2306-1700KV
Motor Type	Brushless Outrunner
KV Rating	1700 KV (RPM/V)
Stator Size	23mm x 6mm (2306)
Supported Voltage	3S to 6S LiPo
Stator Framework	12N14P
Shaft Thread	M5
Recommended Prop Size	5" to 5.5"
Mounting Pattern	16mm x 16mm (M3)
Motor Diameter	28 mm
Motor Length	31.5 mm
Weight (without wire)	30.4 g
Wire Gauge & Length	20 AWG Silicone, 120mm

Frequently Asked Questions

What is the recommended propeller size for the ECOII-2306-1700KV motor?

The ECOII-2306-1700KV motor is optimized for 5-inch to 5.5-inch propellers. This size range, combined with its 1700KV rating, provides an ideal balance of thrust and efficiency on 4S or 6S LiPo batteries, making it suitable for both racing and freestyle flight profiles.

What is the mounting hole pattern for this motor?

This motor uses a standard 16x16mm mounting pattern with M3 screw holes. This is the most common pattern for 5-inch FPV drone frames, ensuring broad compatibility. The package includes M3 screws in 6mm, 7mm, and 8mm lengths to accommodate different frame arm thicknesses.

Can I run this motor on a 6S LiPo battery?

Yes, the ECOII-2306-1700KV is rated for 3S to 6S LiPo operation. On 6S, it will produce very high RPM and thrust, suitable for aggressive racing. Ensure your electronic speed controller (ESC) is also rated for 6S and can handle the increased current draw, typically requiring a 45A+ rating per motor for full-throttle performance.

What is the advantage of the N52SH magnets?

N52SH magnets are a higher-grade neodymium material with superior magnetic strength and higher temperature resistance compared to standard N48 magnets. This results in more torque, higher maximum RPM, better throttle response, and consistent performance even during extended, high-power flight sessions.
