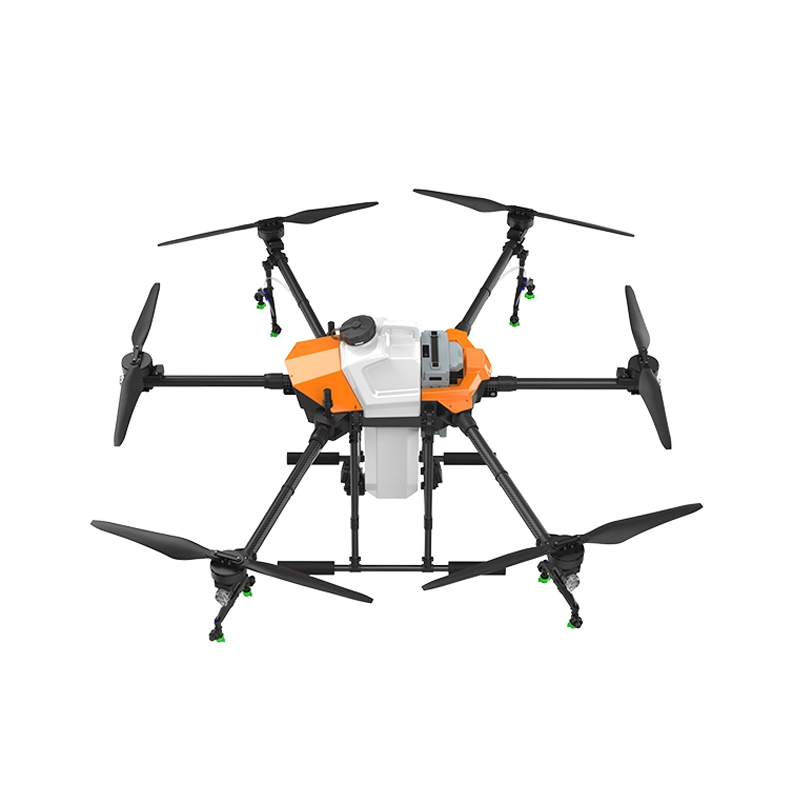

EFT G630 30L 6-Axis Agriculture Drone Frame AS150

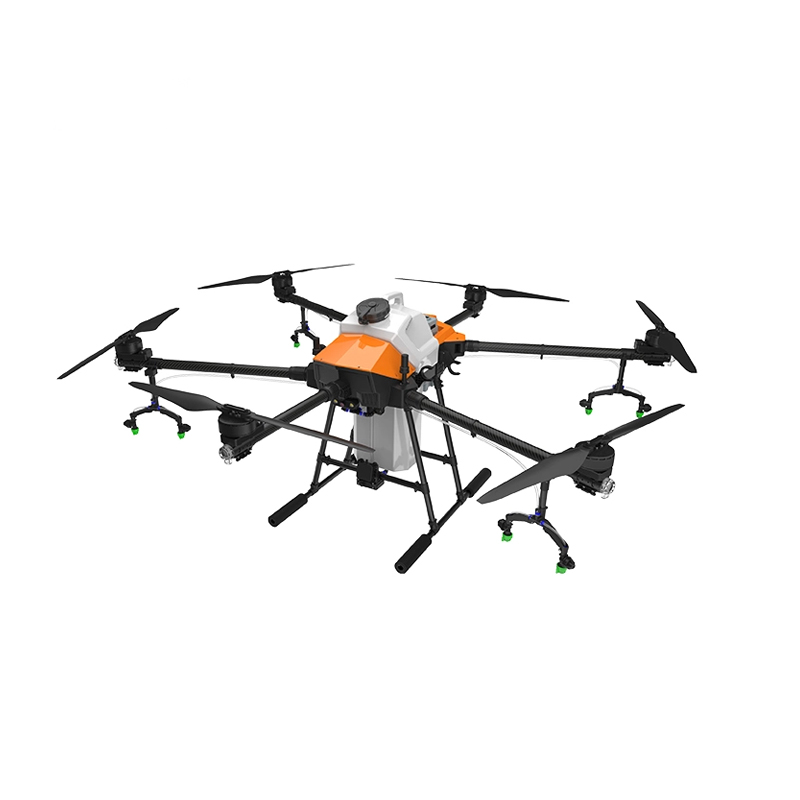

EFT G630 30L 6-Axis Agriculture Drone Frame AS150 - Image 2

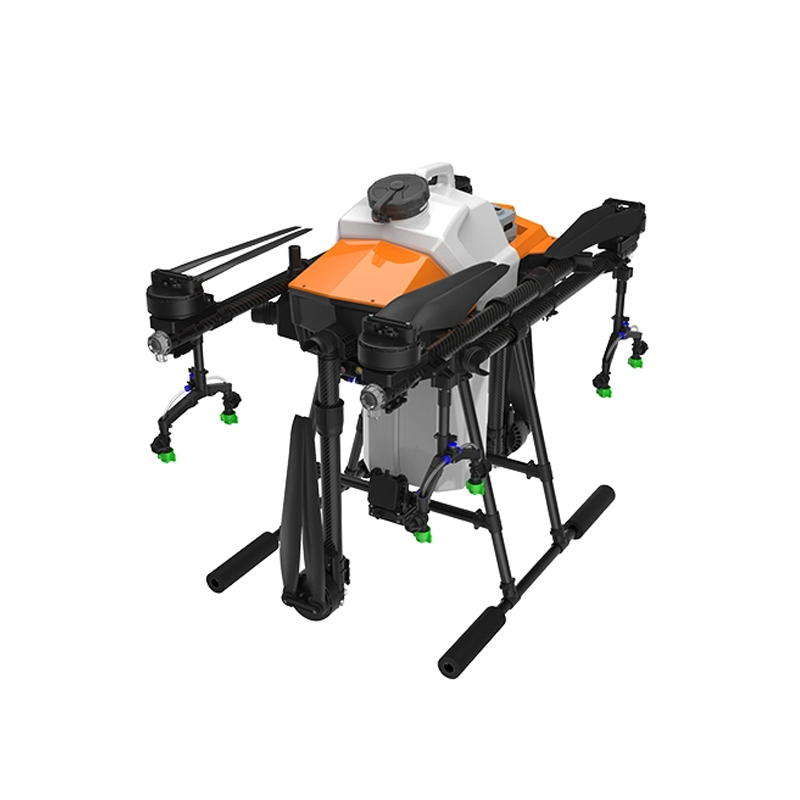

EFT G630 30L 6-Axis Agriculture Drone Frame AS150 - Image 3
SKU: DRFC-0635
📋 GST Invoice Available

EFT G630 30L 6-Axis Agriculture Drone Frame AS150

₹98,279.00 (Inclusive of all taxes)
Out of Stock

The EFT G630 30L 6-Axis Agriculture Drone Frame features an integrated body design for enhanced strength and waterproofing, ensuring reliability in demanding conditions. Its quick-release tank and battery system streamlines operations, while the rectangular layout optimizes spray range for efficient agricultural tasks.

Features

  • Integrated body design enhances structural integrity and waterproof performance for agricultural use.
  • Features a three-stage compact fuselage with quick-release tank and battery for rapid changes.
  • Rectangular layout maximizes spray coverage and efficiency across target areas.
  • Ultra-small body with fast folding capability ensures convenient transport and storage.
  • Modular design allows for quick disassembly, simplifying maintenance and component replacement.

Out of stock

Description

The EFT G630 30L 6-Axis Agriculture Drone Frame is engineered for demanding agricultural applications, providing a robust and stable platform for precise aerial operations. Its integrated body design not only minimizes part count but significantly enhances overall structural strength and waterproof capabilities, crucial for longevity in diverse environmental conditions. This frame is ideally suited for tasks such as crop monitoring, precision spraying, and other industrial UAV applications requiring high durability and operational efficiency.

Featuring a clever three-stage compact fuselage layout, the G630 separates the front flight control, middle 30L tank, and rear battery, optimizing weight distribution and component accessibility. The innovative quick-release mechanism for both the tank and battery allows operators to perform rapid swaps, drastically reducing downtime and increasing field productivity. Additionally, the frame’s rectangular layout is specifically designed to maximize the distance between spray nozzles, ensuring superior and uniform coverage across fields. For ease of transport and storage, the G630 boasts an ultra-small folded footprint and a fast-folding mechanism, making it highly portable. Its modular architecture further simplifies maintenance, enabling quick component disassembly and replacement to keep your operations running smoothly.

Key Features

  • Integrated Body Design: Reduces components, enhances frame strength, and improves waterproof performance for harsh environments.
  • Three-Stage Compact Fuselage: Optimized layout for flight control, 30L tank, and battery, ensuring balanced weight distribution and accessibility.
  • Quick-Release Design: Facilitates rapid medicine and battery changes, significantly saving time and labor during field operations.
  • Rectangular Layout: Maximizes nozzle distance to achieve wider and more efficient spray coverage.
  • Ultra-Small and Foldable: Compact body with quick folding mechanism for convenient transportation and storage.
  • Modular Design: Enables easy maintenance through quick disassembly and replacement of components.
  • AS150 U Connector: Ensures secure and high-current power connections within the system.
  • Robust 6-Axis Structure: Provides excellent stability and maneuverability for precision agricultural tasks.

Applications

  • Precision agriculture for crop spraying and pest control.
  • Autonomous mapping and monitoring of large agricultural fields.
  • Industrial UAV operations requiring high payload capacity and durability.
  • Environmental monitoring and large-area surveying with specific payloads.

Technical Specifications

Item TypeDrone Frame
Model No. / NameG630
Compatible MotorX9 Plus
Power Supply Voltage14S LiPo (28000mAh recommended)
Wheelbase2028 mm
Expanded Length2692 mm
Expanded Width2619 mm
Expanded Height885 mm
Folded Length1192 mm
Folded Width623 mm
Folded Height885 mm
Tank Capacity30 Liters
Arm Diameter40 mm
Frame Weight (approx.)9.6 kg
Tank Weight (approx.)1.54 kg
ColorOrangeRX/White

Frequently Asked Questions

What are the key design principles enhancing the EFT G630 frame's durability?

The G630 features an integrated body design, minimizing joints and enhancing structural integrity. This construction improves overall strength and waterproof performance, essential for demanding agricultural environments. Its robust 6-axis configuration provides a stable platform for heavy payloads and extensive flight operations, ensuring reliable, long-term performance under various conditions.

What power system components are compatible with the EFT G630 frame?

The G630 frame is designed to accommodate powerful propulsion systems, specifically compatible with X9 Plus motors and a 14S LiPo battery, with a recommended capacity of 28000mAh. It includes AS150 U connectors for secure, high-current power transmission. This robust power configuration ensures ample thrust and flight duration for agricultural spraying and other demanding tasks.

How does the EFT G630 frame facilitate efficient field operations and maintenance?

The G630 features a quick-release design for both the 30L tank and battery, enabling rapid swaps and significantly reducing downtime during field operations. Its modular construction simplifies component replacement and maintenance. Furthermore, the frame's ultra-small, fast-folding design ensures convenient transport and storage, enhancing overall operational efficiency for users.

What are the primary dimensions and carrying capacity of the EFT G630 agricultural drone frame?

The G630 has an expanded wheelbase of 2028mm, with dimensions of 2692mm (L) x 2619mm (W) x 885mm (H) when unfolded. It features a substantial 30L tank capacity for liquids. When folded, it compacts to 1192mm (L) x 623mm (W) x 885mm (H) for transport, while its dry frame weight is approximately 9.6 kg.

Package Includes

  • 1 x EFT G630 30L 6-Axis Agriculture Drone Frame with AS150 U Connector

Additional Information

Dimensions 92 × 45 × 45 cm
