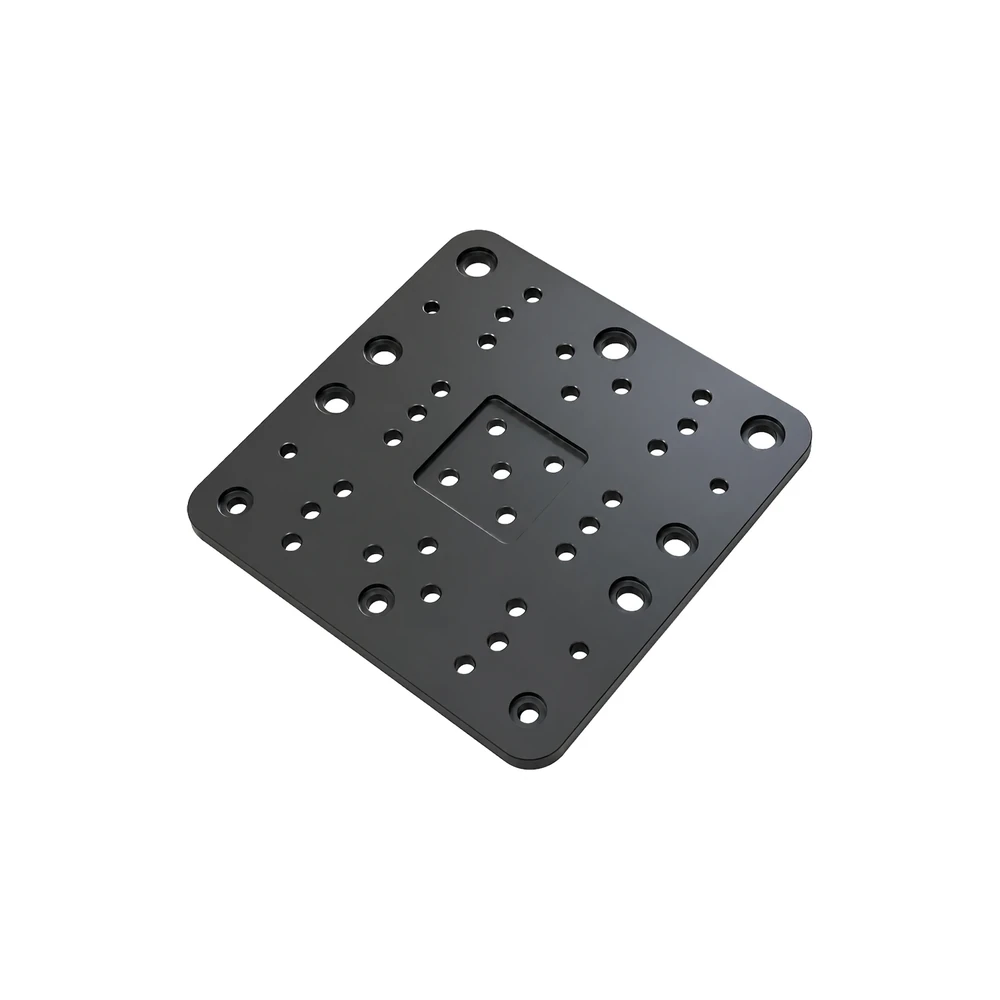

EasyMech XLarge C-Beam Gantry Plate for CNC Motion

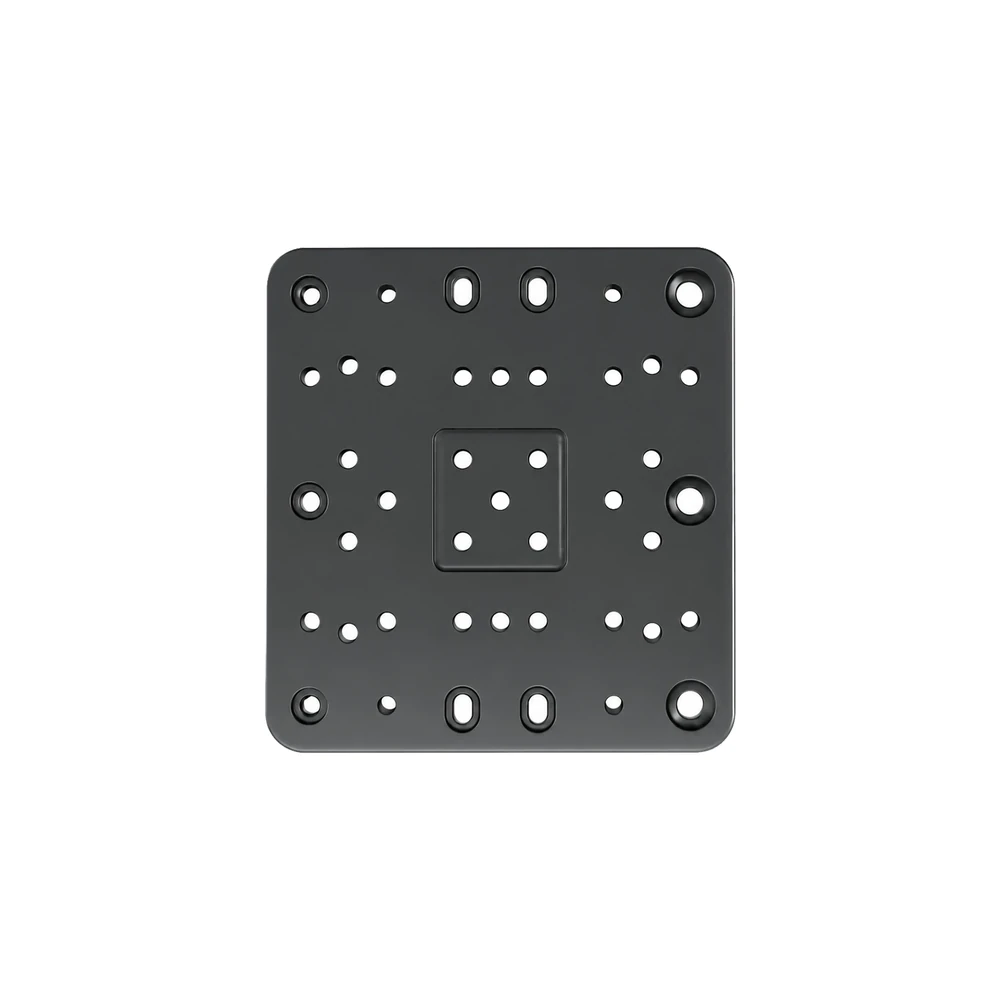

EasyMech XLarge C-Beam Gantry Plate for CNC Motion - Image 2
SKU: 3DDF-1908
📋 GST Invoice Available

EasyMech XLarge C-Beam Gantry Plate for CNC Motion

₹2,299.00 (Inclusive of all taxes)
Out of Stock

The EasyMech XLarge C-Beam Gantry Plate provides a stable, rigid mounting platform for linear motion systems. Crafted from 6061-T6 aluminum with a black anodized finish, it ensures precise and durable performance for CNC applications.

Features

  • Specifically designed for C-Beam linear actuators and extrusions.
  • Constructed from high-strength 6061-T6 aluminum with a durable black anodized finish.
  • Features a robust 6 mm thickness for enhanced rigidity and stable mounting.
  • Optimized for CNC routers, laser engravers, 3D printers, and automation equipment.

Out of stock

Description

The EasyMech XLarge C-Beam Gantry Plate serves as a critical component for precision linear motion systems, specifically engineered for compatibility with C-Beam linear actuators and various CNC motion setups. Its construction from high-strength 6061-T6 aluminum ensures exceptional rigidity and a long operational lifespan. The durable black anodized finish provides superior corrosion resistance, making it suitable for demanding industrial and hobbyist environments.

This gantry plate, measuring 125 × 125 mm with a substantial 6 mm thickness, creates a highly stable mounting foundation essential for lead screw-driven linear motion applications. It is an indispensable upgrade or replacement part for CNC routers, laser engravers, 3D printers, and general automation equipment. Its robust design contributes significantly to achieving smooth, accurate, and repeatable movement in custom motion control projects.

Key Features

  • Precision-machined from 6061-T6 aluminum for superior strength and dimensional accuracy.
  • Designed for seamless compatibility with C-Beam linear extrusions and associated components.
  • Features a durable black anodized surface finish, offering enhanced corrosion and wear resistance.
  • Provides a substantial 125 × 125 mm mounting platform for various tools and components.
  • Engineered with a 6 mm thickness to ensure exceptional rigidity and minimize flex under load.
  • Facilitates robust linear motion in CNC machines, laser engravers, and 3D printers.
  • Optimized for easy integration within the OpenBuilds V-Slot system ecosystem.

Applications

  • Enhances rigidity and precision in CNC router and milling machine builds.
  • Provides a stable carriage for laser modules in laser engravers and cutters.
  • Used as a reliable gantry component for Cartesian and CoreXY 3D printers.
  • Integrates into robotics and general industrial automation equipment.
  • Ideal for custom linear motion control projects requiring robust support.

Technical Specifications

Item TypeGantry Plate
Compatible ExtrusionC-Beam
Accessory CompatibilityV-Slot System
Material6061-T6 Aluminum
Surface FinishBlack Anodized
ColorBlack
Plate Size125 × 125 mm
Thickness6 mm
ApplicationLinear Motion Systems
Suitable ForCNC Machines, Laser Engravers, 3D Printers, Robotics, Automation Projects
Mounting TypeBolt-On

Frequently Asked Questions

What is the primary material of this gantry plate?

The EasyMech XLarge C-Beam Gantry Plate is precision-machined from high-strength 6061-T6 aluminum. This material choice ensures exceptional rigidity, lightweight characteristics, and superior resistance to corrosion, crucial for long-term performance in various digital fabrication and automation environments.

Is this gantry plate compatible with standard V-Slot extrusions?

While primarily designed for C-Beam extrusions, this gantry plate is fully compatible with the broader V-Slot system accessories. Its mounting hole patterns allow for easy integration with standard V-Slot components, offering versatility for custom builds and upgrades in your CNC, 3D printer, or laser setup.

What are the key dimensions and thickness of the gantry plate?

This XLarge C-Beam Gantry Plate measures 125 × 125 mm. It boasts a robust thickness of 6 mm, providing significant structural integrity and minimizing deflection. These dimensions make it suitable for applications requiring a stable and rigid mounting platform for heavier loads or higher precision.

Can this plate be used in outdoor or humid environments?

Yes, the EasyMech XLarge C-Beam Gantry Plate features a durable black anodized finish. This surface treatment provides excellent resistance to corrosion, oxidation, and general wear. While it enhances durability in various conditions, prolonged direct exposure to harsh outdoor elements should still be considered in system design.

Package Includes

  • 1 x EasyMech XLarge C-Beam Gantry Plate

Additional Information

Weight 0.234 kg
Dimensions 15 × 14 × 3 cm
