EasyMech HC-SR04 Ultrasonic Sensor with Snap-fit ABS Cartoon Bracket - 5V Module
The EasyMech HC-SR04 ultrasonic sensor module provides reliable 2-400 cm distance measurement with 3mm accuracy, operating at 5V DC for easy integration with Arduino, Raspberry Pi, and other microcontroller platforms. It includes a dedicated black ABS plastic snap-fit mounting bracket for secure installation.
Features
- Ultrasonic ranging module with 2 cm to 400 cm (4 m) measurement range.
- High accuracy of ±3 mm (±0.3 cm) and stable 40 kHz operation.

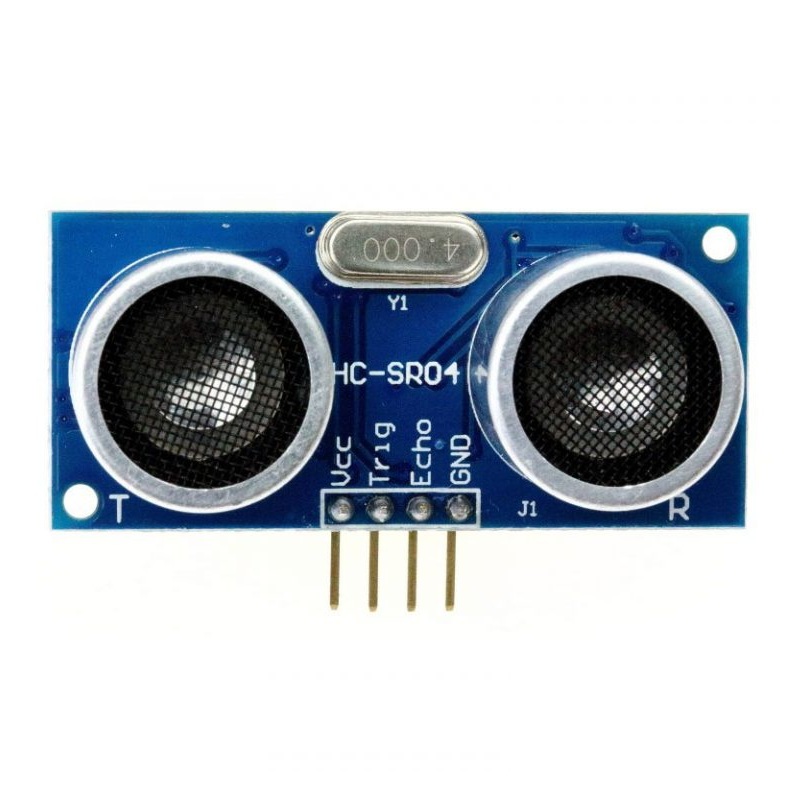

- Simple 4-pin interface (VCC, Trig, Echo, GND) compatible with 5V logic systems.

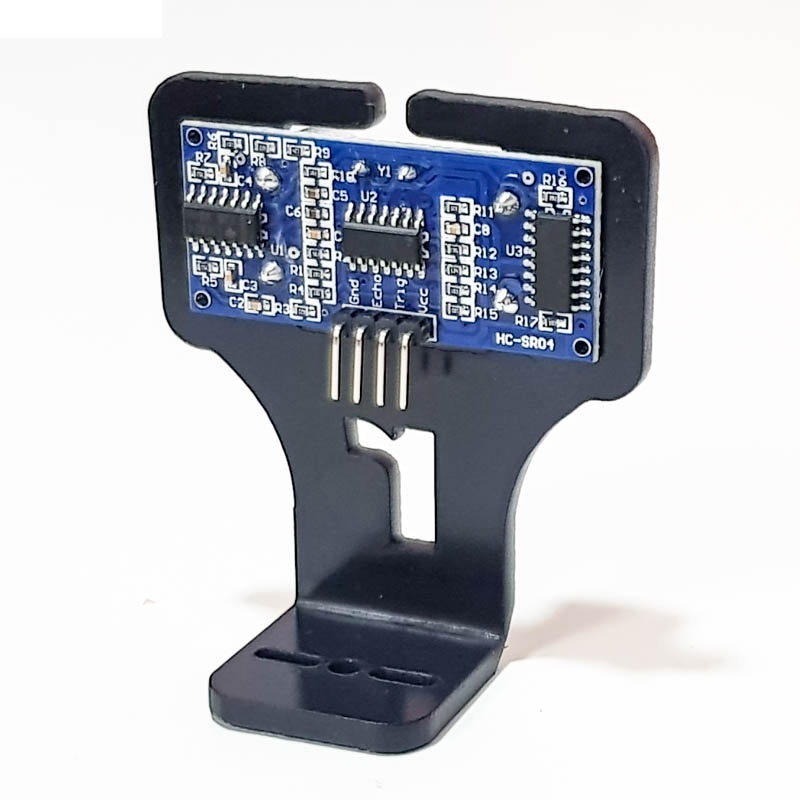

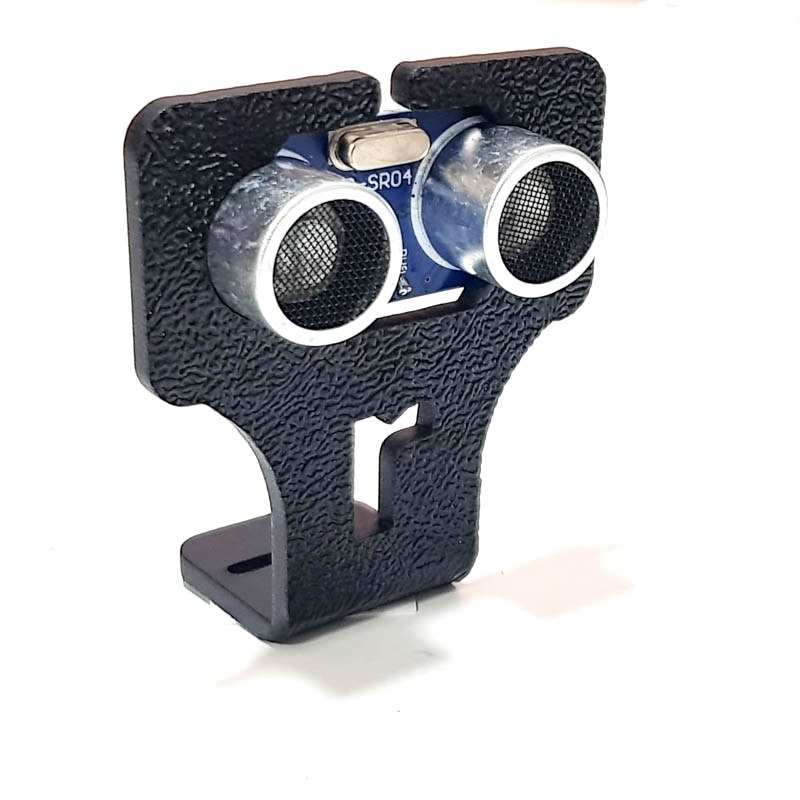

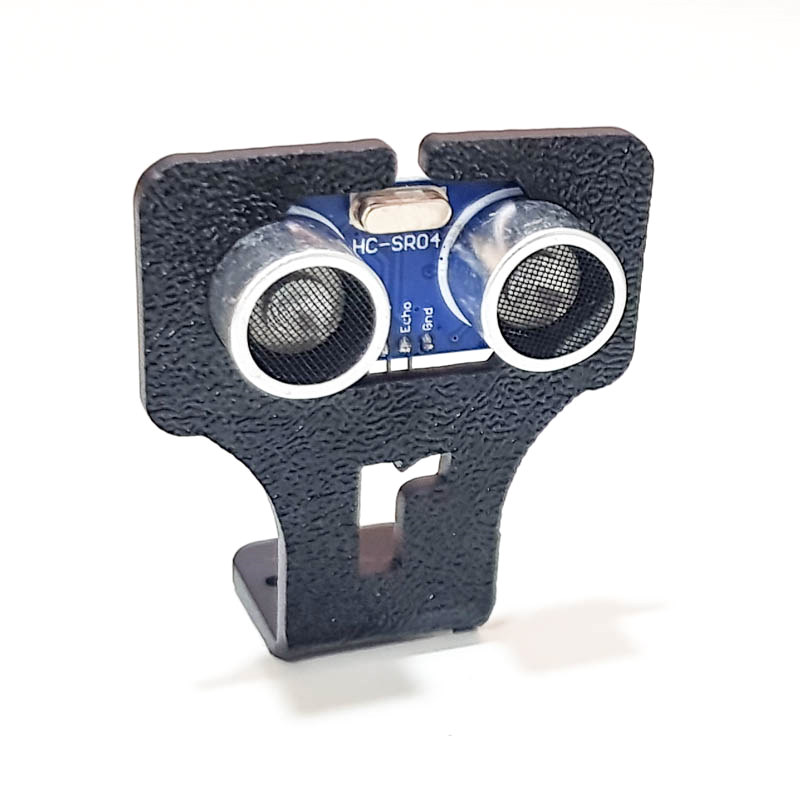

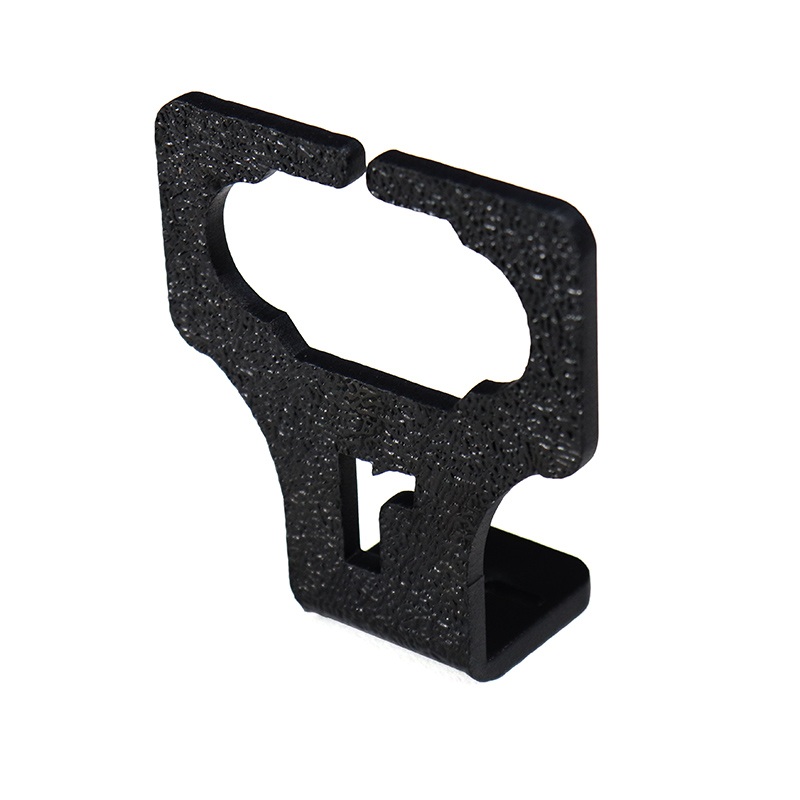

- Includes a dedicated black ABS plastic cartoon-style snap-fit mounting bracket.
- Compact PCB dimensions of 45 mm x 20 mm with a narrow <15° sensing angle.
Out of stock
The HC-SR04 ultrasonic distance sensor operates on the principle of time-of-flight (ToF) measurement. It emits a 40 kHz ultrasonic pulse via its transmitter and listens for the echo with its receiver. The time delay between the transmitted pulse and the received echo is used to calculate the distance to an object, providing a non-contact measurement solution that is unaffected by ambient light or the color of the target material.
This module is designed for straightforward integration, requiring only a single I/O pin to trigger the measurement pulse and another to read the echo pulse width. Its performance is optimized for a wide range of applications, from simple obstacle detection to precise distance logging, supported by a compact and robust PCB construction.
Additional Information
| Weight | 0.016 kg |
|---|---|
| Dimensions | 2 × 4.5 × 0.31 cm |
