EasyMech 20x40 V-Slot Aluminum Extrusion Profile - 500mm

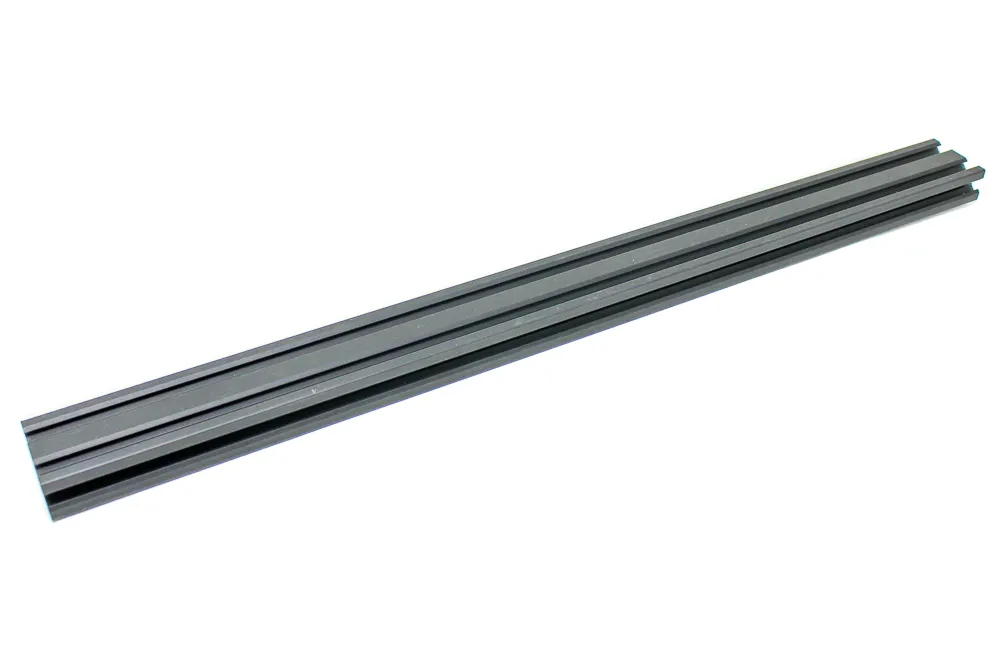

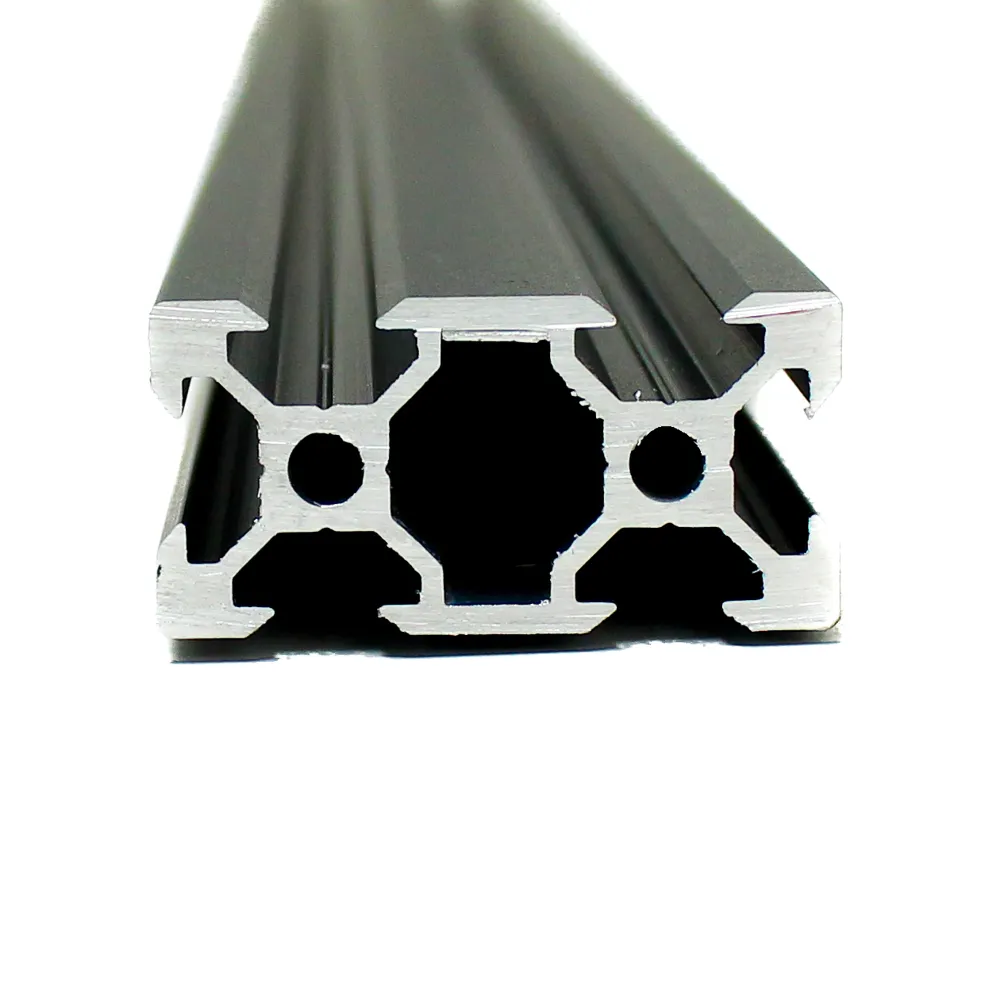

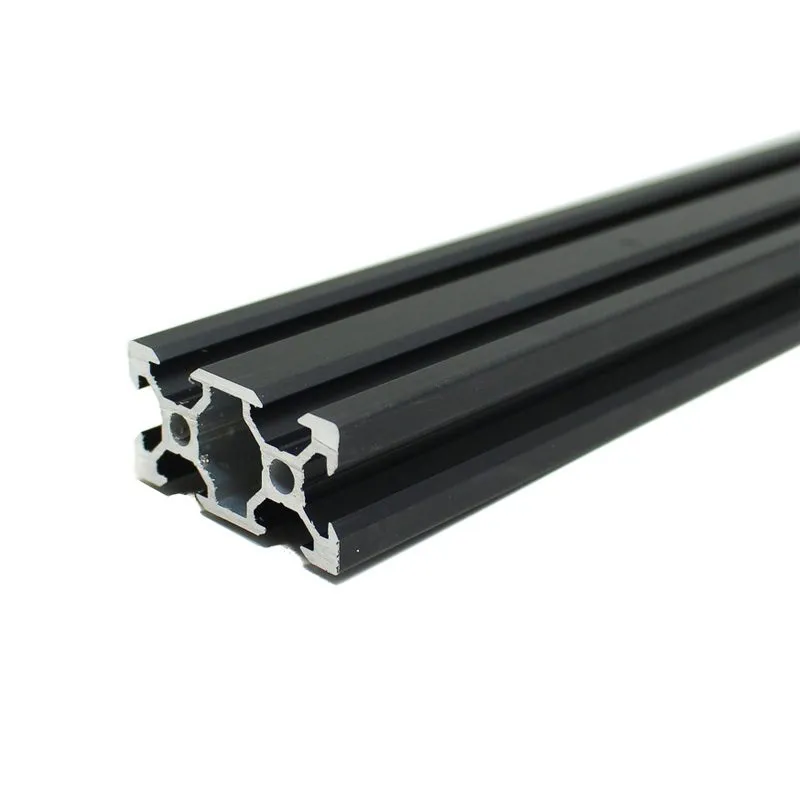

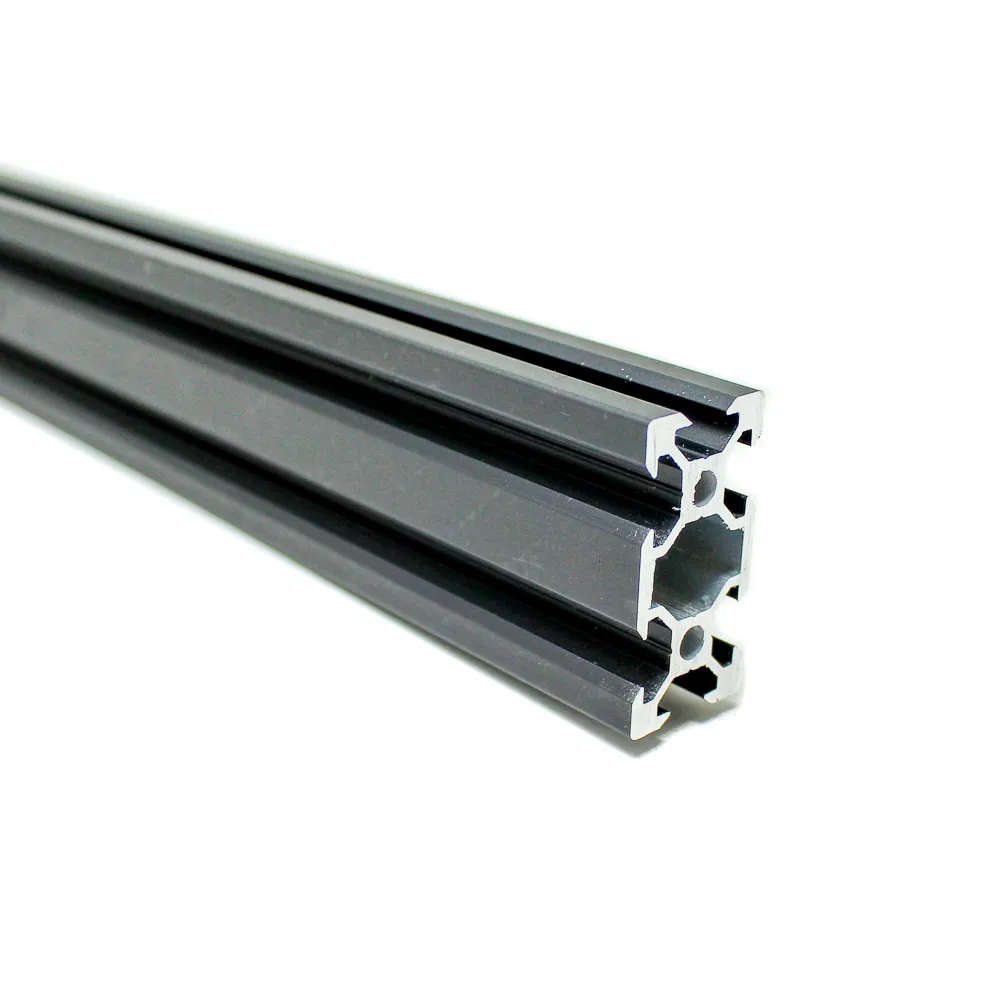

This profile measures 20mm in width, 40mm in height, and has a total length of 500mm. It features four V-slots for mounting accessories, conforming to European Standard specifications for compatibility with various hardware components and fastening systems.

While robust, the 20x40 profile is generally best suited for medium-duty applications such as hobbyist 3D printers, smaller CNC routers, and camera sliders. For very large or heavy-duty CNC machines, a larger profile like 40x80 or greater might be more appropriate to ensure optimal rigidity and minimize deflection under load.

The V-slots are designed to work with standard M5 T-nuts, V-slot gantry plates, and various specialized V-slot connection plates or brackets. These allow for flexible assembly, easy adjustment, and secure fastening of components, making it highly versatile for custom builds.

Yes, the aluminium extrusion can be cut to custom lengths using appropriate metal cutting tools, such as a hacksaw with a fine-tooth blade or a miter saw with an aluminum-specific blade. Ensure clean, square cuts to maintain structural integrity and compatibility with end caps or connectors.

This extrusion is manufactured from 6063 Aluminium Alloy. This specific alloy is known for its excellent strength-to-weight ratio, good corrosion resistance, and suitability for anodizing, which gives it the black finish and additional surface protection.
