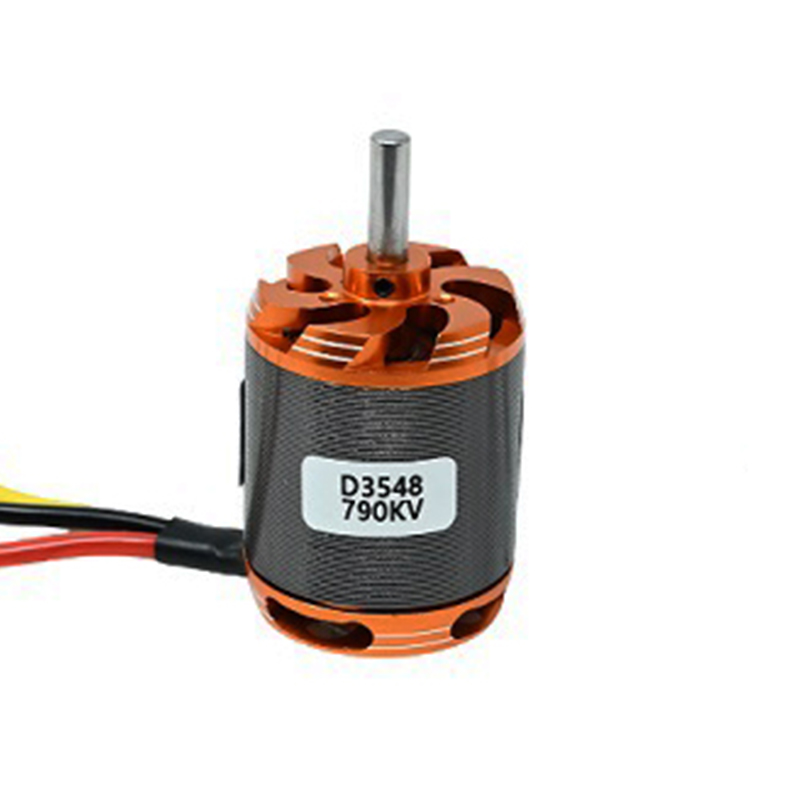

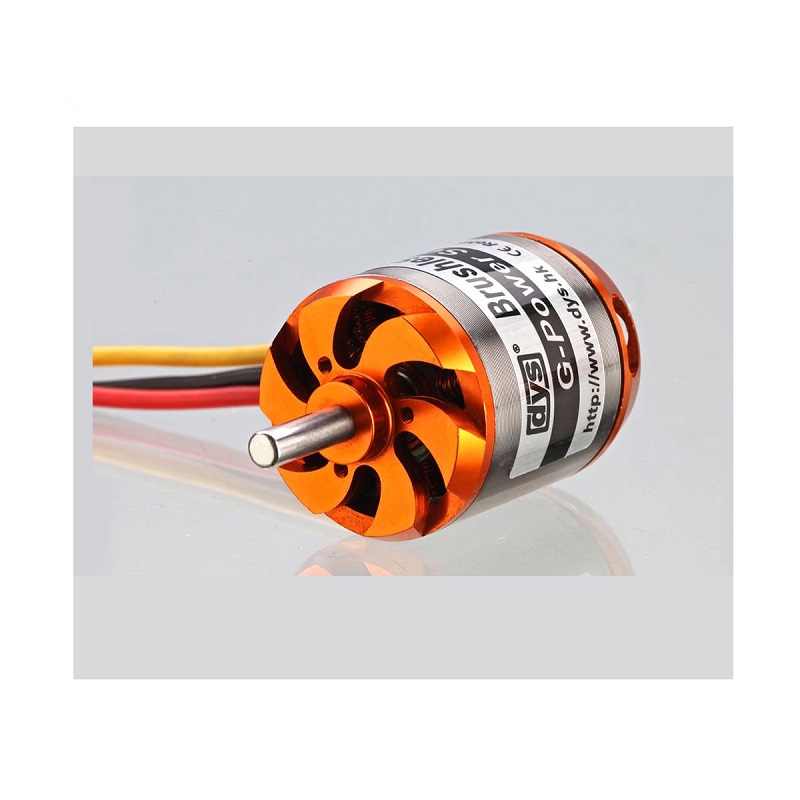

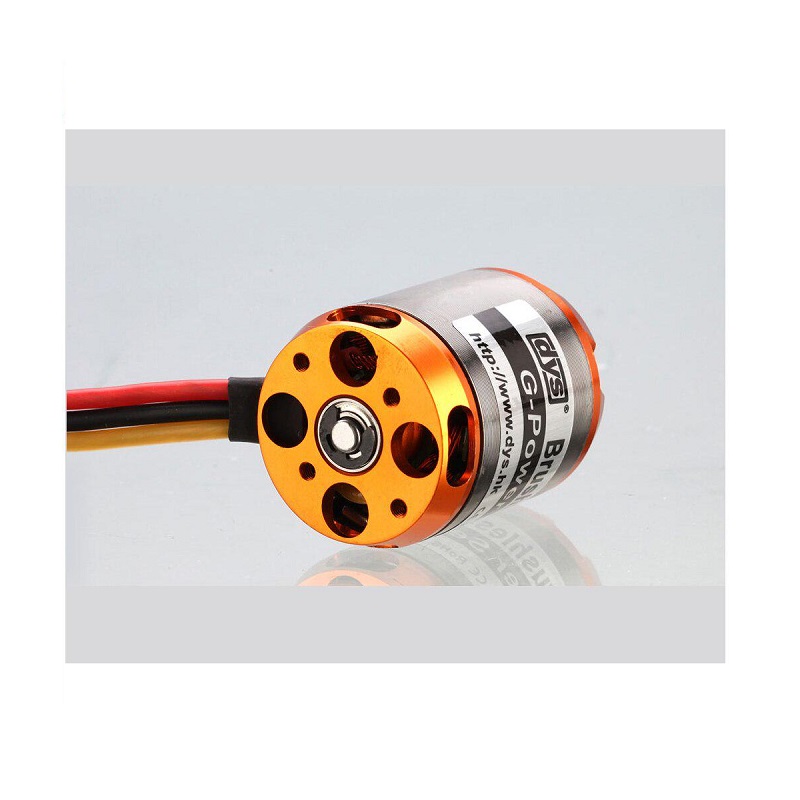

DYS D3548-6 790KV Brushless Motor
The DYS D3548-6 is a 790KV outrunner brushless motor designed for medium-scale multirotor and UAV applications, compatible with 3S to 5S LiPo batteries and paired with 12-13 inch propellers for high-efficiency flight.
Features
- 790KV rating optimized for 3S-5S LiPo operation (11.1V-18.5V).
- Delivers up to 1650g of maximum thrust per motor.

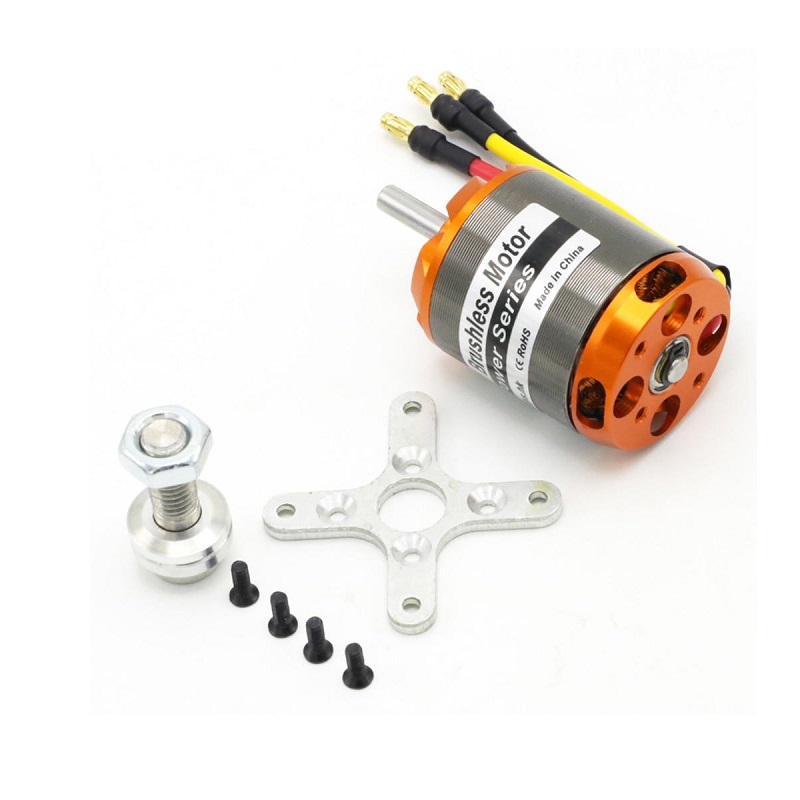

- Features a 5mm hardened steel shaft and includes a prop adapter and X-type motor mount.
- Pre-soldered 3mm bullet connectors for direct plug-and-play connection to compatible 70A ESCs.
- Robust 12-pole outrunner design with a peak power handling of 715W.
Out of stock
The DYS D3548-6 brushless motor employs a 12-pole outrunner design engineered for reliable performance in demanding UAV environments. Its 790KV winding is specifically calibrated for medium-scale multirotor platforms, providing an optimal balance of torque and RPM when powered by 3S to 5S LiPo battery packs.
Constructed with a durable steel housing and a 5mm shaft, the motor is built to withstand the vibrational stresses of aerial flight. The integrated 3mm bullet connectors eliminate the need for soldering, simplifying the build process and ensuring a secure electrical connection to high-current ESCs.
Additional Information
| Weight | 0.188 kg |
|---|---|
| Dimensions | 8 × 5 × 5 cm |
