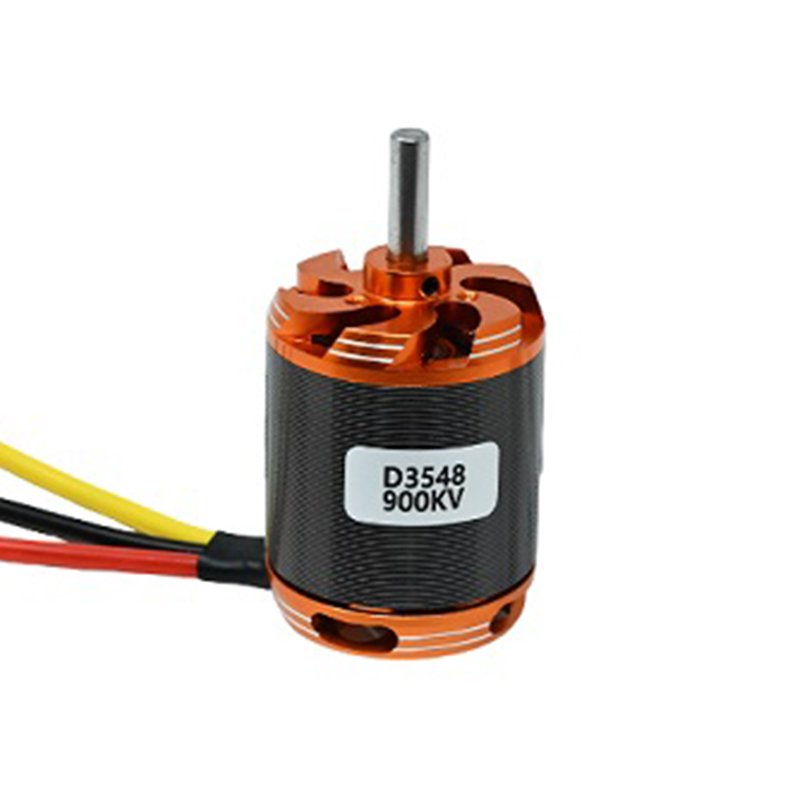

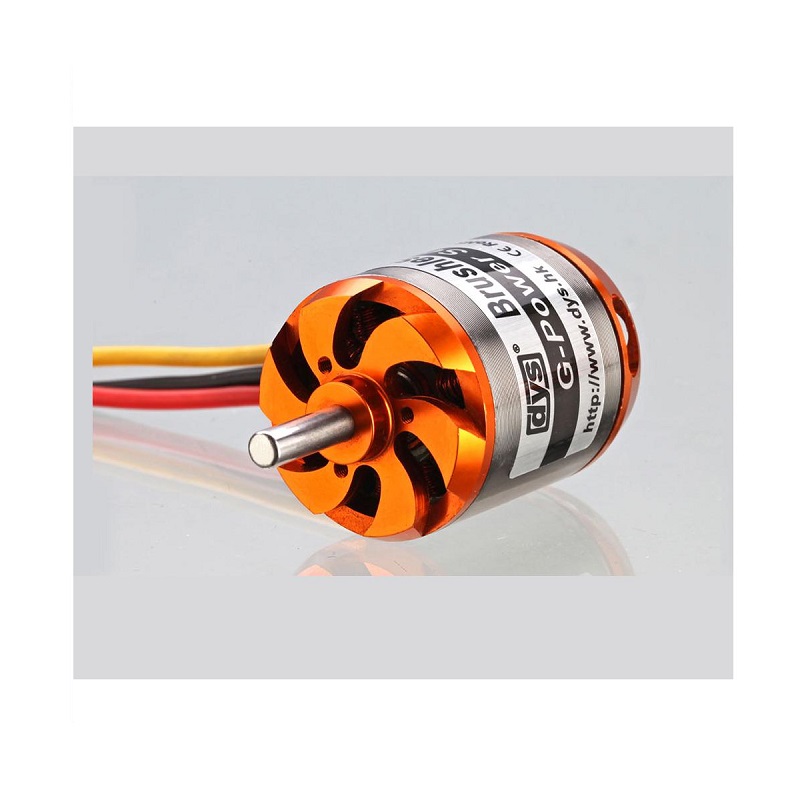

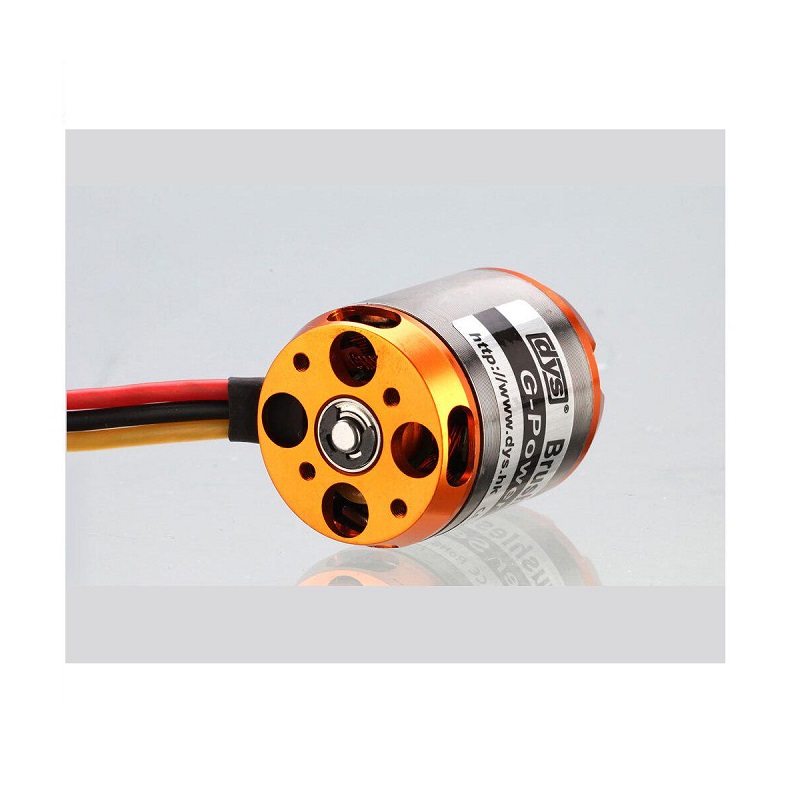

DYS D3548-5 900KV Brushless Motor
The DYS D3548-5 is a 900KV brushless outrunner motor engineered for medium to large multirotor UAVs, delivering up to 770W of power and 1650g of thrust on 3-5S LiPo systems. It features a 5mm shaft and pre-soldered 3mm bullet connectors for direct ESC integration.
Features
- 900KV rating optimized for 3-5S LiPo (11.1V-18.5V) operation.
- High-power output with a maximum continuous current of 70A and 770W power handling.
- Designed for large propellers, supporting 11×8 to 13×6-inch props for significant thrust generation.

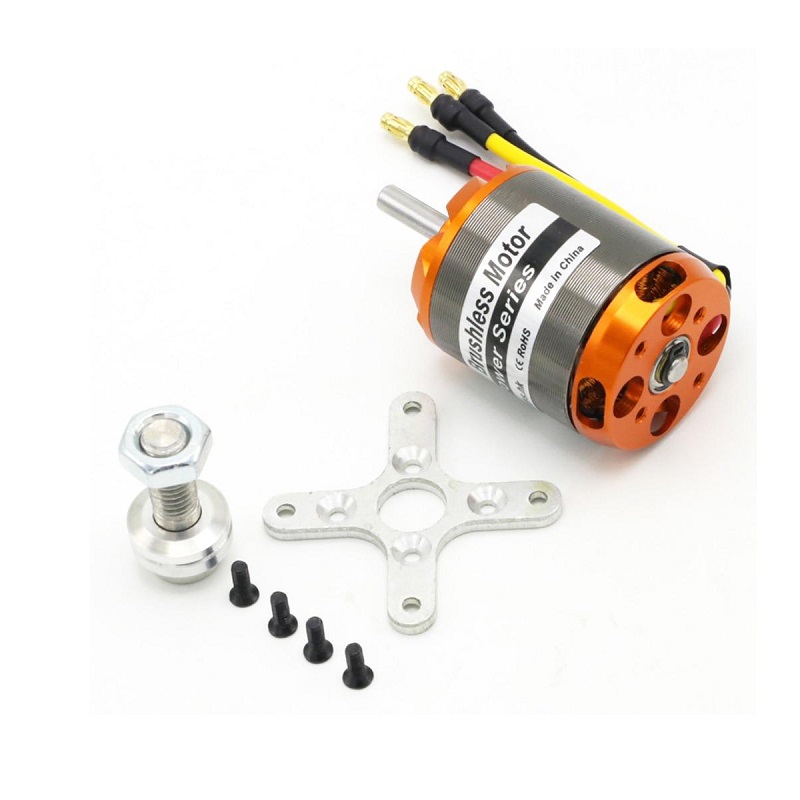

- Includes pre-soldered 3mm bullet connectors and a comprehensive mounting kit (prop adapter, X-type motor holder, screws).
- Robust 14-pole outrunner design with a 5mm shaft for durable, high-torque performance.
Out of stock
The DYS D3548-5 brushless motor is engineered for demanding UAV applications requiring reliable, high-torque propulsion. Its 900KV winding is specifically calibrated for 3-5S LiPo battery packs, providing an optimal balance of rotational speed and torque for large-diameter propellers up to 13 inches. The outrunner design features a 14-pole stator for smooth, efficient power delivery across the throttle range.
Constructed with a steel housing and reinforced internal components, the motor is built to withstand the vibrational stresses of industrial and heavy-lift multirotor operation. The integrated 3mm bullet connectors eliminate the need for field soldering, streamlining the build process and ensuring a secure electrical connection with compatible 70A ESCs. This motor is a core component for builders targeting payload-capable quadcopters, hexacopters, and large RC aircraft.
Additional Information
| Weight | 0.188 kg |
|---|---|
| Dimensions | 8 × 5 × 5 cm |
