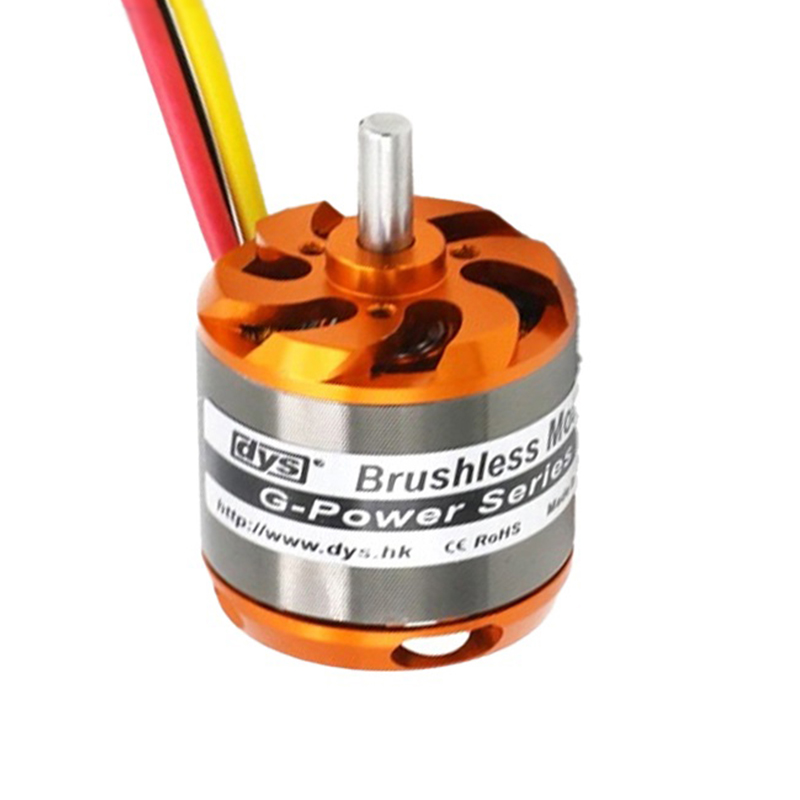

DYS D3548-4 1100KV BLDC Motor

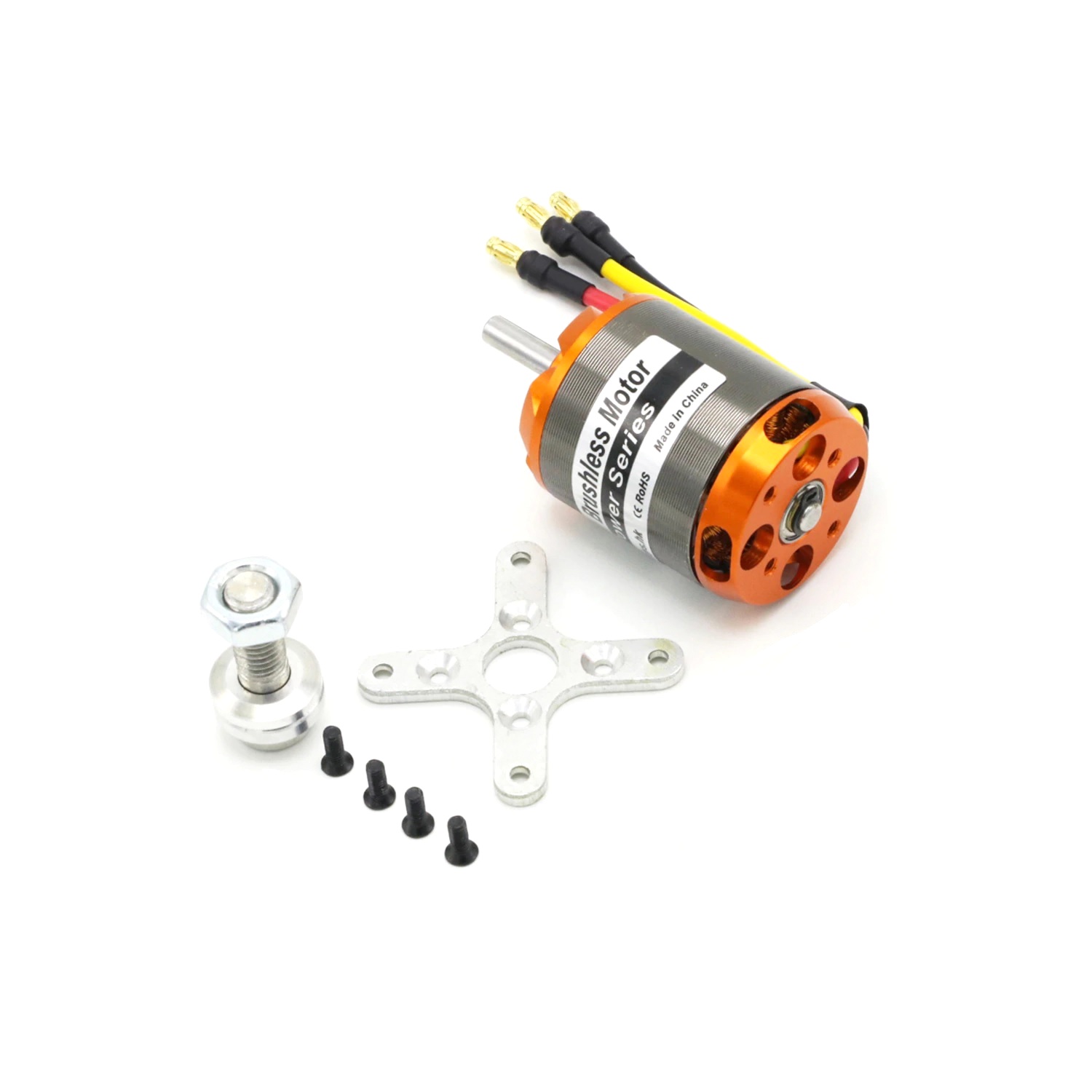

DYS D3548-4 1100KV BLDC Motor - Image 2
SKU: DRFC-2916
📋 GST Invoice Available

DYS D3548-4 1100KV BLDC Motor

₹2,639.00 (Inclusive of all taxes)
Out of Stock

The DYS D3548-4 is a 1100KV brushless motor engineered for medium-sized multirotor platforms, compatible with 3S to 5S LiPo batteries and requiring a 70A ESC. It delivers high thrust for long-range and endurance-focused drone builds.

Features

  • 1100KV rating optimized for efficient 3S-5S LiPo operation on medium-sized frames.
  • Generates up to 2150g of thrust per motor with a compatible 12-inch propeller.
  • Features a robust 5mm steel shaft and a durable construction for reliable performance.
  • Pre-soldered 3mm bullet connectors simplify wiring and ESC integration.
  • Compact 36mm stator diameter and 160g weight offer a favorable power-to-weight ratio.

Out of stock

Description

The DYS D3548-4 brushless motor is designed for builders seeking a balance of power and efficiency for medium-scale multirotor applications. Its 1100KV winding is well-suited for 3S to 5S LiPo batteries, allowing for flexible power system configurations that prioritize flight time and smooth throttle control.

With a maximum power handling of 911W and a recommended 70A ESC, this motor is capable of driving large-diameter propellers up to 12 inches. The integrated 5mm steel shaft and robust bearing system ensure reliable operation under high rotational loads, making it a dependable choice for heavy-lift quadcopters and long-range UAV platforms.

Key Features

  • High-Efficiency Stator Design: The D3548-4 stator is engineered for optimal magnetic flux, delivering high torque and brilliant efficiency for extended flight endurance.
  • Durable Mechanical Construction: Features a precision-machined steel shaft and high-grade bearings built to withstand the vibrations and stresses of competitive multirotor operation.
  • Integrated Connector Solution: Comes with pre-soldered 3mm bullet connectors, eliminating the need for user soldering and ensuring a secure, low-resistance connection to your ESC.
  • Optimized Thermal Management: The motor's design facilitates effective heat dissipation, maintaining performance consistency during prolonged high-thrust maneuvers.
  • Lightweight & Compact Form Factor: At 160g with a 36mm diameter, it provides a high thrust-to-weight ratio suitable for a wide range of quadcopter and hexacopter frames.

Applications

  • Medium-sized (e.g., 450-550mm) long-range FPV and mapping quadcopters utilizing 3S-5S LiPo packs.
  • Heavy-lift platforms for aerial photography or payload delivery requiring high thrust from 12-inch propellers.
  • Endurance-focused hexacopter builds where efficient 1100KV motors maximize flight time.
  • DIY UAV and multirotor projects where pre-soldered bullet connectors simplify the assembly process.

Technical Specifications

ModelD3548-4
KV Rating1100 RPM/V
Voltage Range3S - 5S LiPo
Shaft Diameter5 mm
Shaft Length15 mm
Max Continuous Power911 W
Recommended ESC70 A
Compatible PropellerUp to 12-inch
Stator Width (W)36 mm
Weight160 g

Frequently Asked Questions

What is the recommended ESC for the DYS D3548-4 1100KV motor?

A 70A Electronic Speed Controller (ESC) is required to handle the motor's maximum power draw of 911W. For optimal performance and safety, use a high-quality 70A ESC with firmware compatible with DYS motors, such as BLHeli_S or BLHeli_32, configured for the correct motor direction and timing.

What size propeller should I use with this motor?

The DYS D3548-4 is compatible with propellers up to 12 inches in diameter. The optimal propeller size depends on your battery voltage (3S, 4S, or 5S) and desired flight characteristics. For 4S or 5S setups on a medium-sized quadcopter, a 10x4.5 or 11x4.7 propeller is a common starting point for balancing thrust and efficiency.

Does this motor come with wires and connectors?

Yes, the motor includes pre-soldered 3mm bullet connectors on its leads. This allows for direct plug-and-play connection with many 70A ESCs that feature corresponding female bullet connectors, eliminating the need for soldering during installation.

Is this motor suitable for a 6S LiPo battery?

No. The DYS D3548-4 is rated for 3S to 5S LiPo batteries only. Applying a 6S voltage (22.2V nominal) will exceed the motor's design limits, leading to excessive heat, potential demagnetization of the bell, and premature failure. Always adhere to the specified 3S-5S voltage range.

Package Includes

  • 1 x DYS D3548-4 1100KV BLDC Motor
  • 1 x X-Type Motor Mounting Holder
  • 1 x Set of Mounting Screws
  • 1 x User Manual

Additional Information

Weight 0.16 kg
