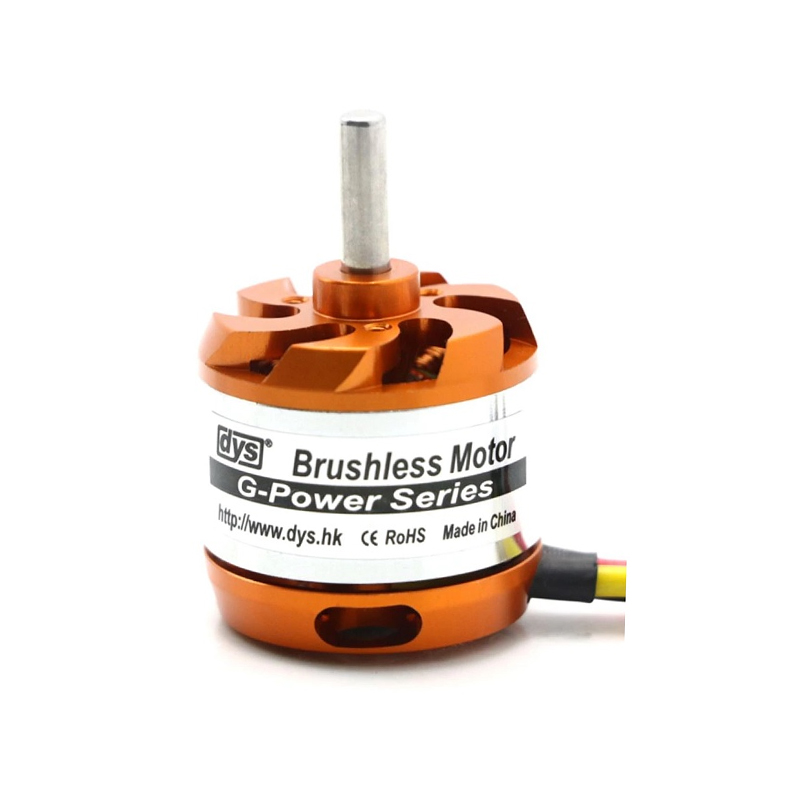

DYS D3536-9 910KV Brushless Motor - 35x36mm

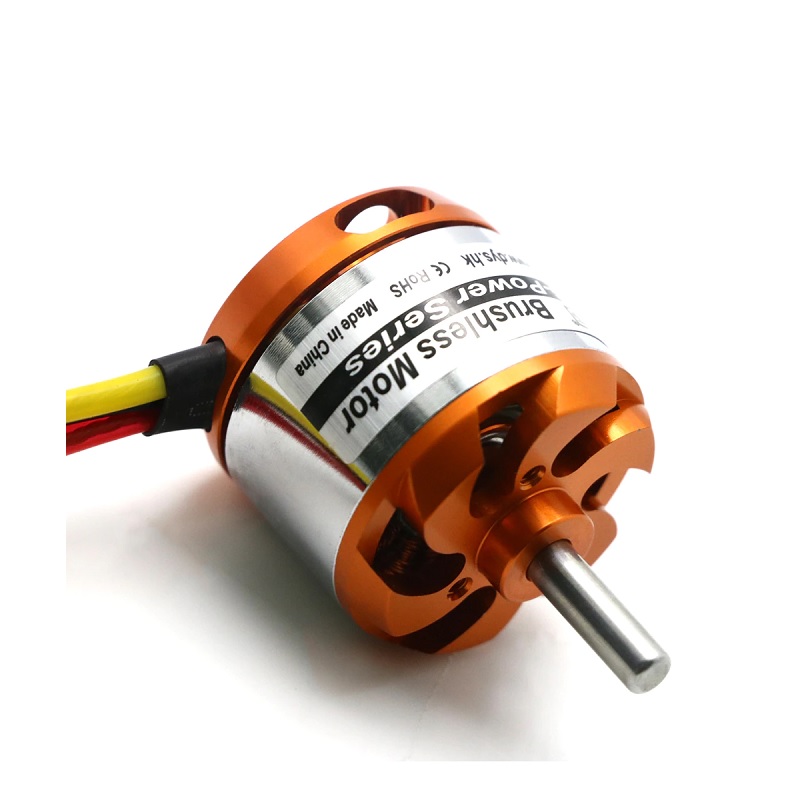

DYS D3536-9 910KV Brushless Motor - 35x36mm - Image 2

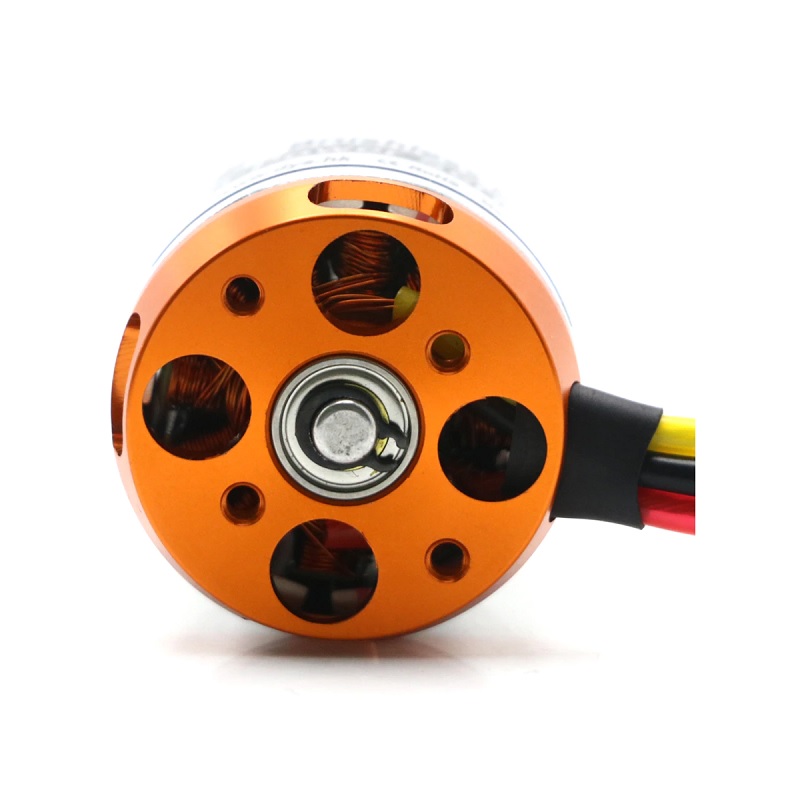

DYS D3536-9 910KV Brushless Motor - 35x36mm - Image 3
DYS D3536-9 910KV Brushless Motor - 35x36mm - Image 4
SKU: DRFC-2911
📋 GST Invoice Available

DYS D3536-9 910KV Brushless Motor - 35x36mm

₹2,119.00 (Inclusive of all taxes)
Out of Stock

The DYS D3536-9 is a 910KV brushless outrunner motor engineered for long-range and endurance multirotor platforms, compatible with 2-4S LiPo battery systems (7.4-14.8V). It delivers up to 370W of power and is pre-soldered with 3mm bullet connectors for direct ESC integration.

Features

  • 910KV outrunner design optimized for 2-4S LiPo voltage (7.4-14.8V).
  • Generates up to 370W max power with a maximum thrust of 1050g per motor.
  • Features a 5mm steel shaft and 12-pole stator for smooth, efficient operation.
  • Pre-installed 3mm bullet connectors for direct plug-in compatibility with 30-40A ESCs.
  • Compact 35x36mm dimensions with a total weight of 102g including connectors.

Out of stock

Description

The DYS D3536-9 brushless motor is engineered for reliable performance in long-range FPV and multirotor applications. Its 910KV rating and efficient 12-pole design provide a balanced combination of torque and RPM, making it suitable for larger propellers like 12×5 on 3S or 10×7 on 4S configurations. The motor’s robust steel construction ensures durability under continuous load.

Thermal management is handled through a high-quality stator and low internal resistance of 0.063 ohm, which minimizes power loss and heat buildup. The integrated 3mm bullet connectors simplify the build process, allowing for direct, solder-free connection to compatible ESCs, streamlining installation in quadcopter and hexacopter frames.

Key Features

  • High-Efficiency Stator: 12-pole outrunner design with low 0.063 ohm internal resistance for optimal power conversion and thermal performance.
  • Robust Mechanical Build: Features a durable 5mm steel shaft and reinforced housing capable of withstanding vibration and competitive flight conditions.
  • Plug-and-Play Connectivity: Comes with pre-soldered 3mm male bullet connectors for direct, tool-free integration with 30-40A ESCs.
  • Optimized Thrust Profile: Delivers up to 1050g of thrust per motor, enabling a total lift capacity exceeding 3.6kg on a standard quadcopter.
  • Wide Voltage Compatibility: Engineered for stable operation across 2-4S LiPo battery packs (7.4V to 14.8V).
  • Lightweight Durable Construction: Weighs only 102g including connectors, balancing strength with minimal weight penalty for endurance builds.

Applications

  • Long-range and endurance FPV quadcopters and hexacopters requiring efficient 910KV motors.
  • Heavy-lift multirotor platforms for aerial photography or light payload delivery.
  • Large-scale RC airplane propulsion systems where smooth throttle response is critical.
  • UAV builds prioritizing flight time and stable cruise performance on 3S or 4S power.
  • Educational or DIY drone projects benefiting from the motor's plug-and-play bullet connectors.

Technical Specifications

ModelDYS D3536-9
KV Rating910 RPM/V
Voltage Range7.4V - 14.8V (2-4S LiPo)
Max Continuous Current25.5A
Max Power370W
No-Load Current1.5A
Internal Resistance0.063 ohm
Max Thrust1050g
Shaft Diameter5mm
Motor Dimensions (Dia. x Ht.)35mm x 36mm
Weight (with connectors)102g
Number of Poles12
Recommended ESC30-40A
Compatible Propellers12x5 (3S), 10x7 (4S)

Frequently Asked Questions

What is the recommended ESC for the DYS D3536-9 910KV motor?

A 30-40A electronic speed controller (ESC) is recommended for optimal performance with this motor. The motor comes with pre-installed 3mm bullet connectors, allowing for direct, solder-free plug-in compatibility with ESCs featuring matching female bullet connectors. Ensure your ESC firmware (e.g., BLHeli_S or BLHeli_32) is properly configured for a 12-pole outrunner motor.

What propeller sizes are compatible with this 910KV motor?

For 3S (11.1V) operation, a 12x5 propeller is recommended. For 4S (14.8V) operation, a 10x7 propeller is advised to maintain safe current draw and maximize efficiency. Always bench-test with a current sensor to ensure your setup stays within the motor's 25.5A continuous current rating and your ESC's capabilities.

Can this motor be used for heavy-lift or long-endurance drone builds?

Yes, the D3536-9's 910KV rating and efficient design make it well-suited for long-endurance and light heavy-lift applications. With a maximum thrust of 1050g per motor, a quadcopter using four motors can achieve over 4kg of total thrust. Its low internal resistance (0.063 ohm) improves efficiency, which is critical for extending flight times on 3S or 4S LiPo packs.

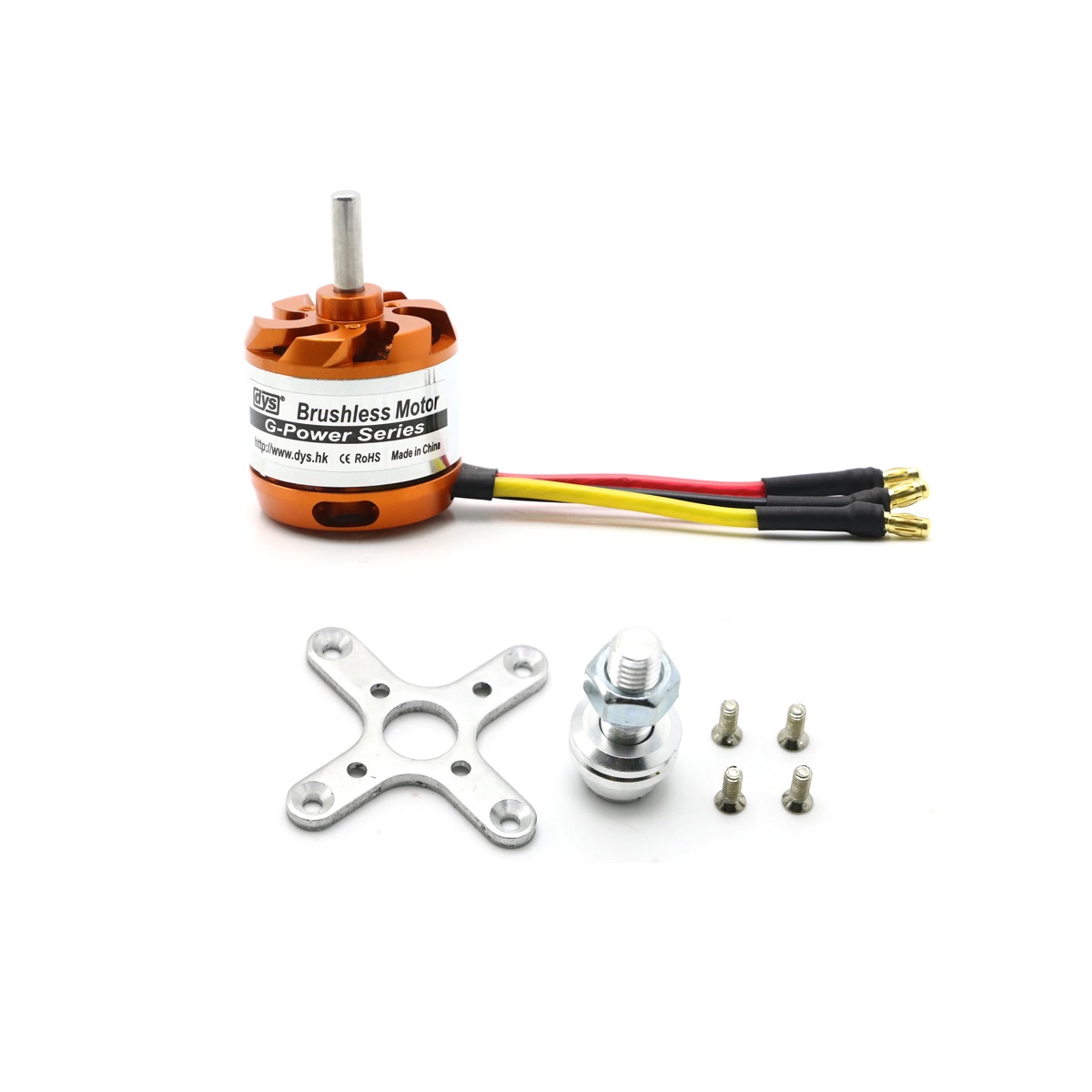

Package Includes

  • 1 x DYS D3536-9 910KV Brushless Motor
  • 1 x Propeller Adapter
  • 1 x X-Type Motor Mounting Bracket
  • 1 x Set of Mounting Screws
  • 1 x User Manual

Additional Information

Weight 0.135 kg
Dimensions 8 × 5 × 5 cm
