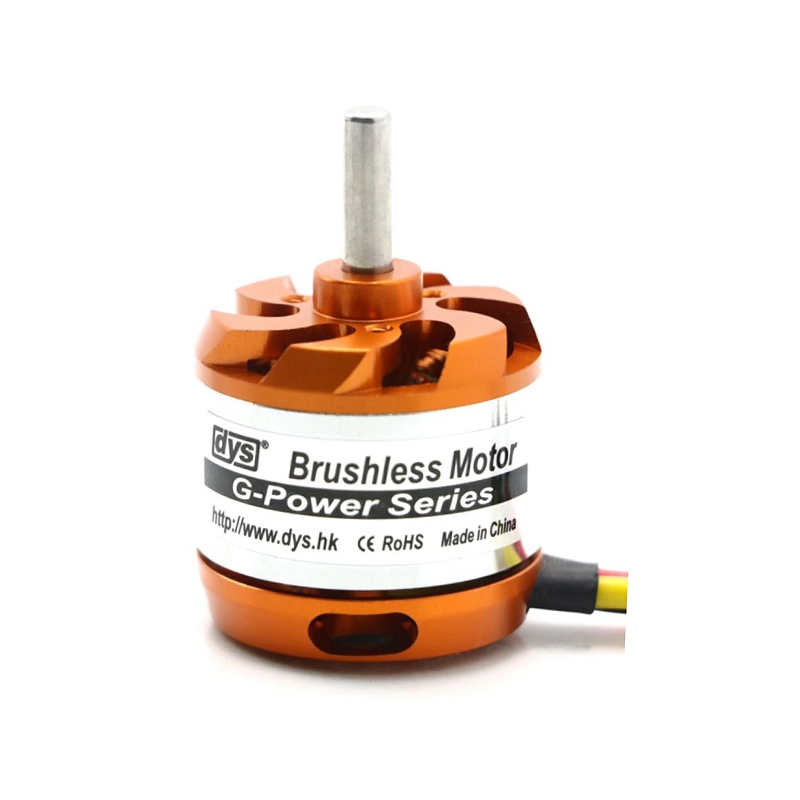

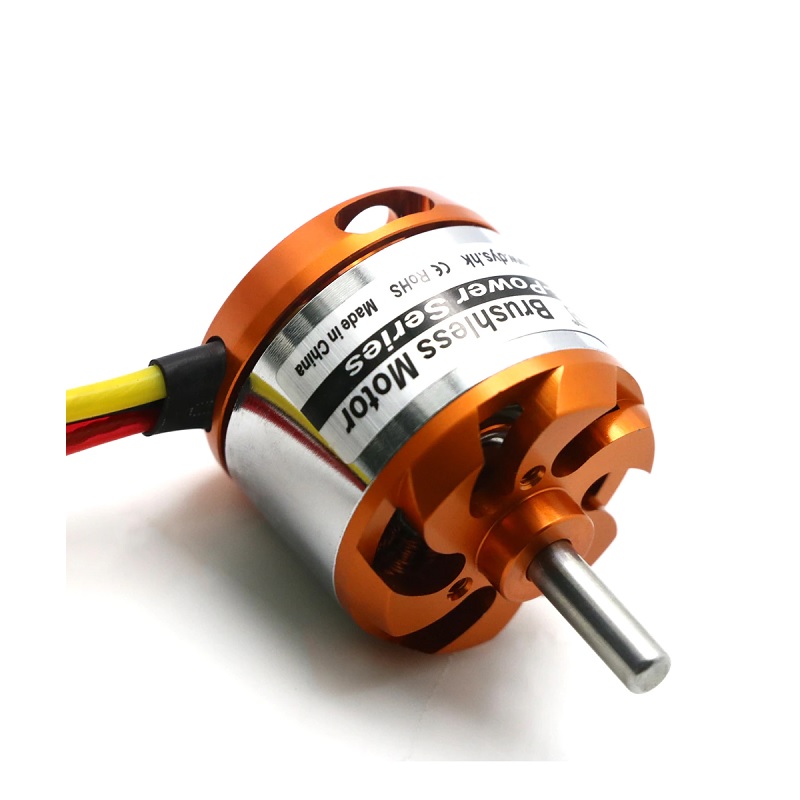

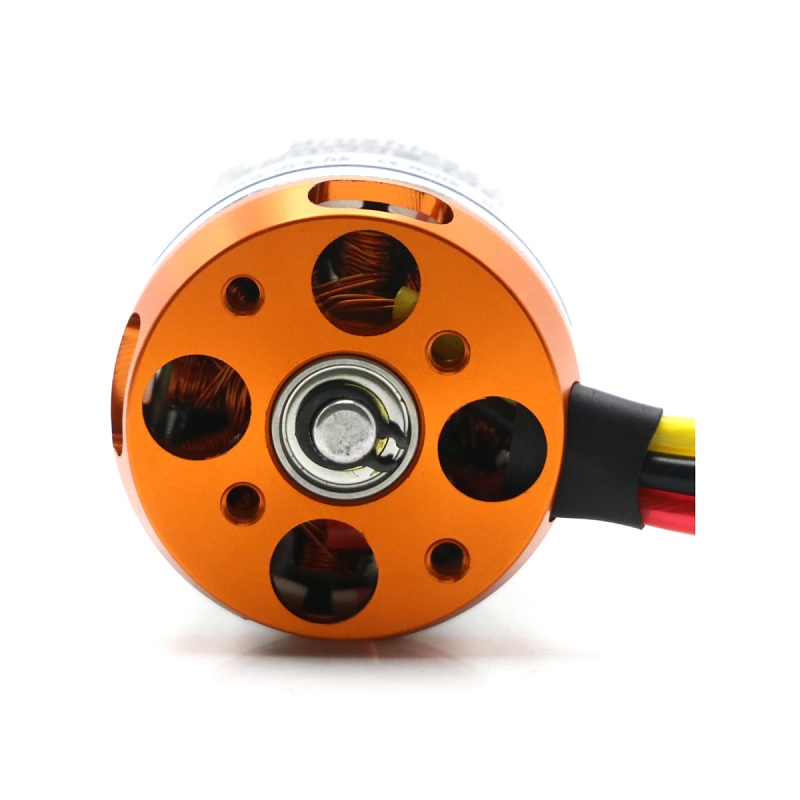

DYS D3536-8 1000KV Brushless Motor
The DYS D3536-8 is a 1000KV outrunner brushless motor designed for efficient, high-thrust multirotor applications. It is compatible with 2-4S LiPo batteries and features pre-soldered 3mm bullet connectors for direct ESC integration.
Features
- 1000KV rating optimized for 2-4S LiPo battery systems.
- Delivers up to 1270g of maximum thrust per motor with compatible 9-10 inch propellers.
- Features a 5mm steel shaft and 12-pole outrunner design for durability and smooth operation.
- Includes pre-soldered 3mm bullet connectors for plug-and-play installation with 30-40A ESCs.

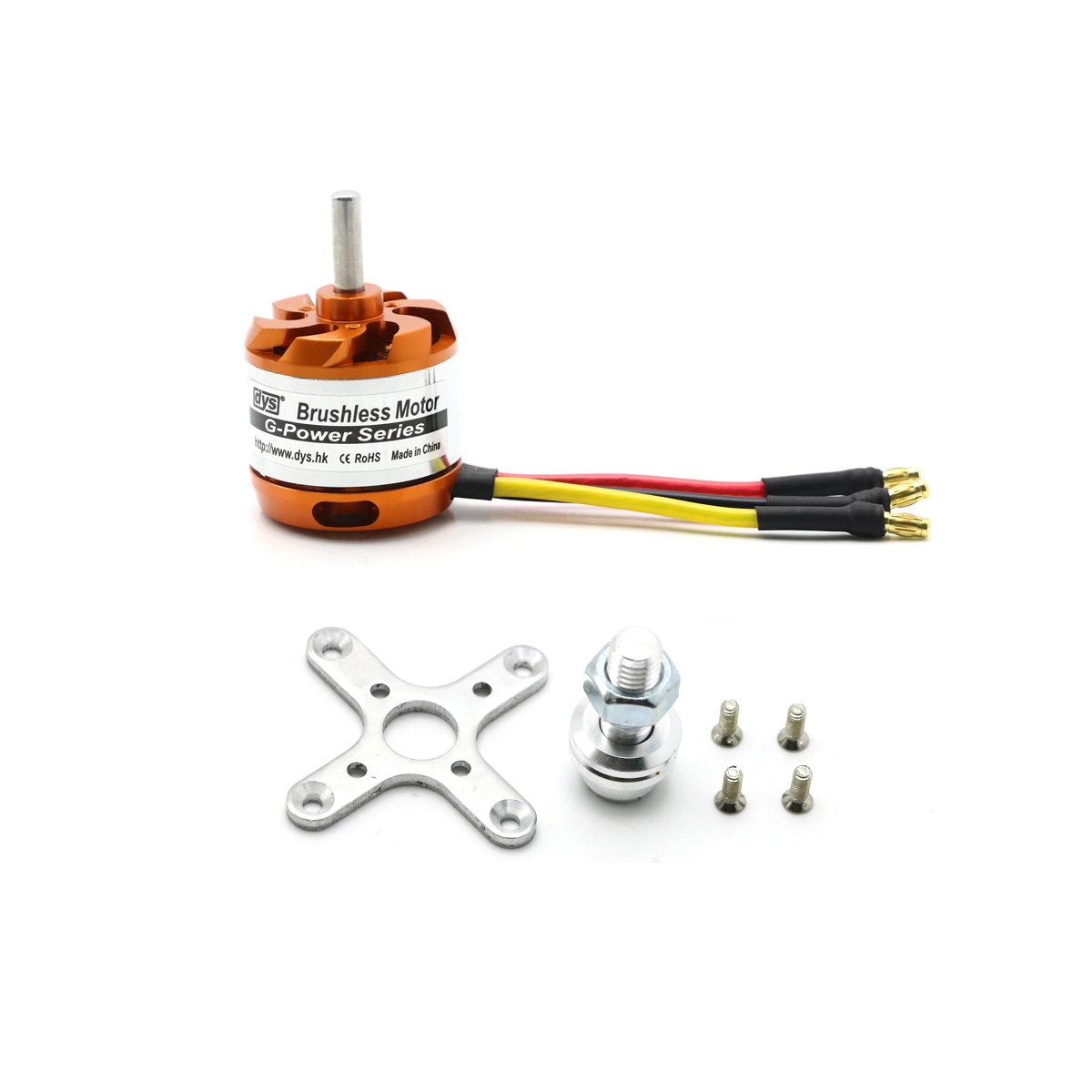

- Complete kit includes motor, prop adapter, X-type motor mount, and mounting hardware.
Out of stock
The DYS D3536-8 brushless motor is engineered for long-range and endurance-focused multirotor platforms. Its 1000KV rating and 35x36mm stator size provide an optimal balance of torque and efficiency, making it suitable for larger quadcopters and hexacopters running on 3S or 4S LiPo power. The outrunner design with 12 magnetic poles ensures reliable, vibration-free performance across a wide throttle range.
Constructed with a robust steel shaft and durable housing, this motor is built to withstand the demands of extended flight sessions. The integrated 3mm bullet connectors eliminate the need for soldering, simplifying the build process and ensuring a secure electrical connection to compatible 30-40A electronic speed controllers. When paired with 9×4.7 or 10×5 inch propellers, each motor can generate significant thrust, enabling the construction of powerful and efficient aerial vehicles.
Additional Information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 8 × 5 × 5 cm |
