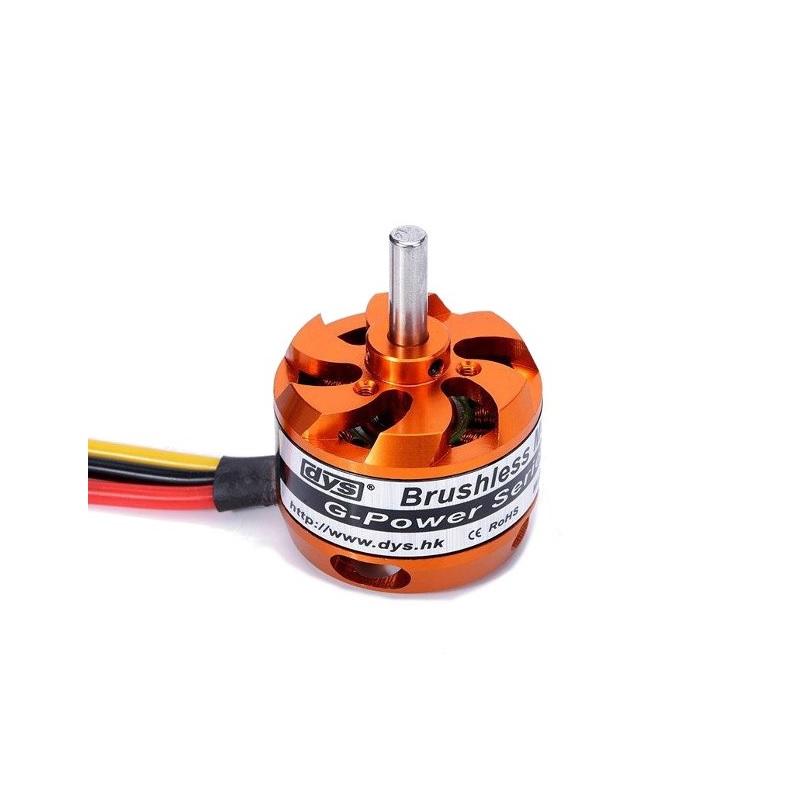

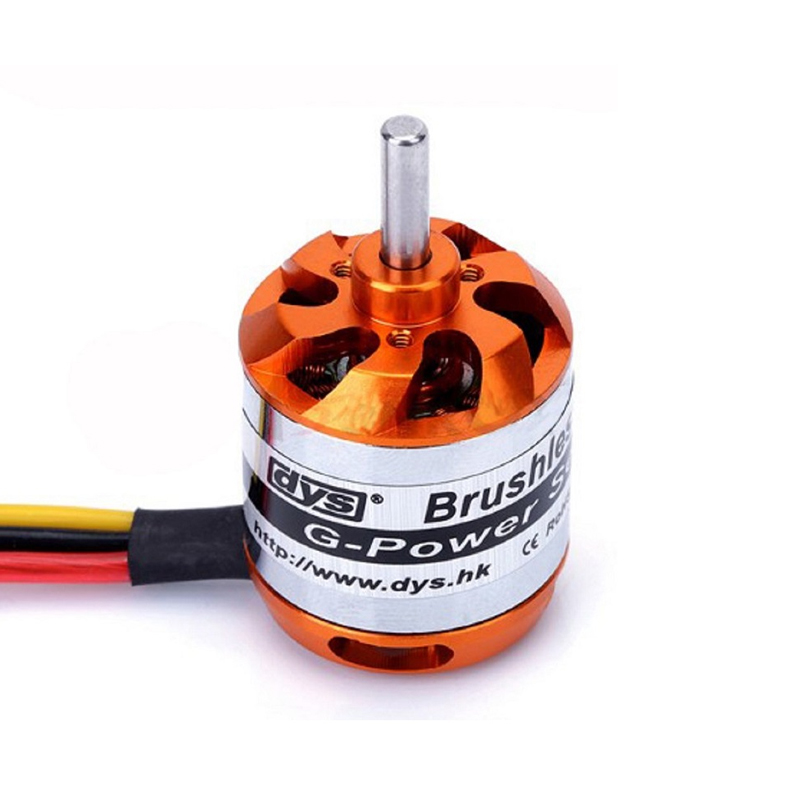

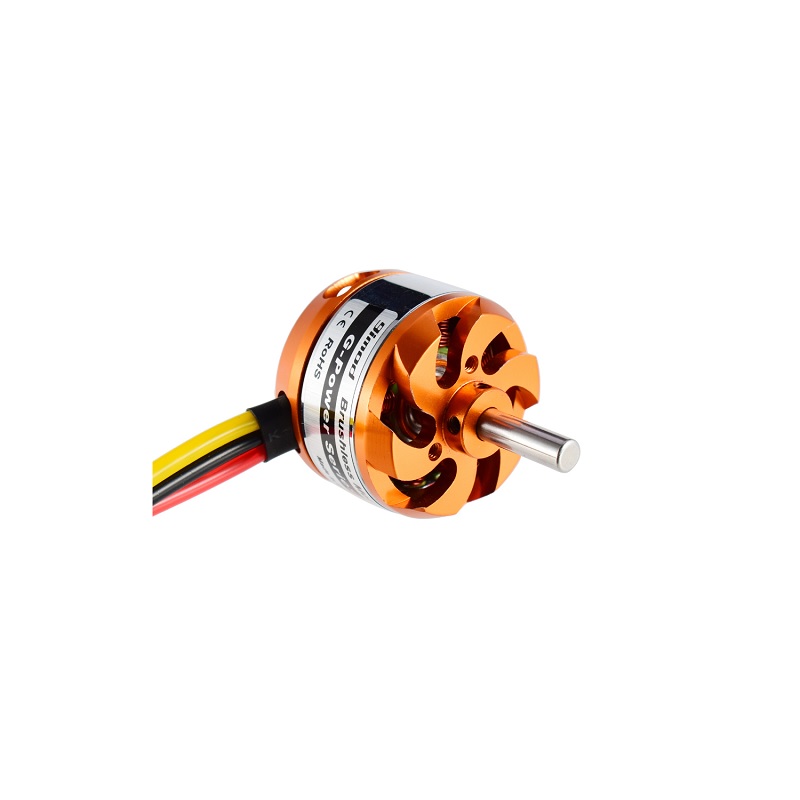

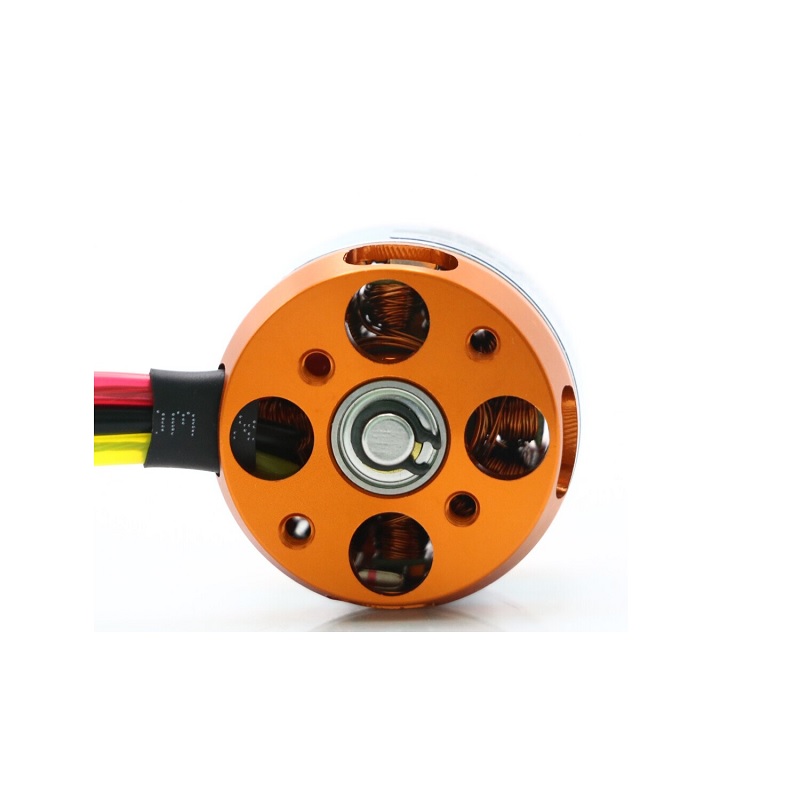

DYS D3530 1700KV Brushless Motor
The DYS D3530 is a 1700KV brushless outrunner motor designed for medium-sized multirotor drones and RC aircraft. It operates on 2S to 4S LiPo battery systems and is compatible with 50A ESCs and 7-inch propellers for efficient long-range and endurance flight.
Features
- 1700KV rating optimized for 2S-4S LiPo voltage range
- 5mm hardened steel shaft with 15mm length for secure propeller mounting
- Delivers up to 460W maximum power for high-thrust applications
- Pre-soldered 3.5mm bullet connectors for direct ESC plug-in compatibility
- Compact 35mm stator diameter with a total weight of 74 grams
Out of stock
The DYS D3530-8 brushless motor is engineered for reliable performance in medium-scale quadcopter and multirotor platforms. Its 1700KV winding provides an optimal balance of torque and RPM for 7-inch propellers on 3S and 4S power systems, making it suitable for long-range FPV and aerial photography builds where efficiency is critical.
Constructed with a robust steel housing and shaft, the motor is built to withstand the vibrational stresses of prolonged flight. The integrated bullet connectors eliminate the need for soldering, simplifying the build process and ensuring a secure electrical connection to compatible 50A ESCs. With a peak power handling of 460W, this motor offers a high-value performance-to-weight ratio for endurance-focused drone applications.
Additional Information
| Weight | 0.074 kg |
|---|
