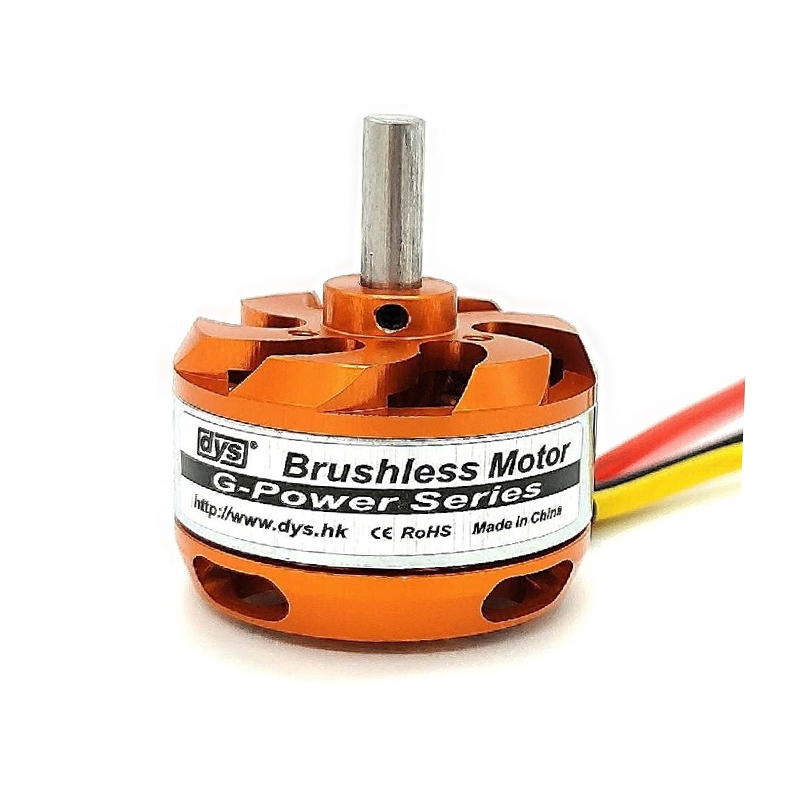

DYS D3530-14 1100KV Brushless Motor

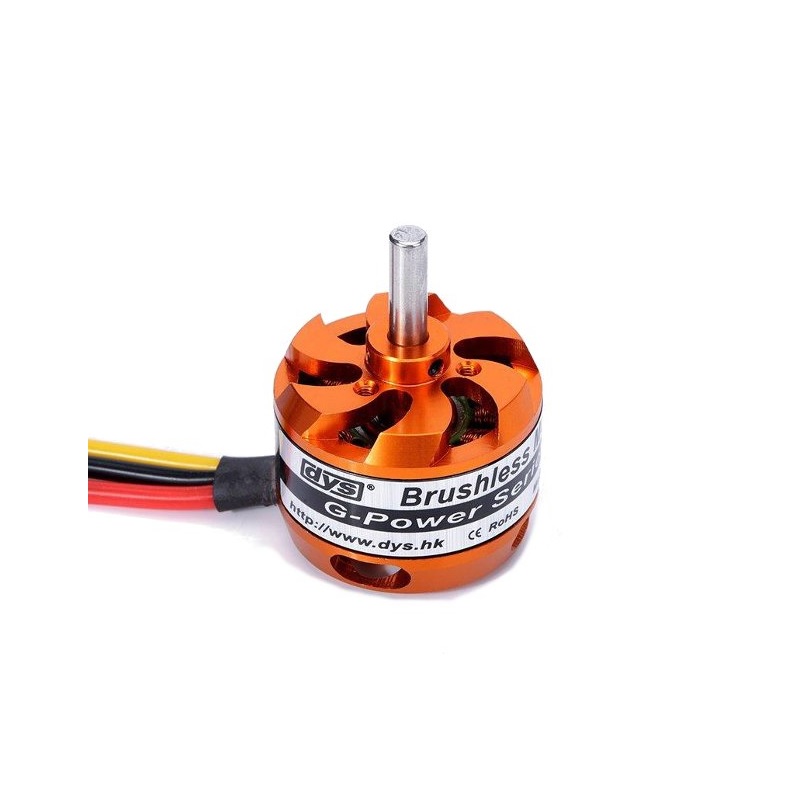

DYS D3530-14 1100KV Brushless Motor - Image 2
SKU: DRFC-2899
📋 GST Invoice Available

DYS D3530-14 1100KV Brushless Motor

₹1,489.00 (Inclusive of all taxes)
Out of Stock

The DYS D3530-14 is a 1100KV brushless outrunner motor designed for medium-sized multirotor drones and RC aircraft operating on 2S to 3S LiPo battery systems. It delivers up to 313W of power and includes pre-soldered bullet connectors for direct ESC integration.

Features

  • 1100KV rating optimized for 2S-3S LiPo (7.4V-15V) operation.
  • Delivers up to 313W maximum power with a recommended 50A ESC.
  • Features a 5mm diameter shaft for secure propeller mounting.
  • Includes pre-soldered 3mm bullet connectors for solder-free ESC installation.
  • Compact 35x30mm outrunner design weighing 74 grams.

Out of stock

Description

The DYS D3530-14 brushless motor utilizes an efficient outrunner design to provide reliable thrust for medium-sized quadcopters and multirotors. Its 1100KV rating is calibrated for 2S to 3S LiPo voltage ranges, balancing torque and RPM for applications using larger propellers up to 10 inches in diameter.

Constructed with a durable steel housing, the motor is built to withstand the vibrational stresses of multirotor flight. The integrated 5mm shaft and pre-attached bullet connectors simplify the build process, allowing for a clean and reliable connection to compatible 50A electronic speed controllers.

Key Features

  • High-torque outrunner design for efficient power delivery on 2S-3S systems.
  • Durable steel construction resists deformation under high-load conditions.
  • Pre-soldered 3mm bullet connectors enable quick, solder-free installation.
  • Optimized 1100KV wind provides excellent thrust with 9-10 inch propellers.
  • Compact 35mm stator diameter and 30mm height for a favorable power-to-weight ratio.
  • 5mm hardened steel shaft ensures secure propeller retention.

Applications

  • Medium-sized (450-550mm) FPV and aerial photography quadcopters.
  • Heavy-lift multirotor platforms requiring efficient 3S power systems.
  • Long-range endurance drones utilizing 9-10 inch propellers.
  • RC airplane applications requiring a reliable outrunner power source.
  • Custom UAV builds where pre-soldered connectors reduce assembly time.

Technical Specifications

ModelDYS D3530-14
KV Rating1100 RPM/V
Voltage Range7.4V - 15V (2S-3S LiPo)
Shaft Diameter5 mm
Shaft Length10 mm
Max Power313 W
Recommended ESC50 A
Motor Size (Dia. x Ht.)35 x 30 mm
Weight74 g

Frequently Asked Questions

What is the compatible voltage range for the DYS D3530-14 motor?

The DYS D3530-14 motor is rated for 2S to 3S LiPo battery systems, with an operational voltage range of 7.4V to 15V. Exceeding 15V (4S) is not recommended as it may overheat the windings and lead to premature failure.

What size ESC should I use with this motor?

A 50A electronic speed controller (ESC) is recommended to handle the motor's maximum power draw of 313W. Ensure the ESC firmware (e.g., BLHeli_S, BLHeli_32) is configured for the correct motor direction and timing for optimal performance.

Does the motor include connectors, and what type are they?

Yes, the motor comes with 3mm male bullet connectors pre-soldered to the motor leads. This allows for direct, solder-free connection to ESCs that have compatible female bullet connectors or allow for direct soldering of the bullets.

What size propellers are suitable for this 1100KV motor?

This motor is designed for medium-sized multirotors and pairs well with 9-inch to 10-inch propellers on 3S voltage. Always perform a bench test with your specific propeller and battery combination to ensure the motor and ESC temperatures remain within safe limits during full-throttle bursts.

Package Includes

  • 1 x DYS D3530-14 1100KV Brushless Motor

Additional Information

Weight 0.105 kg
Dimensions 8 × 5 × 4 cm

Related Products

Out of Stock

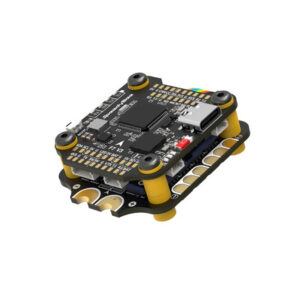

SpeedyBee SB-STACK-F7V3-50A Flight Controller & ESC Stack
