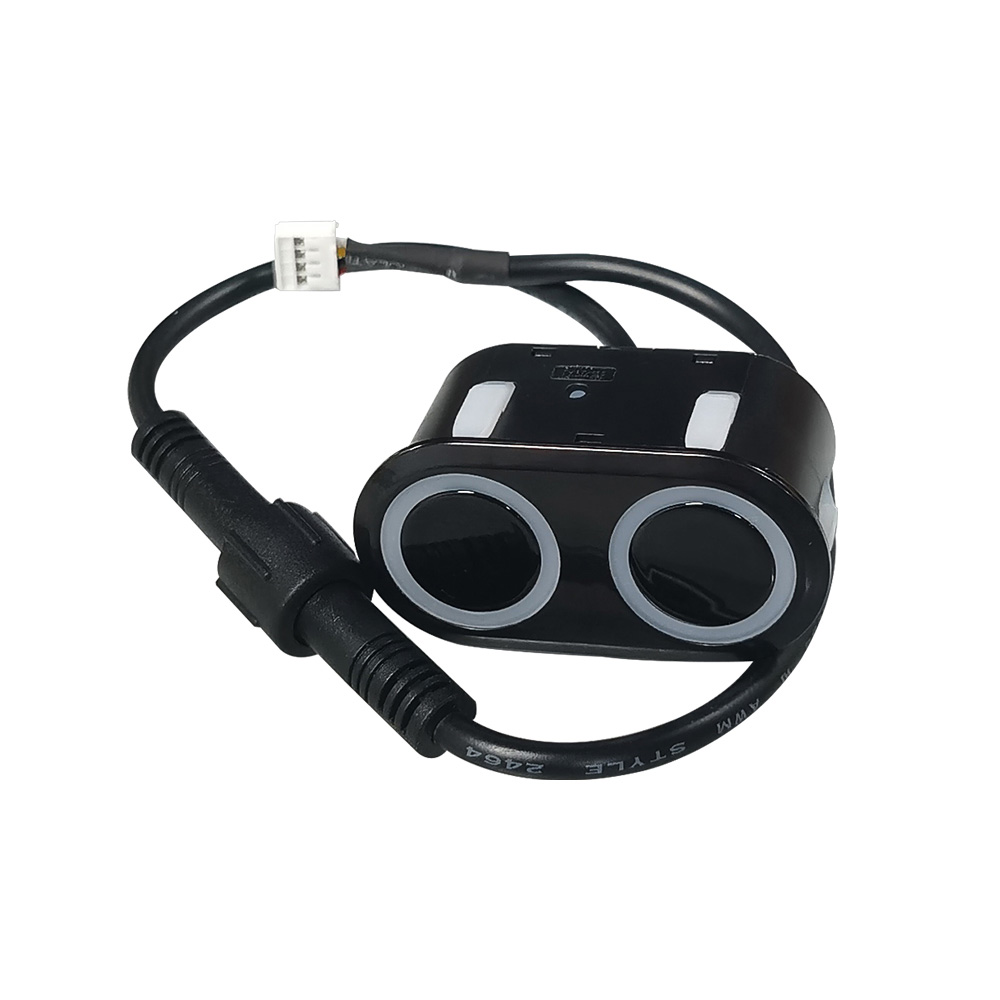

DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm)

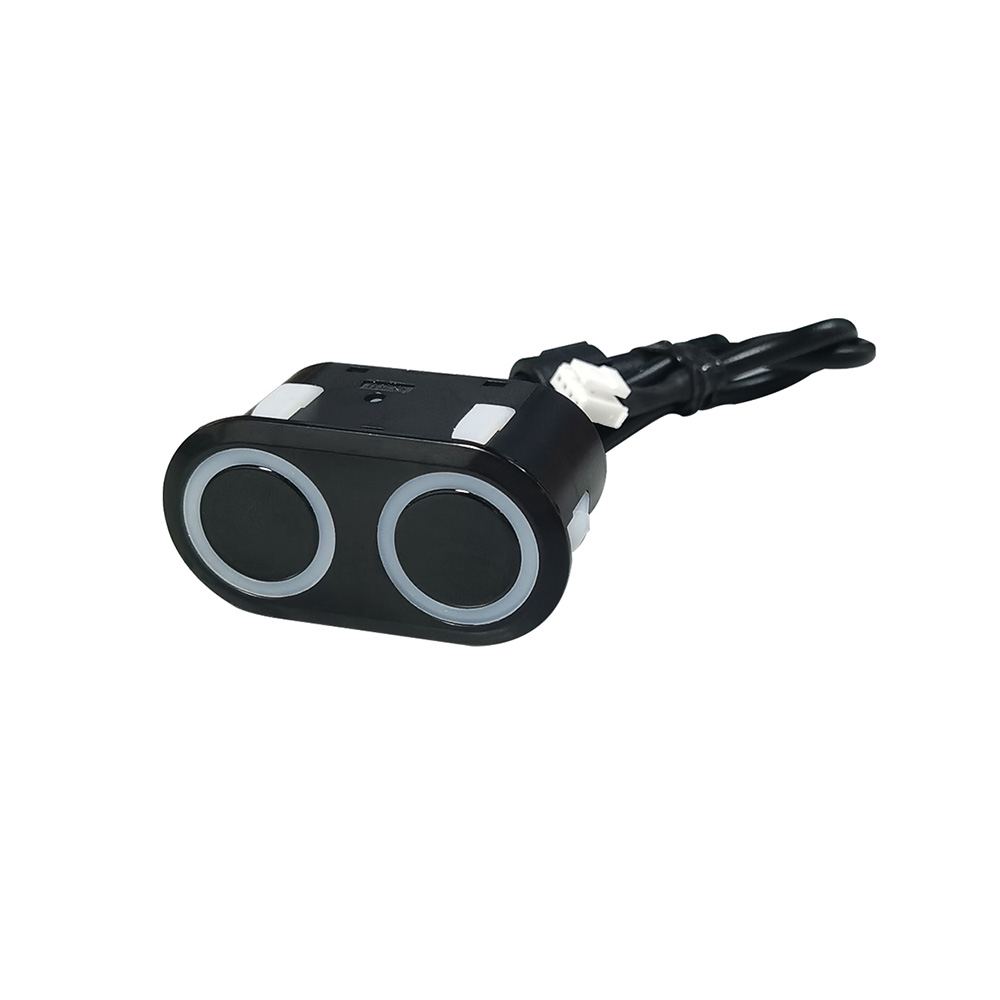

DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm) - Image 2

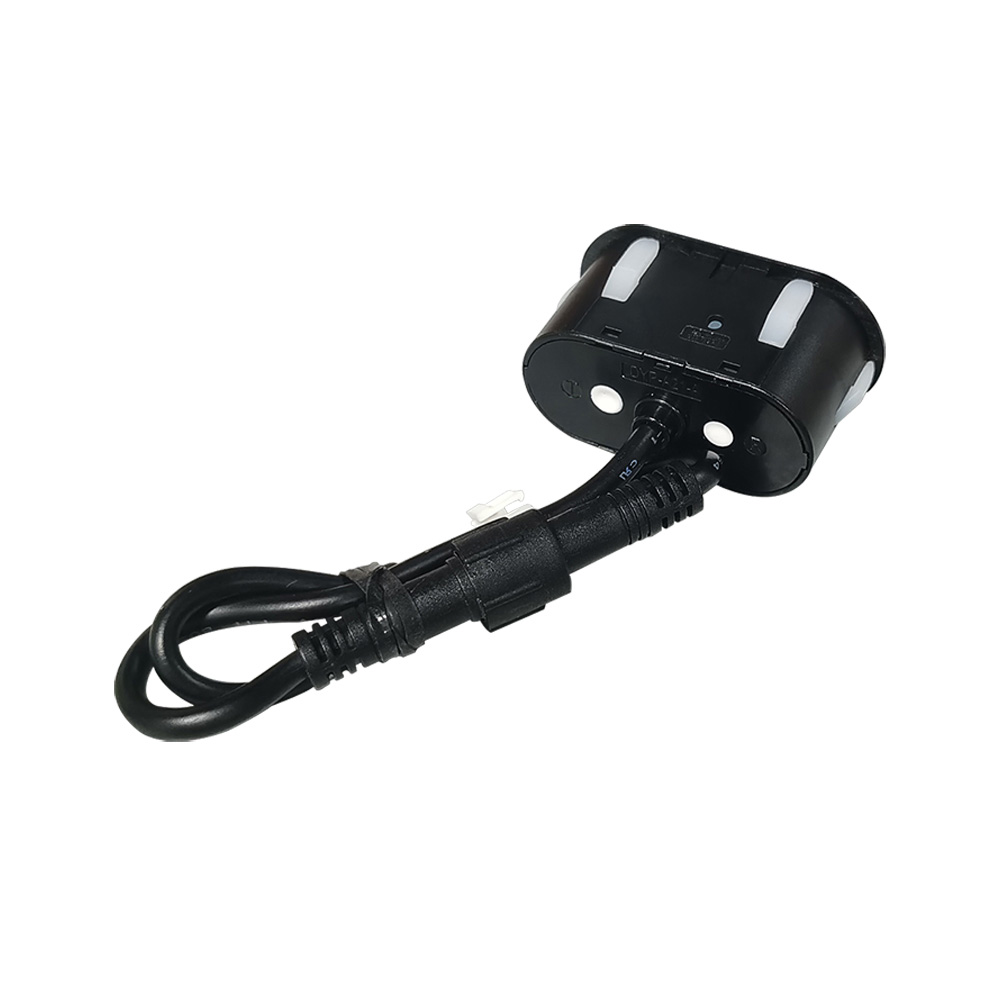

DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm) - Image 3

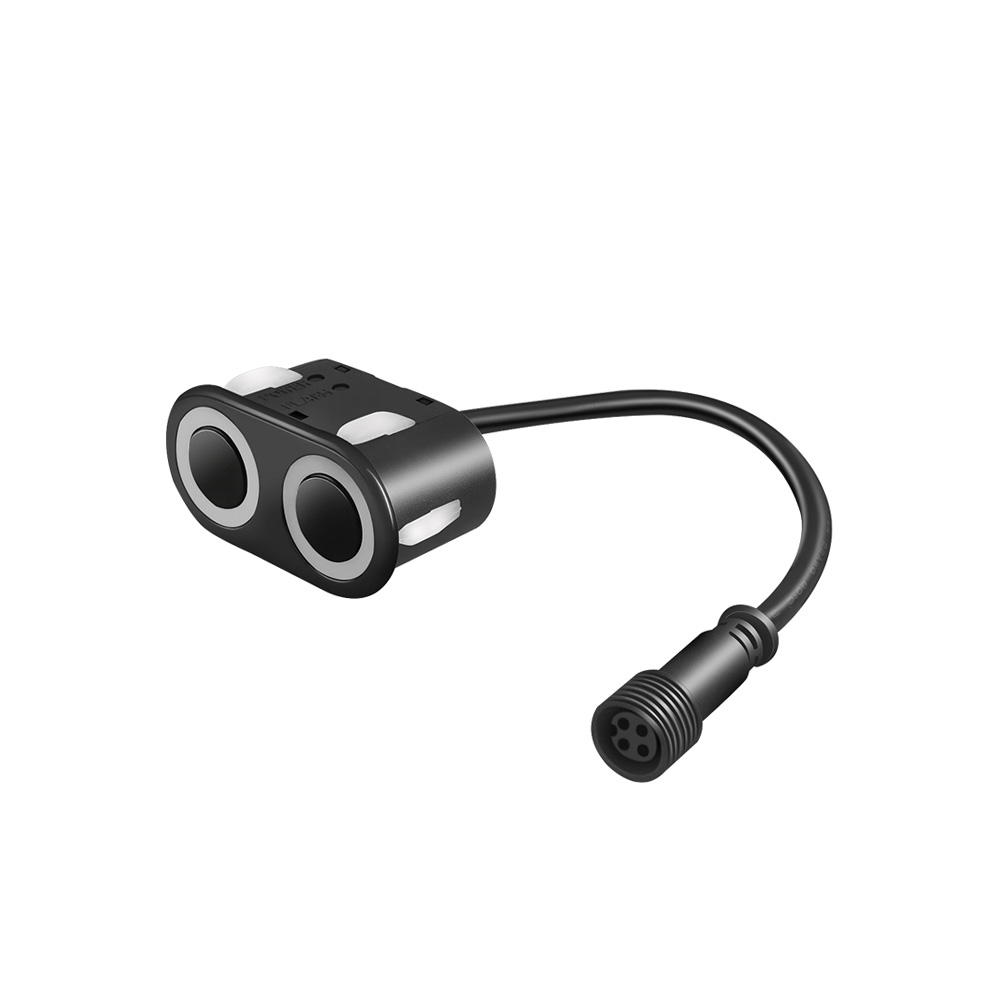

DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm) - Image 4
DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm) - Image 5
SKU: SENS-4068
📋 GST Invoice Available

DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor (Object Range 3-500cm)

₹2,619.00 (Inclusive of all taxes)
Out of Stock

The DYP-A21AYY4W-V1.0 is an RS485 ultrasonic obstacle avoidance sensor module designed for robotics and automation, offering a 3-500cm measurement range with high immunity to same-frequency acoustic interference. It operates from a wide 3.3-24V DC supply and is compatible with industrial PLCs, microcontrollers, and RS485-based control systems.

Features

  • Wide 3-500cm ultrasonic ranging capability with a minimal blind spot.
  • RS485 Modbus communication interface for robust industrial networking.
  • Wide operating voltage range from 3.3V to 24V DC for flexible system integration.
  • Intelligent acoustic processing filters same-frequency interference for stable data.
  • High IP rating for dust and waterproof operation in challenging environments.

Out of stock

Description

The DYP-A21AYY4W-V1.0 ultrasonic sensor employs advanced acoustic processing technology to deliver reliable distance measurement and obstacle detection. Its design specifically addresses common limitations of ultrasonic sensors, such as large blind spots and susceptibility to interference, making it suitable for dynamic robotic control applications.

Featuring a configurable RS485 interface, the module supports parameter adjustments including baud rate, device address, measurement angle, and range limits. This allows for seamless integration into multi-node sensor networks and complex automated systems requiring precise spatial awareness.

Key Features

  • Engineered with intelligent same-frequency interference filtering for stable operation in acoustically noisy environments.
  • Wide 3.3-24V DC input voltage range ensures compatibility with various power systems, from 3.3V/5V logic to 12V/24V industrial supplies.
  • High IP-rated housing provides dustproof and waterproof protection for reliable performance outdoors or in harsh conditions.
  • Configurable parameters via RS485 commands, including baud rate, Modbus address, measurement range, and detection angle.
  • Low standby power consumption and high resistance to electrostatic discharge (ESD) enhance system reliability and longevity.
  • Optimized transducer design results in a large measurement angle, short response time, and high installation adaptability.

Applications

  • Obstacle avoidance and navigation for autonomous mobile robots (AMRs) and AGVs.
  • Horizontal distance measurement in industrial automation and material handling systems.
  • Object proximity detection and presence sensing in smart parking management systems.
  • Level monitoring and bin detection in bulk material handling and storage applications.

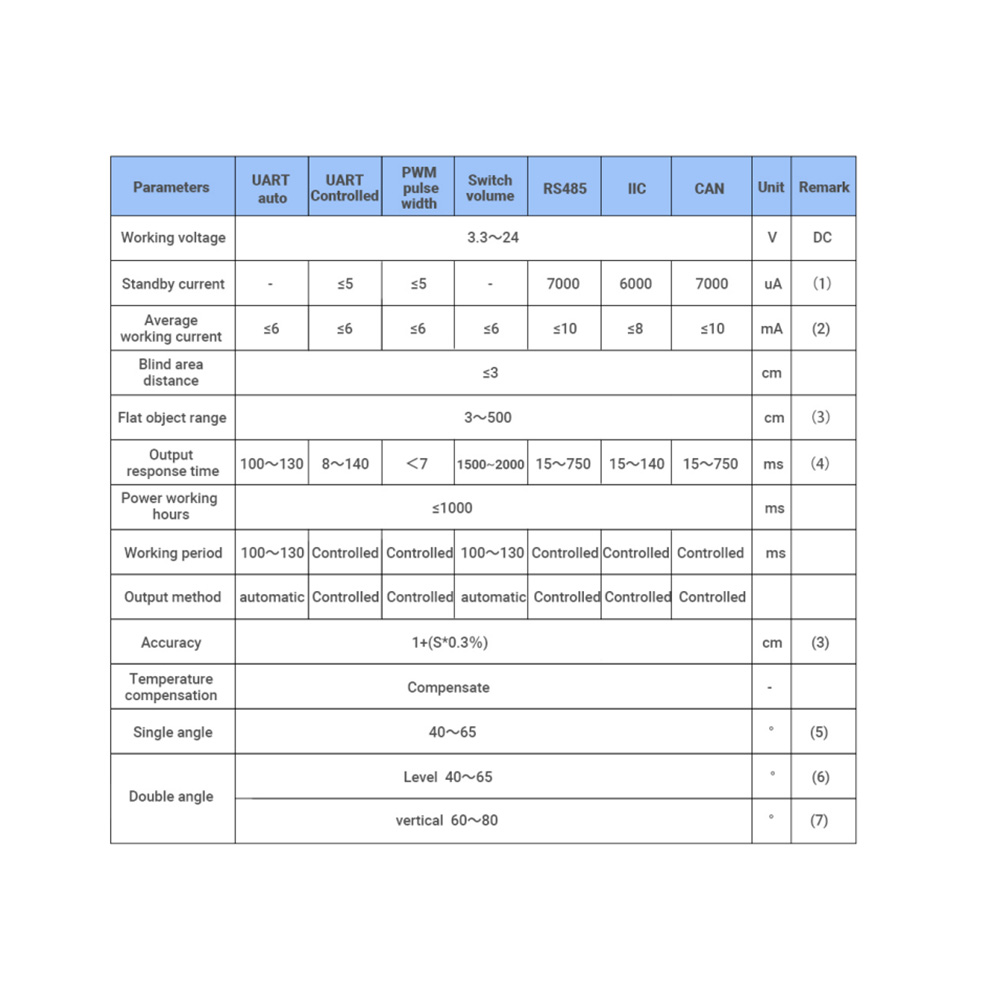

Technical Specifications

Measurement Range3 to 500 cm
Model SeriesDYP A21
Model NumberA21AYY4WV
Operating Voltage3.3 to 24 V DC
Accuracy1% + (S × 0.3%)
Working Current≤ 10 mA
Output InterfaceRS485 (Modbus)
Key FeatureSame-frequency interference filtering
Protection RatingDustproof & Waterproof (IP-rated)

Frequently Asked Questions

What is the communication protocol for this ultrasonic sensor?

The sensor uses an RS485 serial interface with a Modbus communication protocol. This allows for reliable data transmission over longer distances and easy integration into industrial networks or multi-sensor setups with configurable device addresses.

Can I power this module directly from a 5V Arduino or 12V battery?

Yes, the module's wide 3.3V to 24V DC operating voltage range makes it directly compatible with 5V microcontroller boards like Arduino, as well as 12V or 24V industrial power supplies and battery systems, without requiring a voltage regulator.

How does the sensor handle interference from other ultrasonic devices?

It incorporates intelligent acoustic processing technology that identifies and filters out same-frequency ultrasonic waves. This significantly reduces the probability of interference, ensuring stable and reliable distance measurements even in environments with multiple ultrasonic sensors operating nearby.

Is the sensor suitable for outdoor use?

Yes, the sensor features a housing with a high IP rating for dustproof and waterproof operation. This, combined with its wide operating temperature range, makes it suitable for outdoor applications such as automated guided vehicles (AGVs) or outdoor parking systems.

Package Includes

  • 1 x DYP-A21AYY4W-V1.0 RS485 Ultrasonic Obstacle Avoidance Sensor

Additional Information

Weight 0.05 kg
Dimensions 12 × 9 × 4 cm
