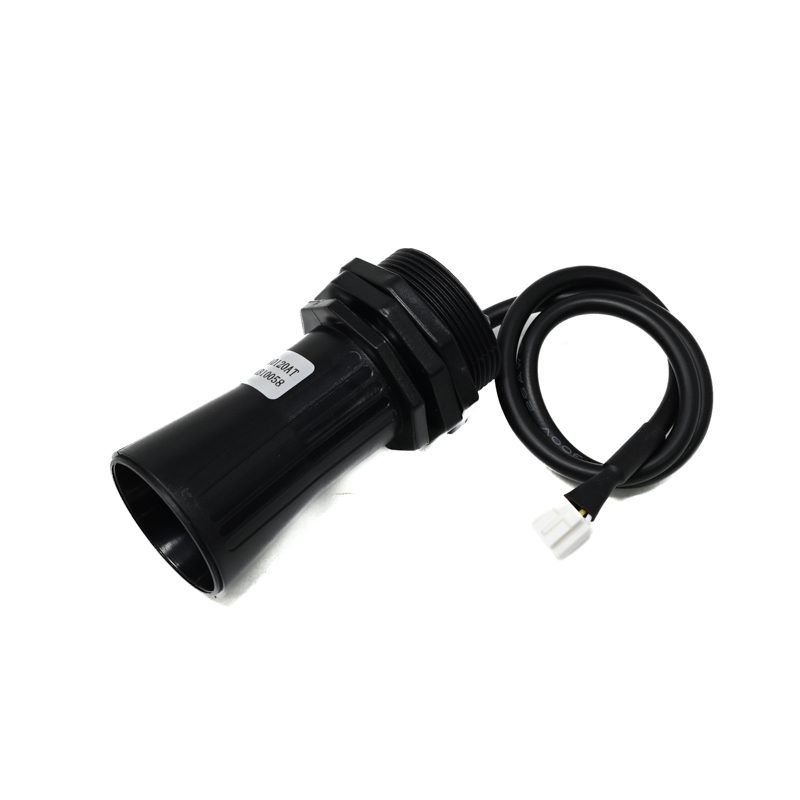

DYP-A01ANYTB-V2.0 Ultrasonic Sensor Module 28–750cm - UART Controlled

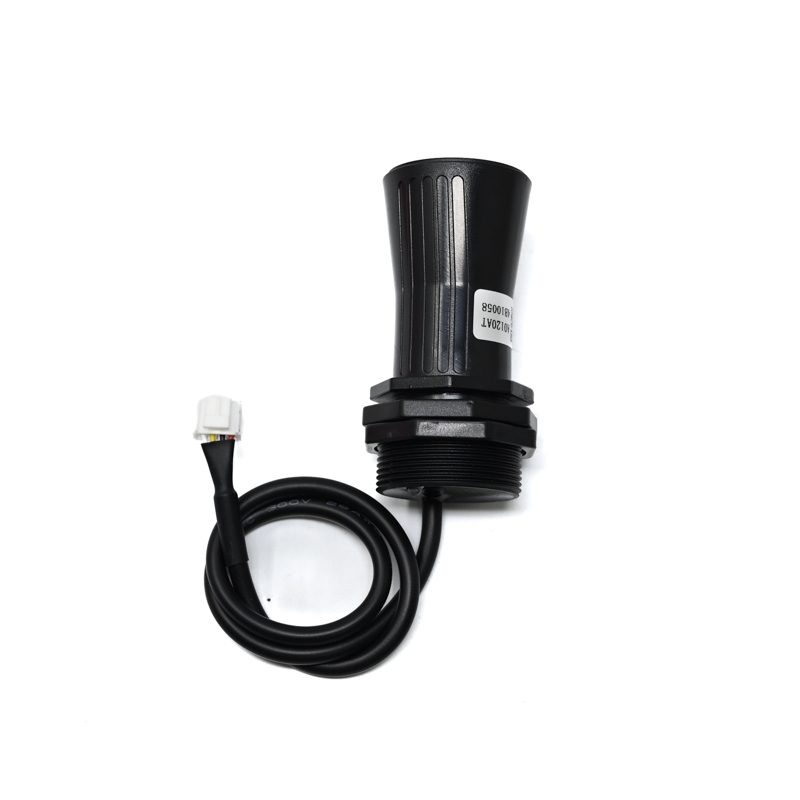

DYP-A01ANYTB-V2.0 Ultrasonic Sensor Module 28–750cm - UART Controlled - Image 2
SKU: SENS-4033
📋 GST Invoice Available

DYP-A01ANYTB-V2.0 Ultrasonic Sensor Module 28–750cm - UART Controlled

₹2,079.00 (Inclusive of all taxes)
Out of Stock

The DYP-A01ANYTB-V2.0 is a UART-controlled ultrasonic distance sensor module offering a 28–750cm measurement range. It is designed for direct integration with microcontrollers like Arduino, Raspberry Pi, and ESP32 via serial communication, providing precise, temperature-compensated ranging for robotics and automation projects.

Features

  • UART-controlled interface for direct microcontroller communication.
  • Wide sensing range from 28 cm to 750 cm.
  • High accuracy of ±(1 cm + 0.3% of reading).
  • Ultra-low static current consumption of ≤10µA.
  • Built-in temperature compensation for stable performance.

Out of stock

Description

The DYP-A01ANYTB-V2.0 ultrasonic sensor employs advanced time-of-flight (ToF) measurement principles to deliver precise distance data. Its UART-controlled mode allows for on-demand triggering and data retrieval via simple serial commands, making it ideal for embedded systems requiring deterministic timing.

Engineered for reliability, the module incorporates temperature compensation circuitry to maintain accuracy across varying environmental conditions. Its compact form factor and anti-static design ensure robust performance in commercial-grade applications, from robotic navigation to industrial level monitoring.

Key Features

  • Multiple configurable output modes: UART Auto, UART Controlled, PWM Auto, PWM Controlled, RS485, and Switch Output.
  • Ultra-low power design with a static current of ≤10µA, suitable for battery-operated devices.
  • High-precision measurement with an accuracy specification of ±(1 cm + 5 * 0.3%) for flat targets.
  • Integrated temperature compensation ensures measurement stability across the operating temperature range.
  • Wide operating voltage range: 3.3V to 5.0V for A01A/B series; 5.0V to 12V for A01C series.
  • Anti-static protection compliant with IEC61000-4-2 standards for enhanced durability.
  • High electromagnetic interference (EMI) resistance for stable operation in electrically noisy environments.
  • Compact and sealed housing designed for easy installation and long-term reliability.

Applications

  • Robotic navigation and obstacle avoidance systems.
  • Non-contact liquid level monitoring in tanks and reservoirs.
  • Vehicle detection and parking space management systems.
  • Industrial process control and object positioning.
  • DIY projects requiring long-range distance measurement with serial control.

Technical Specifications

ModelDYP-A01ANYTB-V2.0
Measurement Range28 cm to 750 cm
Accuracy±(1 cm + 5 * 0.3%)
Primary Output InterfaceUART (Controlled Mode)
Additional OutputsPWM, RS485, Switch Output
Static Current≤10 µA
Operating Voltage (A01A/B Series)3.3 V to 5.0 V DC
Operating Voltage (A01C Series)5.0 V to 12 V DC
Temperature CompensationSupported
Item TypeUltrasonic Sensor Module

Frequently Asked Questions

What is the difference between UART Auto and UART Controlled mode on this sensor?

In UART Auto mode, the sensor continuously transmits distance data at a fixed interval. In UART Controlled mode, the host microcontroller must send a specific trigger command (e.g., 0x55) via serial to initiate a single measurement, giving you full control over the timing and reducing power consumption during idle periods.

What is the operating voltage for the DYP-A01ANYTB-V2.0 model?

The 'V2.0' designation typically aligns with the A01A/B series, which operates from 3.3V to 5.0V DC. Always confirm with your specific module's markings. The A01C series, designed for higher voltages (5-12V), is a physically distinct variant.

How do I connect and read data from the sensor using UART?

Connect the sensor's TX pin to your microcontroller's RX pin and the RX pin to your microcontroller's TX pin. Provide 3.3V or 5V power and ground. In UART Controlled mode, send the CubePilot command 0x55 to trigger a measurement. The sensor will respond with a 4-byte data frame containing the distance value in millimeters.

Does the sensor require calibration or special configuration?

No, the sensor is pre-calibrated and works out-of-the-box. The built-in temperature compensation automatically adjusts readings. The output mode (UART, PWM, etc.) is typically fixed by the specific module variant you purchase (e.g., 'UART Controlled').

Package Includes

  • 1 x DYP-A01ANYTB-V2.0 Ultrasonic Sensor Module (UART Controlled)

Additional Information

Weight 0.035 kg
Dimensions 16 × 10 × 4 cm
