Creality Large Pneumatic Joint

Description

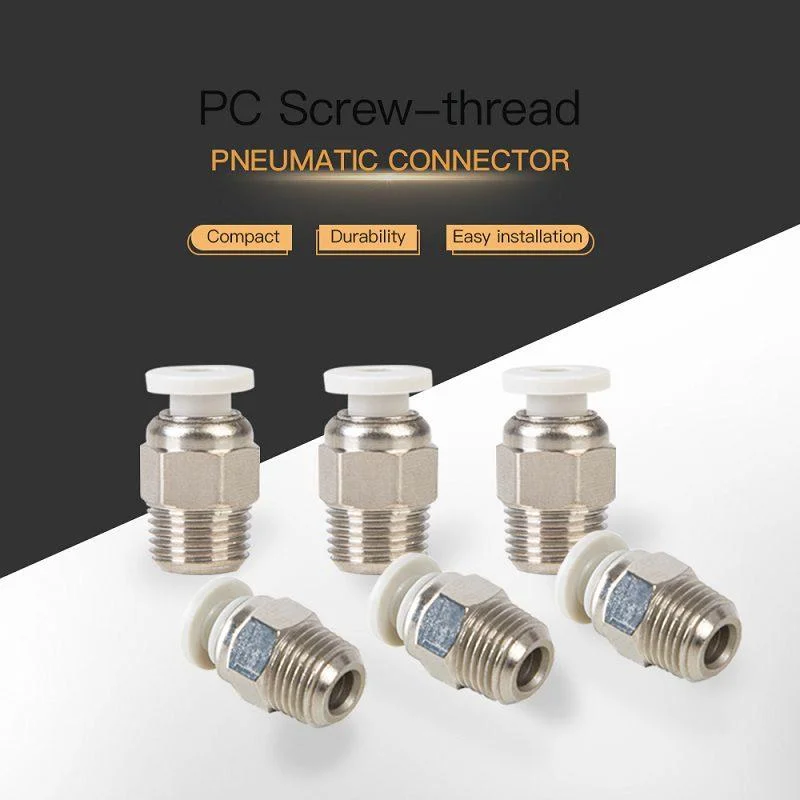

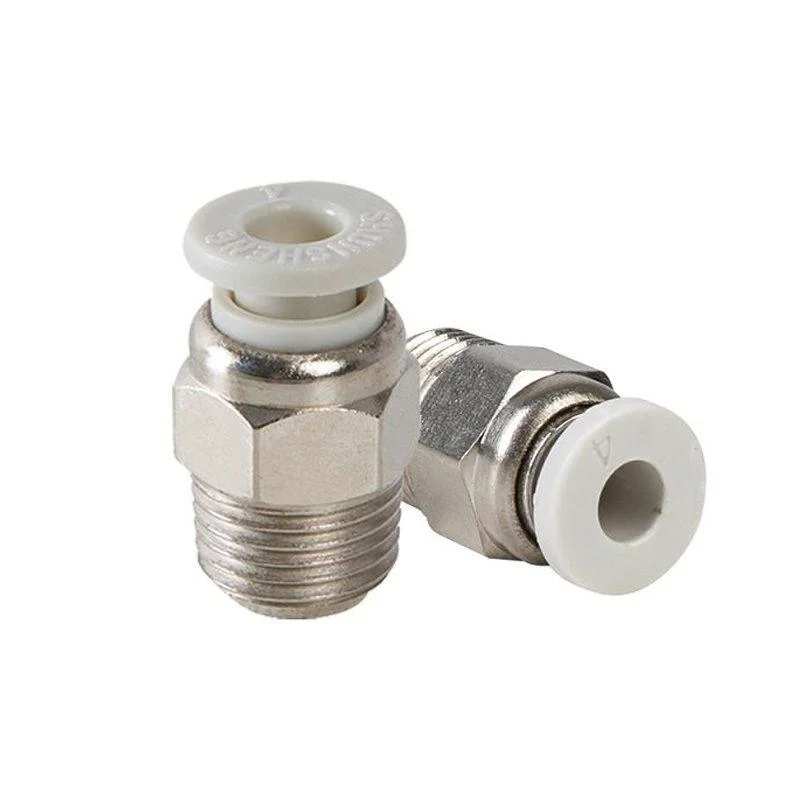

The Creality Large Pneumatic Joint, specifically the PC4-M10 connector, is a critical component for effectively managing the PTFE tubing within your 3D printer’s Bowden extrusion system. This connector is engineered to provide a robust and secure anchor point for 4mm PTFE tubing, commonly found between the extruder and the hotend. Its primary function is to maintain a stable and consistent filament path, which is crucial for preventing filament run-out, kinks, or disconnections that can lead to print failures.

Replacing or upgrading this joint can significantly improve print reliability, especially if your current connector shows signs of wear, such as loose tubing grip or difficult filament loading. A worn joint can introduce play into the filament path, causing inconsistent extrusion, stringing, or even complete print stoppage. This high-quality replacement ensures a tight, self-locking grip on the PTFE tube, minimizing movement and maintaining optimal filament delivery to the hotend.

Designed for ease of use, the connector features an M10 thread for straightforward installation into compatible printer components. The elliptical release ring allows for quick, tool-free insertion and removal of the PTFE tubing, making maintenance and hotend swaps more convenient for makers and technicians. It is widely compatible with many popular Creality 3D printers, including various Ender and CR series models.
