Creality Hotbed Control Module

Description

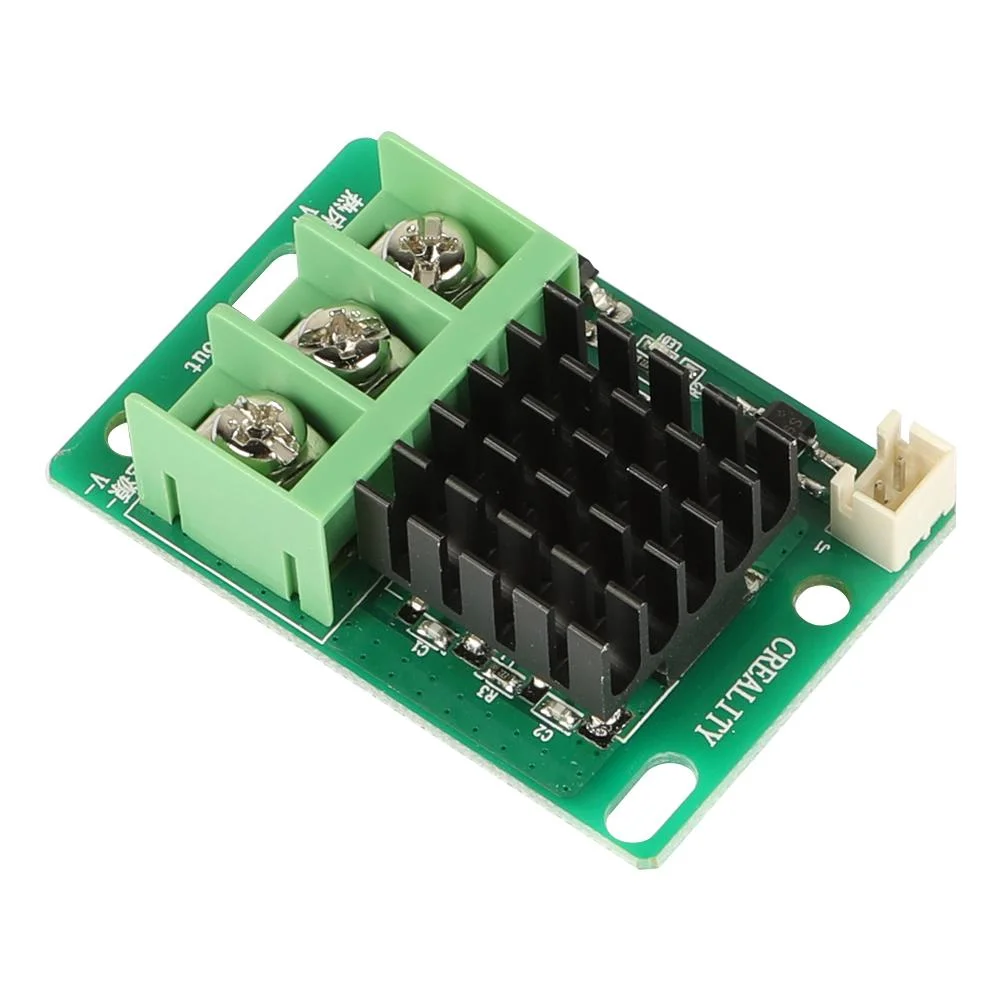

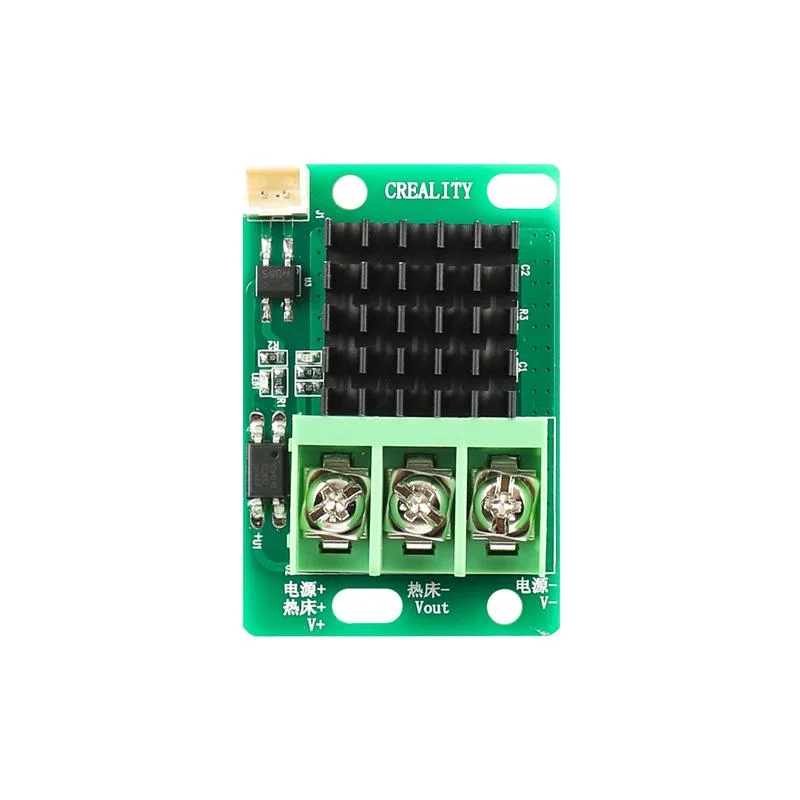

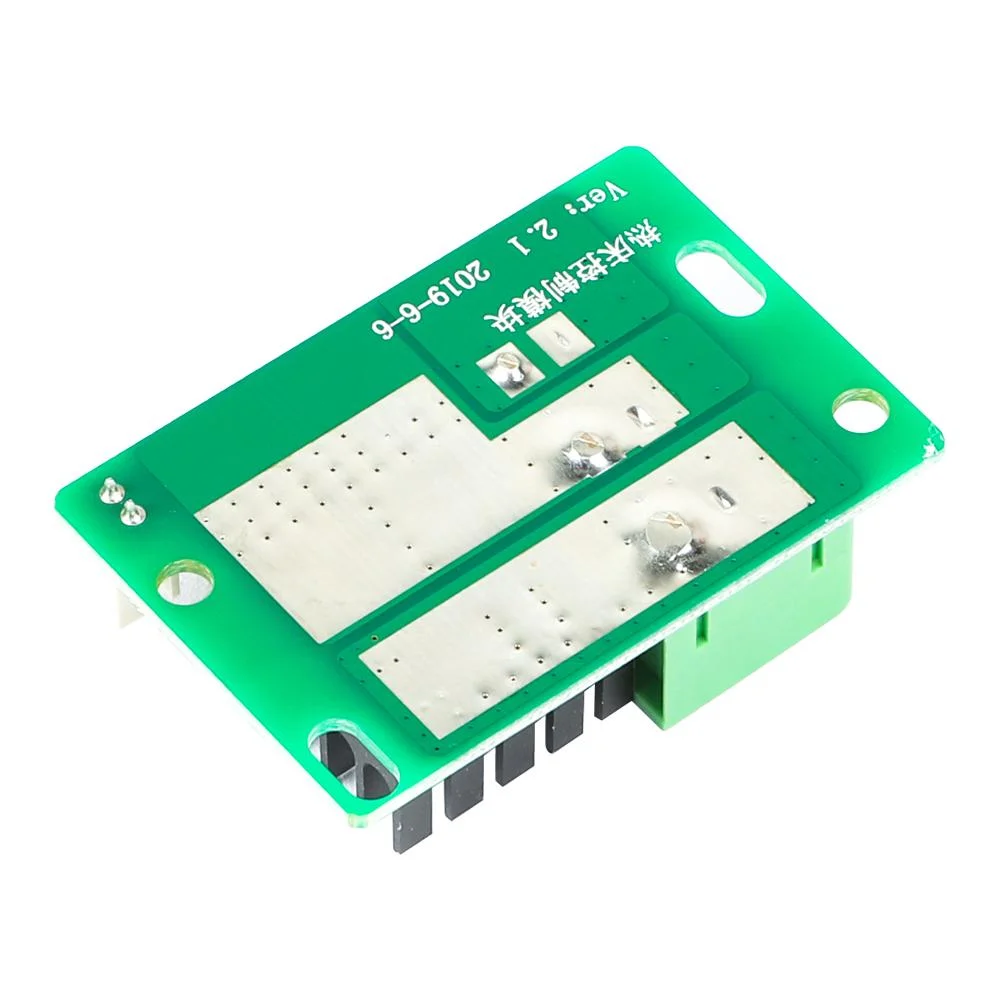

This Creality Hotbed Control Module serves as an original equipment replacement, crucial for the precise regulation of your 3D printer’s heated build plate. Functioning as a relay, it diligently monitors and controls the hotbed’s temperature, sending the necessary electrical pulses to initiate heating and maintain the desired thermal set point. An integrated heatsink efficiently dissipates excess heat, ensuring the module operates within safe parameters and extends its operational lifespan.

Users typically replace this module to restore optimal hotbed performance, resolve temperature instability issues, or upgrade an existing setup for improved reliability. It is engineered for compatibility with Creality CR-10, CR-10S, CR-10 Mini, CR-10 Max, CR-10S Pro V2, CR-M4, and Ender-5 Plus printers. The module is designed to power heating tables ranging from 300 W to 850 W and requires a DC input voltage of 12 V to 24 V. Adherence to correct polarity and avoiding voltages exceeding 24 V is critical to prevent permanent damage to the component.
