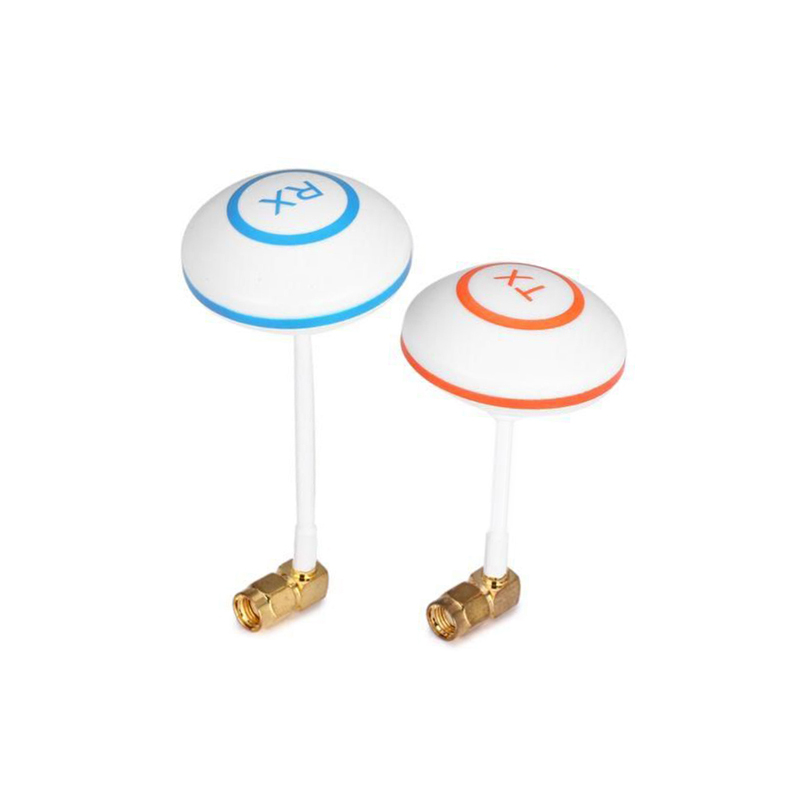

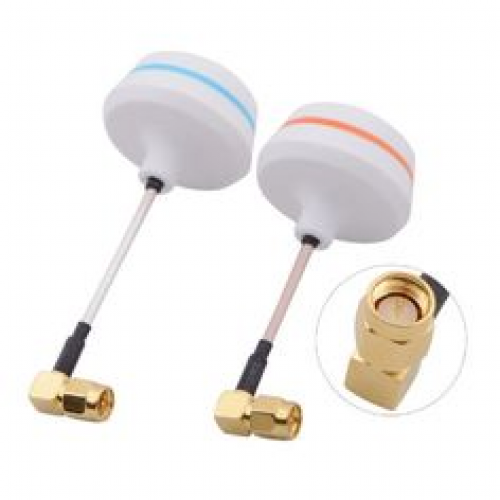

Cloud Spirit 5.8GHz 3dBi FPV TX RX Antenna Pair (SMA-Male Plug)

RHCP antennas significantly reduce multipath interference and signal fading caused by reflections, which is common when flying near trees or structures. They also maintain a consistent signal link even when the drone's orientation changes, providing a more stable and reliable video feed compared to linear polarized antennas.

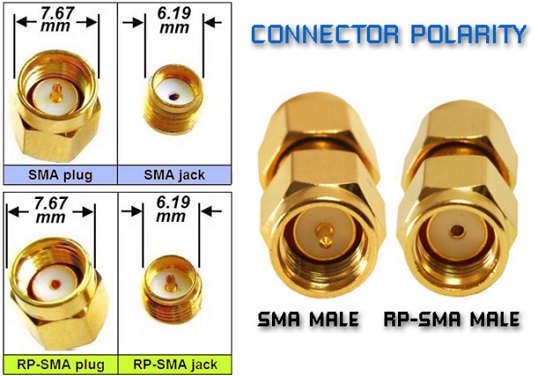

Yes, these antennas are designed for the 5.8GHz ISM band used by most analog FPV systems. The standard SMA-Male connector is directly compatible with the female SMA ports found on the vast majority of video transmitters (VTX) and receivers (VRX or goggles). Always ensure your equipment uses the same connector type.

An SWR below 1.5, as specified for these antennas, indicates excellent impedance matching between the antenna and your transmitter/receiver. A low SWR means most of the RF power is being radiated effectively as a signal, rather than being reflected back into the electronics, which improves transmission efficiency and protects your equipment.

Yes. The antenna stems are designed to be flexible, allowing you to bend and position them for optimal orientation and to fit within the constraints of your drone frame. This helps protect the antennas from direct impacts and can improve signal coverage by positioning them away from carbon fiber or battery packs.
